HoldRite 117-6LL Description

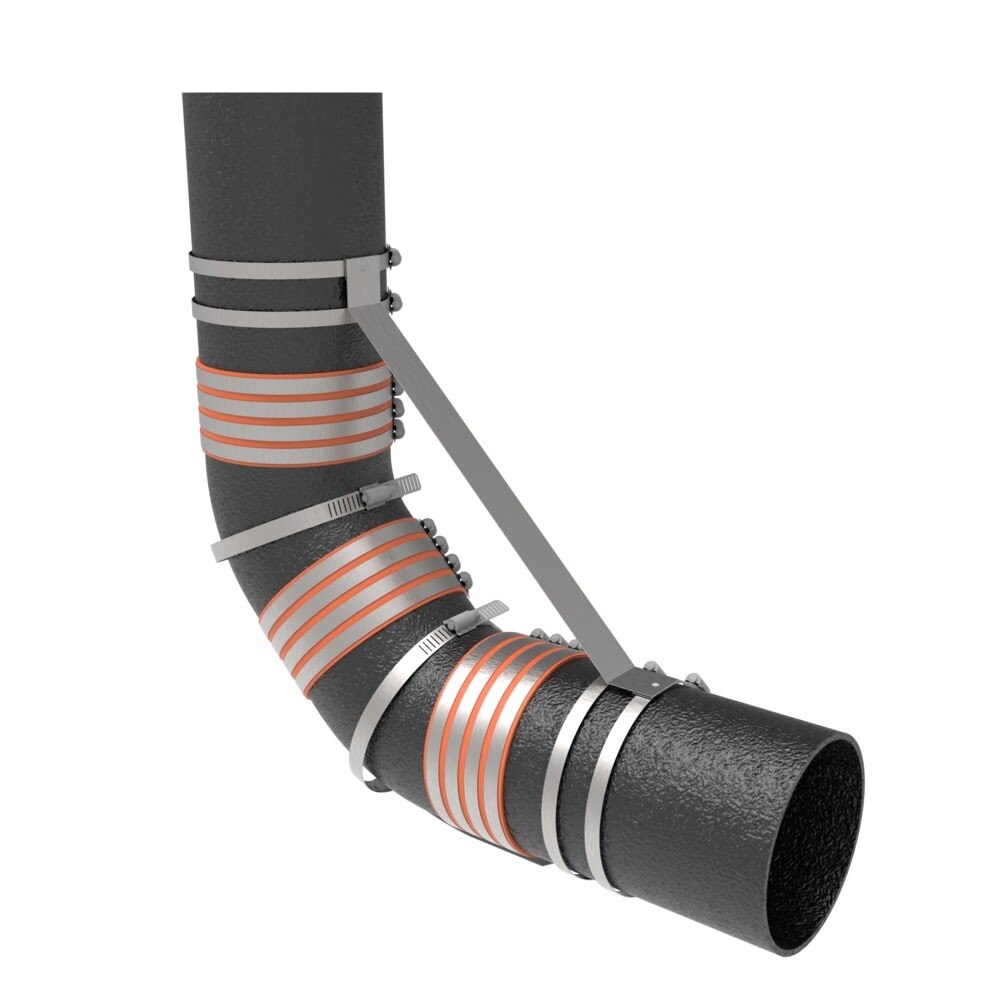

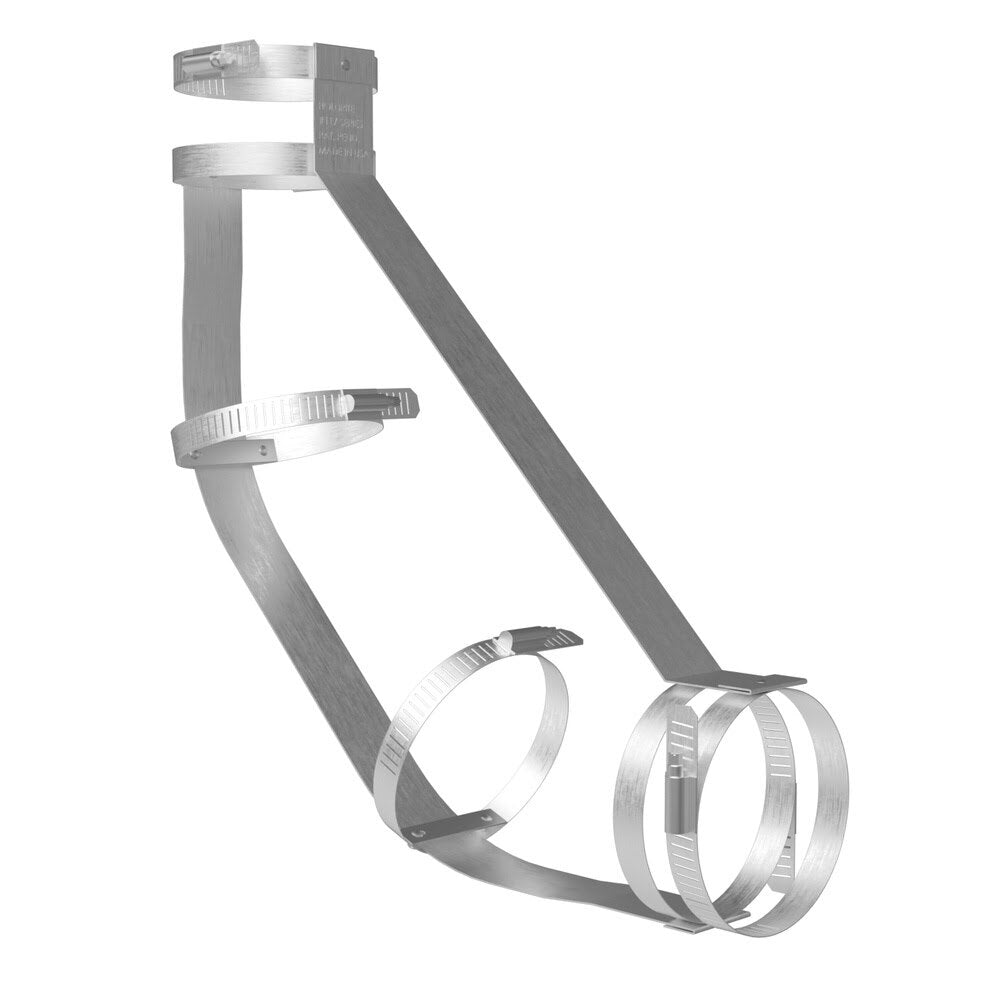

The HoldRite 117-6LL is a 6 in. LL Series double 45 Degree no-hub fitting restraint designed to reinforce no-hub cast iron installations. Built with a 24 ga. CRS galvanized steel strap and stainless steel bands, it retains two 45 Degree bends onto adjoining piping. When installed correctly and tightened to a minimum of 60 in/lbs, it achieves a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-6LL Includes
- (1) 6 in. LL Series Double 45 Degree No-Hub Fitting Restraint
HoldRite 117-6LL Features
- Designed to reinforce no-hub cast iron installations
- Retains two 45 Degree 1/8 bends onto adjoining piping
- 24 ga. CRS galvanized steel strap for durable support
- Stainless steel body, band, and screw components
- Minimum band torque requirement of 60 in/lbs
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18, 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-6LL Specifications
| Series | 117-LL Series |
| Nominal Size | 6 in. |
| Product Type | Double 45 Degree no-hub fitting restraint |
| Strap Material | 24 ga. CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Each Length (in) | 16 |
| Each Width (in) | 10 |
| Each Height (in) | 0.629 |
| Each Shipping Weight (lb) | 1.95 |
Toolup Part # :
882593
