HoldRite 117-6LS Description

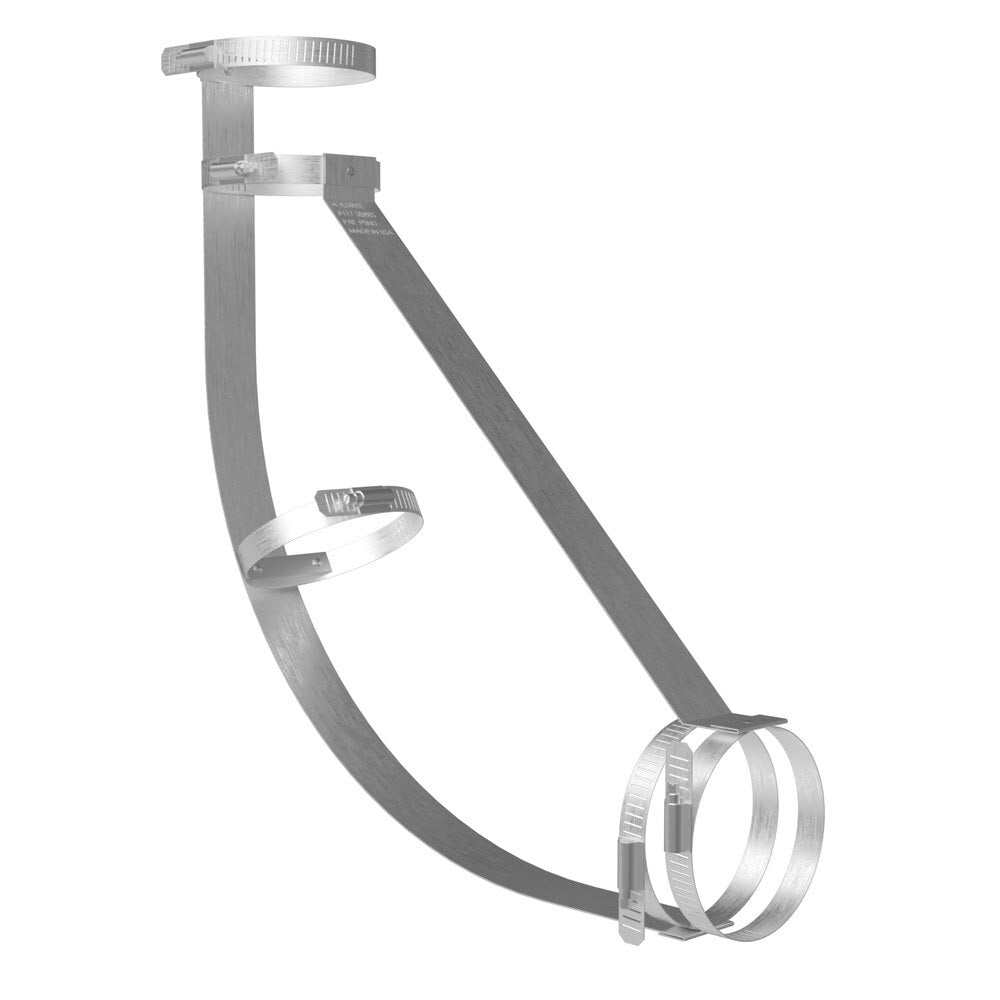

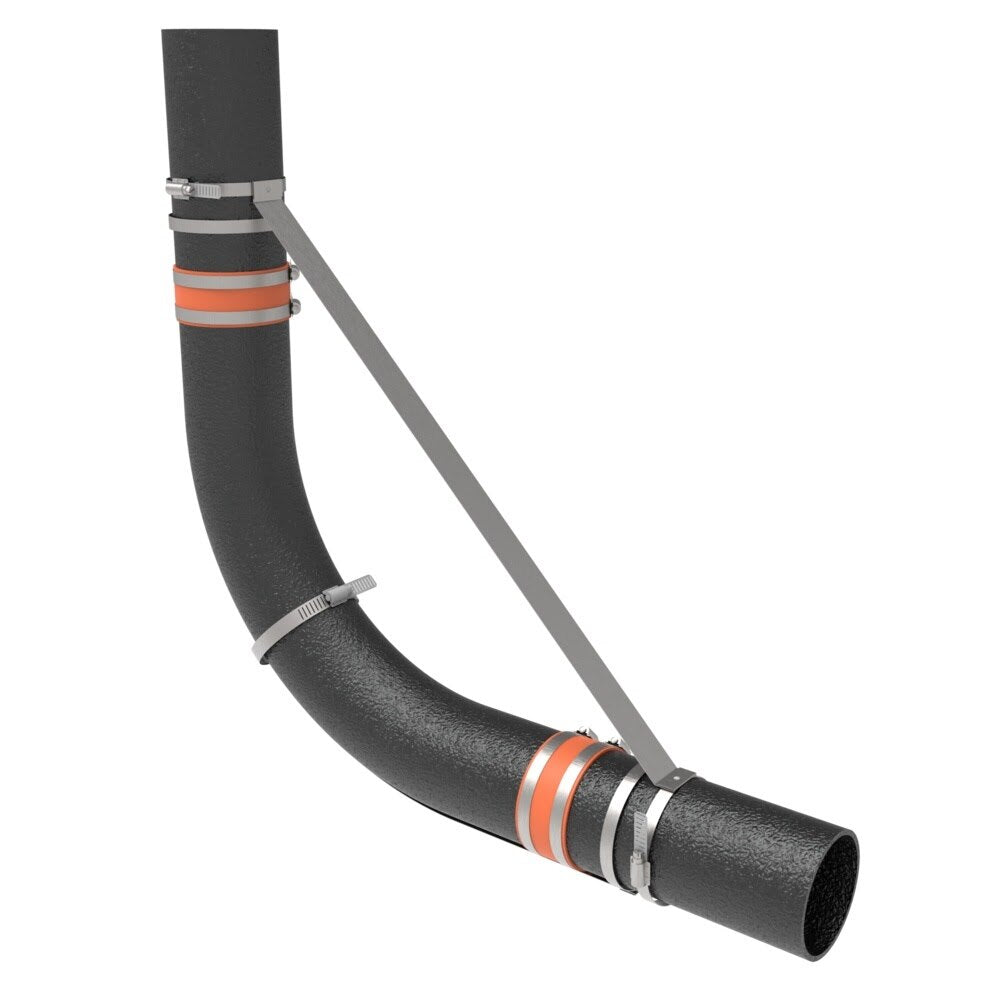

The HoldRite 117-6LS is a 6 in. no-hub long sweep restraint designed to reinforce cast iron DWV installations at 90 Degree changes of direction. Built with a 24 gauge galvanized steel strap and stainless steel bands, it secures the elbow to adjoining piping and requires a minimum band torque of 60 in/lbs. When installed correctly, it achieves a safe thrust pressure rating equal to 50 ft head of water.
HoldRite 117-6LS Includes
- (1) 6 in. No-Hub Long Sweep 90 Degree Bend Restraint
HoldRite 117-6LS Features
- Designed for 6 in. no-hub cast iron long sweep 90 Degree fittings
- Reinforces changes of direction in DWV piping systems
- 24 gauge cold rolled galvanized steel strap construction
- Stainless steel body, band, and screw components
- Bands require a minimum torque of 60 in/lbs
- Achieves a safe thrust pressure rating equal to 50 ft head of water when installed correctly
- Compatible with installation guidance for CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Patent pending design
HoldRite 117-6LS Specifications
| Brand | HoldRite |
| Series | 117-LS |
| SKU | 117-6LS |
| Size | 6 in. |
| Product Type | No-Hub Long Sweep Restraint |
| Application | 90 Degree long sweep bend no-hub cast iron DWV installations |
| Strap Material | 24 ga cold rolled galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Pressure Rating | 50 ft head of water |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Product Length | 12.25 in. |
| Product Width | 16 in. |
| Product Height | 0.08 in. |
| Shipping Weight | 1.8 lb |
| Case Quantity | 12 |
