HoldRite 117-6x3CE Description

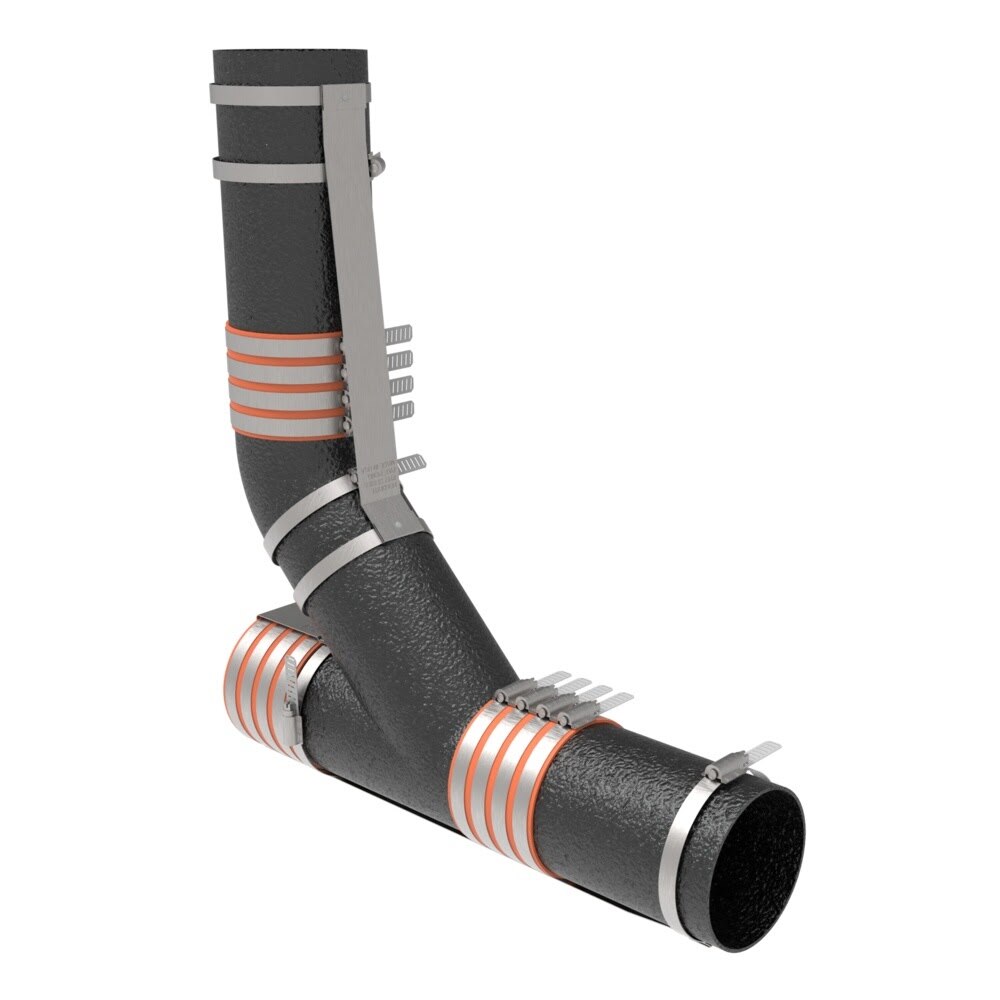

The HoldRite 117-6x3CE CE Series restraint is designed for 6 in. x 3 in. no-hub combo or wye fittings in end-of-line applications. This restraint kit helps retain the fitting onto adjoining piping when a blind plug or cleanout is installed, and it includes galvanized steel straps with stainless steel band clamps for durable performance.
HoldRite 117-6x3CE Includes

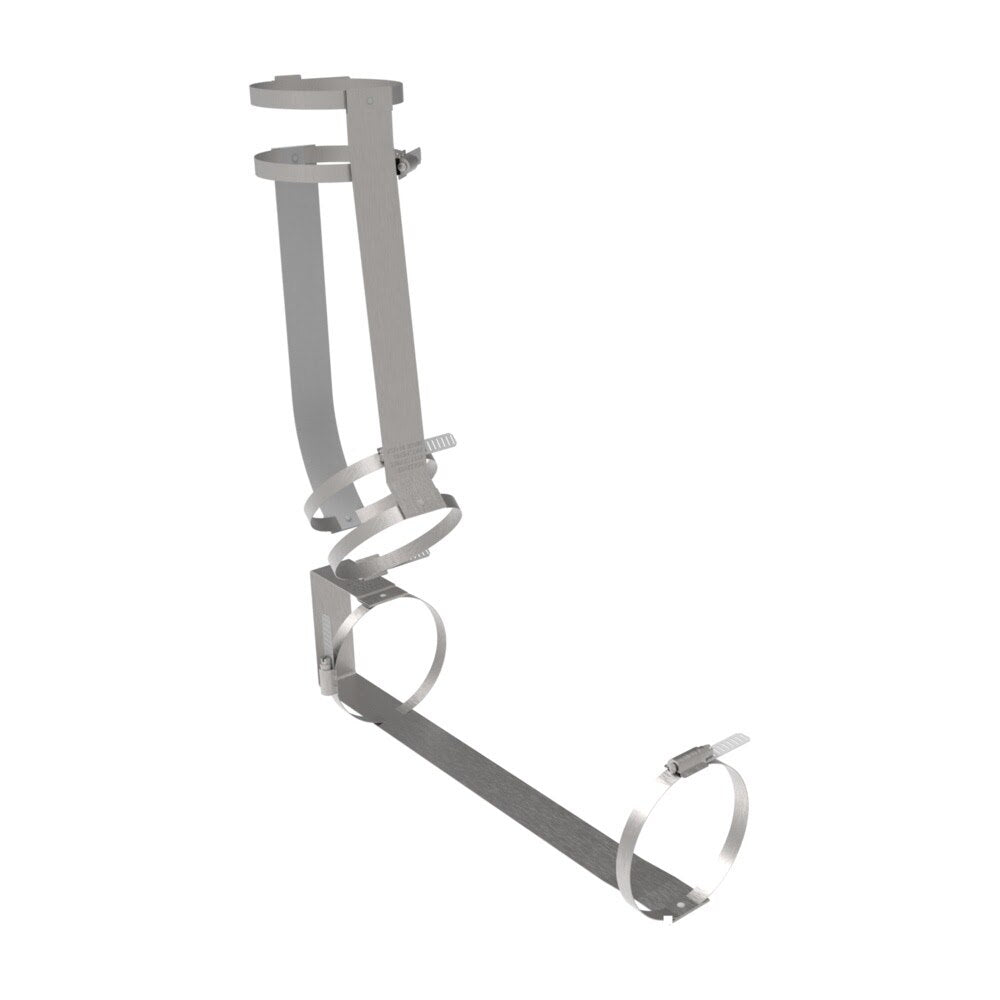

- (1) 6 in. x 3 in. CE Series End of Line No Hub Restraint
- (1) Set of Galvanized Steel Straps
- (1) Set of Stainless Steel Band Clamps
HoldRite 117-6x3CE Features
- Designed for end-of-line no-hub combo or wye fitting restraint applications
- Fits 6 in. x 3 in. no-hub combo or wye configurations
- Retains the fitting onto adjoining piping when a blind plug or cleanout is installed
- Includes galvanized steel straps and stainless steel band clamps
- Stainless steel bands require a minimum torque of 60 in./lbs.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
HoldRite 117-6x3CE Specifications
| Brand | HoldRite |
| Series | 117-CE |
| Product Type | No-Hub Fitting Restraint |
| Configuration | Combo or Wye |
| Position | End of line |
| Size | 6 in. x 3 in. |
| Application | Blind plug or cleanout installations |
| Strap Material | Galvanized steel |
| Band Clamp Material | Stainless steel |
| Minimum Band Torque | 60 in./lbs. |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Product Length | 16 in. |
| Product Width | 10.5 in. |
| Product Height | 1.5 in. |
| Shipping Weight | 2.5 lb |
