HoldRite 117-6x3CM Description

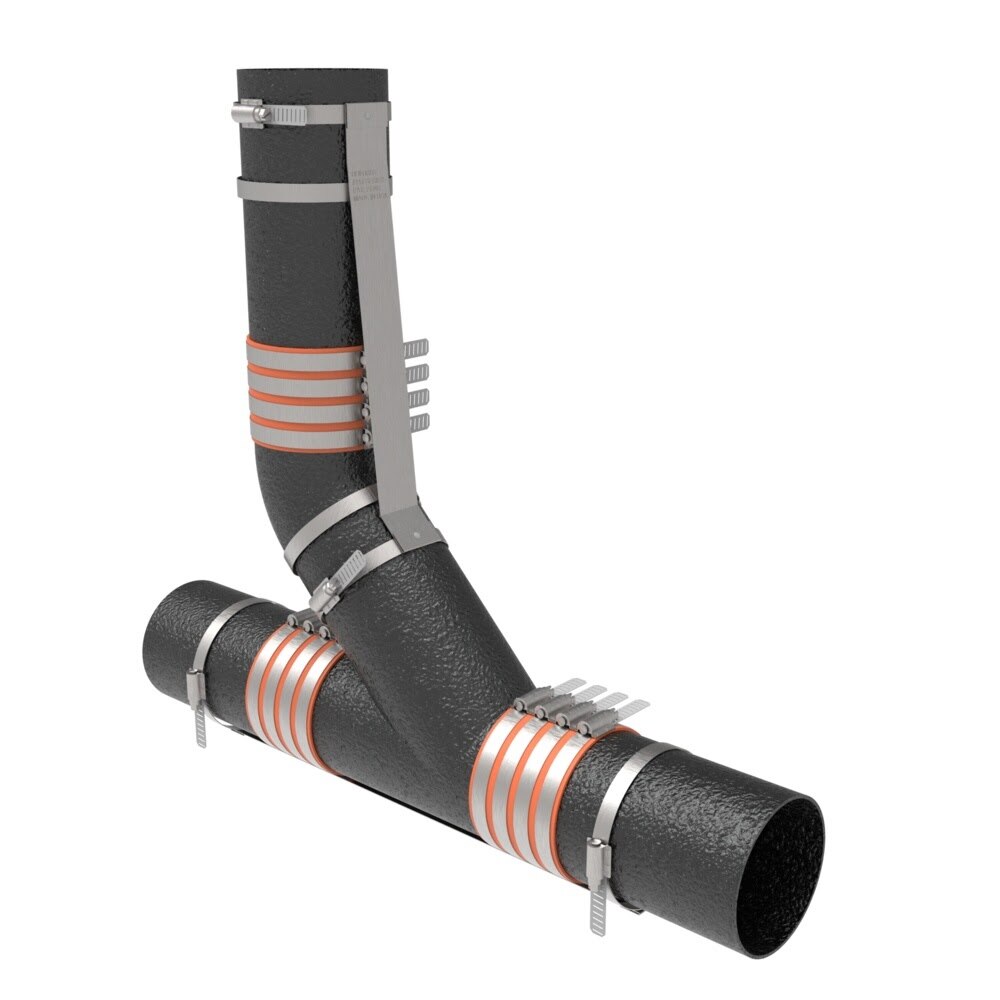

The HoldRite 117-6x3CM is a 6 in. x 3 in. CM Series no-hub combo mid-stream position restraint designed to reinforce no-hub cast iron installations. This kit combines a wye and eighth bend fitting restraint and includes galvanized steel straps with stainless steel band clamps for secure installation.
HoldRite 117-6x3CM Includes
- (1) 6 in. x 3 in. CM Series combo mid-stream position restraint

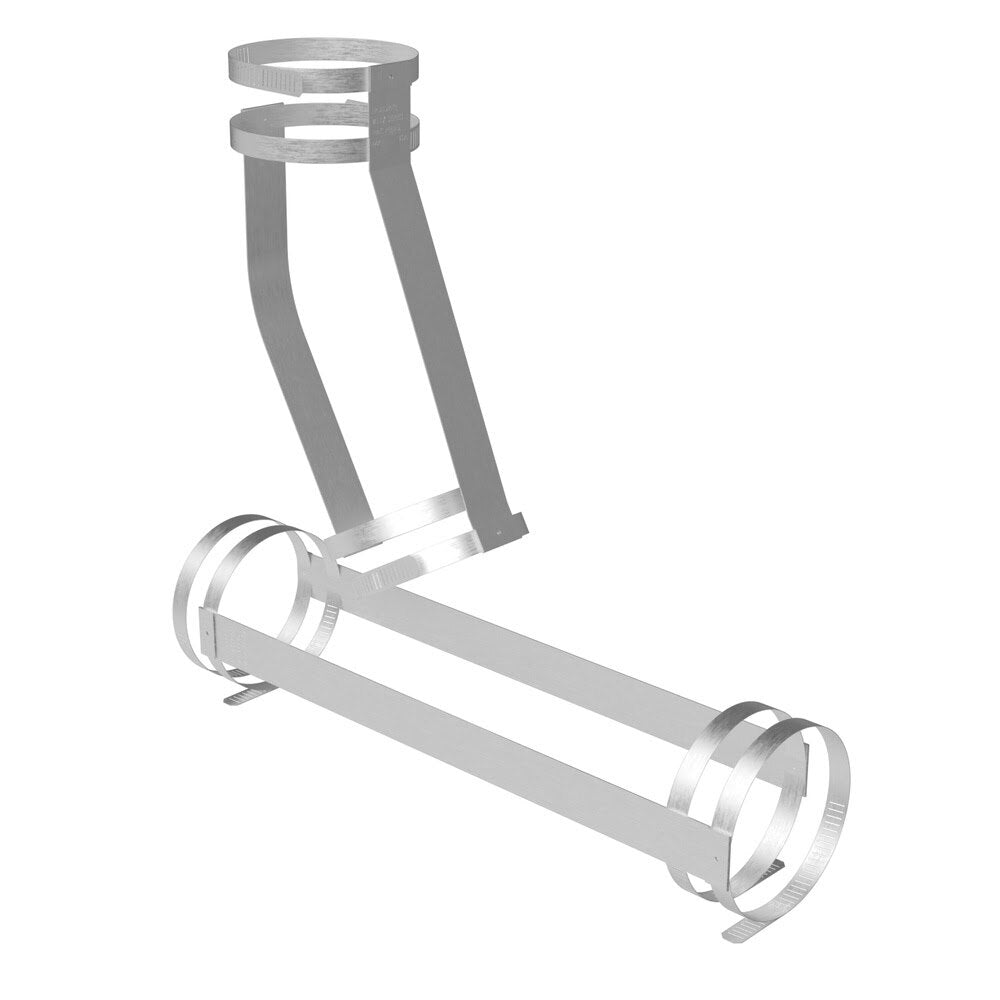

- (1) Galvanized steel strap set
- (1) Stainless steel band clamp set
HoldRite 117-6x3CM Features
- Designed to reinforce no-hub cast iron installations at mid-stream positions
- Combination restraint for wye and eighth bend fittings
- Galvanized 24GA CRS steel strap construction
- Stainless steel body, band, and screw
- Minimum band torque of 60 in./lbs.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Built in accordance with CISPI Designation 310-11 and the 2006 CISPI Installation Handbook
HoldRite 117-6x3CM Specifications
| Series | 117-CM |
| Pipe Size | 6 in. x 3 in. |
| Product Type | Combo Mid-Stream Position Restraint |
| Application | No-hub cast iron installation reinforcement |
| Band Material | Stainless steel body, band & screw |
| Strap Material | 24GA, CRS, galvanized |
| Minimum Band Torque | 60 in./lbs. |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Product Length (in) | 22.75 |
| Product Width (in) | 12 |
| Product Height (in) | 10.5 |
| Shipping Weight (lb) | 2.35 |
| Case Quantity | 6 |
| Each UPC | 671119803679 |
Toolup Part # :
882487
