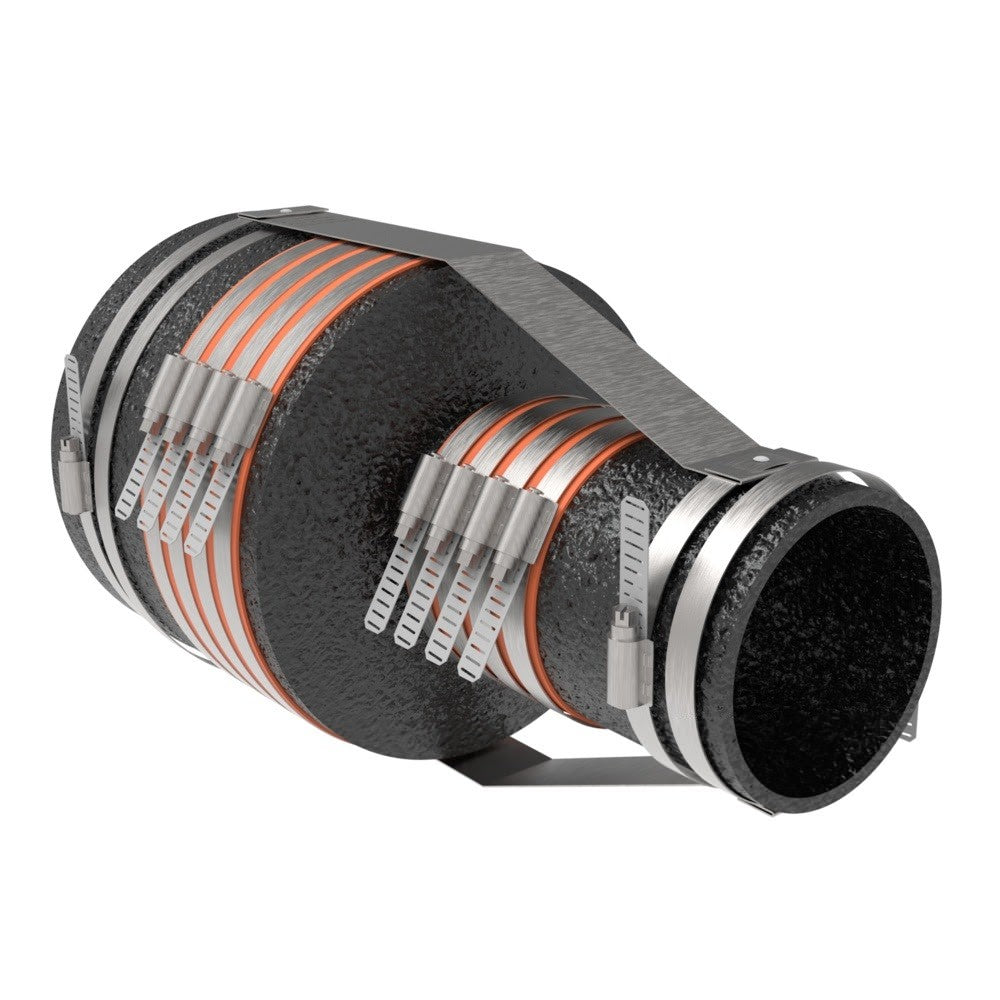

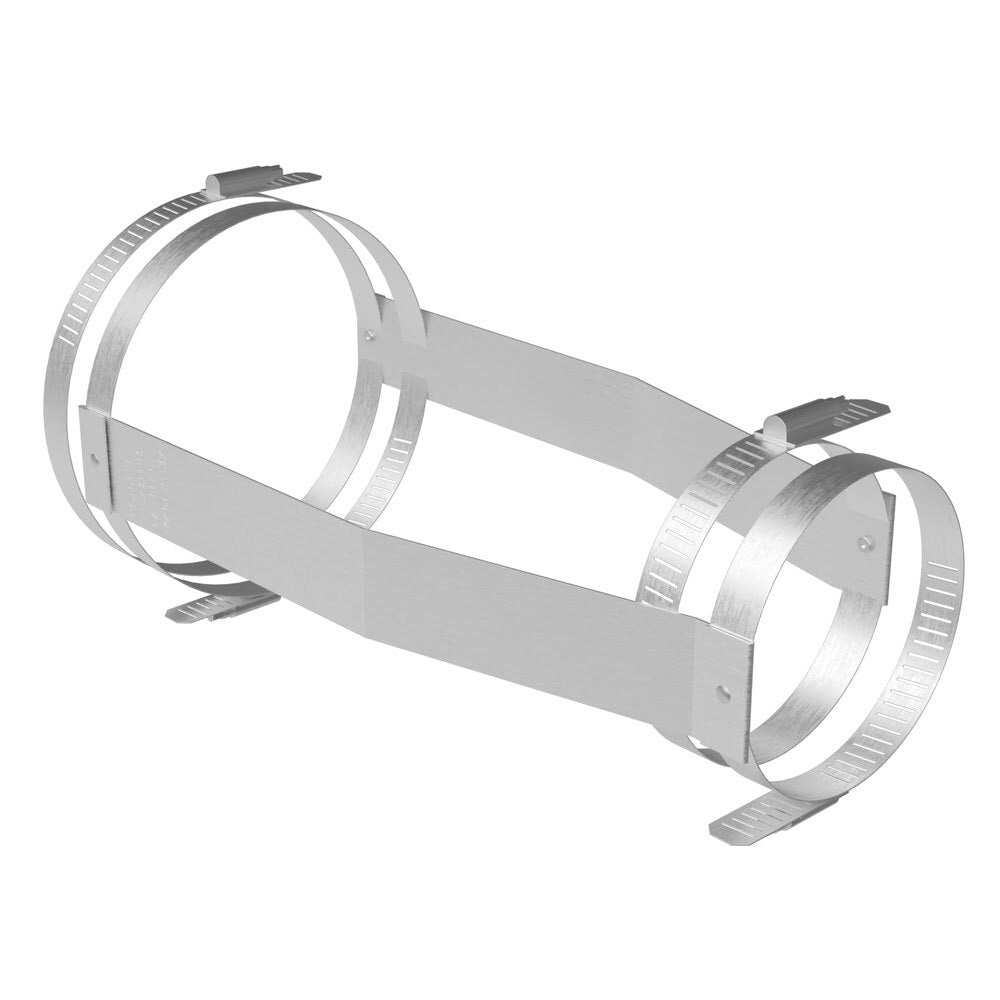

HoldRite 117-6x3R Description
The HoldRite 117-6x3R is a 6 in x 3 in no-hub short reducer restraint designed to reinforce no-hub cast iron fitting reducer installations. It features a 24 gauge galvanized steel strap with stainless steel bands to retain the reducer fitting on adjoining piping, and the bands require a minimum torque of 60 in/lbs for proper installation.
HoldRite 117-6x3R Includes
- (1) 6 in x 3 in No-Hub Short Reducer Restraint
HoldRite 117-6x3R Features
- Designed to reinforce no-hub cast iron fitting reducer installations
- Retains reducer fittings onto adjoining piping
- 24 gauge cold rolled galvanized steel strap construction
- Stainless steel body, band, and screw components
- Bands require a minimum torque of 60 in/lbs
- Achieves a safe thrust pressure rating equal to 50 ft head of water pressure when installed correctly
- Complies with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-6x3R Specifications
| Brand | HoldRite |
| Series | 117-R Series |
| Product Type | No-Hub Short Reducer Fitting Restraint |
| Size | 6 in x 3 in |
| Application | No-hub cast iron fitting reducer installations |
| Strap Material | 24 gauge CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Safe Thrust Pressure Rating | 50 ft head of water pressure |
| Compliance | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Product Length | 12.75 in |
| Product Width | 9.5 in |
| Product Height | 0.095 in |
| Product Weight | 0.9 lb |
| Case Quantity | 12 |
