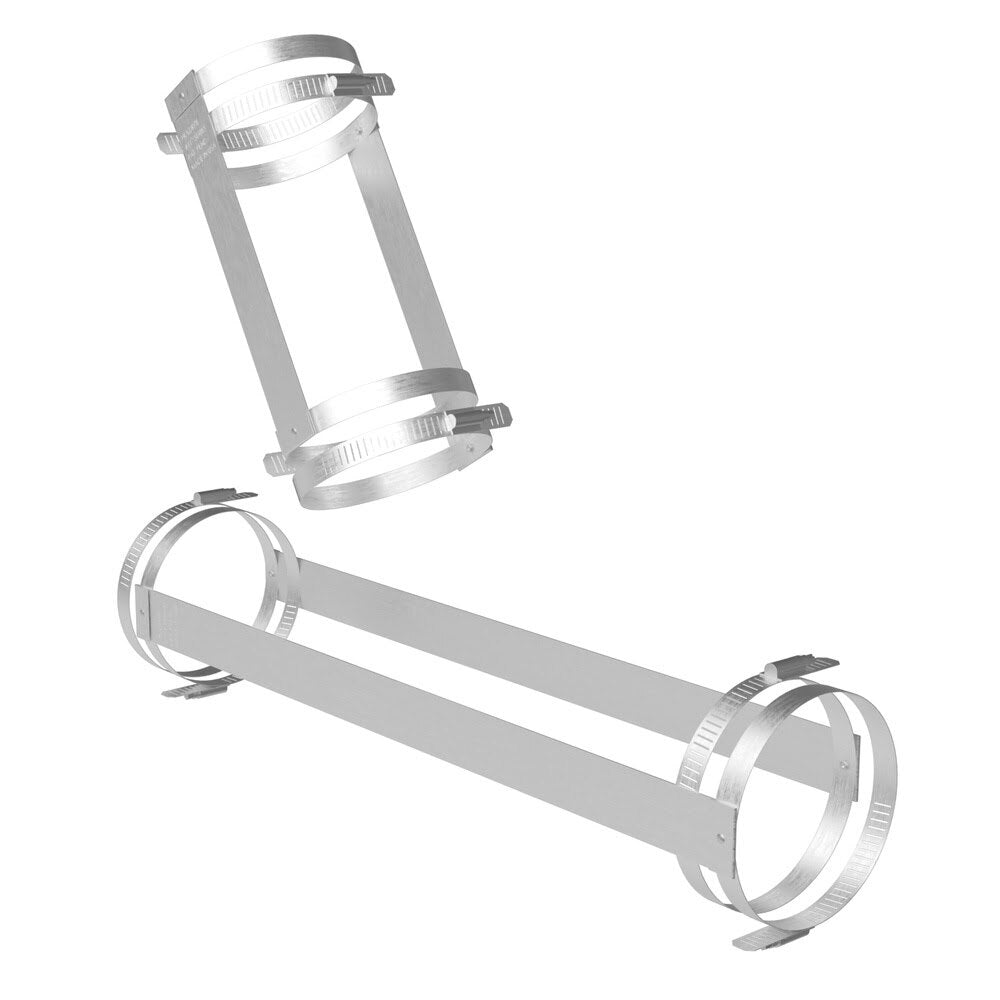

HoldRite 117-6X3W Description

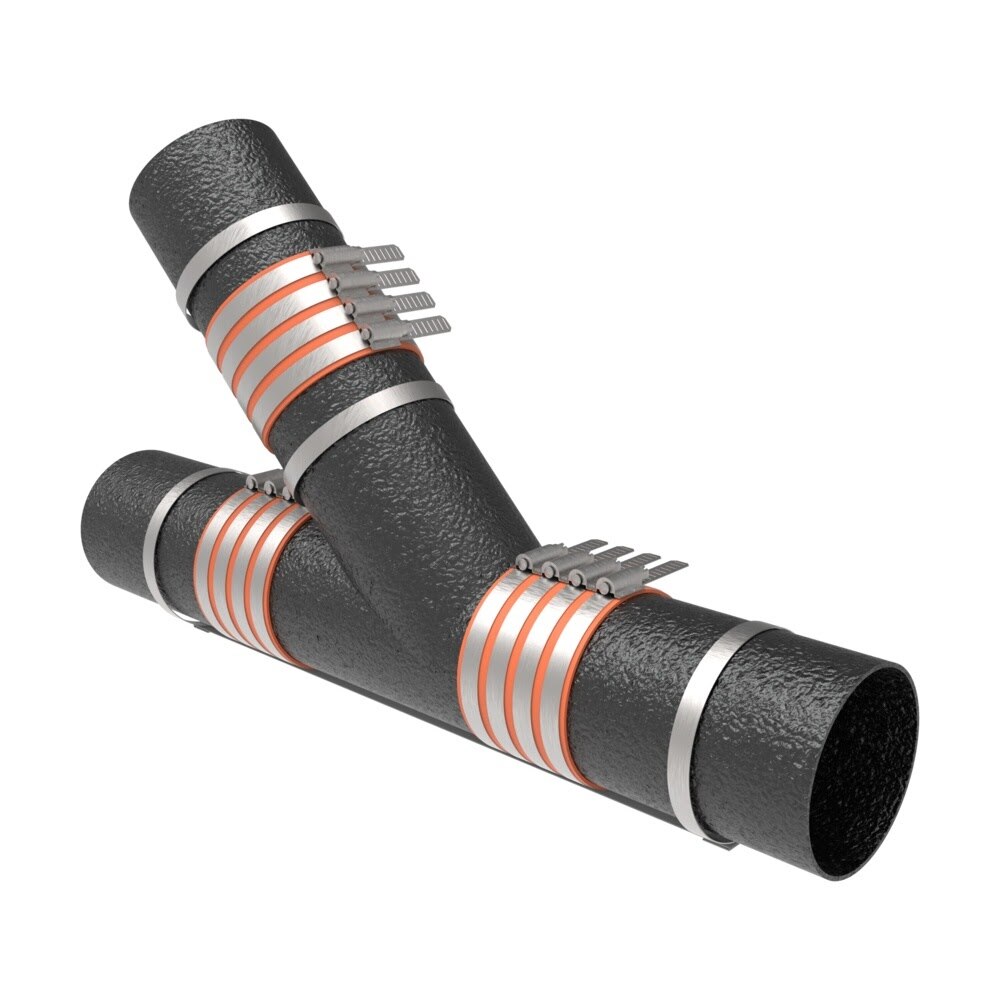

The HoldRite 117-6X3W 6 in. x 3 in. no-hub wye or sanitary tee restraint is designed to reinforce no-hub cast iron installations in mid-span runs. Part of the 117-W Series, it retains the fitting onto adjoining piping and uses galvanized steel straps with stainless steel bands and screws. When installed correctly per instructions, it requires a minimum band torque of 60 in/lbs and achieves a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-6X3W Includes
- (1) 6 in. x 3 in. No-Hub Wye or Sanitary Tee Restraint
HoldRite 117-6X3W Features
- Designed to reinforce no-hub cast iron wye and sanitary tee installations
- Retains the fitting onto adjoining piping in mid-span runs
- Uses 24-gauge CRS galvanized steel straps with stainless steel bands and screws
- Requires a minimum band torque of 60 in/lbs
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when properly installed
- Designed for installation in accordance with CISPI 301-18, 310-18, and the 2006 CISPI Installation Handbook
HoldRite 117-6X3W Specifications
| Brand | HoldRite |
| Series | 117-W Series |
| Product Type | No-Hub Wye or Sanitary Tee Restraint |
| Size | 6 in. x 3 in. |
| Application | No-hub cast iron installations |
| Installation Location | Mid-span runs |
| Strap Material | 24GA CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Pressure Rating | Equal to 50 ft. head of water pressure when properly installed |
| Product Length (in) | 20.5 |
| Product Width (in) | 10 |
| Product Height (in) | 0.833 |
| Product Weight (lbs) | 1.983 |
| Case Quantity | 6 |
Toolup Part # :
882583
