HoldRite 117-6X4CE Description

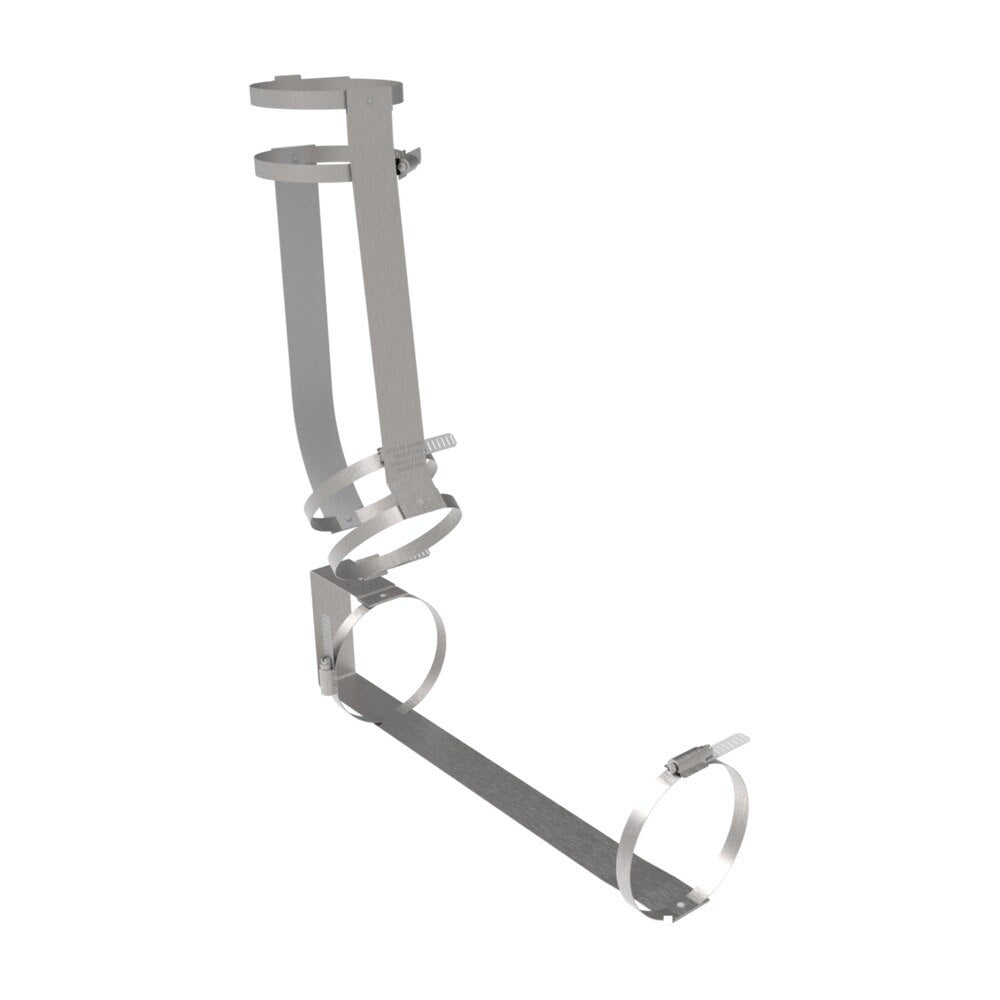

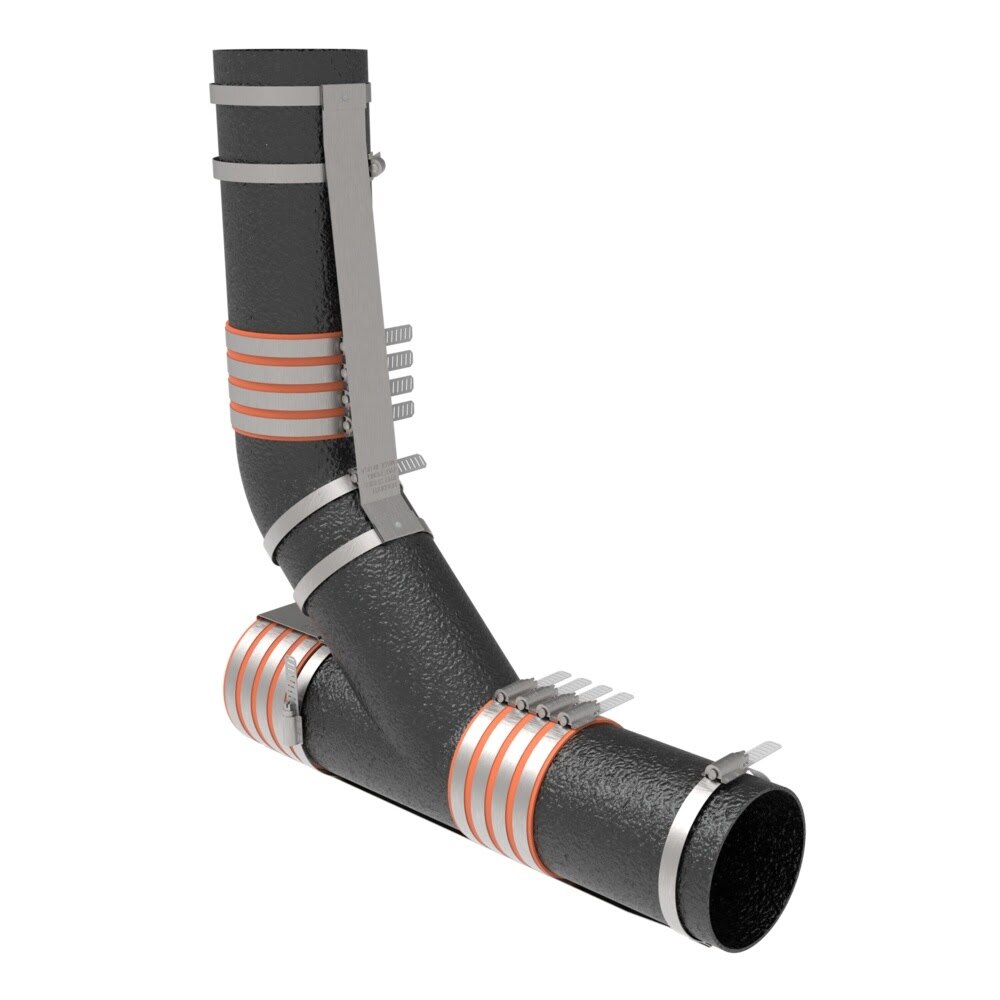

The HoldRite 117-6X4CE is a 6 x 4 in. no-hub combo or wye end-of-line position restraint designed to reinforce cast iron DWV no-hub installations. It helps retain the fitting onto adjoining piping when used at the end of the line with a blind plug or cleanout, and features stainless steel bands with galvanized steel strap components for secure performance.
HoldRite 117-6X4CE Includes
- (1) 6 x 4 in. No-Hub Combo or Wye End-of-Line Position Restraint
HoldRite 117-6X4CE Features
- Designed to reinforce no-hub cast iron DWV installations
- Retains combo or wye fittings onto adjoining piping at the end of the line
- For use when a blind plug or cleanout is installed
- Stainless steel body, band, and screw for corrosion-resistant performance
- 24 ga CRS galvanized steel strap construction
- Bands require a minimum torque of 60 in/lbs
- Achieves a safe thrust pressure rating equal to 50 ft head of water pressure when installed correctly
- Supports installation requirements referenced in CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-6X4CE Specifications
| Brand | HoldRite |
| Series | 117-CE Series |
| Product Type | No-Hub Fitting Restraint |
| Fitting Type | Combo or Wye |
| Position | End of line |
| Nominal Size | 6 x 4 in. |
| Application | Cast iron DWV no-hub installations |
| Material | Stainless steel body, band and screw |
| Strap Material | 24 ga CRS galvanized steel |
| Minimum Band Torque | 60 in/lbs |
| Safe Thrust Pressure Rating | 50 ft head of water pressure |
| Product Length (in) | 15.25 |
| Product Width (in) | 12 |
| Product Height (in) | 11.5 |
| Shipping Weight (lb) | 1.5 |
| Case Quantity | 6 |
