HoldRite 117-6x4CM Description

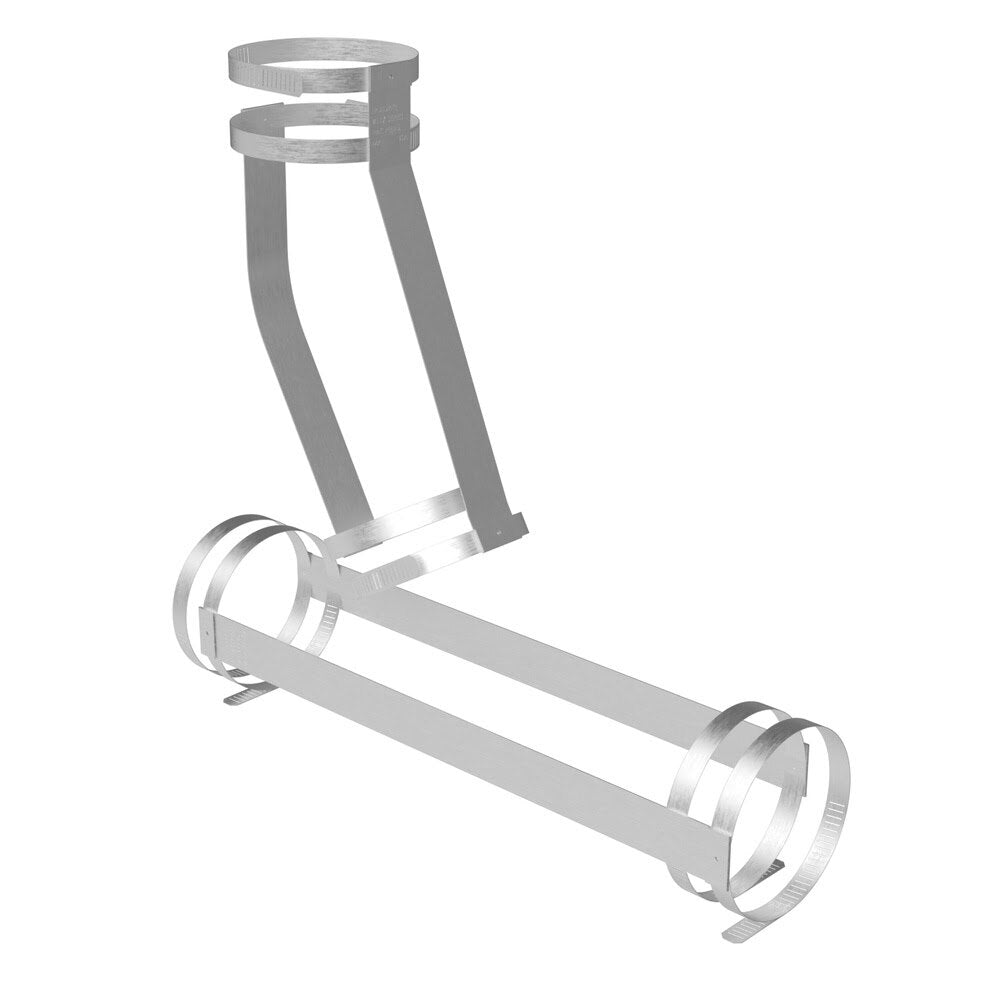

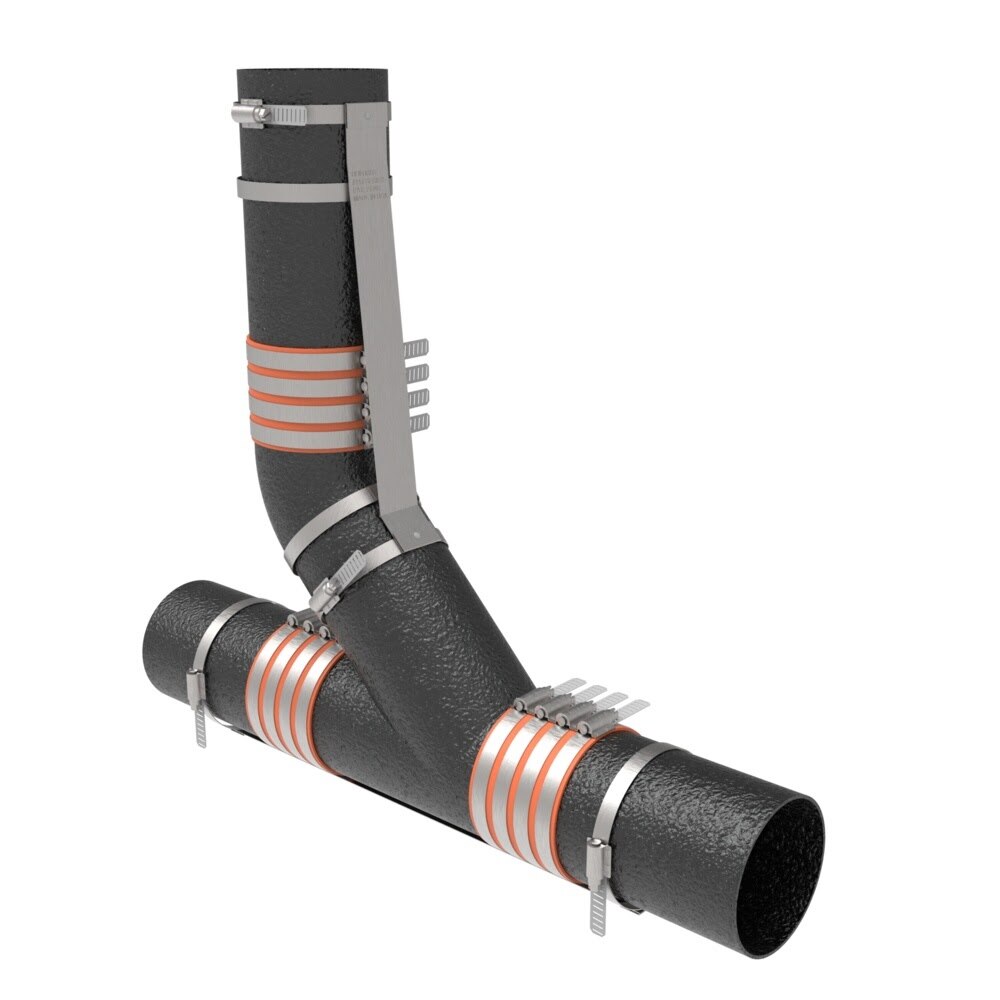

The HoldRite 117-6x4CM is a 6 in. x 4 in. no-hub combo mid-stream position restraint designed to reinforce no-hub cast iron DWV installations. This restraint combines wye and eight bend fitting support and includes galvanized steel straps with stainless steel band clamps for secure, code-aligned installation performance.
HoldRite 117-6x4CM Includes
- (1) 6 in. x 4 in. No-Hub Combo Mid-Stream Position Restraint
HoldRite 117-6x4CM Features
- Designed to reinforce no-hub cast iron DWV installations
- Combines a wye and eight bend fitting restraint in one mid-stream assembly
- Galvanized 24GA CRS straps provide durable support
- Stainless steel body, band, and screw help resist corrosion
- Minimum band torque is 60 in./lbs.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Thrust force resistant test data available on request
HoldRite 117-6x4CM Specifications
| Brand | HoldRite |
| Series | 117-CM |
| Product Type | No-Hub Combo Mid-Stream Position Restraint |
| Size | 6 in. x 4 in. |
| Application | No-hub cast iron installations |
| Strap Material | 24GA, CRS, galvanized |
| Band Material | Stainless steel body, band & screw |
| Minimum Band Torque | 60 in./lbs. |
| Thrust Pressure Rating | 50 ft. head of water pressure |
| Compliance | CISPI Designation 310-11 |
| Installation Reference | 2006 CISPI Installation Handbook |
| Each Shipping Weight | 2.443 lb |
| Case Quantity | 6 |
Toolup Part # :
882471
