HoldRite 117-6x4R Description

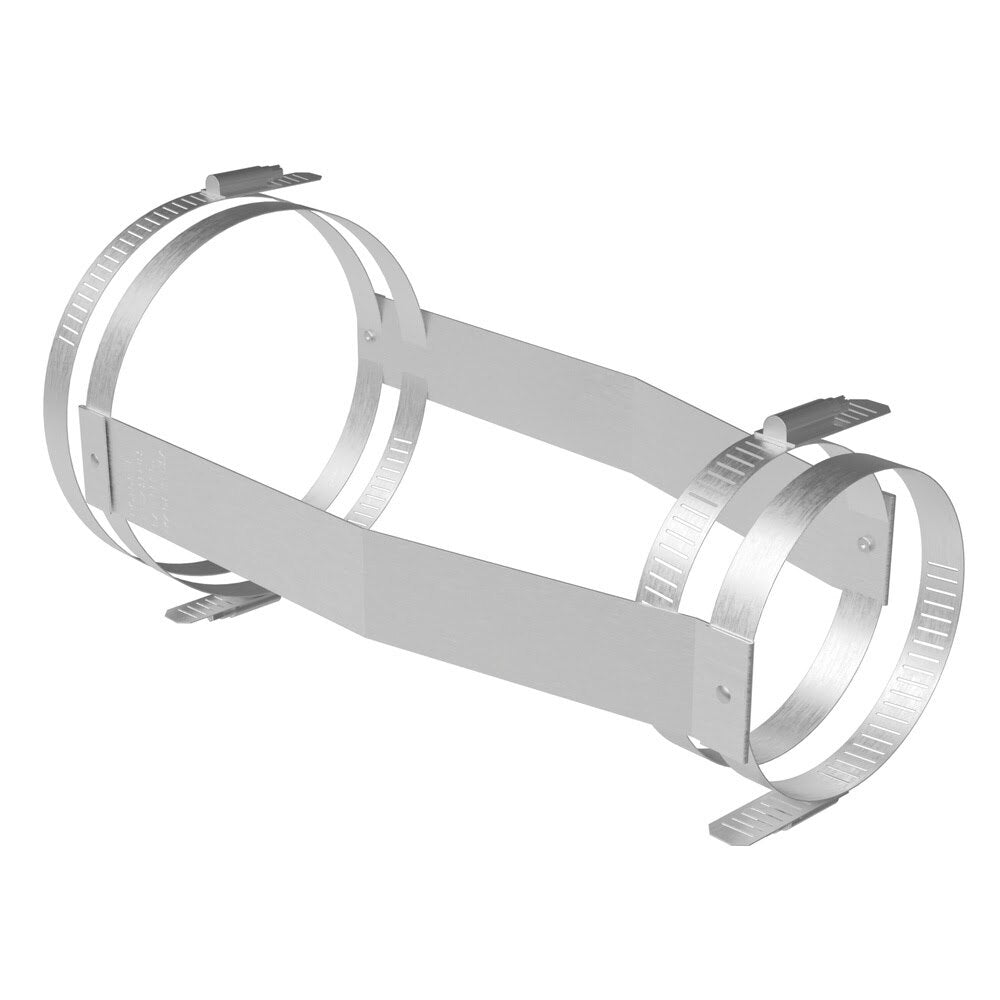

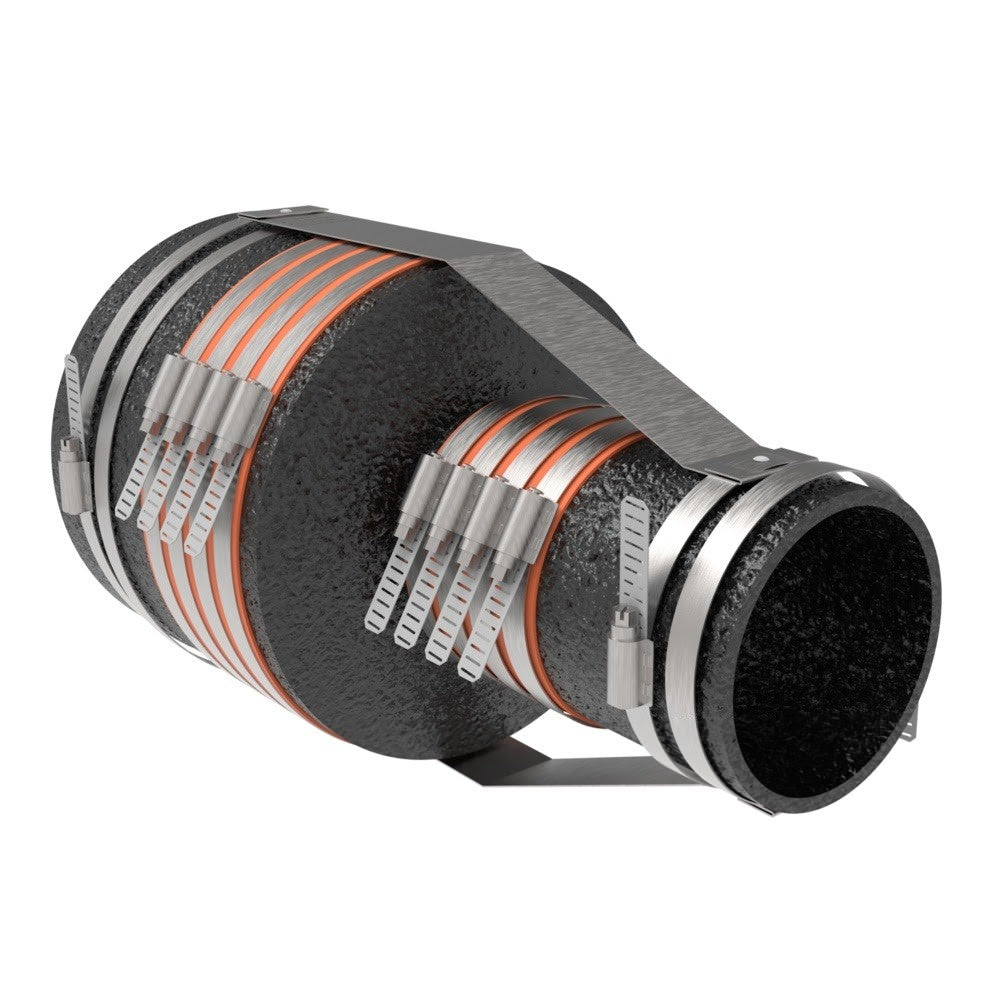

The HoldRite 117-R Series 6 in. x 4 in. no-hub short reducer restraint is designed to reinforce no-hub cast iron reducer fitting installations. Its galvanized steel strap and stainless steel bands help retain the reducer fitting to adjoining piping in accordance with CISPI installation standards.
HoldRite 117-6x4R Includes
- (1) 6 in. x 4 in. No-Hub Short Reducer Restraint Assembly
HoldRite 117-6x4R Features
- Designed to reinforce no-hub cast iron reducer fitting installations
- Fits 6 in. x 4 in. short reducer applications
- Galvanized steel strap construction
- Stainless steel body, bands, and screw
- Requires a minimum of 60 in./lbs. torque on bands
- Helps retain reducer fittings to adjoining piping
- Designed for use in accordance with CISPI 301-18 and 310-18
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Patent pending
- Thrust force restraint test data available upon request
HoldRite 117-6x4R Specifications
| Series | 117-R |
| Product Type | No-Hub Short Reducer Fitting Restraint |
| Size | 6 in. x 4 in. |
| Application | No-hub cast iron reducer fittings |
| Strap Material | 24 gauge CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in./lbs. |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Product Length (in) | 13 |
| Product Width (in) | 10 |
| Product Height (in) | 1.093 |
| Shipping Weight (lb) | 1.153 |
