HoldRite 117-6x4W Description

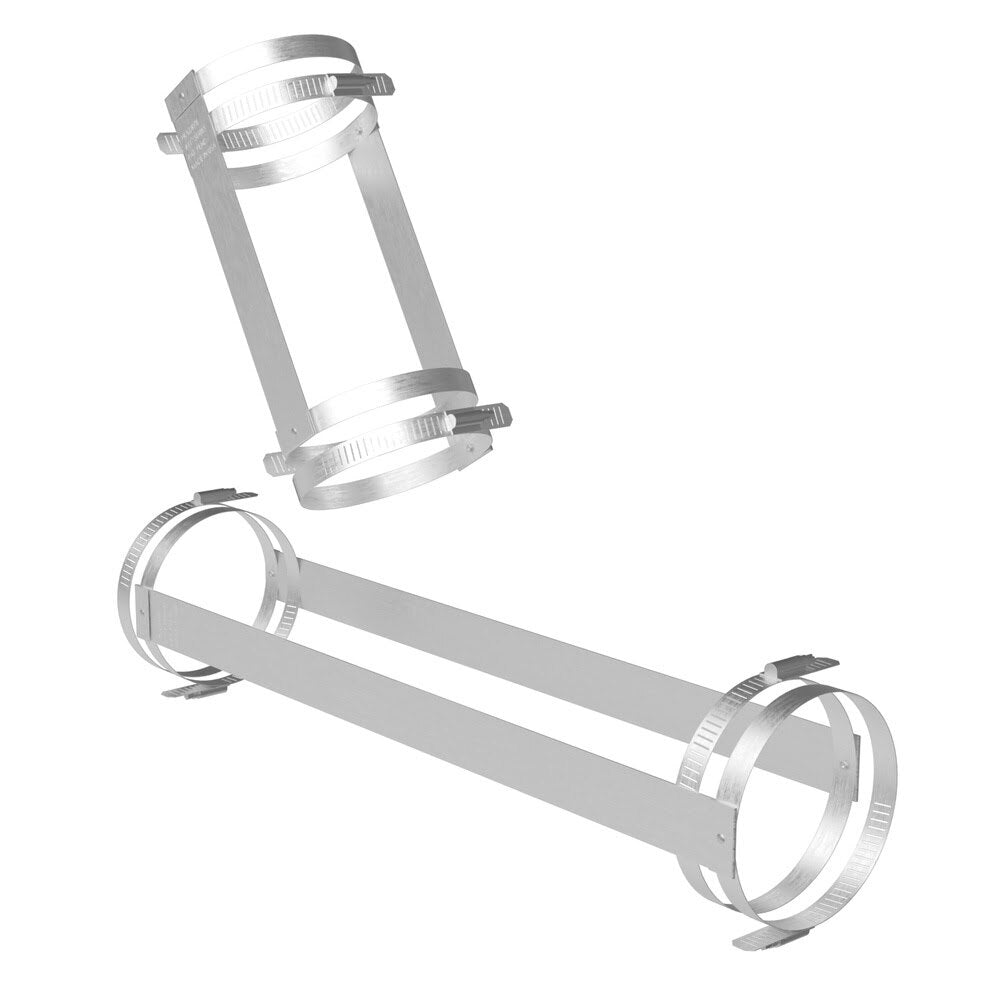

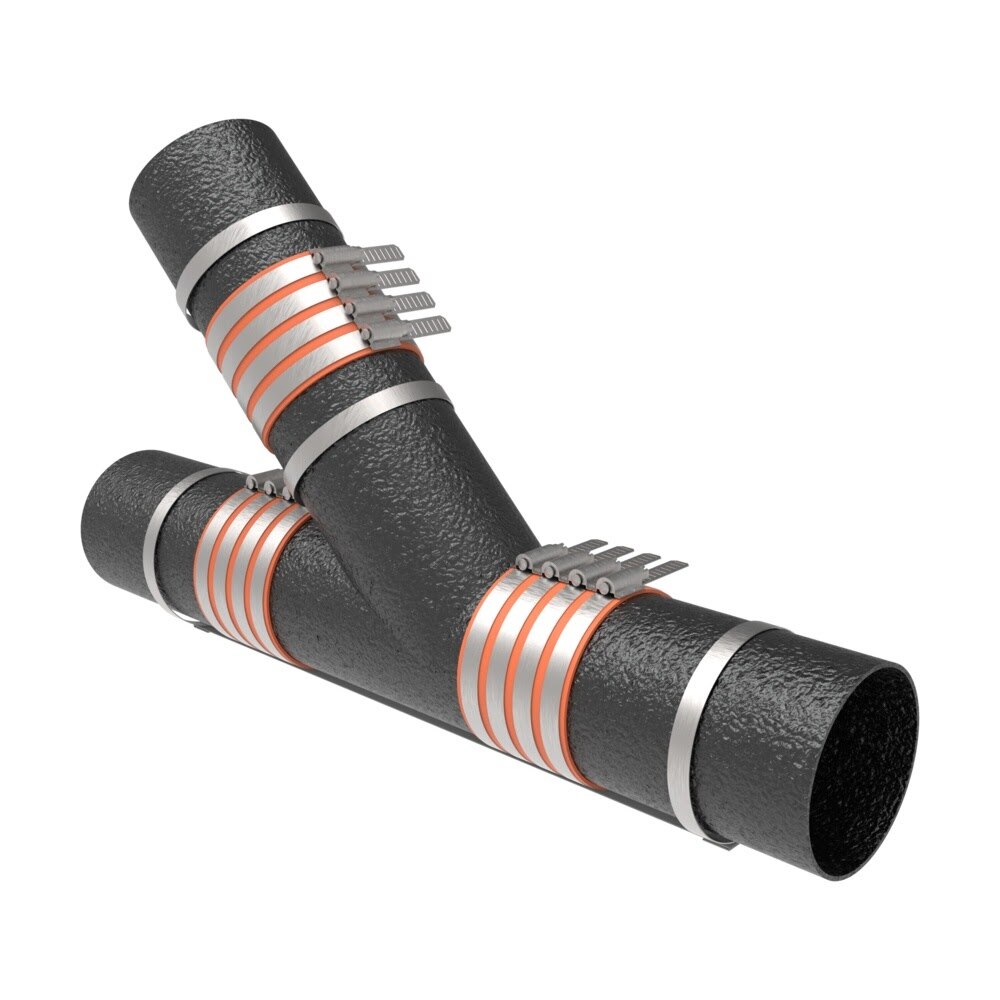

The HoldRite 117-W Series 6 in. x 4 in. no-hub wye or sanitary tee restraint is designed to reinforce cast iron DWV installations and retain the fitting to adjoining piping in mid-span runs. Built with a galvanized steel strap and stainless steel bands, it requires a minimum tightening torque of 60 in/lbs and, when properly installed, achieves a safe thrust pressure rating equal to 50 ft head of water pressure.
HoldRite 117-6x4W Includes
- (1) 6 in. x 4 in. No-Hub Wye or Sanitary Tee Restraint
HoldRite 117-6x4W Features
- Designed to reinforce no-hub cast iron wye and sanitary tee installations
- Retains the fitting onto adjoining piping in mid-span runs
- Galvanized steel strap with stainless steel bands and screw for durability
- Bands require a minimum tightening torque of 60 in/lbs
- Achieves a safe thrust pressure rating equal to 50 ft head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-6x4W Specifications
| Brand | HoldRite |
| Series | 117-W Series |
| Product Type | No-hub fitting restraint |
| Size | 6 in. x 4 in. |
| Application | Wye branch and sanitary tee restraint for cast iron DWV installations |
| Installation Location | Mid-span runs |
| Compatible Pipe Type | No-hub cast iron soil pipe |
| Strap Material | 24 ga. CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Safe Thrust Pressure Rating | 50 ft head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Package Length (in) | 17.5 |
| Package Width (in) | 12.5 |
| Package Height (in) | 12.5 |
| Shipping Weight (lb) | 2.388 |
| Case Quantity | 6 |
| Case Length (in) | 20.5 |
| Case Width (in) | 15.75 |
| Case Height (in) | 15.75 |
| Case Weight (lb) | 14.2 |
