HoldRite 117-6x5CE Description

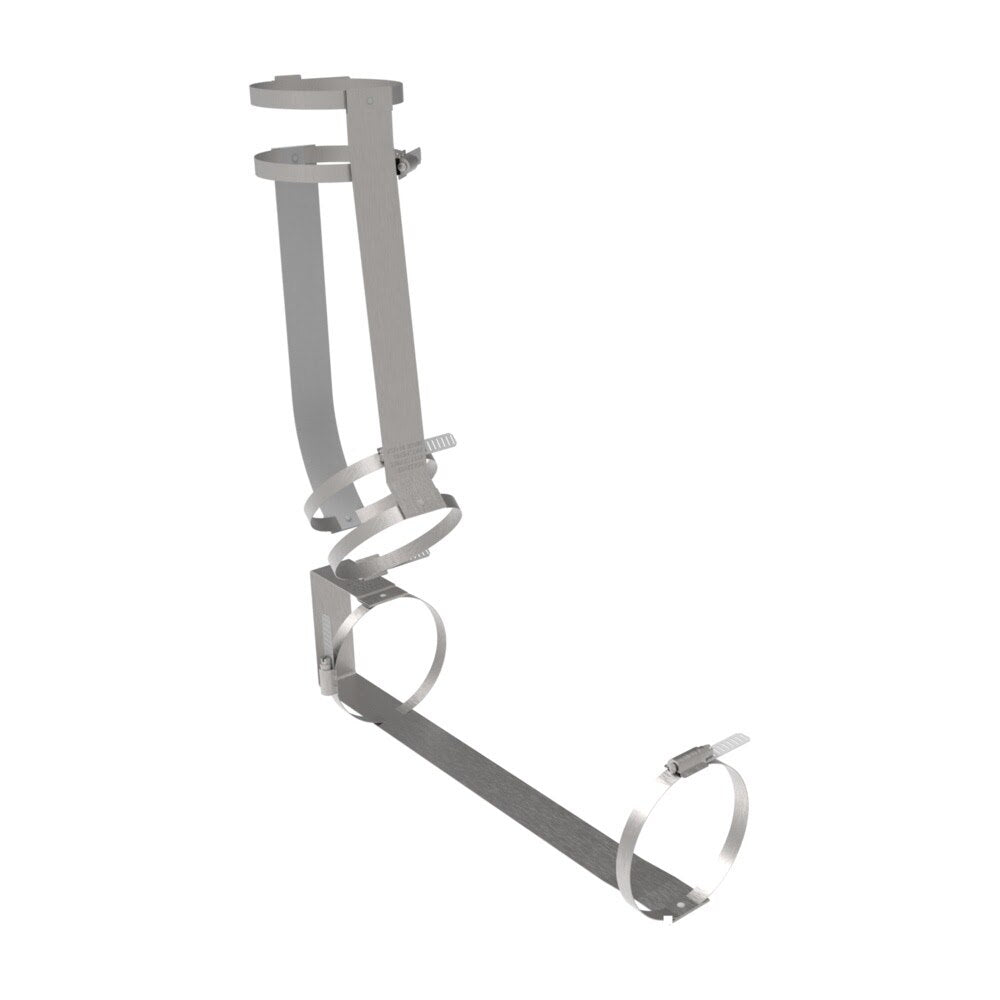

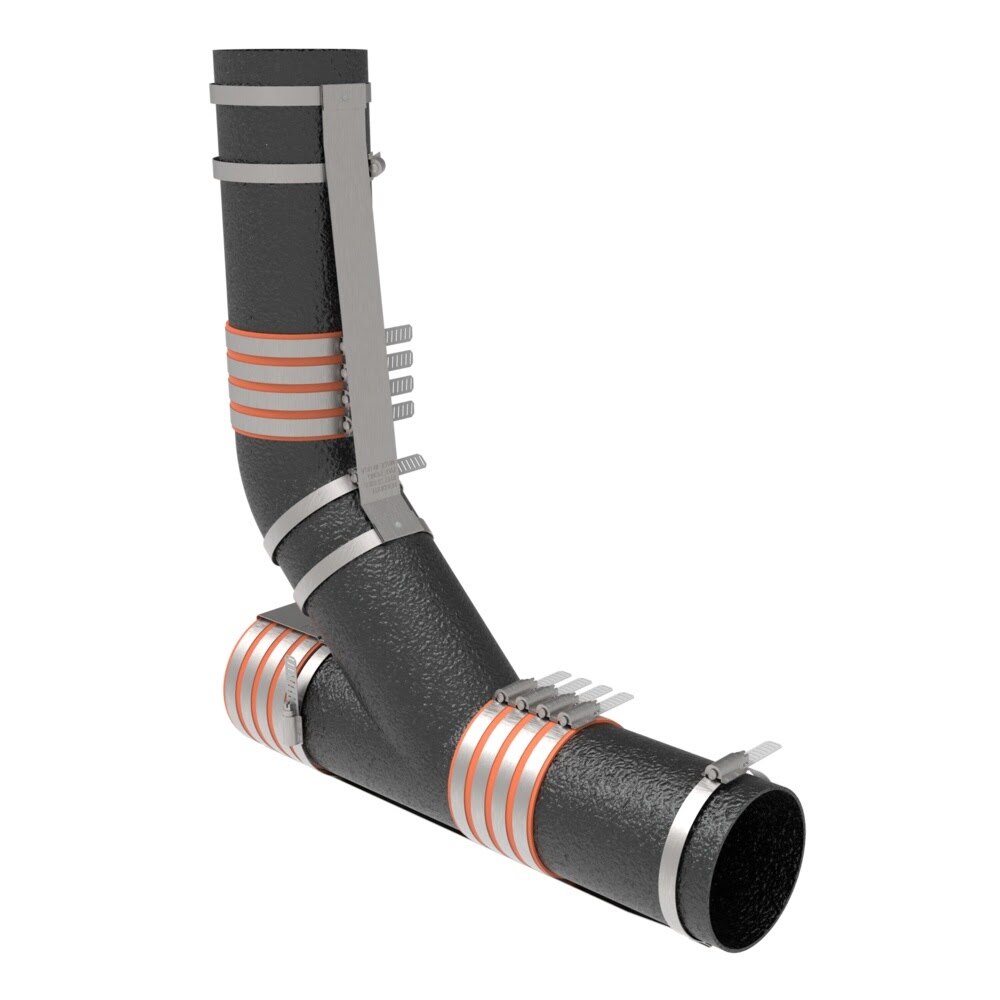

The HoldRite 117-6x5CE is a 6 in. x 5 in. no-hub combo or wye end-of-line restraint designed to reinforce cast iron DWV installations. Built with stainless steel components and a galvanized steel strap, it helps retain the fitting to adjoining piping when a blind plug or cleanout is installed.
HoldRite 117-6x5CE Includes
- (1) 6 in. x 5 in. No-Hub Combo or Wye End of Line Restraint
HoldRite 117-6x5CE Features
- Designed to reinforce no-hub cast iron installations
- Retains combo or wye fittings to adjoining piping at the end of the line
- Suitable when a blind plug or cleanout is installed
- Stainless steel body, band, and screw construction
- 24 ga. CRS galvanized steel strap
- Bands require a minimum torque of 60 in/lbs
- Achieves a safe thrust pressure rating equal to 50 ft head of water when installed correctly
- Designed in accordance with CISPI 301-18, 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-6x5CE Specifications
| Brand | HoldRite |
| Series | 117-CE |
| Product Type | No-Hub Combo or Wye End of Line Restraint |
| Size | 6 in. x 5 in. |
| Application | End-of-line restraint for no-hub cast iron combo or wye fittings |
| Material | Stainless steel body, band and screw |
| Strap Material | 24 ga. CRS galvanized steel |
| Minimum Band Torque | 60 in/lbs |
| Safe Thrust Pressure Rating | Equal to 50 ft head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Product Length | 11 in. |
| Product Width | 14 in. |
| Product Height | 0.74 in. |
| Shipping Weight | 2.3 lb |
| Case Quantity | 6 |
| Minimum Order Quantity | 1 |
