HoldRite 117-6x5CM Description

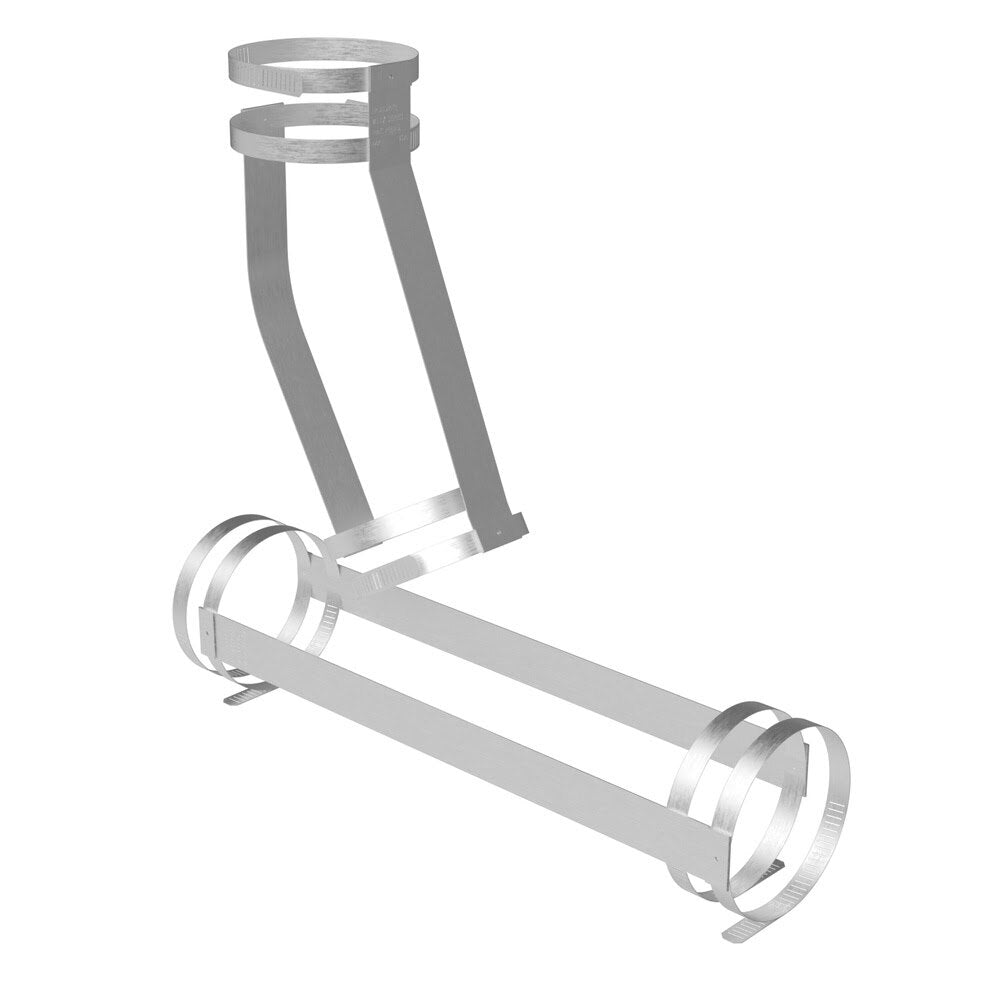

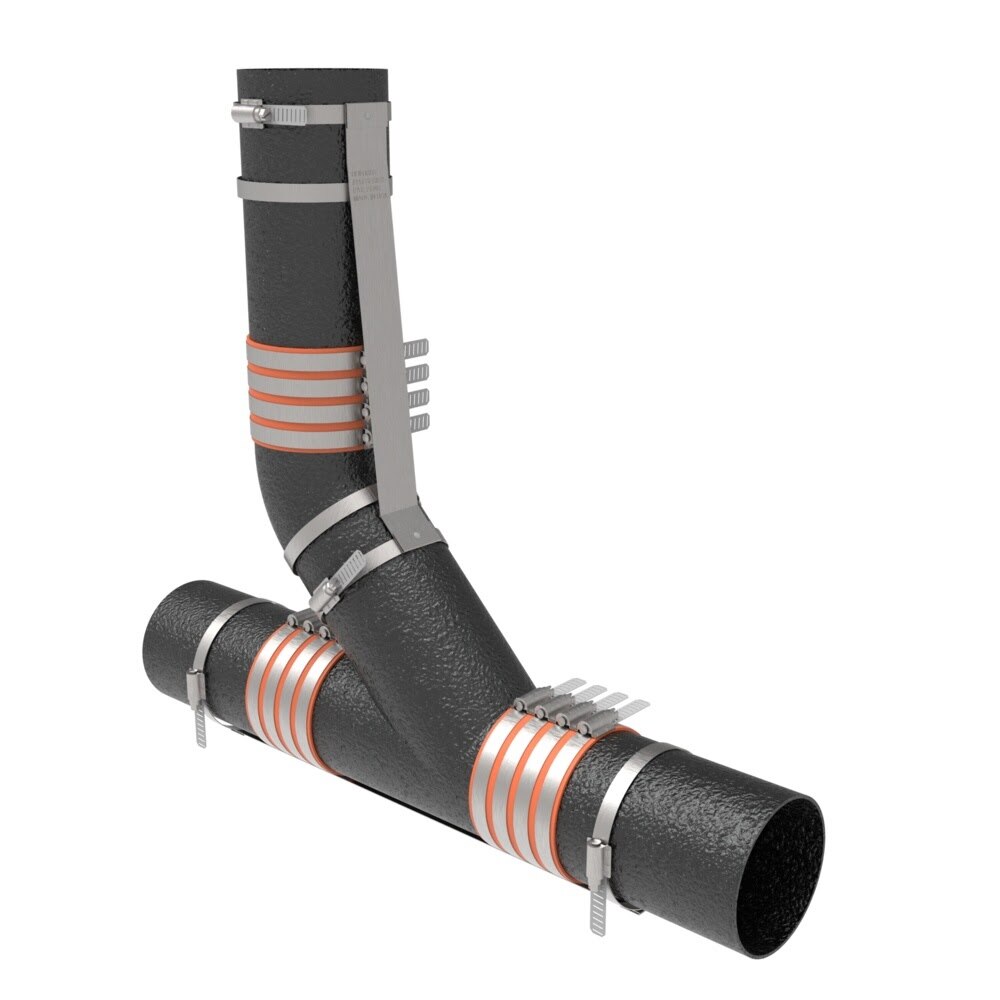

The HoldRite 117-6x5CM is a 6 in. x 5 in. no-hub combo mid-stream position restraint designed to reinforce cast iron no-hub installations. This kit features galvanized steel straps with stainless steel band clamps and, when installed correctly, achieves a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-6x5CM Includes
- (1) 6 in. x 5 in. No-Hub Combo Mid-Stream Position Restraint Kit
HoldRite 117-6x5CM Features
- Designed for 6 in. x 5 in. no-hub cast iron installations
- Mid-stream combo restraint for reinforcing connected fittings
- Galvanized 24 gauge CRS steel straps
- Stainless steel body, band, and screw
- Minimum band torque of 60 in./lbs.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI Designation 310-11 and the 2006 CISPI Installation Handbook
HoldRite 117-6x5CM Specifications
| Brand | HoldRite |
| Series | 117-CM |
| Size | 6 in. x 5 in. |
| Position | Mid-stream |
| Application | No-hub cast iron installations |
| Strap Material | 24GA, CRS, galvanized |
| Band Material | Stainless steel body, band & screw |
| Minimum Torque | 60 in./lbs. on band |
| Safe Thrust Pressure Rating | Equal to 50 ft. head of water pressure |
| Product Length (in) | 23.5 |
| Product Width (in) | 10 |
| Product Height (in) | 1.164 |
| Shipping Weight (lb) | 2.2 |
