HoldRite 117-6x5R Description

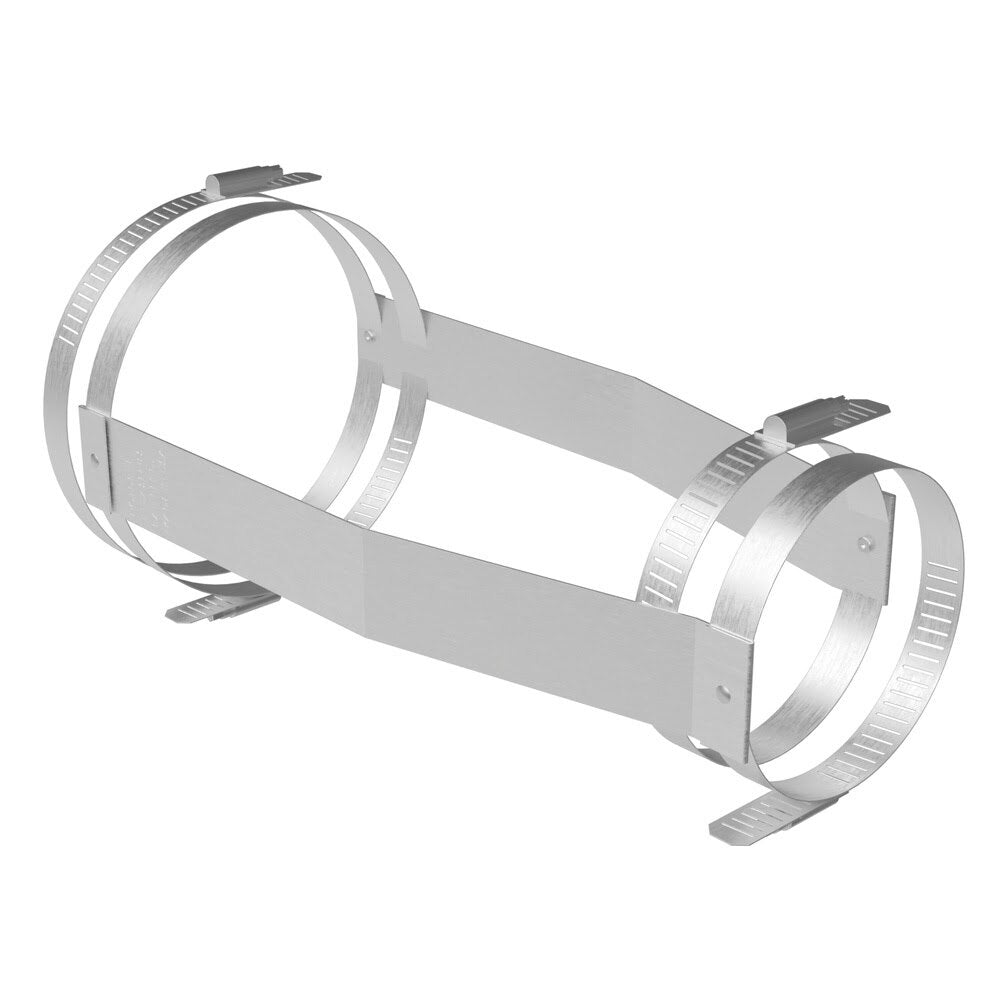

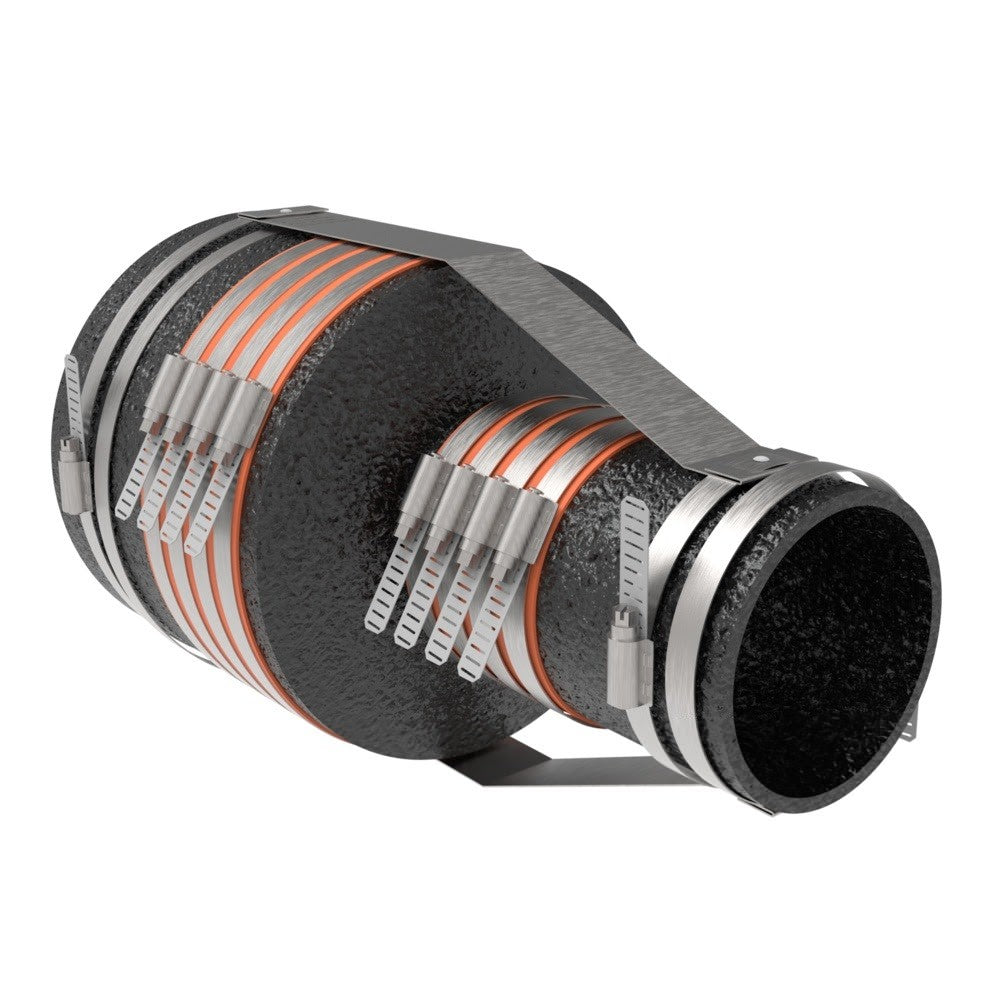

The HoldRite 117-6x5R is a 6 in. x 5 in. no-hub short reducer restraint designed to reinforce cast iron DWV reducer installations. Built with a galvanized steel strap and stainless steel band components, it helps retain the reducer fitting to adjoining piping and can achieve a safe thrust pressure rating equal to 50 ft. head of water pressure when properly installed.
HoldRite 117-6x5R Includes
- (1) 6 in. x 5 in. No-Hub Short Reducer Restraint
HoldRite 117-6x5R Features
- Designed to reinforce no-hub cast iron short reducer installations
- Sized for 6 in. x 5 in. reducer fittings
- Galvanized 24 ga. cold rolled steel restraint strap
- Stainless steel body, band, and screw components
- Bands require a minimum torque of 60 in./lbs.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-6x5R Specifications
| Brand | HoldRite |
| Series | 117-R Series |
| Product Type | No-Hub Fitting Restraint |
| Fitting Style | Short Reducer |
| Size | 6 in. x 5 in. |
| Application | Cast iron DWV reducer installations |
| Strap Material | 24 ga. cold rolled galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in./lbs. |
| Pressure Rating | 50 ft. head of water pressure |
| Shipping Weight | 2 lb |
Toolup Part # :
882575
