HoldRite 117-8BP Description

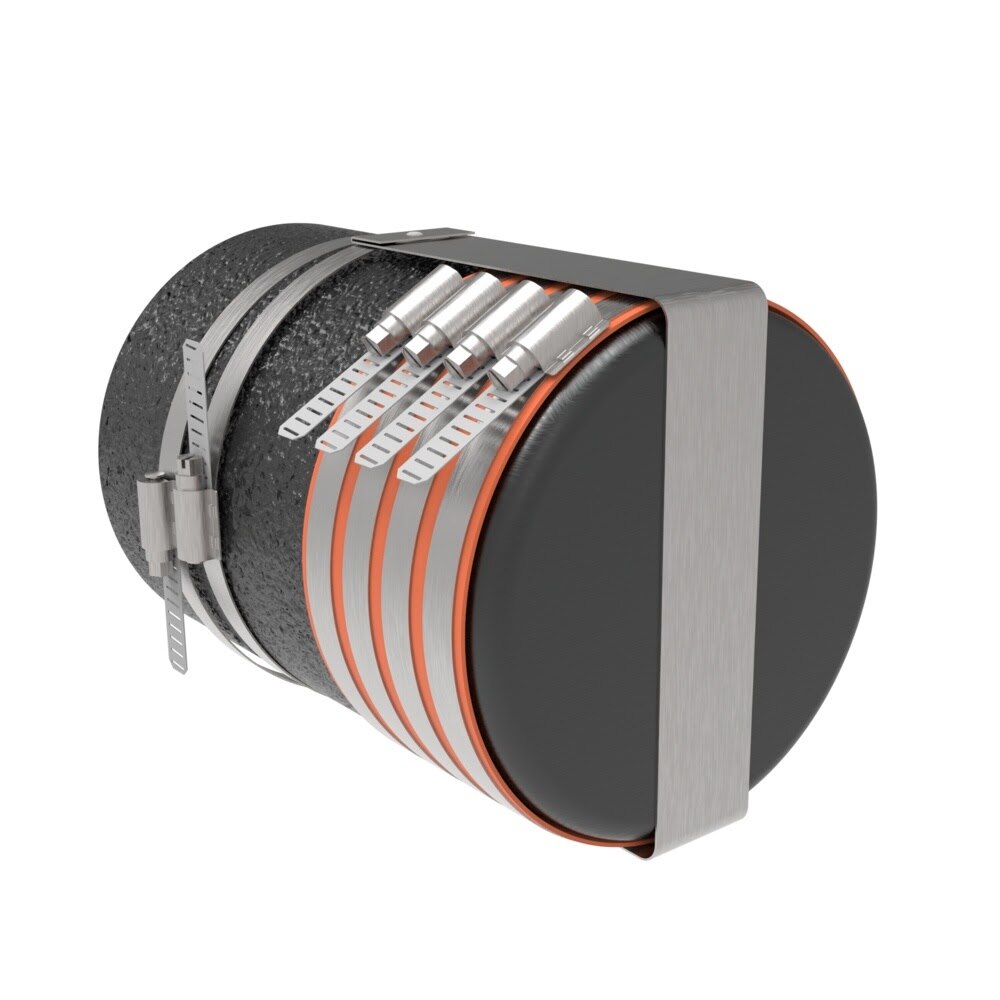

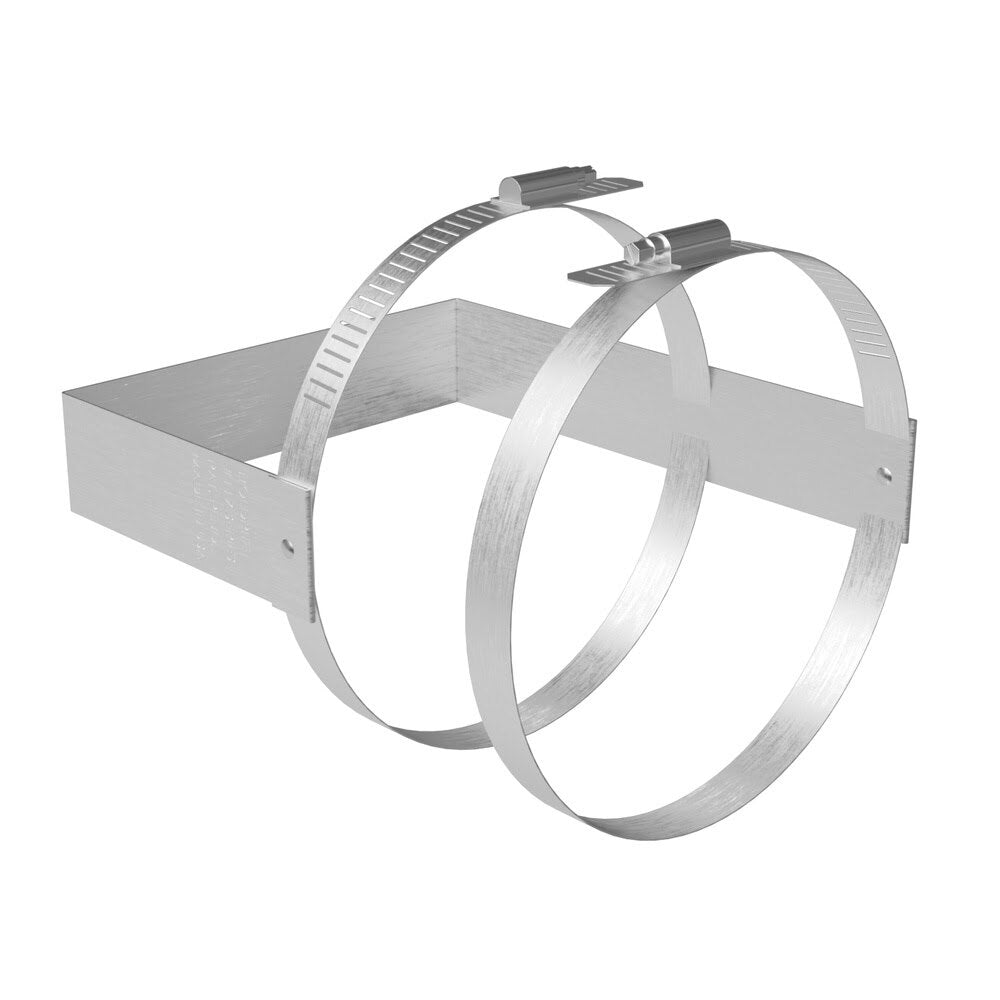

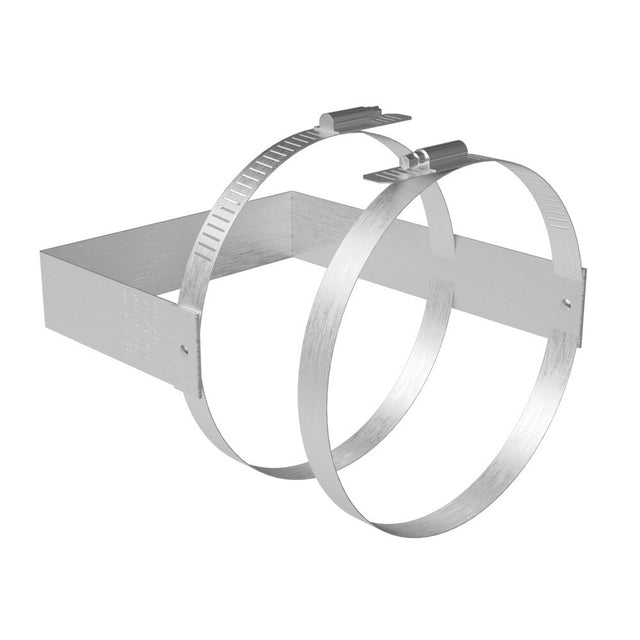

The HoldRite 117-8BP is an 8 in. BP Series no-hub blind plug restraint designed to reinforce blind plug and cap installations in no-hub cast iron piping. It features a 24 ga. galvanized steel strap with stainless steel bands that require a minimum torque of 60 in./lb. and, when installed correctly, provides a safe thrust pressure rating equal to 50 ft. head of water.
HoldRite 117-8BP Includes
- (1) 8 in. No-Hub Blind Plug Restraint Assembly
HoldRite 117-8BP Features
- Designed to reinforce no-hub cast iron blind plug and cap installations
- Sized for 8 in. applications
- Uses stainless steel bands with a minimum required torque of 60 in./lb.
- Provides a safe thrust pressure rating equal to 50 ft. head of water when installed correctly
- Constructed with a 24 ga. CRS galvanized steel strap
- Band body, band, and screw are made of stainless steel
- Designed in accordance with CISPI 301-18, 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-8BP Specifications
| Series | 117-BP |
| Pipe Size | 8 in. |
| Application | Blind plug/cap restraint for no-hub cast iron installations |
| Strap Material | 24 ga. CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in./lb. |
| Pressure Rating | 50 ft. head of water |
| Product Length (in) | 19 |
| Product Width (in) | 10 |
| Product Height (in) | 0.541 |
| Shipping Weight (lb) | 0.792 |
Toolup Part # :
883442
