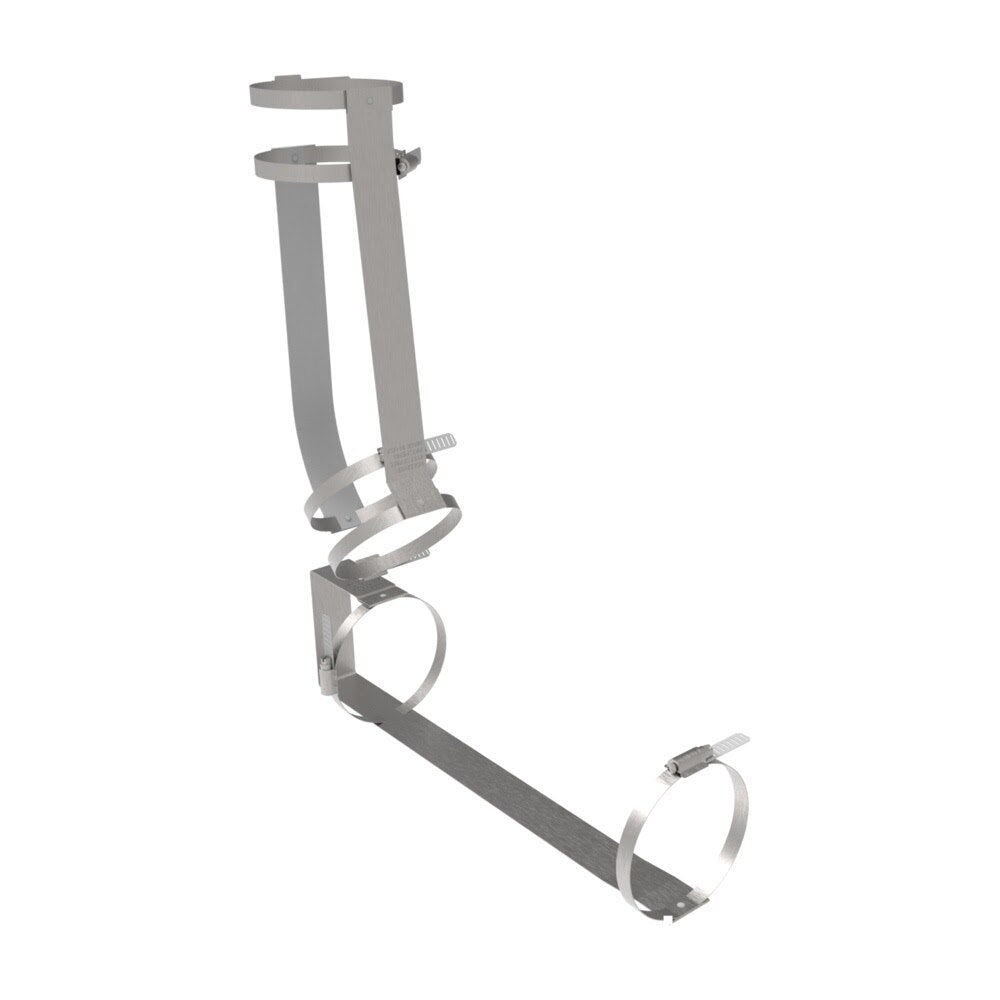

HoldRite 117-8CE Description

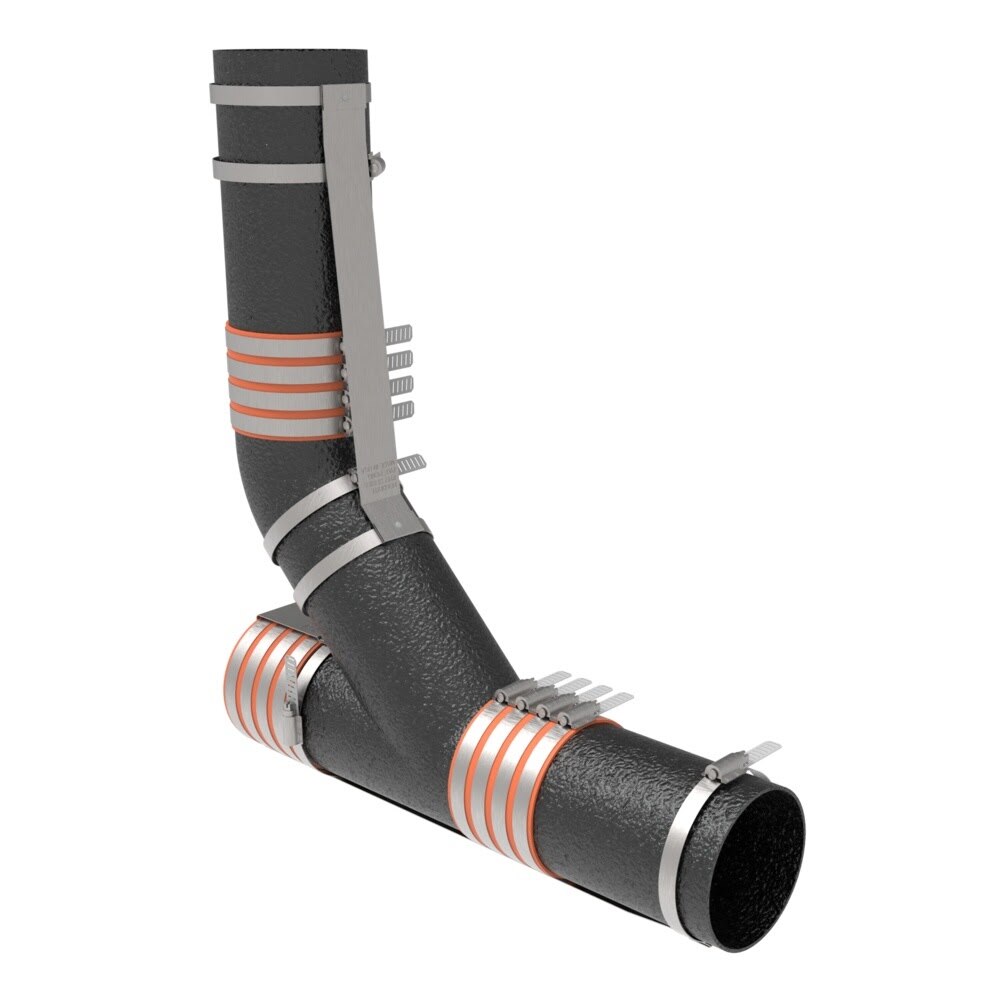

The HoldRite 117-8CE is an 8 in. no-hub combo or wye end-of-line position restraint designed to reinforce no-hub cast iron installations. When installed correctly, it retains the fitting on adjoining piping with a blind plug or cleanout and provides a safe thrust pressure rating equal to 50 ft head of water pressure.
HoldRite 117-8CE Includes
- (1) 8 in. No-Hub combo or wye end-of-line position restraint
HoldRite 117-8CE Features
- Designed to reinforce no-hub cast iron installations
- Retains combo or wye fittings at the end of the line when a blind plug or cleanout is installed
- Constructed with a 24 ga. CRS galvanized steel strap
- Uses stainless steel body, band, and screw components
- Bands require a minimum torque of 60 in/lbs
- Achieves a safe thrust pressure rating equal to 50 ft head of water pressure when properly installed
- Compatible with installation guidance for CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-8CE Specifications
| Brand | HoldRite |
| Series | 117-CE |
| Product Type | No-Hub fitting restraint |
| Nominal Size | 8 in. |
| Fitting Type | Combo or Wye |
| Installation Position | End of line |
| Strap Material | 24GA, CRS, galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Safe Thrust Pressure Rating | 50 ft head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Each Length (in) | 12.5 |
| Each Width (in) | 12 |
| Each Height (in) | 13.5 |
| Each Shipping Weight (lb) | 3.067 |
