HoldRite 117-8CM Description

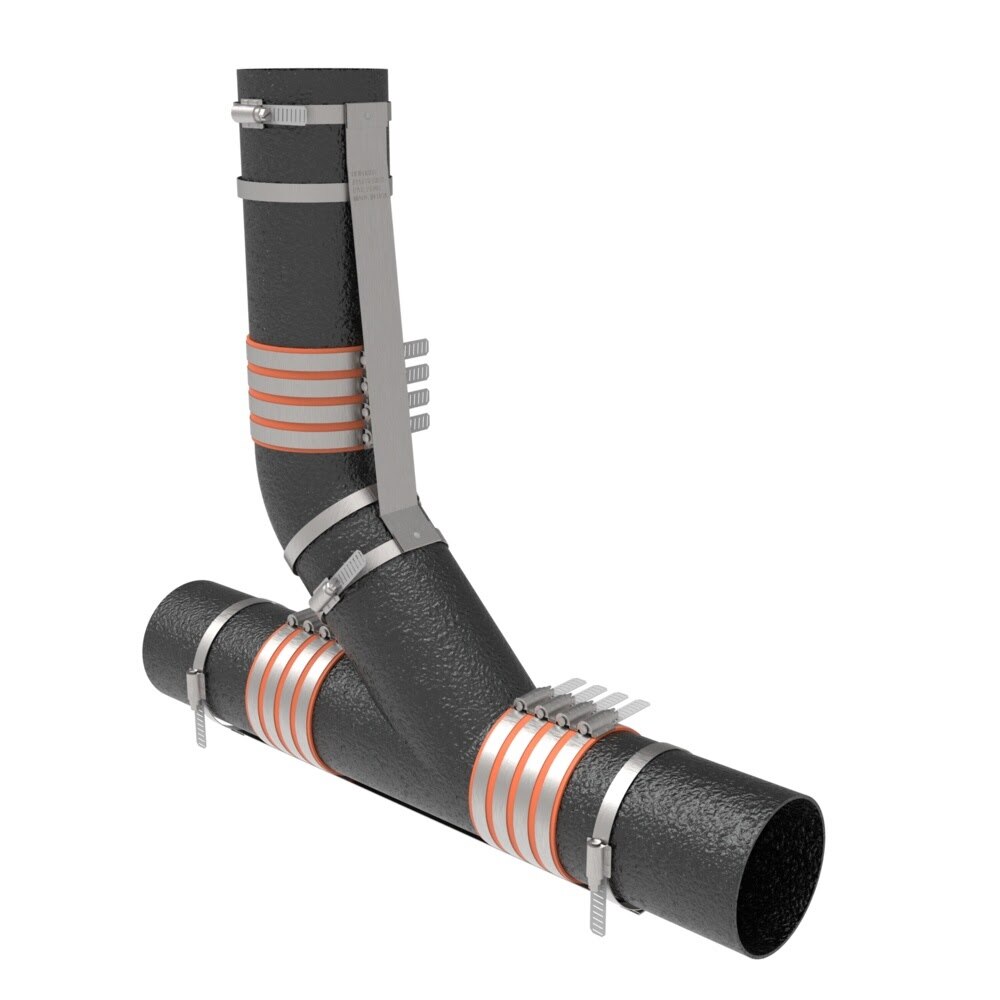

The HoldRite 117-8CM is an 8 in. no-hub combo mid-stream position restraint designed to reinforce no-hub cast iron installations. Part of the 117-CM series, it uses galvanized steel straps with stainless steel band clamps and is intended for installation in accordance with CISPI guidelines for reliable DWV fitting restraint.
HoldRite 117-8CM Includes
- (1) 8 in. No-Hub Combo Mid-Stream Position Restraint Kit

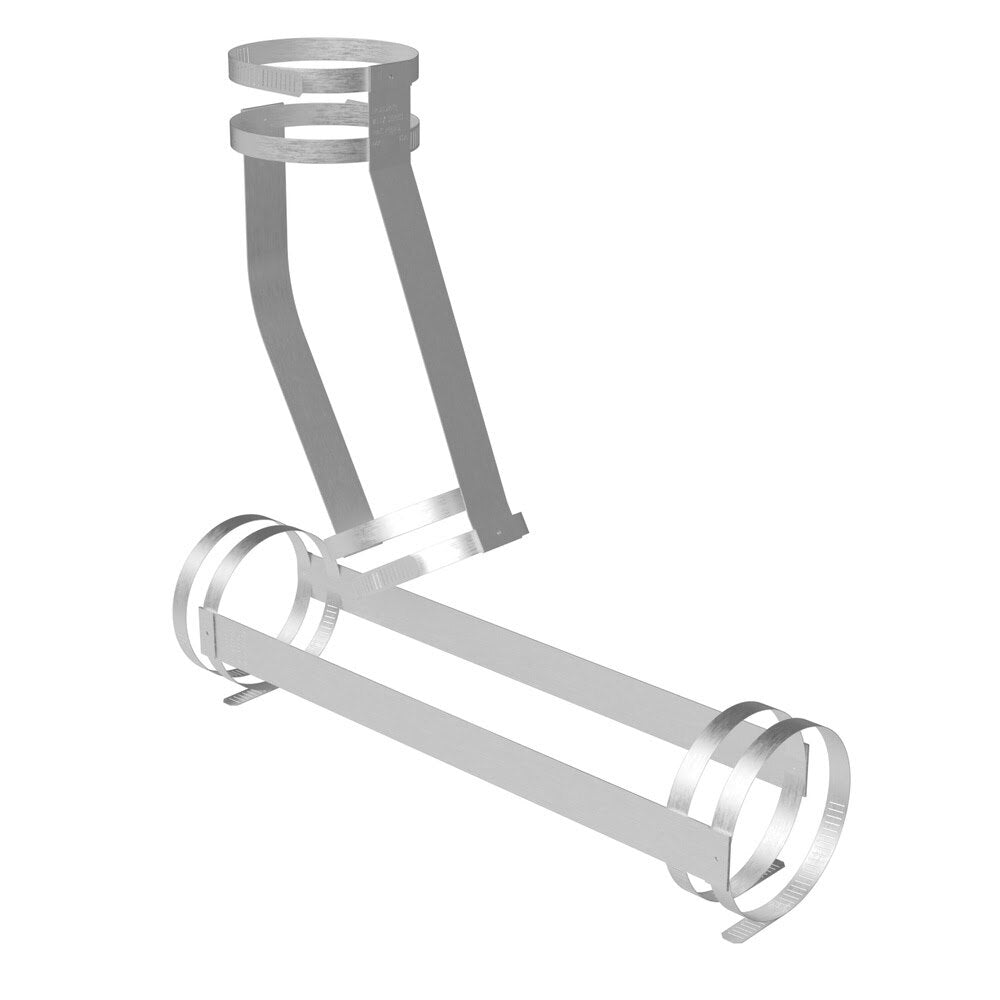

- (1) Set of Galvanized Steel Straps
- (1) Set of Stainless Steel Band Clamps
HoldRite 117-8CM Features
- Designed for 8 in. no-hub cast iron installations
- Combo mid-stream restraint helps reinforce wye and bend fitting applications
- Strap material is 24GA CRS galvanized steel
- Band clamp uses a stainless steel body band and screw
- Requires a minimum of 60 in./lbs. torque on the band
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed for installation in accordance with CISPI Designation 310-11 and the 2006 CISPI Installation Handbook
- Thrust force resistant test data available on request
HoldRite 117-8CM Specifications
| Brand | HoldRite |
| Series | 117-CM |
| Product Type | Combo Mid-Stream Position Restraint |
| Size | 8 in. |
| Application | No-hub cast iron installations |
| Strap Material | 24GA, CRS, galvanized |
| Band Material | Stainless steel body, band & screw |
| Minimum Band Torque | 60 in./lbs. |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Standards | CISPI Designation 310-11; 2006 CISPI Installation Handbook |
| Product Length (in) | 16.5 |
| Product Width (in) | 10 |
| Product Height (in) | 1.105 |
| Product Weight (lb) | 2.7 |
| Case Quantity | 6 |
| UPC | 671119803686 |
