HoldRite 117-8LL Description

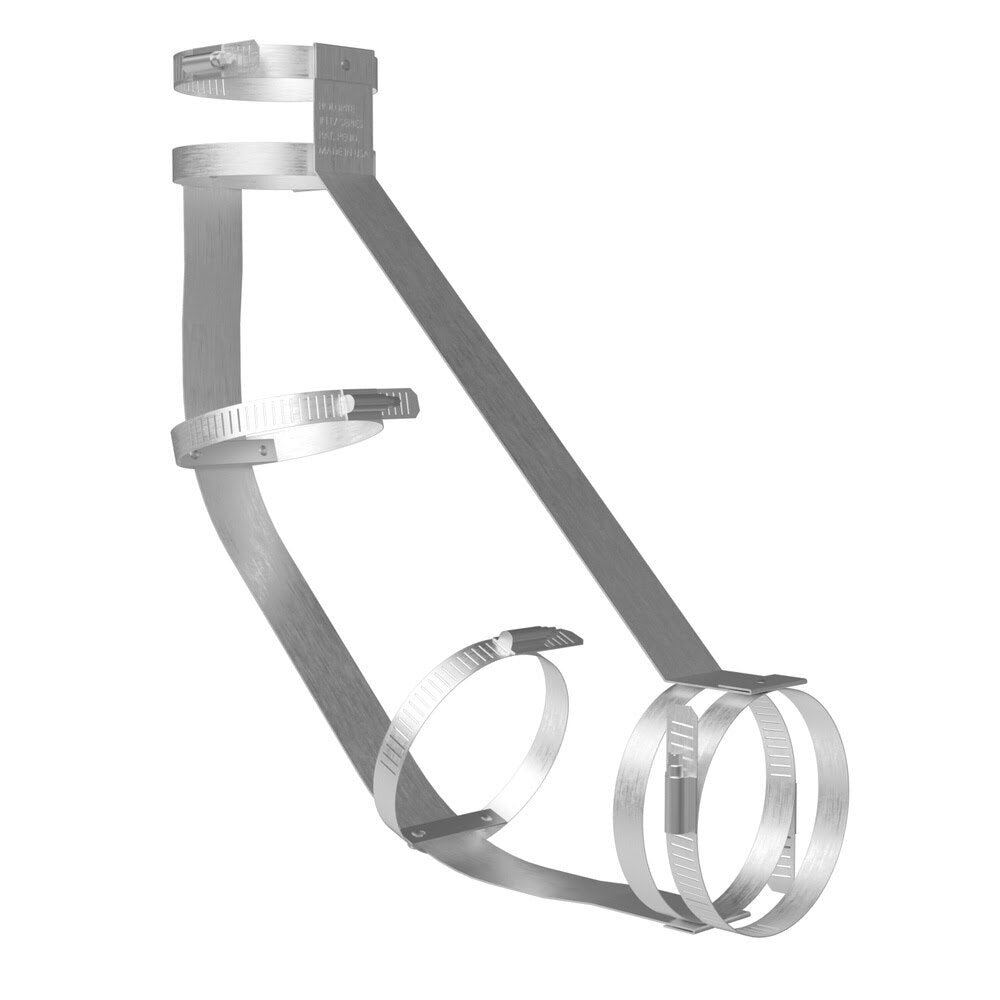

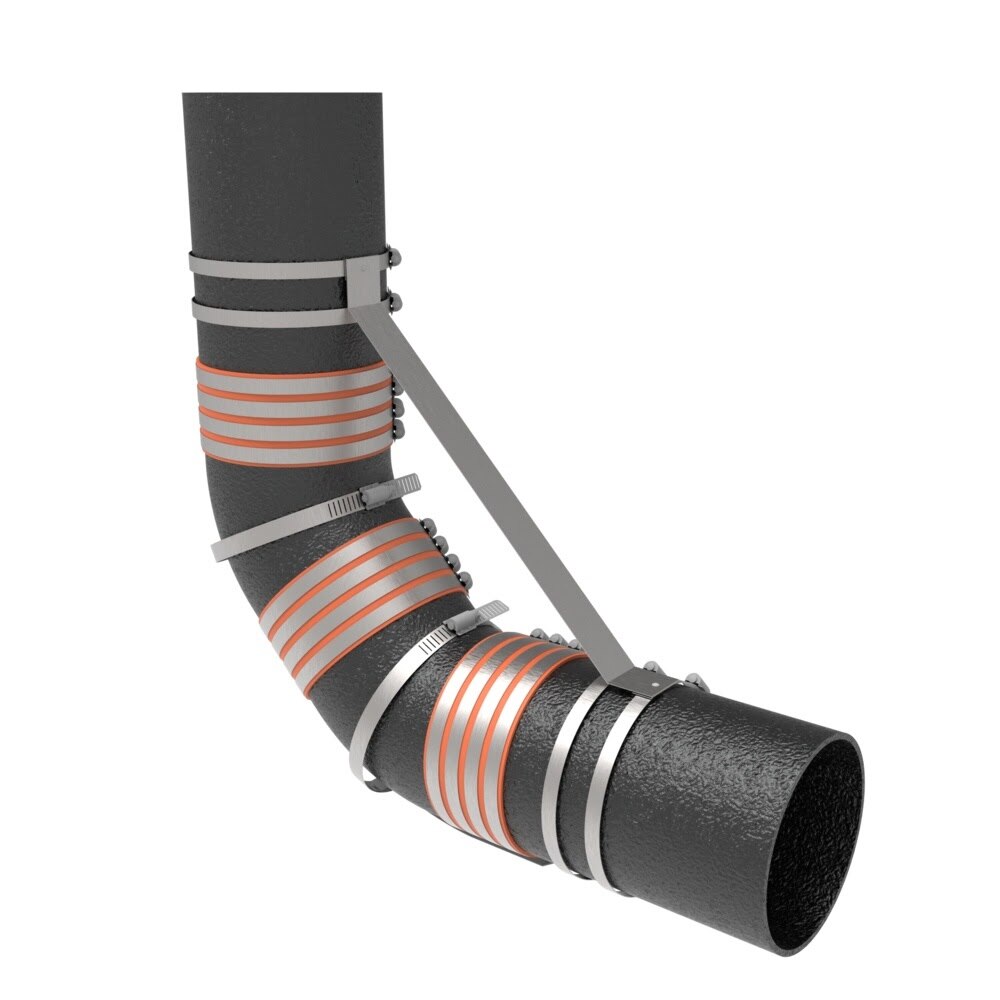

The HoldRite 117-8LL LL Series restraint is designed to reinforce 8 in. no-hub cast iron double 45 Degree 1/8 bend installations. Its stainless steel body, bands, and screws help retain two 45 Degree bends onto adjoining piping and, when installed correctly, achieve a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-8LL Includes
- (1) 8 in. Double 45 Degree 1/8 Bend No-Hub Fitting Restraint
HoldRite 117-8LL Features
- Designed for 8 in. double 45 Degree 1/8 bend no-hub cast iron installations
- Retains two 45 Degree bends onto adjoining piping
- Stainless steel body, bands, and screw construction
- Bands require a minimum torque of 60 in./lbs.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Patent pending design
HoldRite 117-8LL Specifications
| Manufacturer | HoldRite |
| Series | 117-LL |
| Product Type | No-Hub Fitting Restraint |
| Application | Double 45 Degree 1/8 bend no-hub cast iron installations |
| Nominal Size | 8 in. |
| Material | Stainless steel body, band and screw |
| Strap Material | 24 ga. CRS galvanized steel |
| Minimum Band Torque | 60 in./lbs. |
| Safe Thrust Pressure Rating | Equal to 50 ft. head of water pressure |
| Product Length (in) | 35.5 |
| Product Width (in) | 13 |
| Product Height (in) | 10.5 |
| Shipping Weight (lb) | 2.168 |
