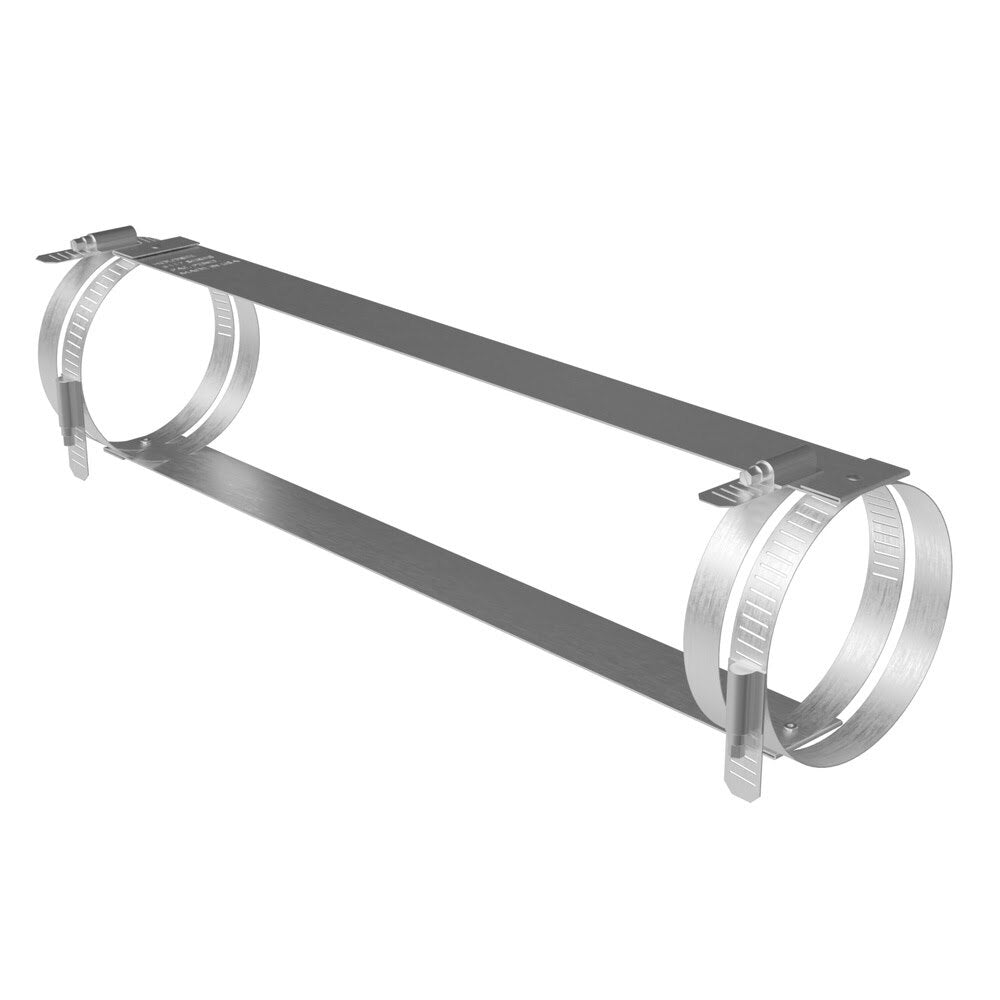

HoldRite 117-8T Description

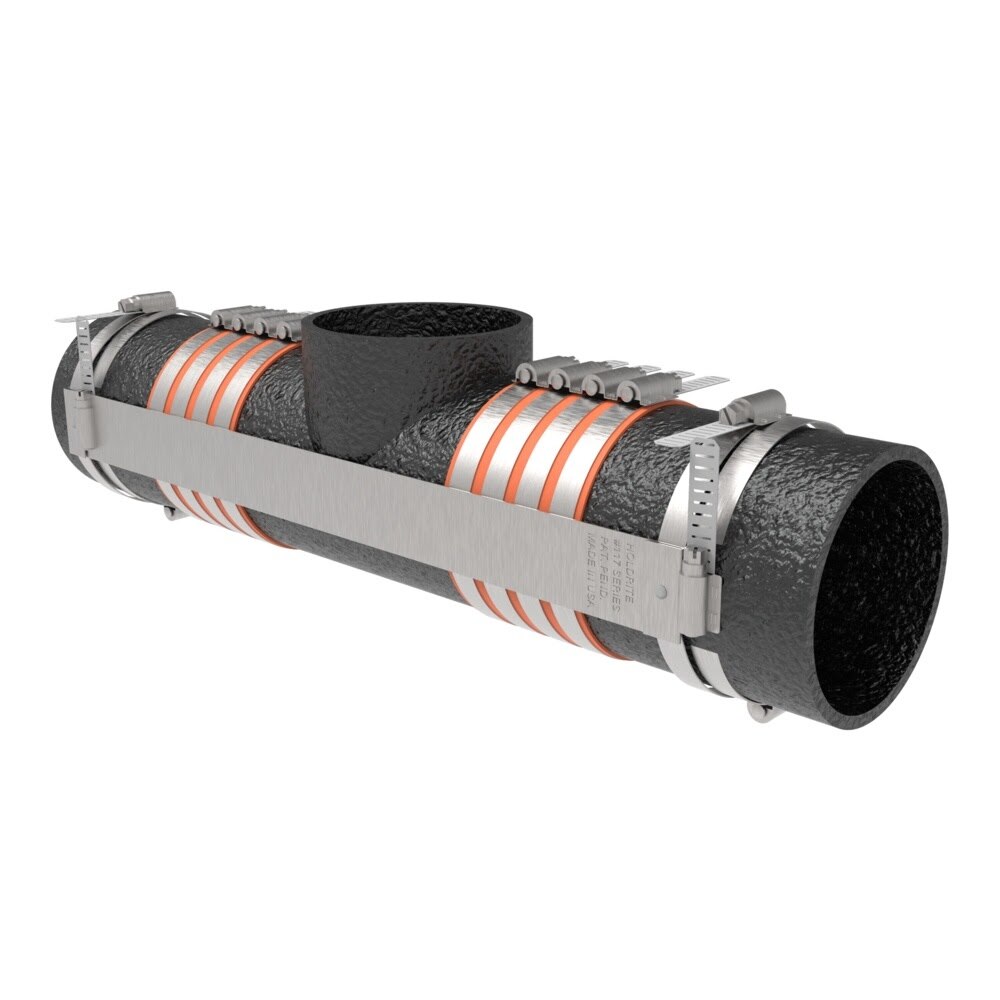

The HoldRite 117-8T is an 8 in. no-hub test tee restraint designed to reinforce no-hub cast iron test and cleanout tee installations in DWV systems. It features a 24-gauge CRS galvanized steel strap with stainless steel bands and requires a minimum band torque of 60 in/lbs for secure installation.
HoldRite 117-8T Includes
- (1) 8 in. No-Hub Test Tee Restraint
HoldRite 117-8T Features
- Designed to reinforce no-hub cast iron test and cleanout tee installations
- Sized for 8 in. applications
- 24-gauge CRS galvanized steel strap construction
- Stainless steel body, band, and screw components
- Bands require 60 in/lbs minimum torque
- Achieves a safe thrust pressure rating equal to 50 ft head of water when installed correctly
- Designed in accordance with CISPI Designation 301-18 and 310-18
- Patent pending
HoldRite 117-8T Specifications
| Brand | HoldRite |
| Manufacturer Part Number | 117-8T |
| Series | 117-T Series |
| Product Type | No-Hub Test Tee Fitting Restraint |
| Trade Size | 8 in. |
| Application | Test/Cleanout tee no-hub cast iron installations |
| Strap Material | 24GA CRS galvanized steel |
| Band Material | Stainless steel body, band, and screw |
| Minimum Band Torque | 60 in/lbs |
| Safe Thrust Pressure Rating | 50 ft head of water |
| Each Length | 13.5 in. |
| Each Width | 12.375 in. |
| Each Height | 1.195 in. |
| Each Shipping Weight | 1.683 lb |
| Case Quantity | 6 |
