HoldRite 117-8W Description

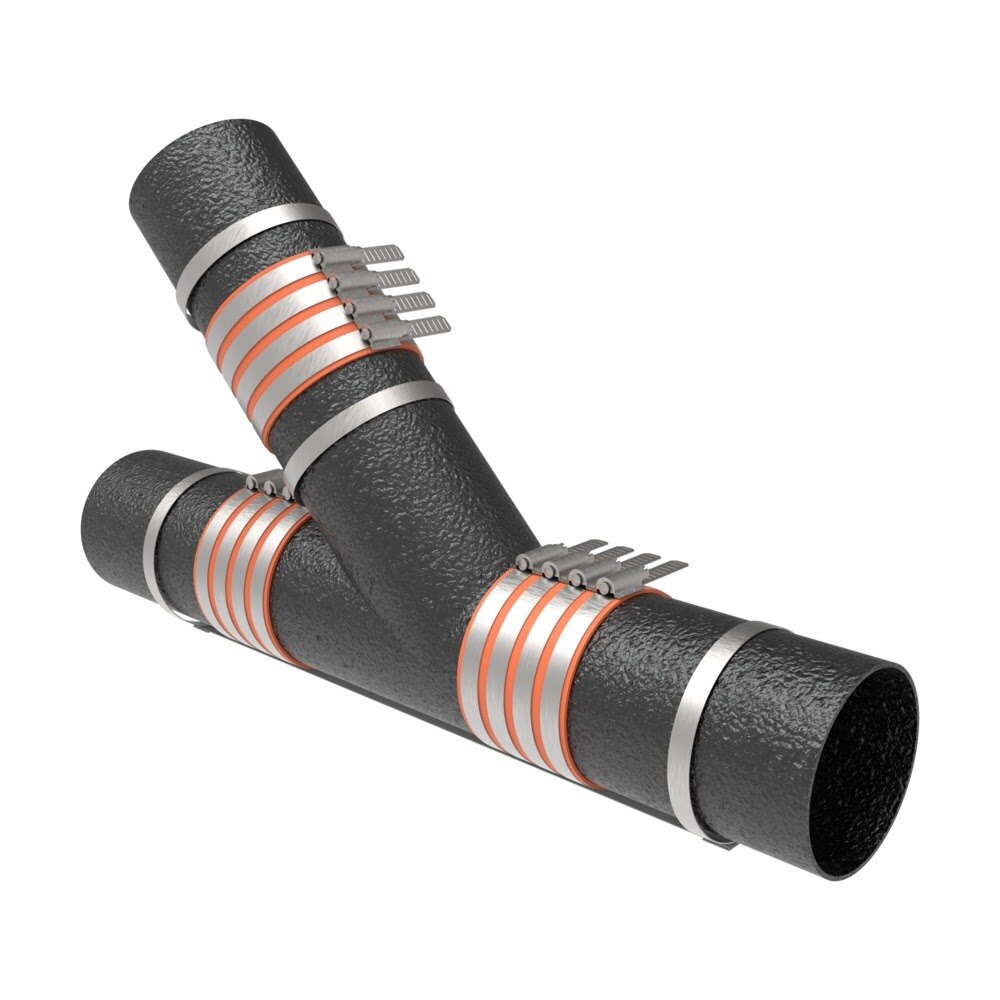

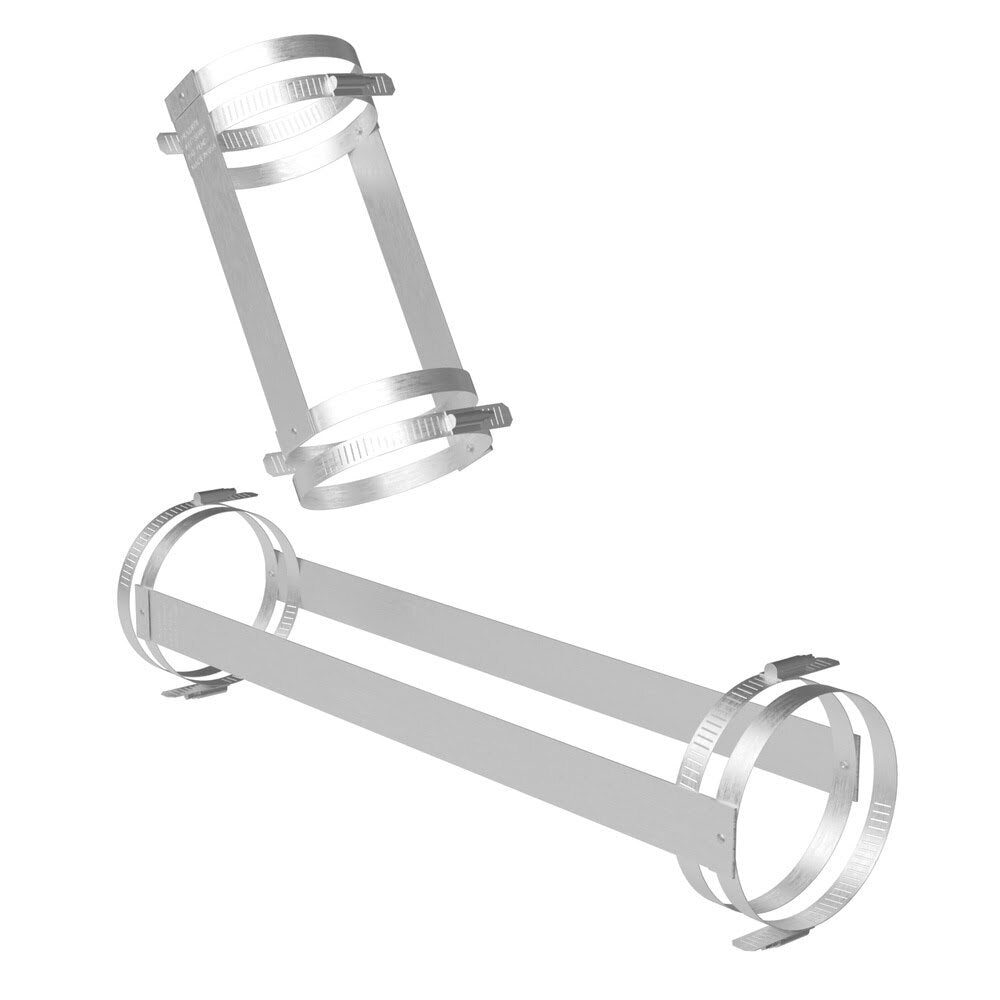

The HoldRite 117-8W is an 8 in. no-hub wye or sanitary tee restraint designed to reinforce no-hub cast iron installations and secure the fitting to adjoining piping in mid-span runs. It features galvanized steel straps with stainless steel bands and, when properly installed, provides a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-8W Includes
- (1) 8 in. No-Hub Wye or Sanitary Tee Restraint
HoldRite 117-8W Features
- Designed to reinforce no-hub cast iron wye and sanitary tee installations
- Retains the fitting to adjoining piping in mid-span runs
- Constructed with 24 ga. CRS galvanized steel straps
- Uses stainless steel body, band, and screw components
- Bands require a minimum tightening torque of 60 in./lbs.
- Provides a safe thrust pressure rating equal to 50 ft. head of water pressure when properly installed
- Patent pending
HoldRite 117-8W Specifications
| Brand | HoldRite |
| Series | 117-W |
| Size | 8 in. |
| Application | No-hub wye and sanitary tee cast iron installations |
| Strap Material | 24 ga. CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in./lbs. |
| Thrust Pressure Rating | 50 ft. head of water pressure |
| Compliance | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Each Length | 20.5 in. |
| Each Width | 16 in. |
| Each Height | 1 in. |
| Each Shipping Weight | 2.817 lb |
| Case Quantity | 6 |
Toolup Part # :
882403
