HoldRite 117-8X2R Description

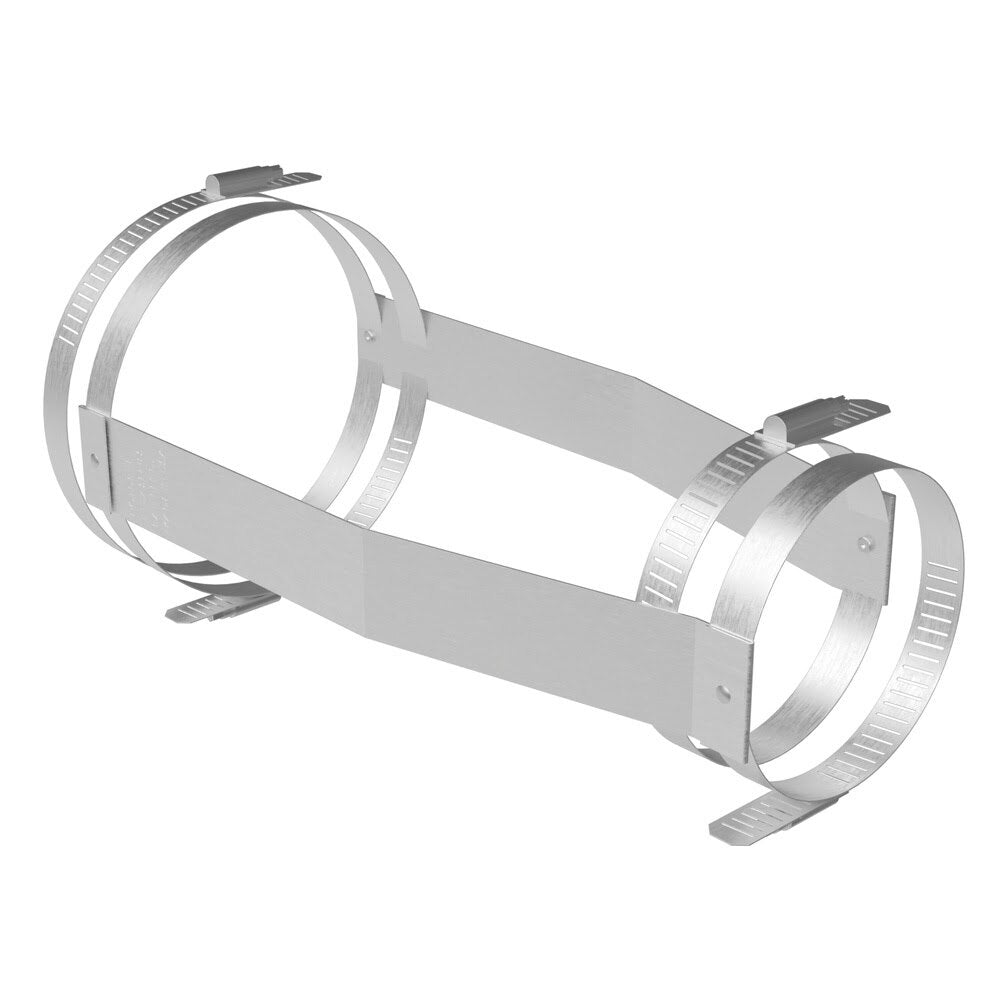

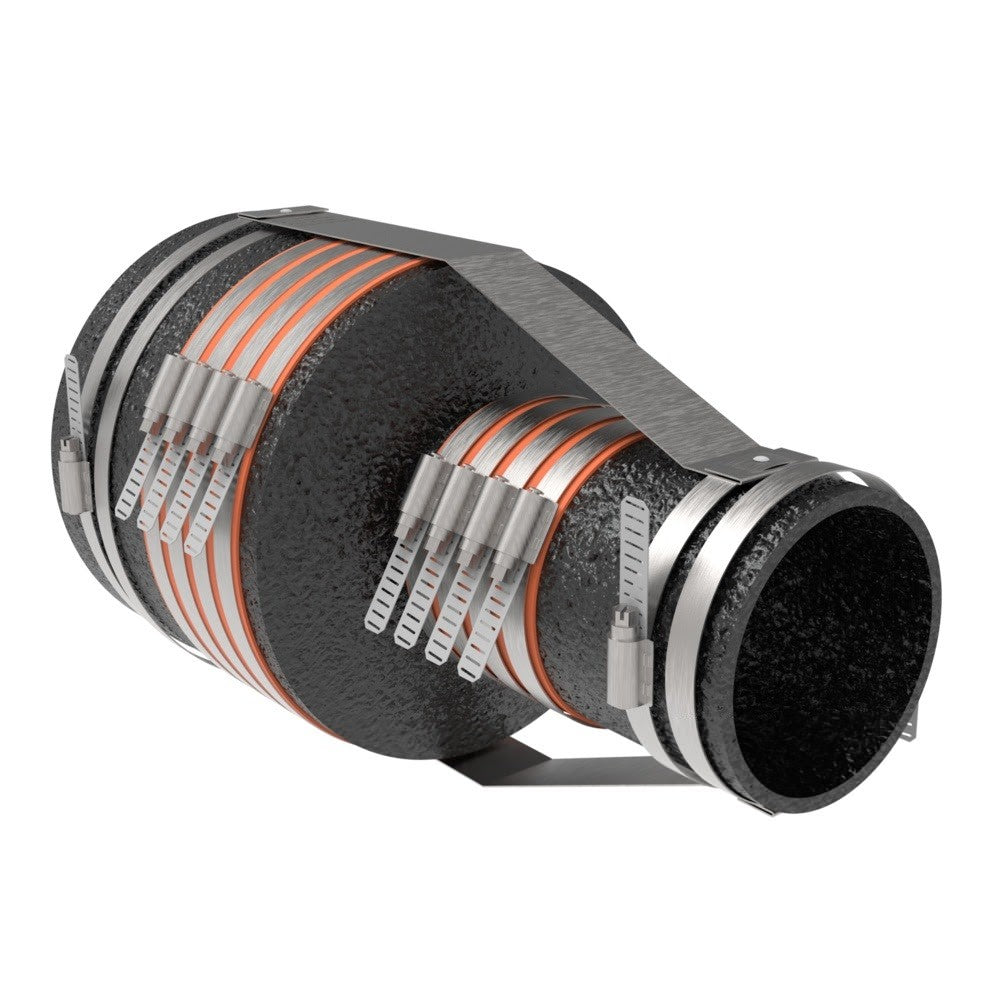

The HoldRite 117-8X2R 8 in. x 2 in. no-hub short reducer fitting restraint is designed to reinforce cast iron fitting reducer installations. Its galvanized steel strap and stainless steel bands help secure the reducer to adjoining piping when installed in accordance with applicable CISPI guidelines.
HoldRite 117-8X2R Includes
- (1) 8 in. x 2 in. No-Hub Short Reducer Fitting Restraint
HoldRite 117-8X2R Features
- Designed to reinforce no-hub cast iron fitting reducer installations
- Fits 8 in. x 2 in. reducer applications
- Uses stainless steel bands to retain the reducer fitting to adjoining piping
- Made with a 24 ga. cold rolled galvanized steel strap
- Bands require a minimum torque of 60 in./lb.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed for installation in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-8X2R Specifications
| Brand | HoldRite |
| Series | 117-R |
| Product Type | No-Hub Short Reducer Fitting Restraint |
| Size | 8 in. x 2 in. |
| Application | No-hub cast iron fitting reducers |
| Strap Material | 24GA CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in./lb. |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Product Length | 12.5 in. |
| Product Width | 10.5 in. |
| Shipping Weight | 0.767 lb. |
| Case Quantity | 6 |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
Toolup Part # :
883487
