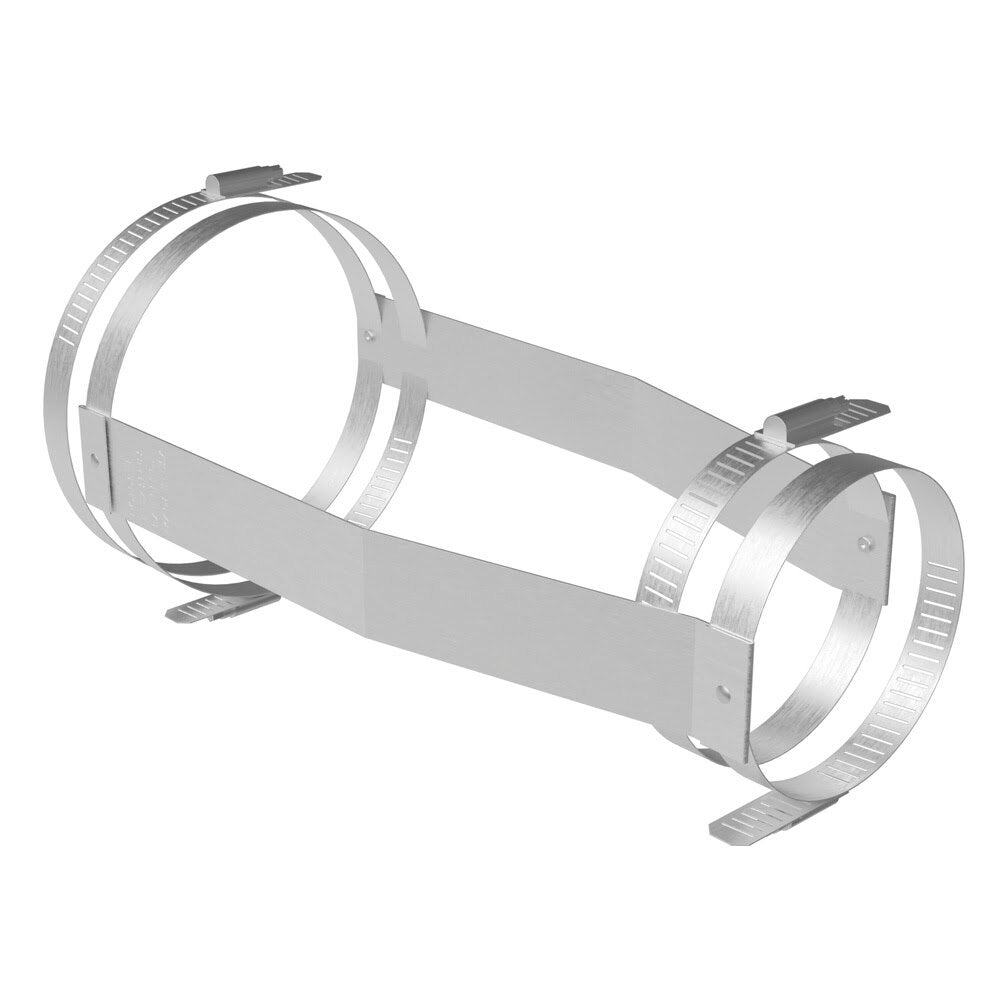

HoldRite 117-8x3R Description

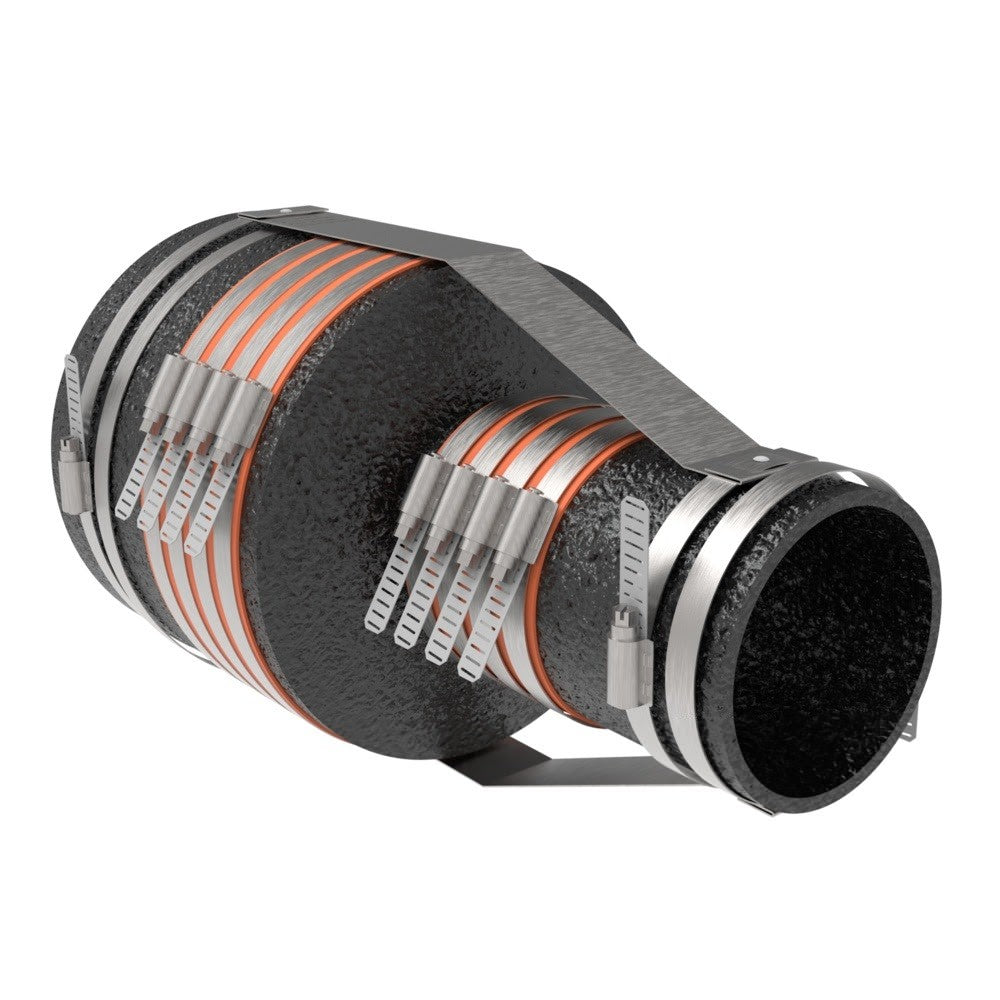

The HoldRite 117-8x3R is a 117-R Series no-hub short reducer fitting restraint for 8 in. x 3 in. reducer installations. Designed for DWV no-hub cast iron systems, it uses stainless steel bands and a galvanized steel strap assembly to help secure the reducer fitting to adjoining piping.
HoldRite 117-8x3R Includes
- (1) 8 in. x 3 in. No-Hub Short Reducer Fitting Restraint
HoldRite 117-8x3R Features
- Designed to reinforce no-hub cast iron fitting reducer installations
- Fits 8 in. x 3 in. reducer applications
- Stainless steel bands retain the reducer fitting to adjoining piping
- Minimum band torque requirement of 60 in./lbs.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Galvanized steel restraint strap with stainless steel band and screw components
- Designed in accordance with CISPI 301-18 and 310-18 installation guidance
- Patent pending
HoldRite 117-8x3R Specifications
| Series | 117-R Series |
| Product Type | No-Hub Short Reducer Fitting Restraint |
| Nominal Size | 8 in. x 3 in. |
| Application | DWV no-hub cast iron fitting reducers |
| Strap Material | 24 ga. CRS, galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in./lbs. |
| Pressure Rating | 50 ft. head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18 |
