HoldRite 117-8x3W Description

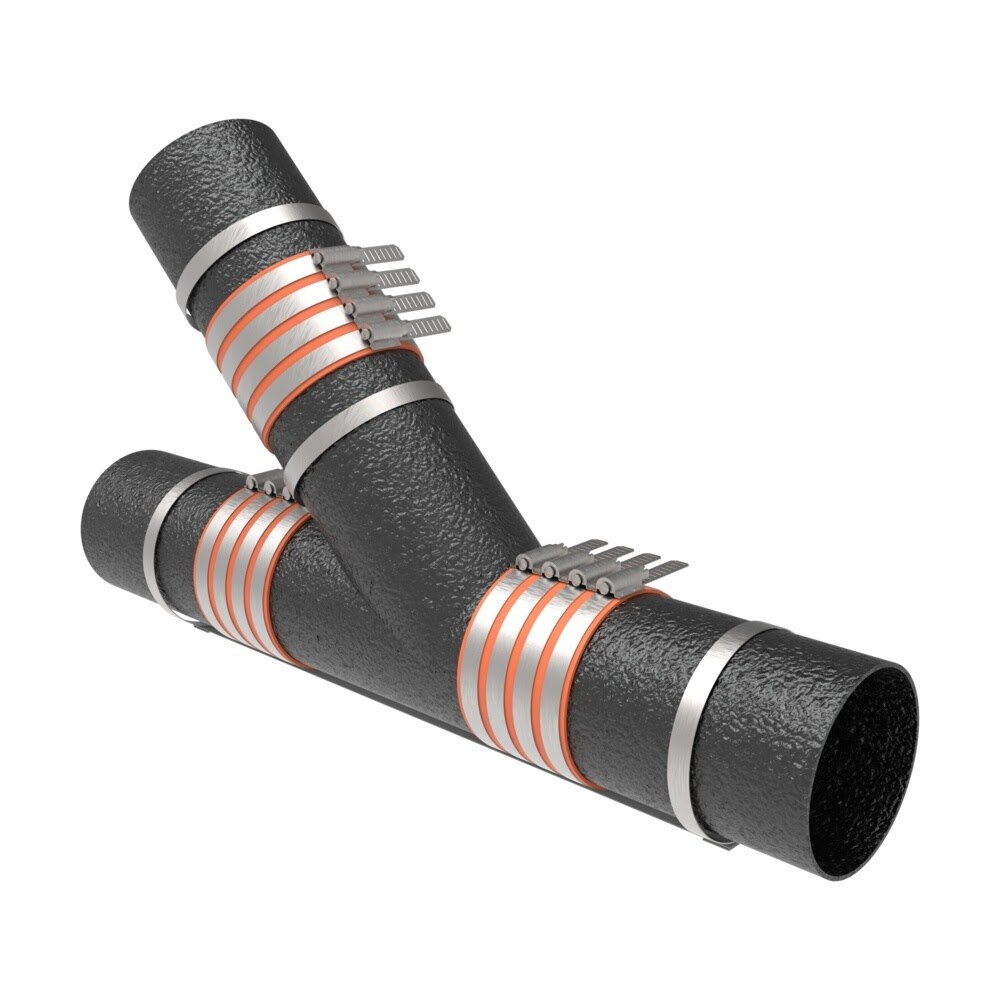

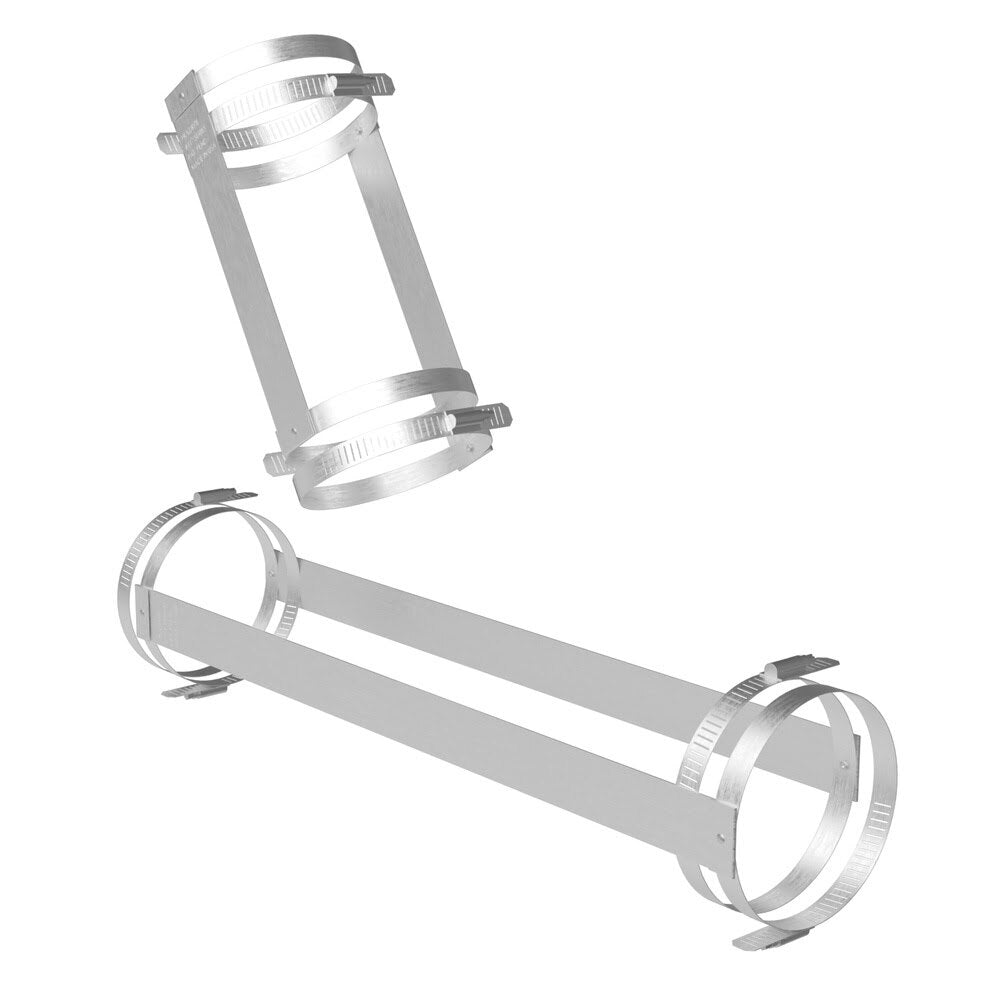

The HoldRite 117-W Series 8 in. x 3 in. no-hub wye or sanitary tee fitting restraint reinforces no-hub cast iron installations in mid-span runs. It uses galvanized steel straps and stainless steel bands that tighten to a minimum of 60 in/lbs and, when installed correctly, provide a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-8x3W Includes
- (1) 8 in. x 3 in. No-Hub Wye or Sanitary Tee Fitting Restraint
HoldRite 117-8x3W Features
- Reinforces no-hub cast iron wye and sanitary tee installations
- Designed for mid-span runs
- 24 ga. CRS galvanized steel strap construction
- Stainless steel body, band and screw components
- Bands tighten to 60 in/lbs minimum
- Provides a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18, 310-18 and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-8x3W Specifications
| Series | 117-W |
| Size | 8 x 3 |
| Product Type | No-Hub Wye or Sanitary Tee Fitting Restraint |
| Application | Reinforces no-hub cast iron installations |
| Installation Location | Mid-span runs |
| Strap Material | 24 ga. CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Safe Thrust Pressure Rating | Equal to 50 ft. head of water pressure |
| Compliance | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Item Length (in) | 12 |
| Item Width (in) | 7.75 |
| Item Height (in) | 1.5 |
| Shipping Weight (lb) | 1 |
| Case Quantity | 6 |
