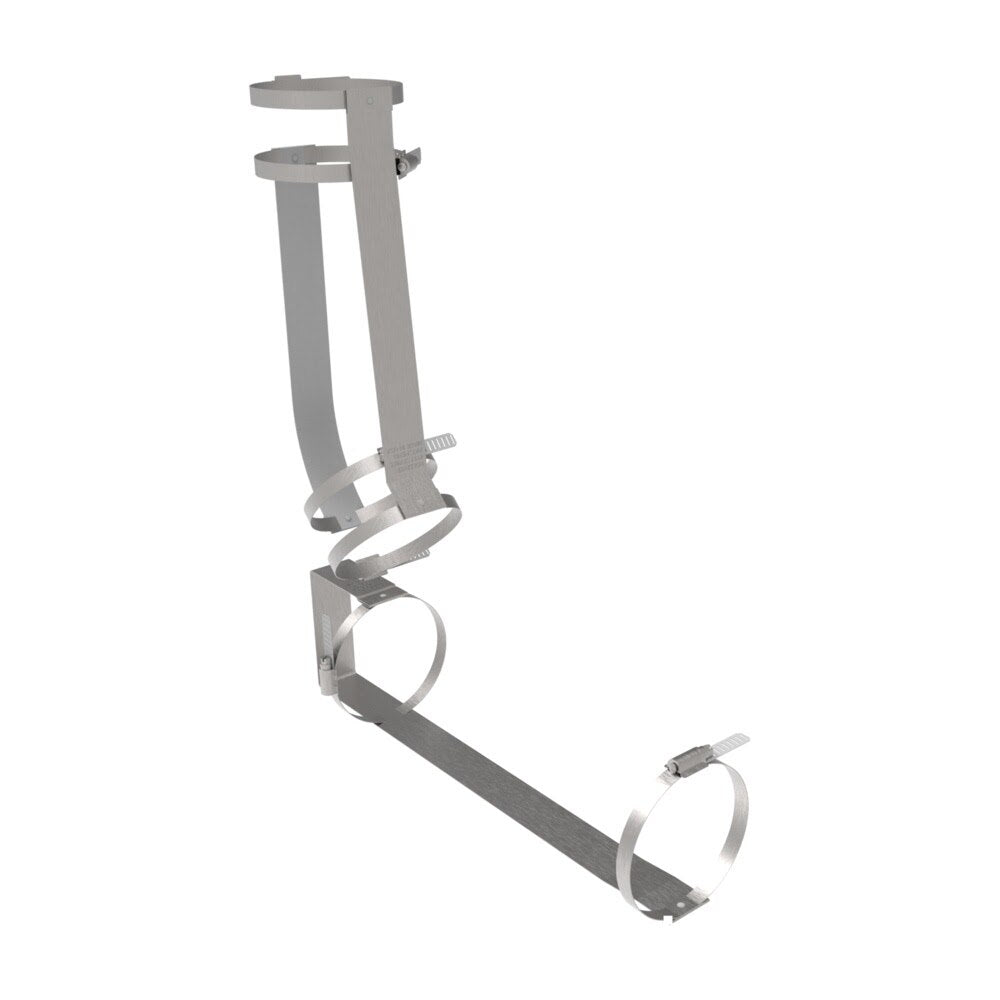

HoldRite 117-8x4CE Description

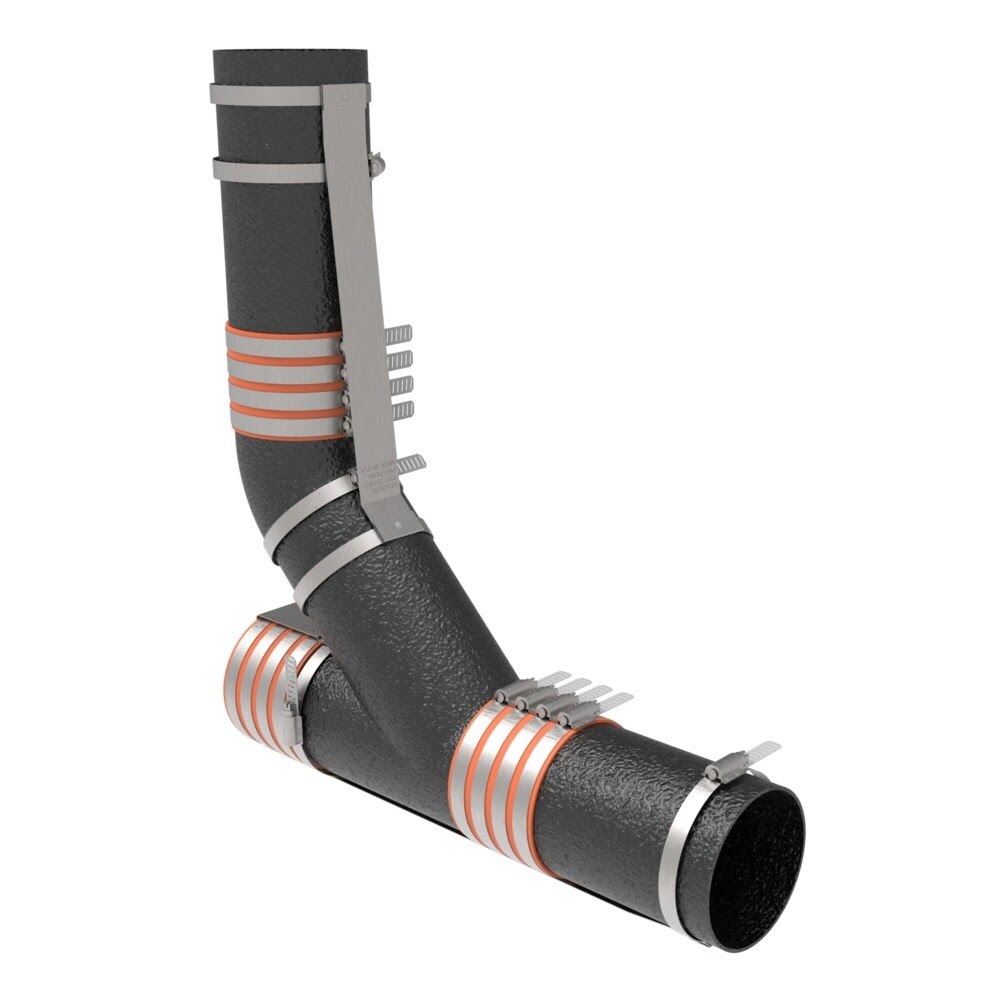

The HoldRite 117-8x4CE CE Series restraint is designed to reinforce 8 x 4 in. no-hub combo or wye fittings at the end of the line in cast iron DWV installations. When properly installed with bands torqued to a minimum of 60 in./lbs., it helps retain the fitting when a blind plug or cleanout is installed and achieves a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-8x4CE Includes
- (1) 8 x 4 in. No-Hub Combo or Wye End of Line Position Restraint
HoldRite 117-8x4CE Features
- Designed for 8 x 4 in. no-hub combo or wye fittings in end-of-line applications
- Reinforces no-hub cast iron DWV installations
- Retains the fitting when a blind plug or cleanout is installed
- Stainless steel body, bands, and screw for corrosion resistance
- 24 ga. CRS galvanized steel strap construction
- Bands require 60 in./lbs. minimum torque
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
HoldRite 117-8x4CE Specifications
| Series | 117-CE Series |
| Product Type | No-Hub Fitting Restraint |
| Nominal Size | 8 x 4 in. |
| Fitting Type | Combo or Wye |
| Application | End-of-line position restraint for cast iron DWV installations |
| Body, Band and Screw Material | Stainless steel |
| Strap Material | 24 ga. CRS galvanized steel |
| Minimum Band Torque | 60 in./lbs. |
| Safe Thrust Pressure Rating | Equal to 50 ft. head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18, and 2006 CISPI Installation Handbook |
| Product Length | 12.75 in. |
| Product Width | 12.75 in. |
| Product Height | 0.202 in. |
| Shipping Weight | 2.5 lb |
| Case Quantity | 6 |
