Description
Description
HoldRite 117-8x4R Description

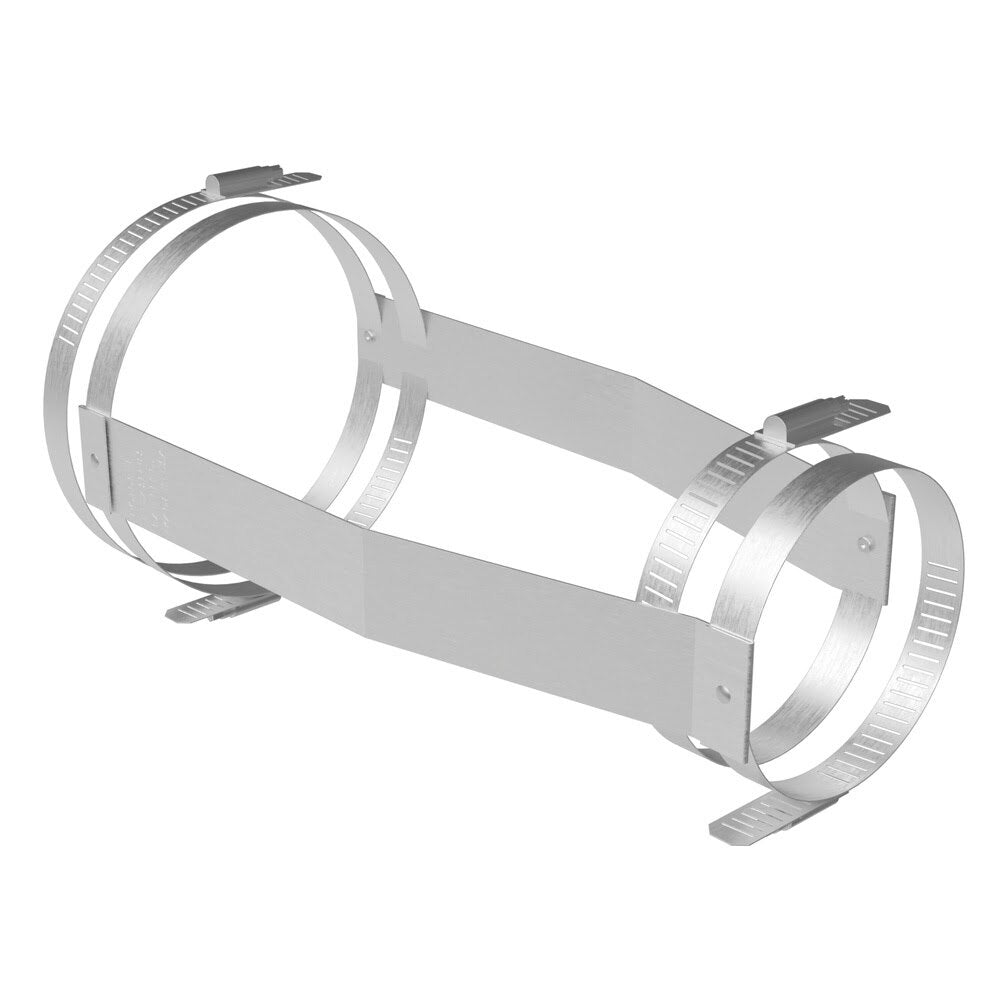

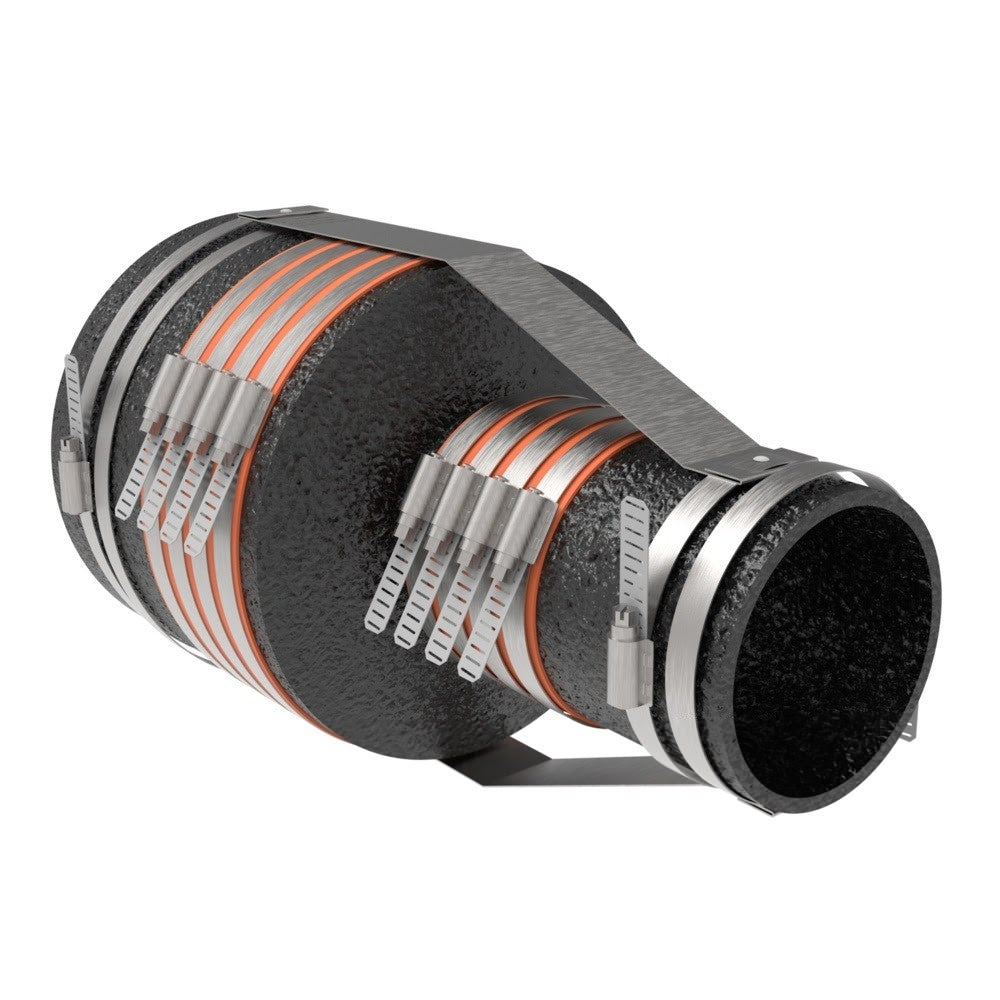

The HoldRite 117-8x4R 117-R Series restraint is designed to reinforce 8 in. x 4 in. no-hub cast iron short reducer installations in DWV systems. It uses a 24GA CRS galvanized steel strap with stainless steel bands to help retain the reducer fitting to adjoining piping, and the bands require a minimum torque of 60 in/lbs. for proper installation.
HoldRite 117-8x4R Includes
- (1) 8 in. x 4 in. R Series no-hub short reducer fitting restraint
HoldRite 117-8x4R Features
- Designed to reinforce no-hub cast iron short reducer installations
- Built with a 24GA CRS galvanized steel strap
- Uses stainless steel body, band, and screw components
- Bands require a minimum torque of 60 in/lbs.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI Designation 301-18, 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-8x4R Specifications
| Brand | HoldRite |
| Series | 117-R |
| Product Type | No-Hub Short Reducer Fitting Restraint |
| Size | 8 x 4 |
| Application | No-hub cast iron fitting reducers in DWV systems |
| Strap Material | 24GA CRS galvanized steel |
| Bands Material | Stainless steel body, band & screw |
| Minimum Band Torque | 60 in/lbs. |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
Toolup Part # :
883624
