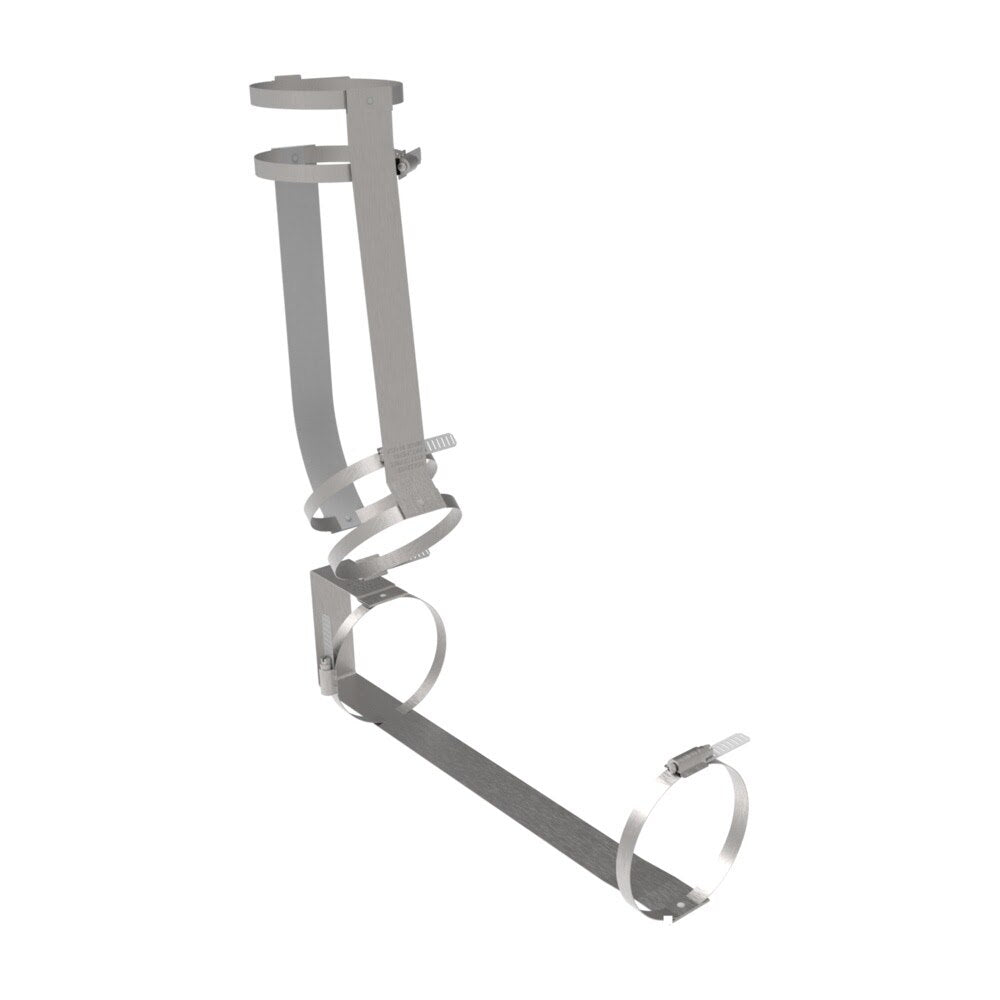

HoldRite 117-8x5CE Description

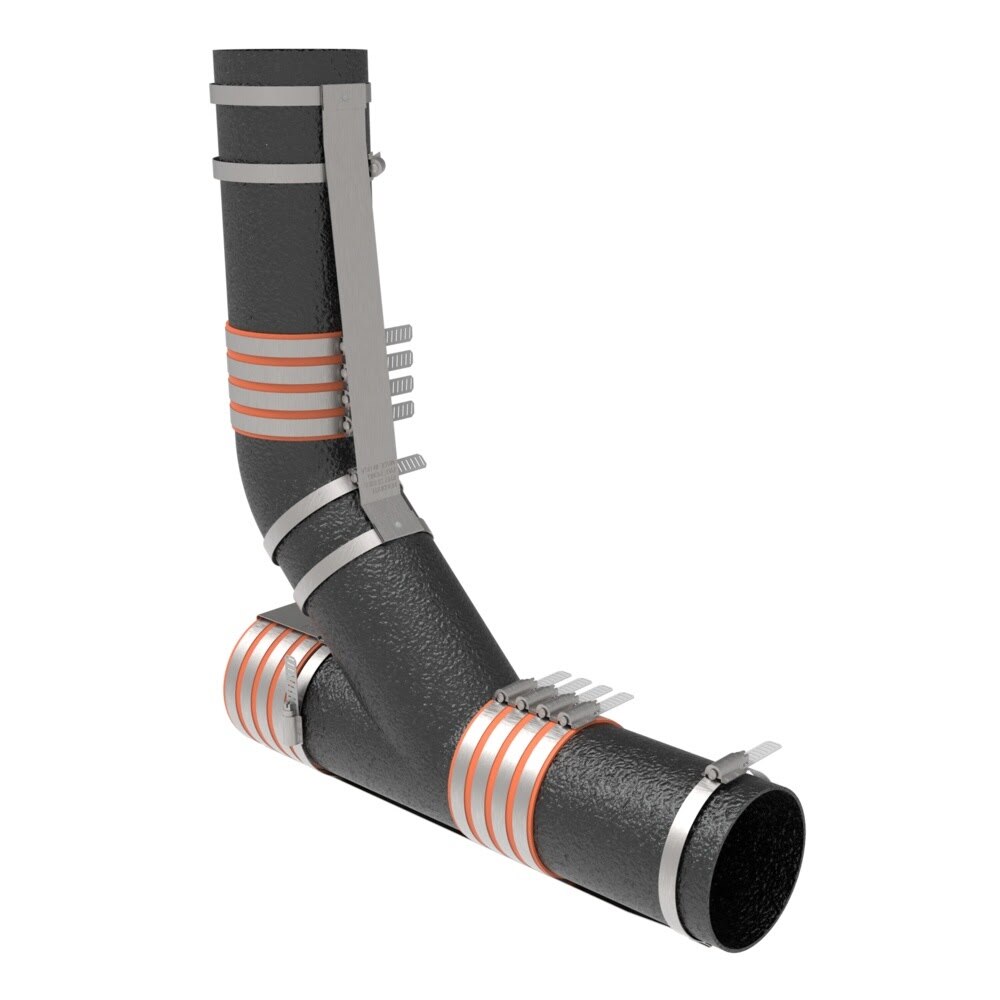

The HoldRite 117-8x5CE is an 8 in. x 5 in. no-hub combo or wye end-of-line position restraint designed to reinforce cast iron DWV installations. It helps retain the fitting onto adjoining piping when installed at the end of the line with a blind plug or cleanout, and features stainless steel bands that torque to a minimum of 60 in./lbs.
HoldRite 117-8x5CE Includes
- (1) 8 in. x 5 in. No-Hub Combo or Wye End-of-Line Position Restraint
HoldRite 117-8x5CE Features
- Designed to reinforce no-hub cast iron installations
- Retains combo or wye fittings onto adjoining piping in end-of-line positions
- For use when either a blind plug or a cleanout is installed
- Stainless steel body, band, and screw for corrosion resistance
- 24 ga. CRS galvanized steel strap
- Bands torque to a minimum of 60 in./lbs.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18, 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-8x5CE Specifications
| Series | 117-CE |
| Product Type | No-Hub fitting restraint |
| Size | 8 x 5 |
| Application | Combo or wye fitting end-of-line position restraint |
| Material | Stainless steel body, band and screw |
| Strap Material | 24 ga. CRS galvanized steel |
| Minimum Band Torque | 60 in./lbs. |
| Pressure Rating | Equal to 50 ft. head of water pressure |
| Product Length (in) | 13 |
| Product Width (in) | 11.5 |
| Product Height (in) | 14.5 |
| Shipping Weight (lb) | 2.4 |
| Case Quantity | 6 |
Toolup Part # :
882474
