HoldRite 117-8x5CM Description

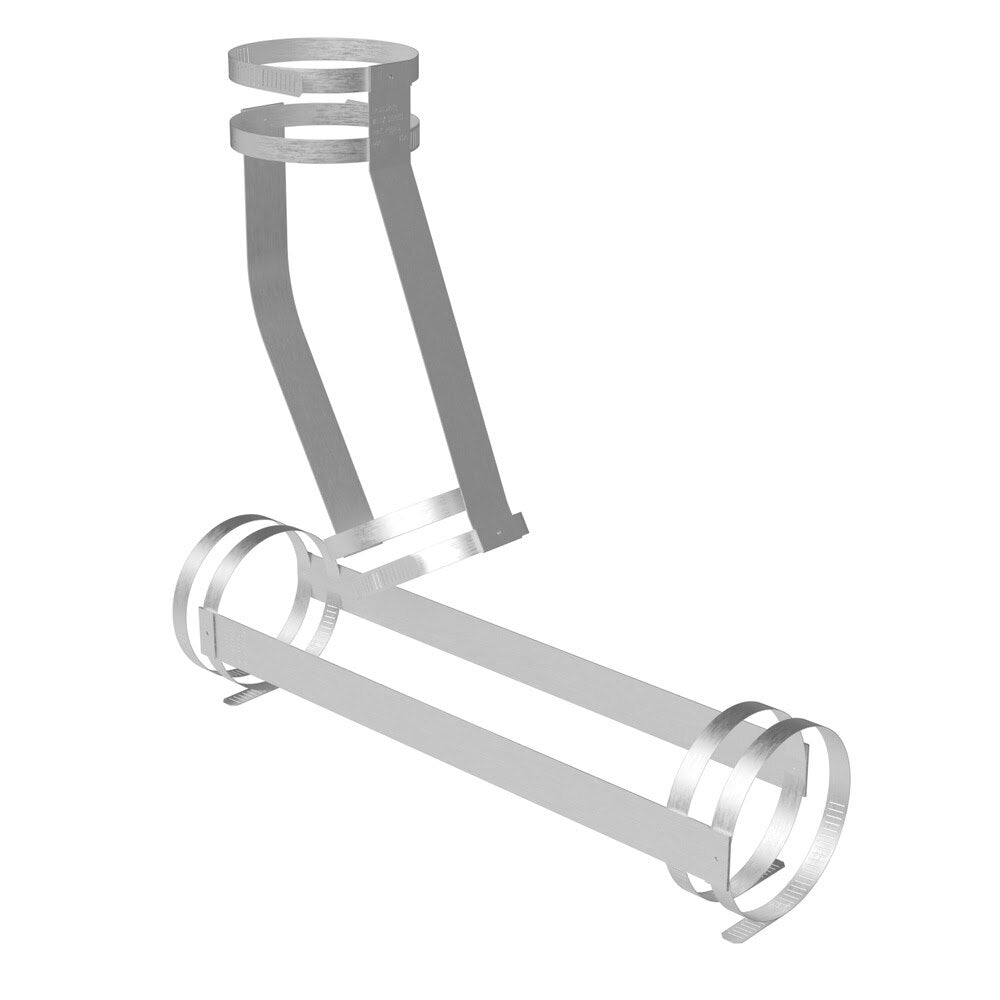

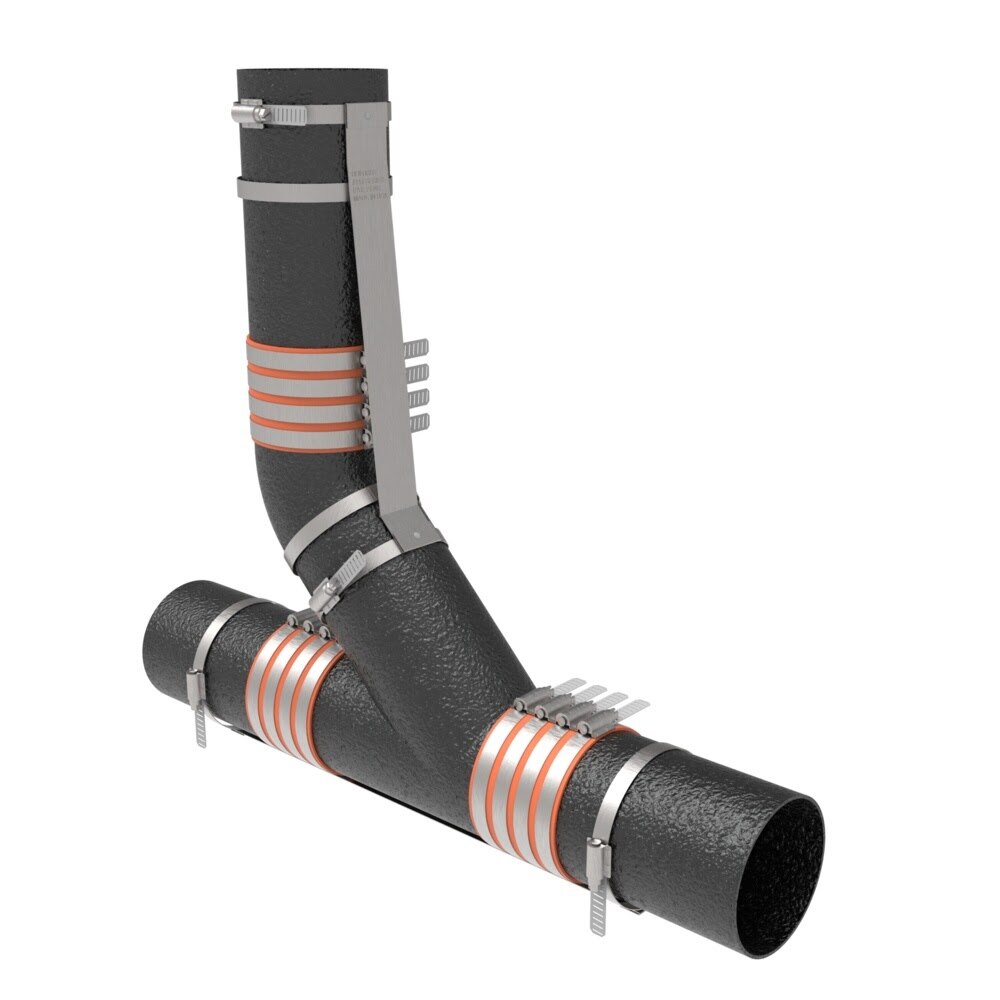

The HoldRite 117-8x5CM is an 8 in. x 5 in. CM Series combo mid-stream position restraint designed to reinforce no-hub cast iron installations. Each kit includes galvanized steel straps with stainless steel band clamps and, when installed correctly, achieves a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-8x5CM Includes
- (1) 8 in. x 5 in. CM Series No-Hub Combo Mid-Stream Position Restraint Kit
HoldRite 117-8x5CM Features
- Designed for 8 in. x 5 in. no-hub cast iron installations
- Combo mid-stream restraint helps reinforce fitting connections in DWV systems
- Galvanized 24GA CRS straps provide durable support
- Stainless steel body, band and screw offer corrosion-resistant clamping
- Requires a minimum band torque of 60 in./lbs.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed for use in accordance with CISPI Designation 310-11 and the 2006 CISPI Installation Handbook
HoldRite 117-8x5CM Specifications
| Brand | HoldRite |
| Series | 117-CM |
| Product Type | No-Hub Combo Mid-Stream Position Restraint |
| Size | 8 in. x 5 in. |
| Application | Reinforces no-hub cast iron installations |
| Strap Material | 24GA, CRS, galvanized |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in./lbs. |
| Pressure Rating | 50 ft. head of water pressure |
| Shipping Weight | 2 lb |
