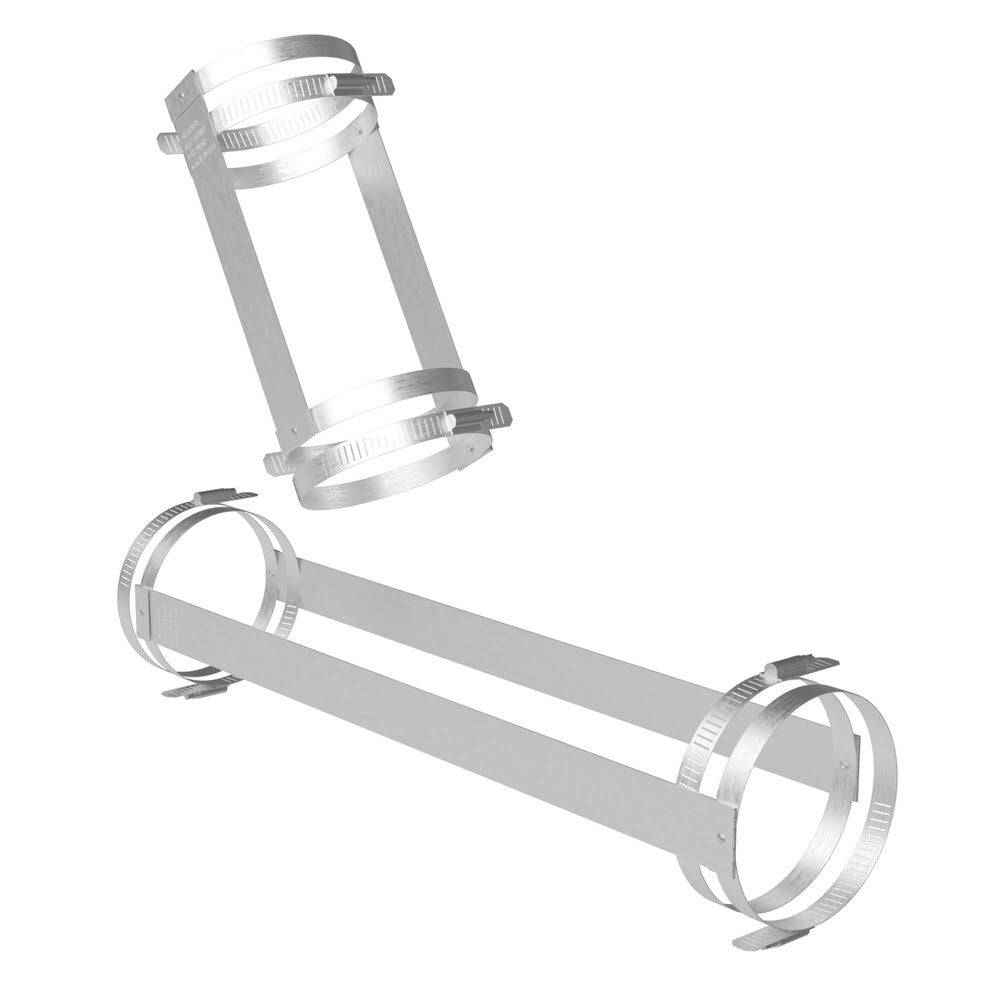

HoldRite 117-8x5W Description

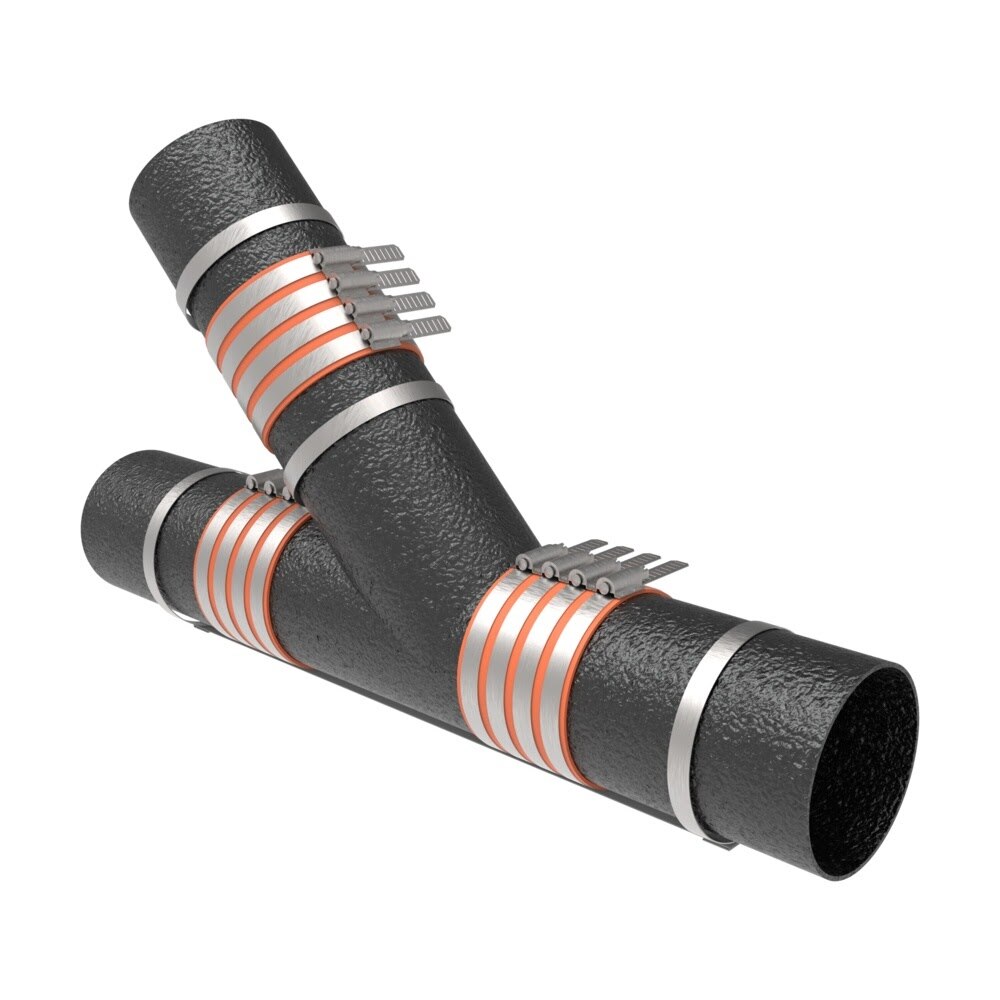

The HoldRite 117-W Series 8 x 5 in. no-hub restraint is designed to reinforce wye and sanitary tee cast iron fittings in mid-span DWV installations. Its galvanized steel straps and stainless steel bands help secure the fitting to adjoining piping when tightened to the specified minimum torque.
HoldRite 117-8x5W Includes
- (1) 8 x 5 in. No-Hub Wye or Sanitary Tee Restraint
HoldRite 117-8x5W Features
- Designed for 8 x 5 in. no-hub wye and sanitary tee fittings
- Reinforces no-hub cast iron installations in mid-span runs
- Galvanized steel straps with stainless steel bands and screw
- Bands require a minimum tightening torque of 60 in/lbs
- Achieves a safe thrust pressure rating equal to 50 ft head of water when installed correctly
- Designed in accordance with CISPI 301-18, 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-8x5W Specifications
| Brand | HoldRite |
| Series | 117-W |
| Product Type | No-Hub Fitting Restraint |
| Fitting Type | Wye or Sanitary Tee |
| Nominal Size | 8 x 5 in. |
| Application | DWV no-hub cast iron installations |
| Strap Material | 24 ga CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Pressure Rating | 50 ft head of water |
| Product Length (in) | 12 |
| Product Width (in) | 14 |
| Product Height (in) | 0.914 |
| Shipping Weight (lb) | 3 |
