HoldRite 117-8x6CE Description

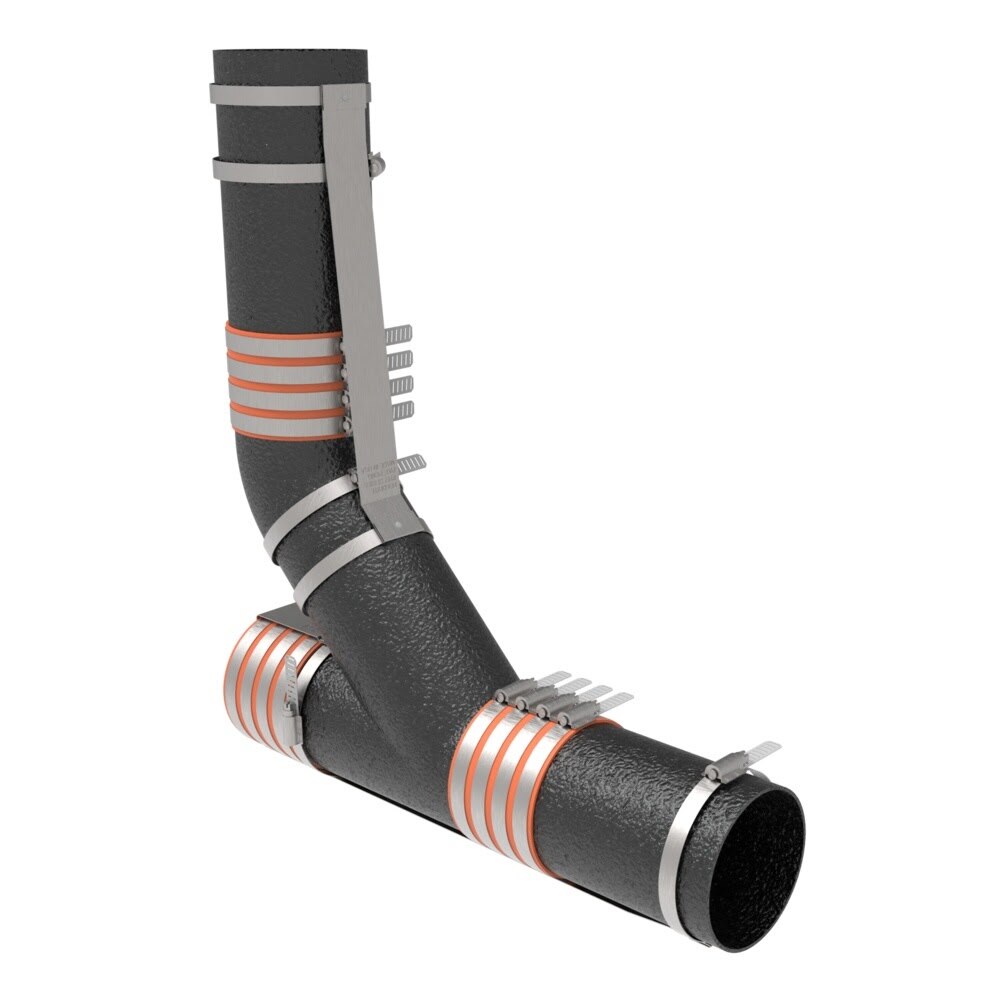

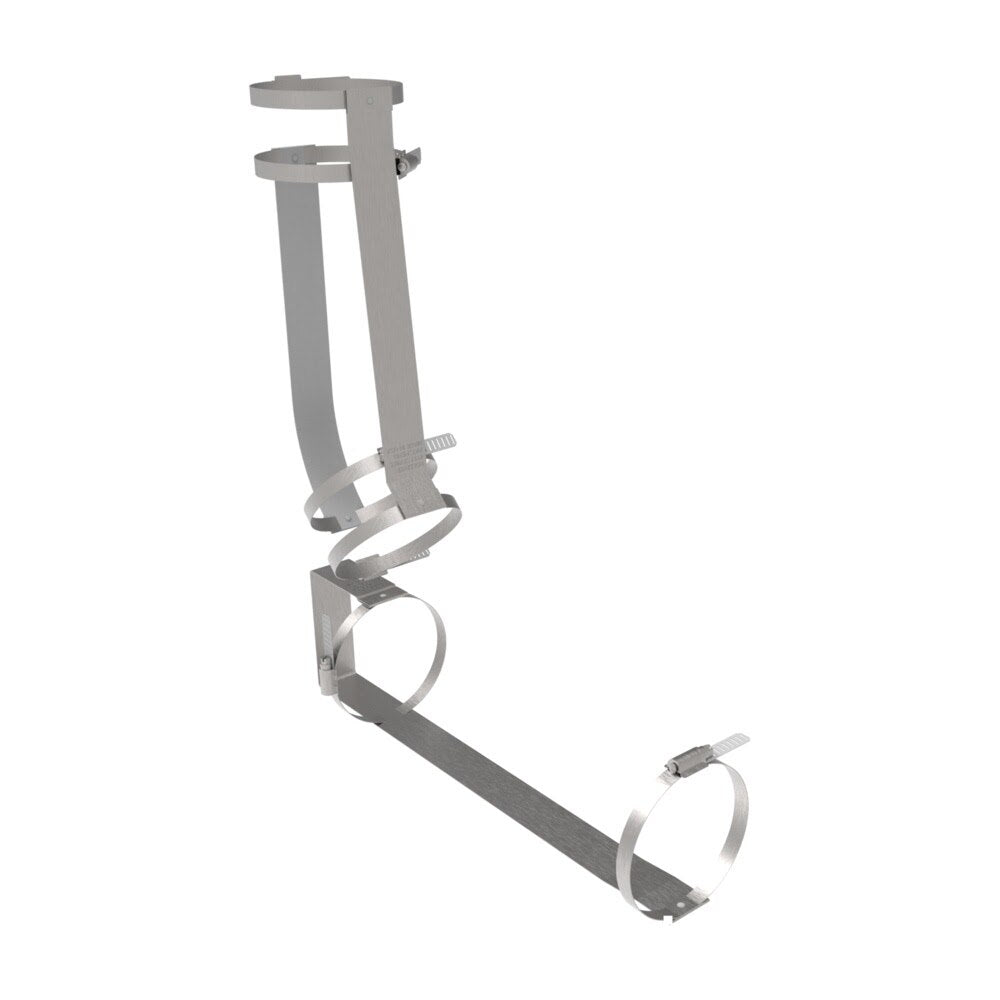

The HoldRite 117-8x6CE 117-CE Series restraint is designed to reinforce no-hub cast iron combo or wye fittings at end-of-line positions in DWV systems. It helps retain the fitting onto adjoining piping when used with a blind plug or cleanout, and features stainless steel bands and hardware with a galvanized steel strap for durable performance.
HoldRite 117-8x6CE Includes
- (1) 8 x 6 in. No-Hub Combo or Wye End-of-Line Position Restraint
HoldRite 117-8x6CE Features
- Designed for 8 x 6 in. no-hub combo or wye fittings in end-of-line positions
- Reinforces no-hub cast iron installations for DWV applications
- Retains the fitting onto adjoining piping when a blind plug or cleanout is installed
- Stainless steel body, band, and screw with galvanized steel strap
- Bands require 60 in/lbs minimum torque
- Provides a safe thrust pressure rating equal to 50 ft. head of water pressure when properly installed
- Patent pending
HoldRite 117-8x6CE Specifications
| Brand | HoldRite |
| Series | 117-CE |
| Product Type | No-Hub Combo or Wye End-of-Line Position Restraint |
| Size | 8 x 6 in. |
| Application | DWV no-hub cast iron installations |
| Strap Material | 24 ga. CRS galvanized steel |
| Body, Band and Screw Material | Stainless steel |
| Minimum Band Torque | 60 in/lbs |
| Pressure Rating | 50 ft. head of water pressure |
| Product Length (in) | 20.5 |
| Product Width (in) | 10 |
| Product Height (in) | 1.712 |
| Shipping Weight (lb) | 2.6 |
| Case Quantity | 6 |
