HoldRite 117-8x6CM Description

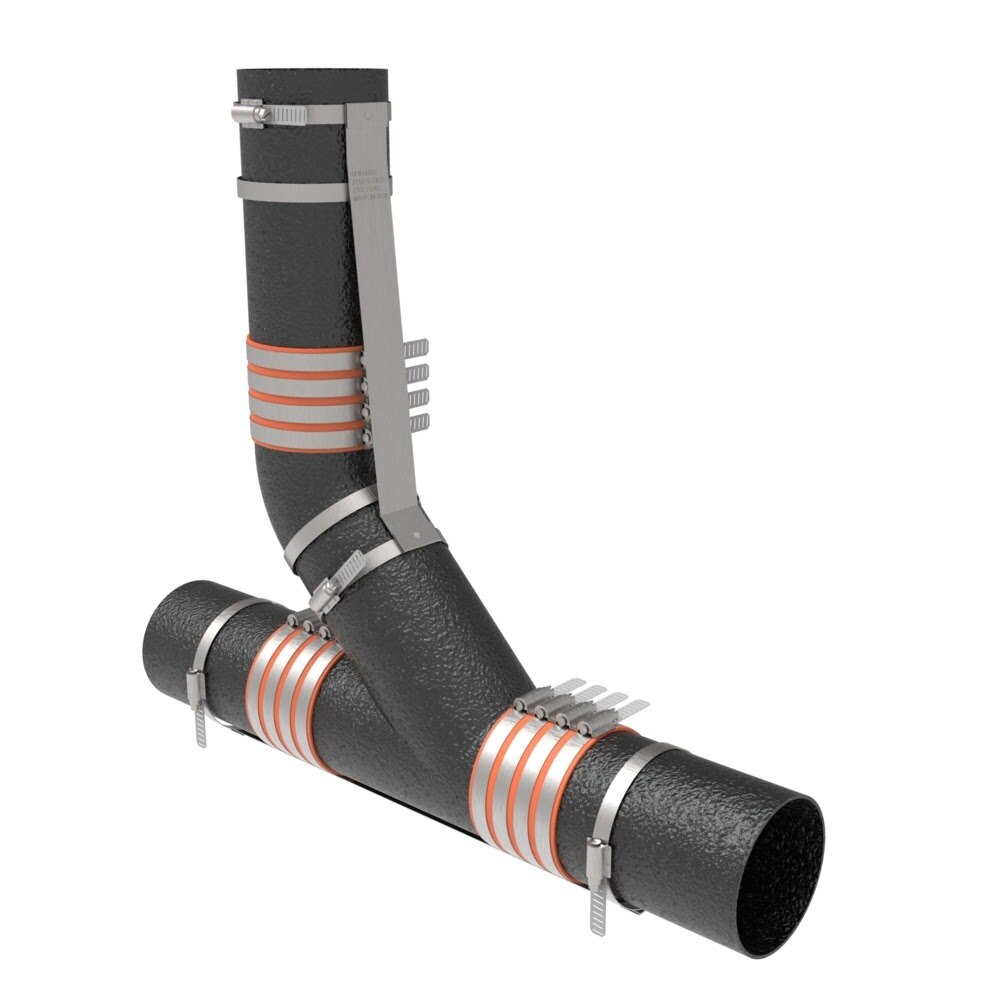

The HoldRite 117-8x6CM is an 8 in. x 6 in. no-hub combo mid-stream position restraint designed to reinforce wye and eighth bend cast iron installations. This kit includes galvanized steel straps with stainless steel band clamps and, when installed correctly, achieves a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-8x6CM Includes
- (1) 8 in. x 6 in. No-Hub Combo Mid-Stream Position Restraint

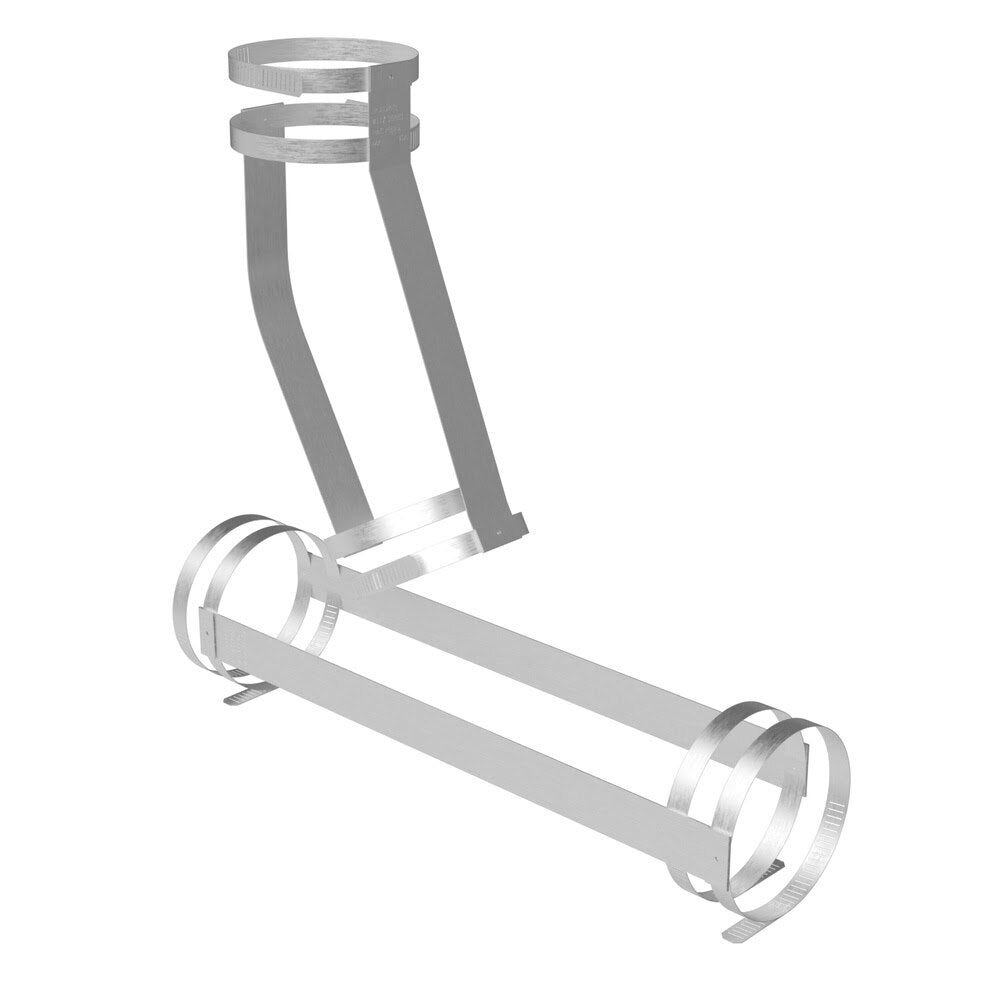

- (1) Set of galvanized steel straps
- (1) Set of stainless steel band clamps
HoldRite 117-8x6CM Features
- Designed to reinforce no-hub cast iron installations
- Combines a wye and eighth bend fitting restraint in one mid-stream assembly
- Galvanized 24GA CRS strap construction
- Stainless steel body, band, and screw components
- Requires 60 in./lbs. minimum torque on band
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI Designation 310-11 and the 2006 CISPI Installation Handbook
HoldRite 117-8x6CM Specifications
| Brand | HoldRite |
| Series | 117-CM |
| Product Type | No-Hub Combo Mid-Stream Position Restraint |
| Nominal Size | 8 in. x 6 in. |
| Application | DWV no-hub cast iron installations |
| Strap Material | 24GA CRS galvanized steel |
| Band Material | Stainless steel body, band, and screw |
| Minimum Torque | 60 in./lbs. on band |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Standards | CISPI Designation 310-11 and 2006 CISPI Installation Handbook |
| Product Length (in) | 26.25 |
| Product Width (in) | 12 |
| Product Height (in) | 10.5 |
| Each Shipping Weight (lb) | 2.883 |
| Case Quantity | 6 |
