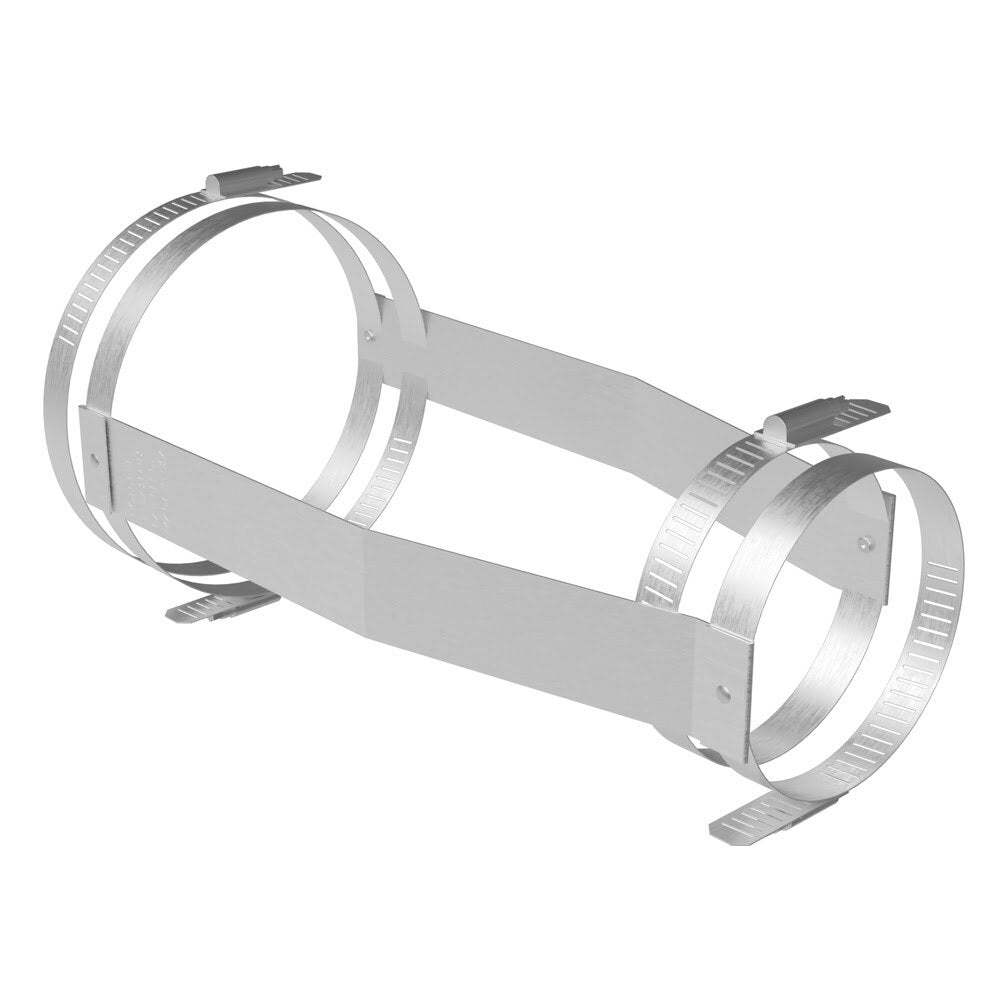

HoldRite 117-8x6R Description
The HoldRite 117-8x6R is an 8 x 6 in. no-hub short reducer restraint designed to reinforce cast iron reducer installations. Built with a galvanized steel strap and stainless steel bands, it helps retain the reducer fitting to adjoining piping and requires a minimum band torque of 60 in./lb. for proper installation.
HoldRite 117-8x6R Includes
- (1) 8 x 6 in. No-Hub Short Reducer Restraint
HoldRite 117-8x6R Features
- Designed to reinforce no-hub cast iron reducer installations
- Fits 8 x 6 in. short reducer applications
- Galvanized steel strap construction
- Stainless steel body, band and screw
- Bands require a minimum torque of 60 in./lb.

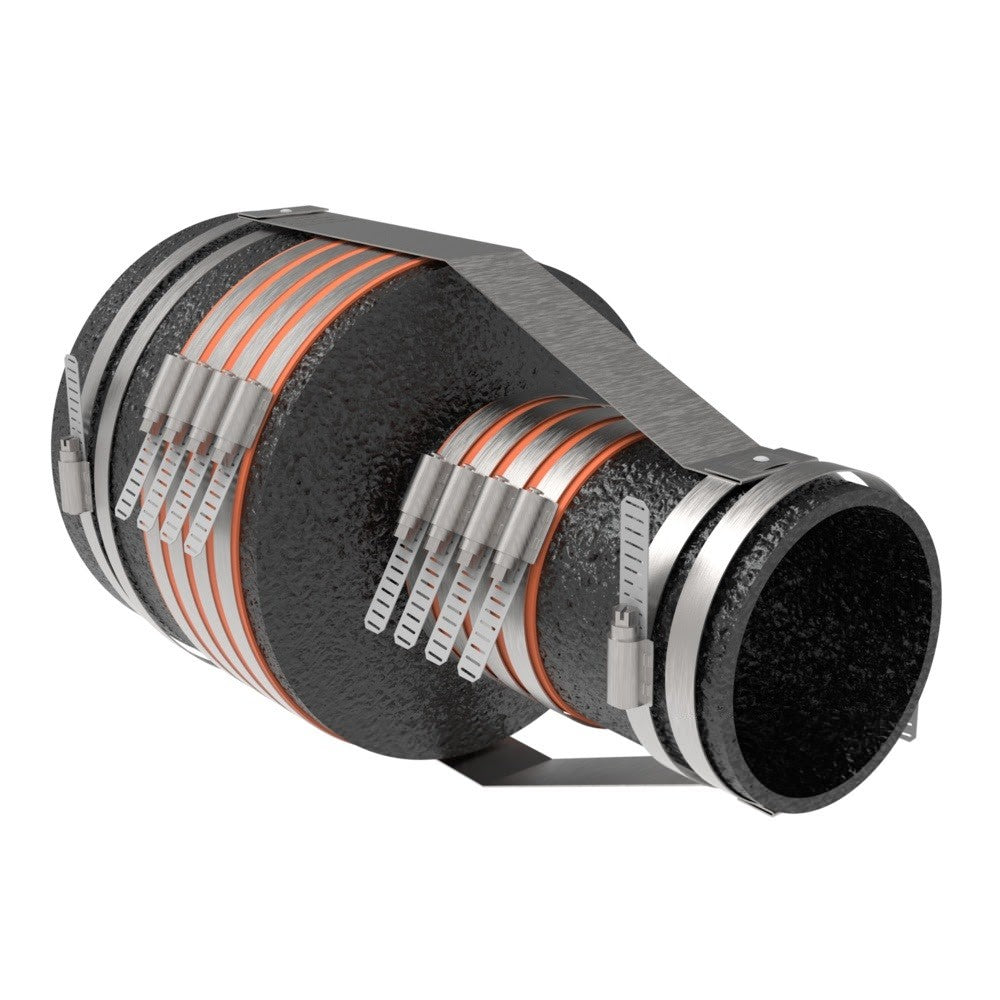

- Helps retain the reducer fitting to adjoining piping
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18, 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-8x6R Specifications
| Brand | HoldRite |
| Series | 117-R Series |
| Product Type | No-Hub Short Reducer Restraint |
| Size | 8 x 6 in. |
| Application | No-hub cast iron fitting reducers |
| Strap Material | 24 ga. cold-rolled galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Torque | 60 in./lb. |
| Pressure Rating | 50 ft. head of water pressure |
| Length | 13 in. |
| Width | 9 in. |
| Height | 1.042 in. |
| Shipping Weight | 1.467 lb |
