HoldRite 125-D Description

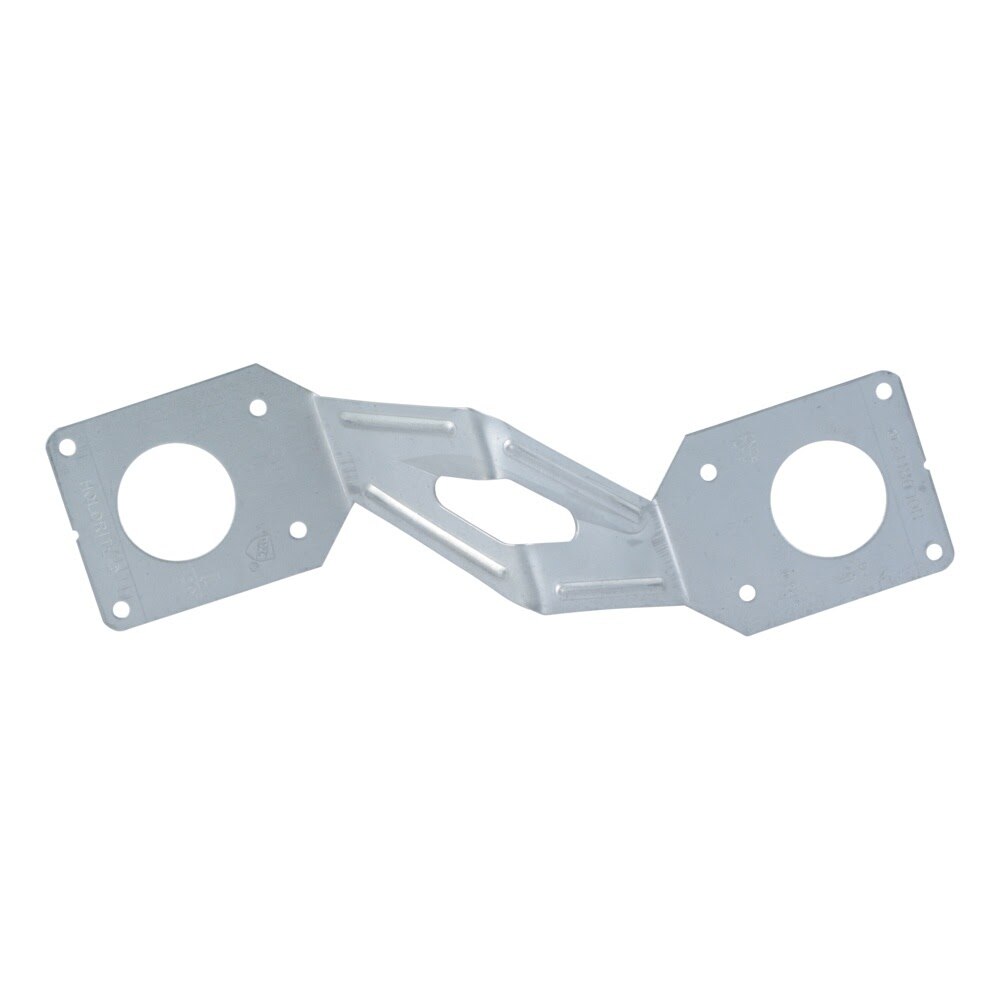

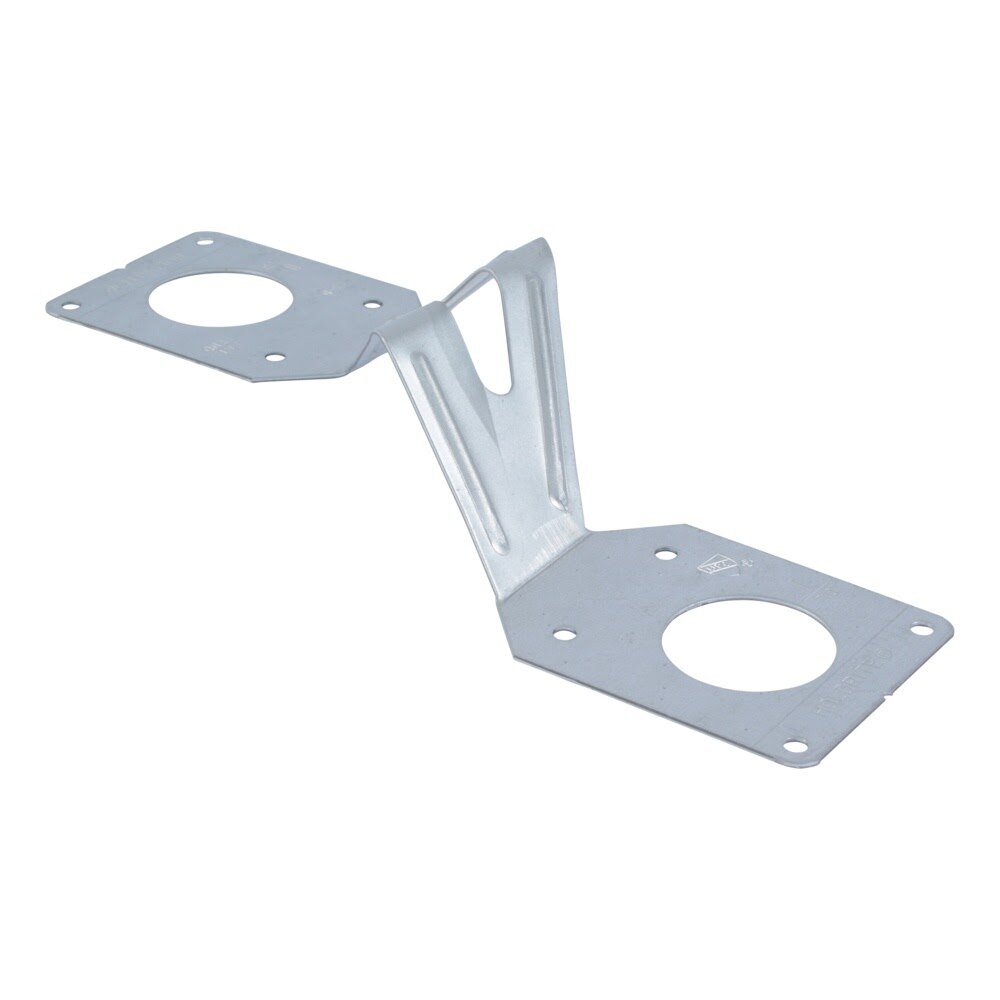

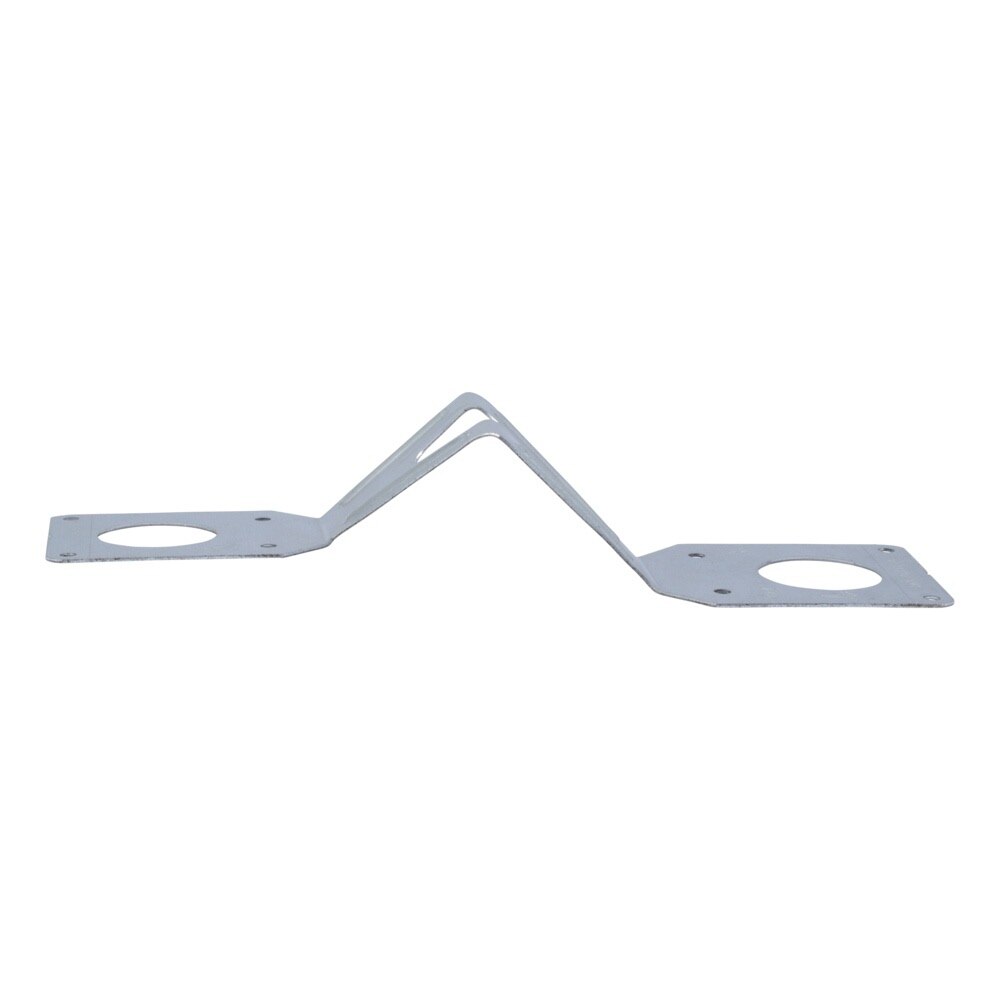

The HoldRite 125-D is a galvanized steel concrete insert bracket designed for cast-in-place overhead and horizontal pipe support. Its two-hole design helps create side-by-side parallel pipe runs and is compatible with HoldRite 400 Series and 261/262 inserts for supporting copper, CPVC, and PEX tubing.
HoldRite 125-D Includes
- (1) Galvanized Steel Concrete Insert Bracket
HoldRite 125-D Features
- Galvanized steel construction for durable pipe support applications
- Two-hole bracket design helps create side-by-side parallel pipe runs
- Designed for cast-in-place overhead and horizontal pipe support
- Compatible with HoldRite 400 Series and 261/262 inserts
- Supports copper, CPVC, and PEX tubing
- Fits 1/2 in., 3/4 in., and 1 in. pipe sizes
- Two openings positioned at 2 in. center line height from structure
HoldRite 125-D Specifications
| Product Type | Concrete Insert Bracket |
| Material | Galvanized Steel |
| Hole Count | 2 |
| Dimensions | 9-5/8 in. x 5 in. |
| Pipe Sizes | 1/2 in., 3/4 in., 1 in. |
| Center Line Height from Structure | 2 in. |
| Compatible Inserts | HoldRite 400 Series, 261, 262 |
| Supported Tubing | Copper, CPVC, PEX |
| Application | Cast-in-place overhead and horizontal pipe support |
Toolup Part # :
884464
