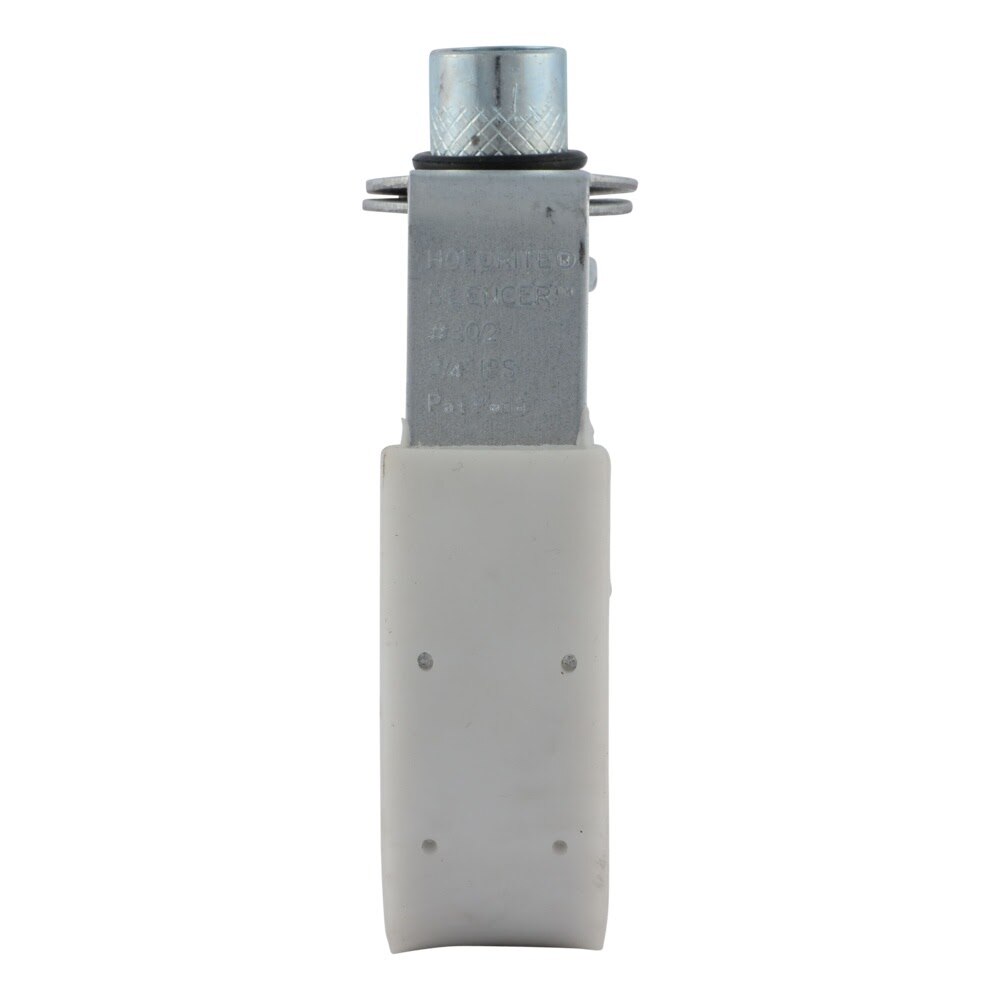

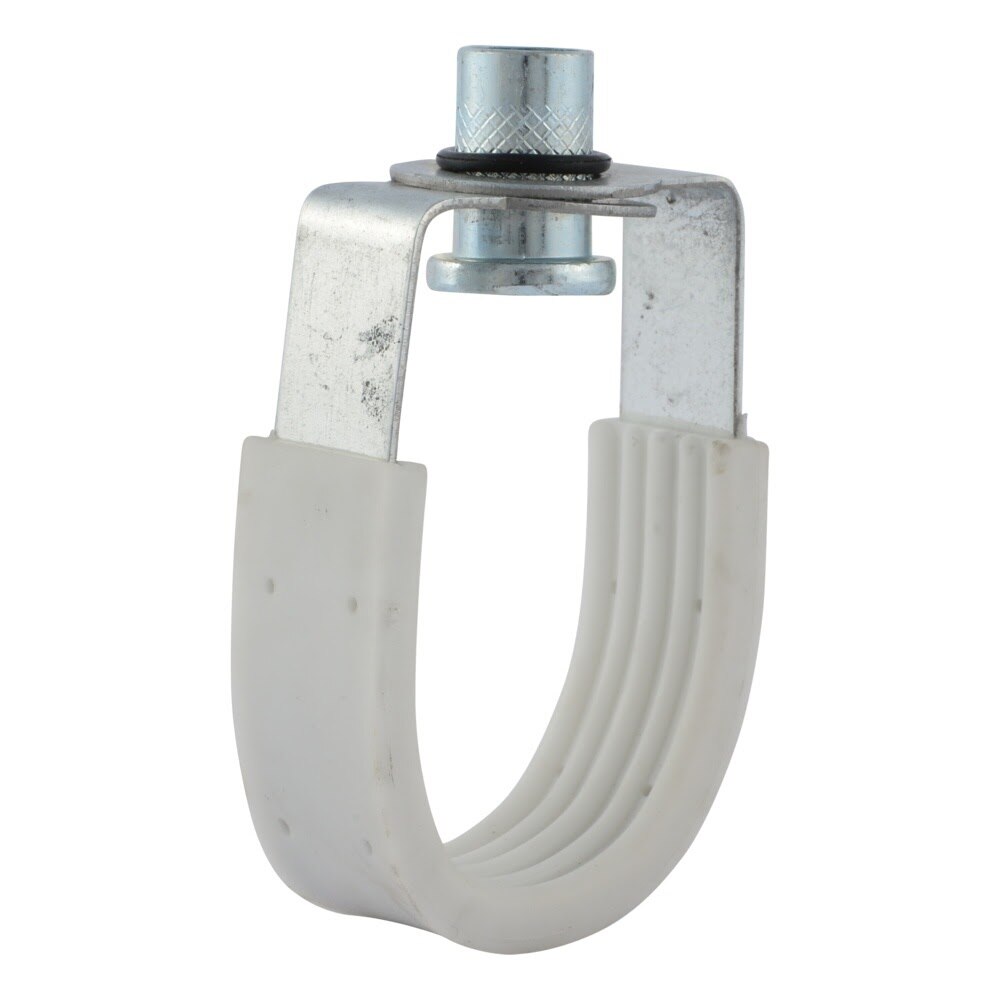

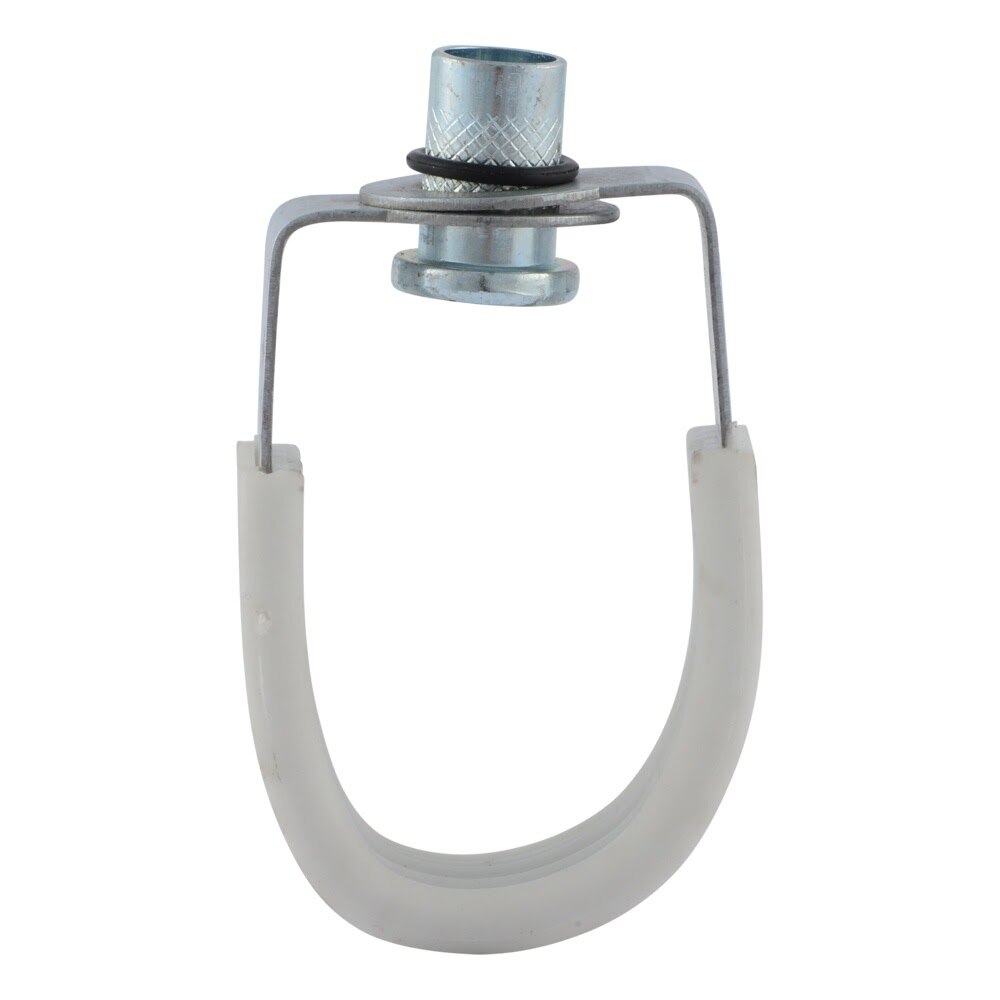

HoldRite 301 Description
The HoldRite acoustic swivel loop hanger is designed to support 1/2 in. IPS and 3/4 in. CTS pipe while helping reduce noise transfer and prevent contact between dissimilar metals. Built with a carbon steel frame and TPE liner, it delivers durable pipe support with a 300 lb load capacity and an operating temperature range from -50 F to 225 F.
HoldRite 301 Includes
- (1) Acoustic Swivel Loop Hanger
HoldRite 301 Features
- Supports 1/2 in. IPS and 3/4 in. CTS pipe
- Provides acoustic noise isolation
- Helps protect against dissimilar metal contact
- Swivel loop design for suspended pipe support
- Carbon steel frame with TPE liner
- 300 lb load capacity
- Operating temperature range from -50 F to 225 F
- Conforms to Federal Specification WW-H-171 Type 10
- Complies with MSS SP-58 and SP-69 Type 10
- Patent pending
HoldRite 301 Specifications
| Brand | HoldRite |
| Product Type | Acoustic swivel loop hanger |
| Iron Pipe Size (IPS) | 1/2 in. |
| Copper Tube Size (CTS) | 3/4 in. |
| Frame Material | Carbon steel |
| Liner Material | TPE, natural off-white, 45 Shore A |
| Load Capacity | 300 lb |
| Operating Temperature Minimum | -50 F |
| Operating Temperature Maximum | 225 F |
| Standards | Federal Specification WW-H-171 Type 10; MSS SP-58; MSS SP-69 Type 10 |
| Each Shipping Weight | 0.10 lb |
Toolup Part # :
885077
