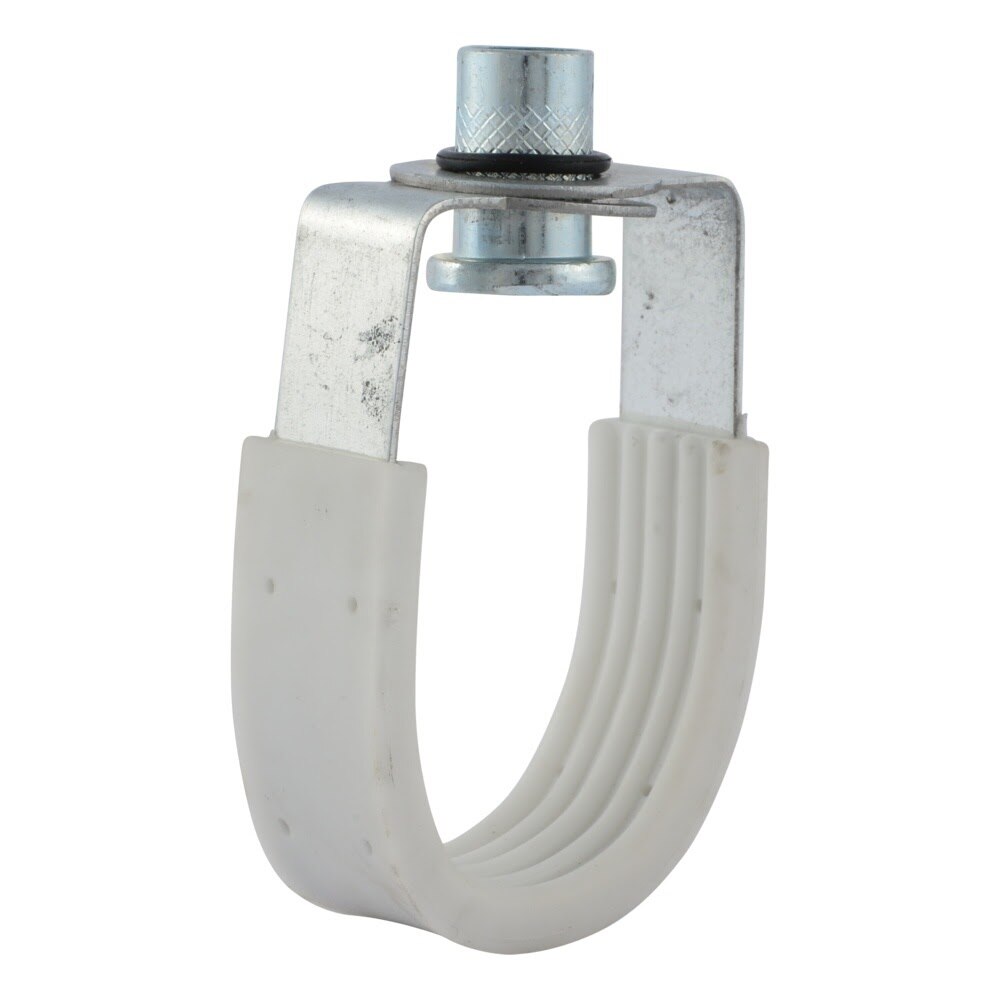

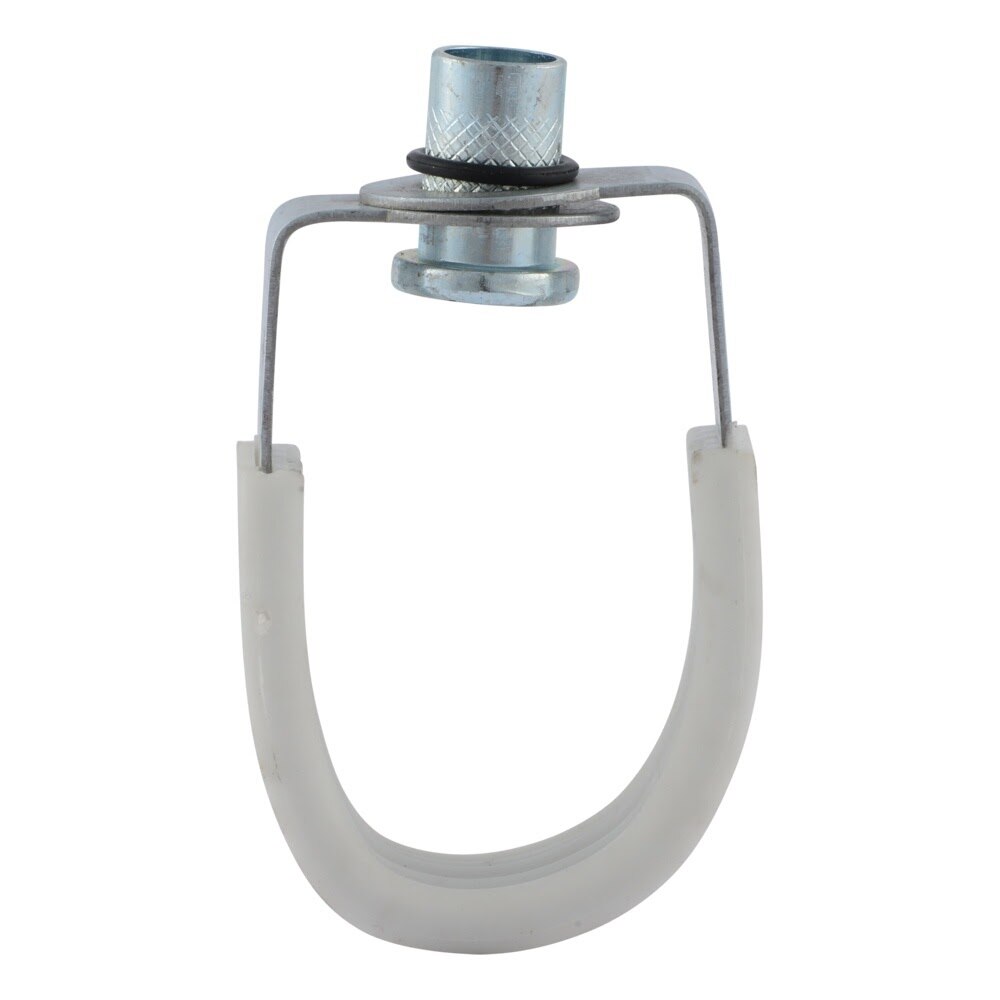

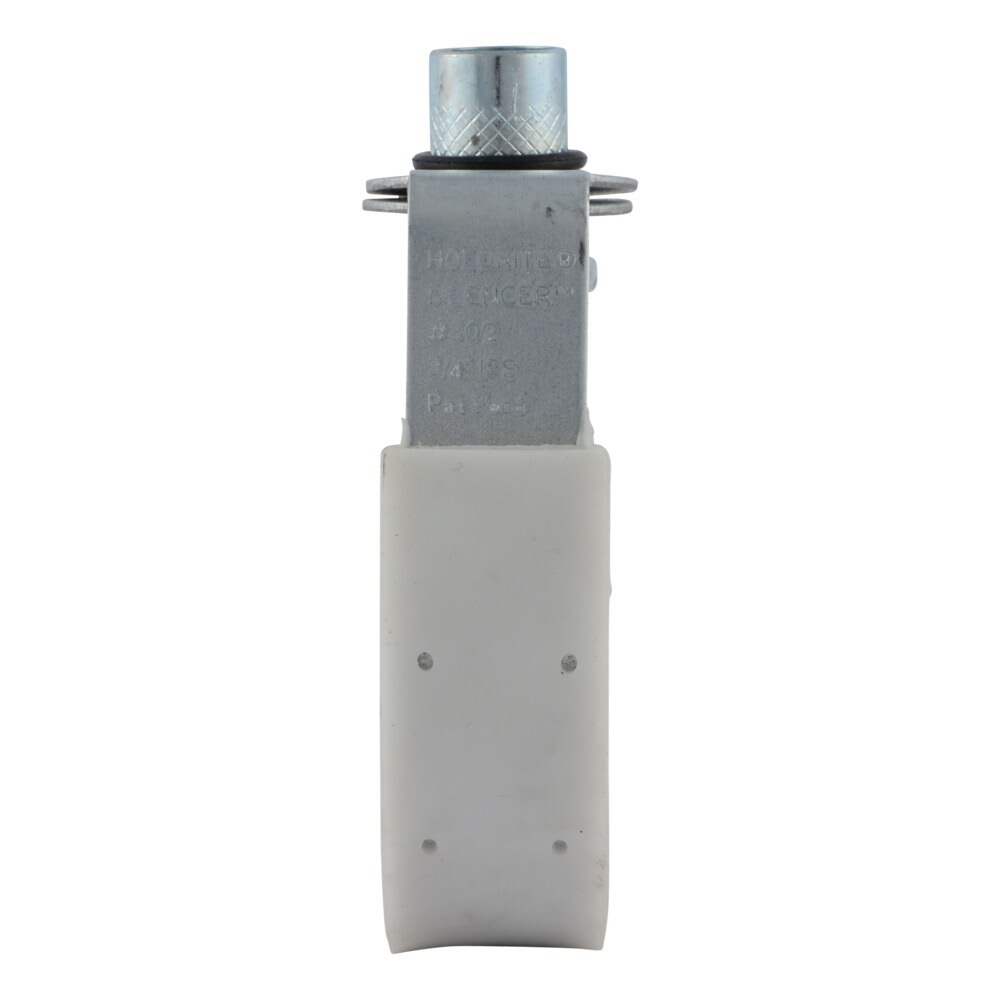

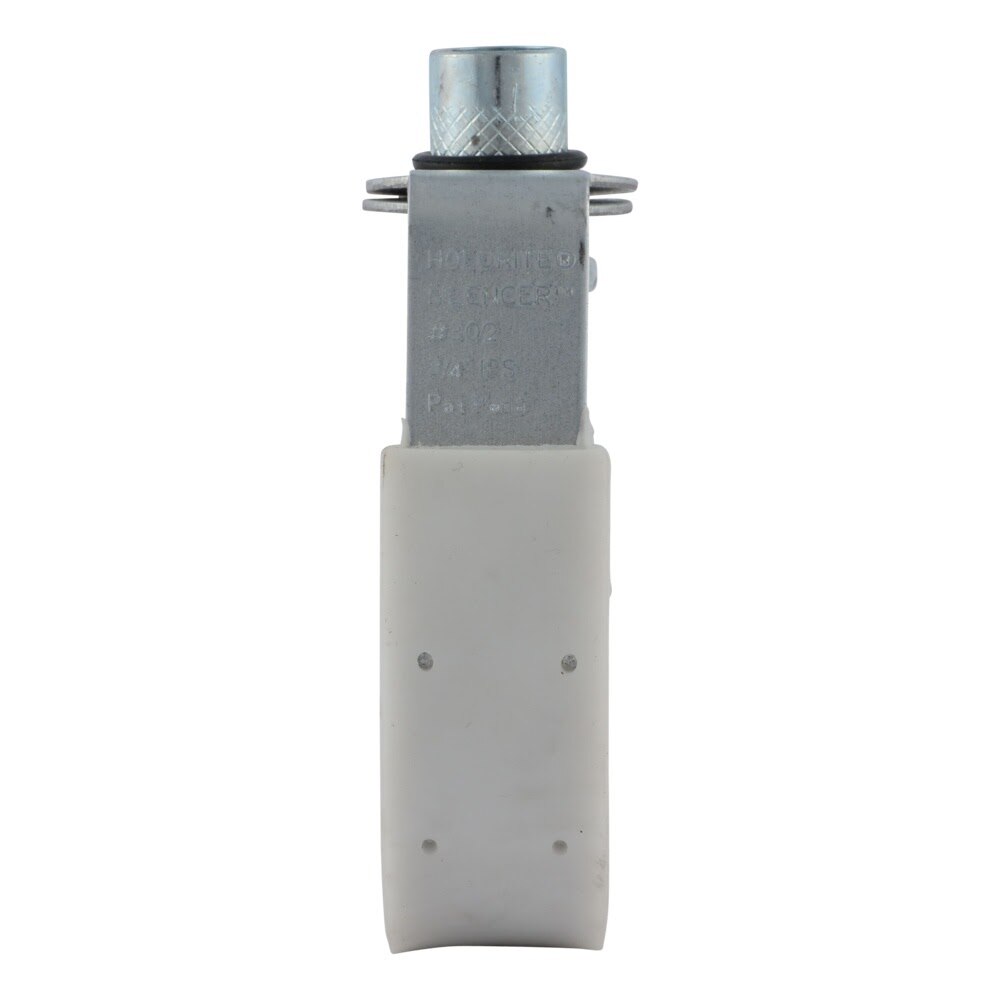

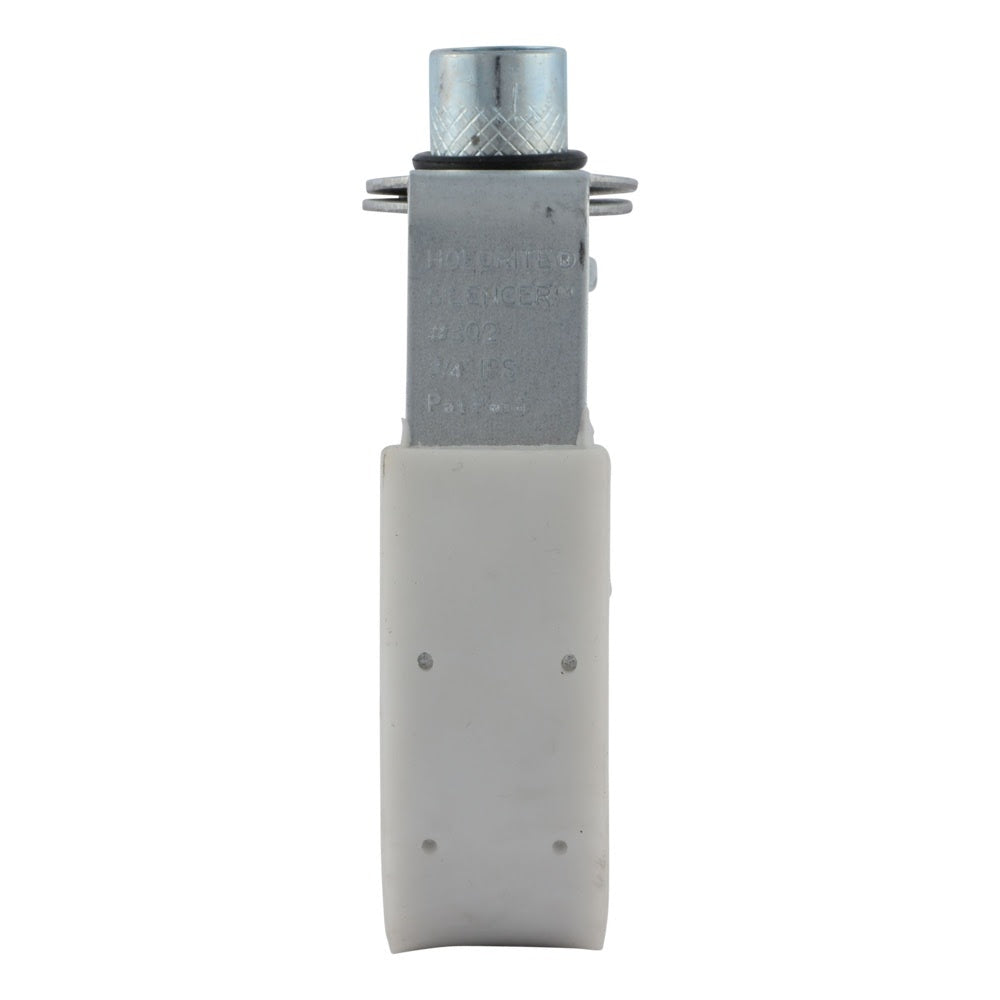

HoldRite 302 Description
The HoldRite acoustic swivel loop hanger supports 1 in. CTS and 3/4 in. IPS pipe while reducing noise transmission and helping prevent dissimilar metal contact. Its carbon steel frame and TPE liner provide durable support for acoustic isolation pipe installations.
HoldRite 302 Includes
- (1) Acoustic Swivel Loop Hanger
HoldRite 302 Features
- Supports 3/4 in. IPS and 1 in. CTS pipe and tubing
- Provides acoustic noise isolation for pipe support applications
- Helps prevent dissimilar metal contact
- Swivel loop design allows secure overhead pipe support
- Carbon steel frame delivers durable performance
- TPE liner helps cushion and isolate the pipe
- Load capacity rated up to 300 lb
- Operating temperature range from -50 DegreeF to 225 DegreeF
- Complies with Federal Specification WW-H-171 Type 10
- Complies with MSS SP-58 and SP-69 Type 10
- Patent pending
HoldRite 302 Specifications
| Product Type | Acoustic Swivel Loop Hanger |
| Iron Pipe Size (IPS) | 3/4 in. |
| Copper Tube Size (CTS) | 1 in. |
| Frame Material | Carbon Steel |
| Liner Material | TPE, natural off-white, 45 shore A |
| Load Capacity | 300 lb |
| Load Rating | Complies with MSS SP-58 |
| Standards | Federal Specification WW-H-171 Type 10; MSS SP-58; MSS SP-69 Type 10 |
| Operating Temperature Min | -50 DegreeF |
| Operating Temperature Max | 225 DegreeF |
| Product Length | 1.70 in. |
| Product Width | 0.70 in. |
| Product Height | 2.80 in. |
| Shipping Weight | 0.12 lb |
| Case Quantity | 100 |
Toolup Part # :
885013
