Description
Description
HoldRite 304 Description

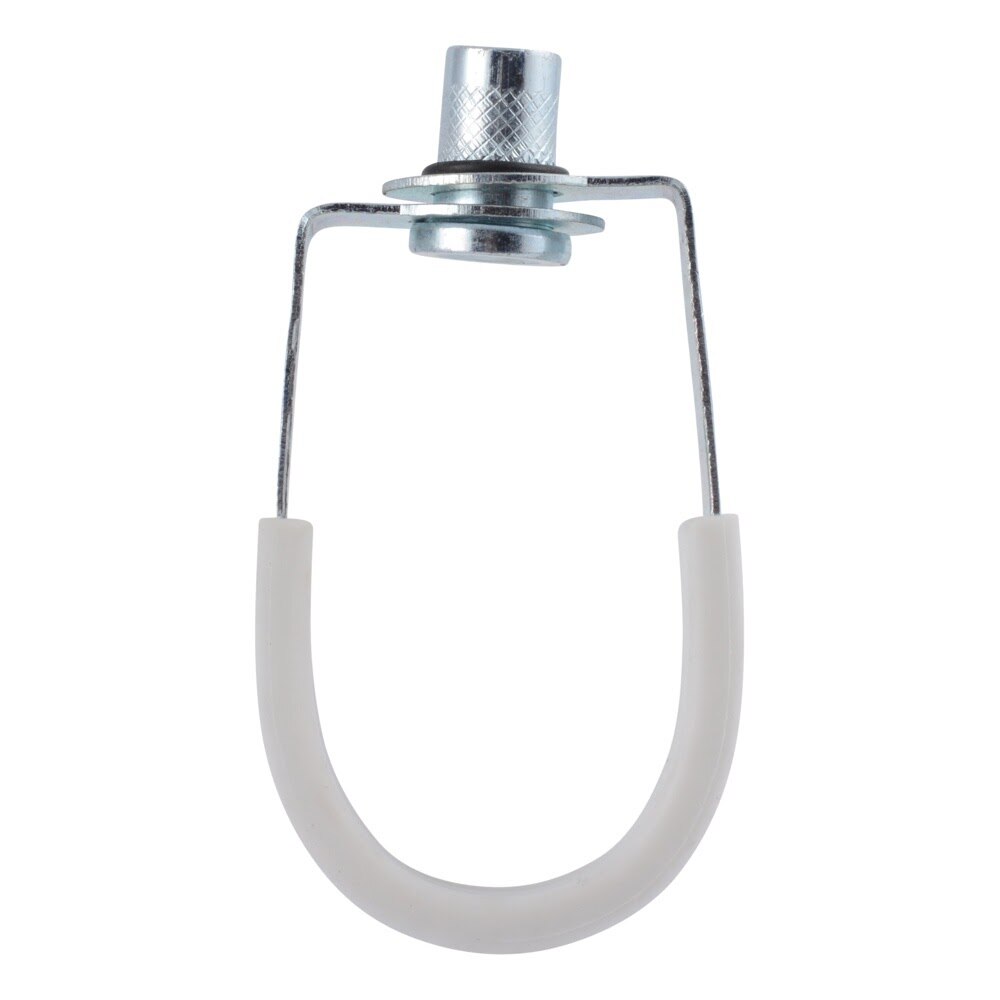

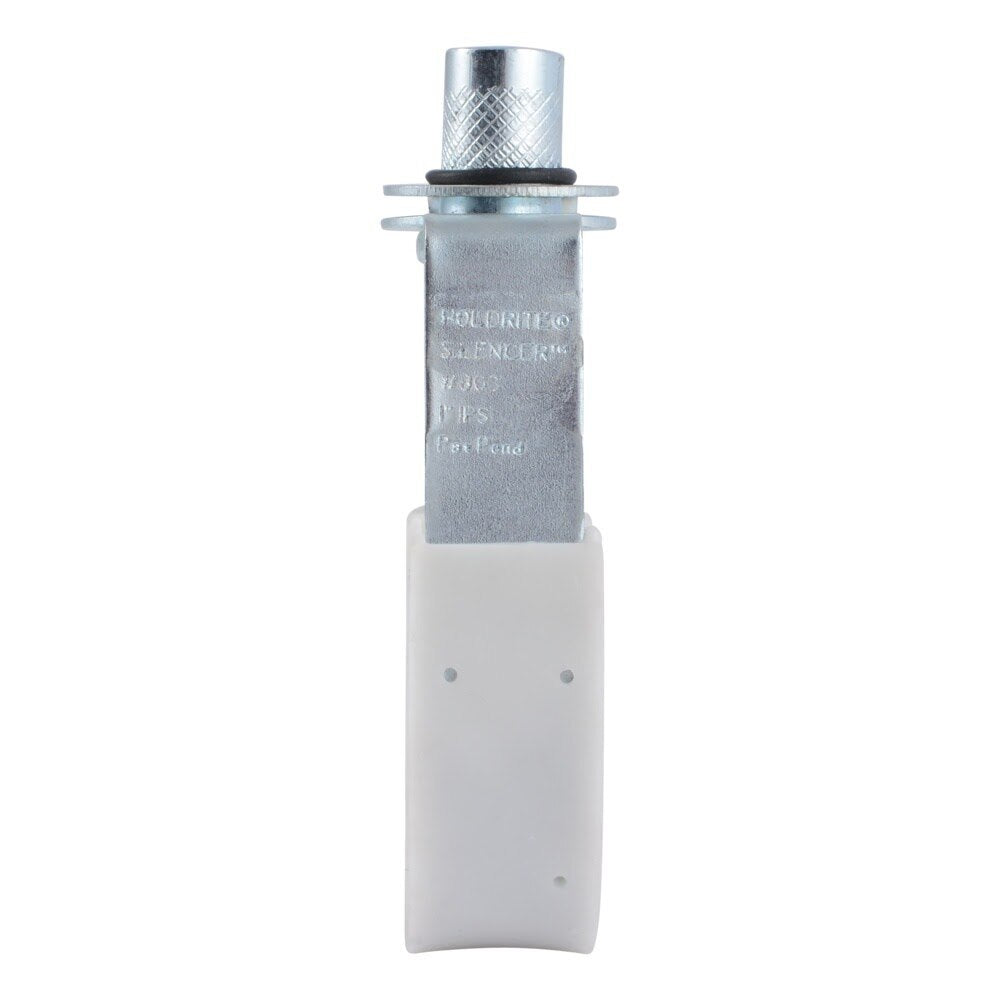

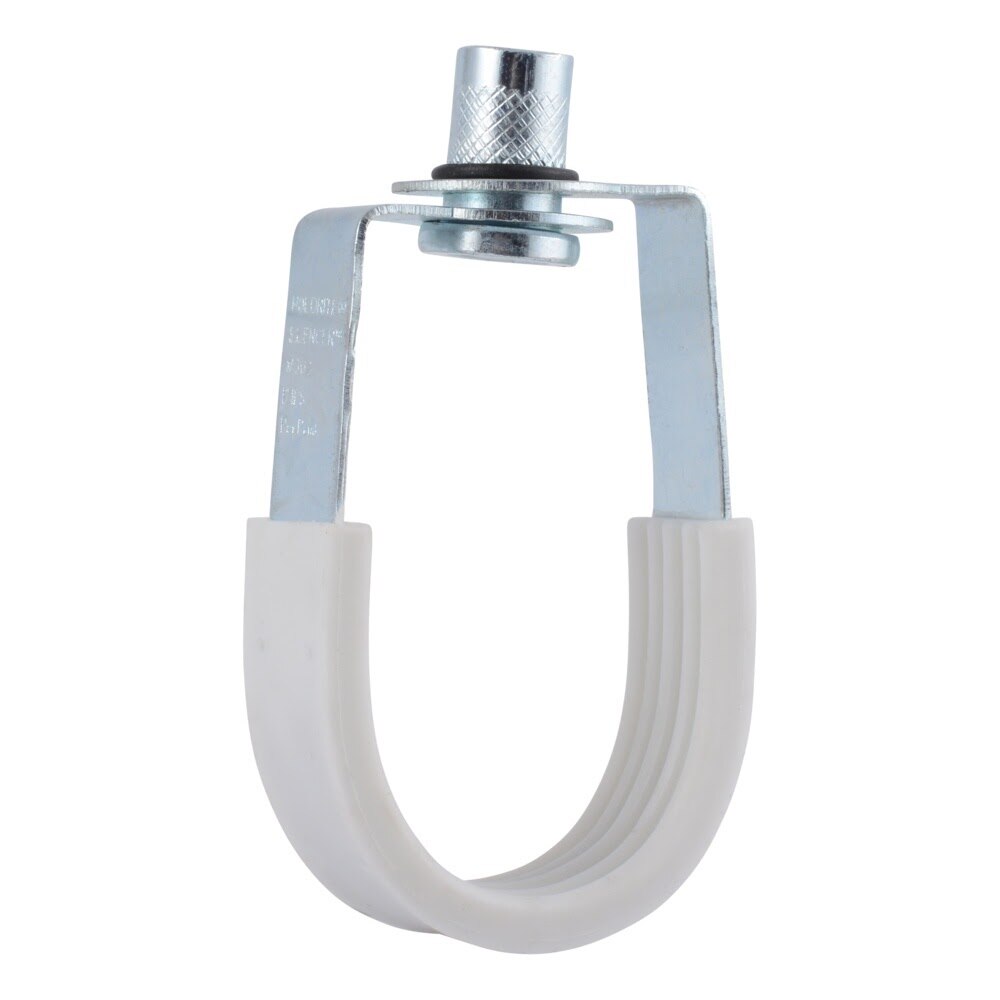

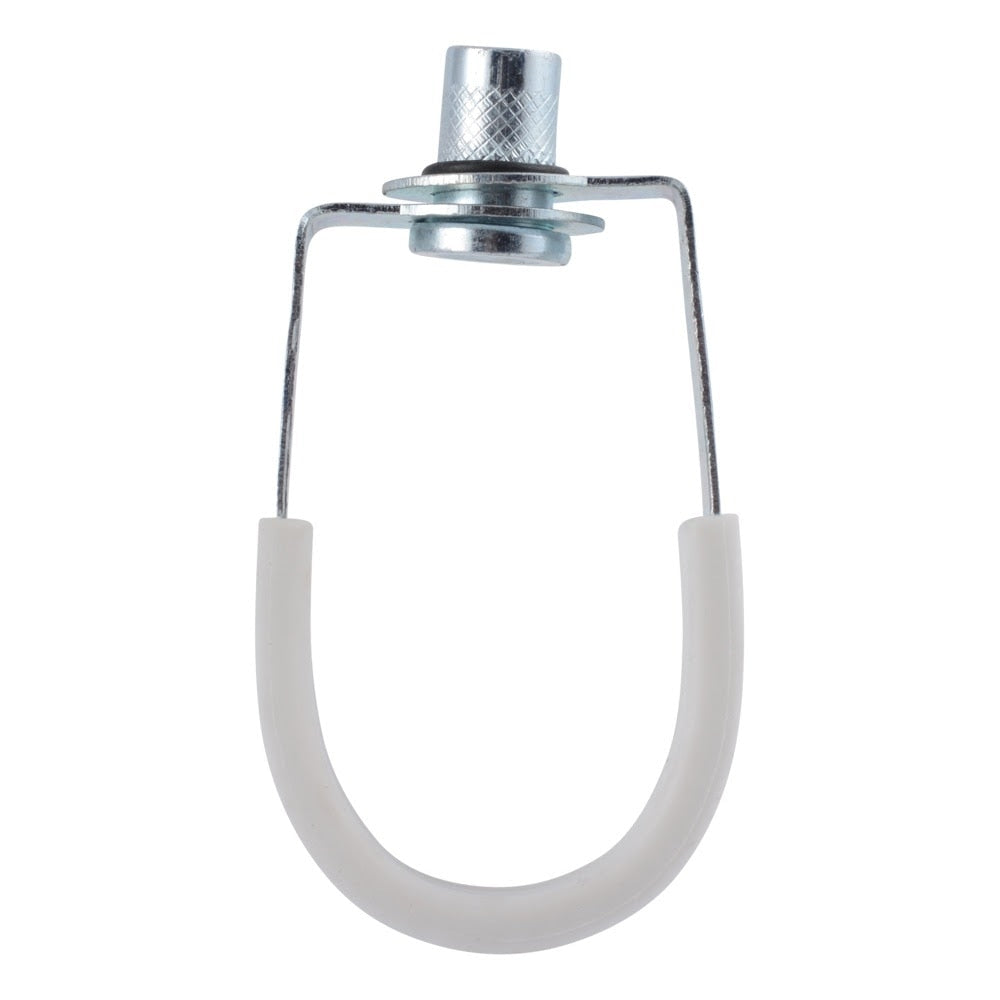

The HoldRite 304 acoustic swivel loop hanger is designed to support 1-1/4 in. to 1-1/2 in. IPS pipe and 1-1/2 in. CTS tubing while helping reduce noise and prevent contact between dissimilar metals. Its carbon steel frame and TPE liner provide durable pipe support for acoustic isolation applications.
HoldRite 304 Includes
- (1) Acoustic Swivel Loop Hanger
HoldRite 304 Features
- Supports 1-1/4 in. to 1-1/2 in. IPS pipe and 1-1/2 in. CTS tubing
- Provides acoustic noise isolation
- Helps prevent contact between dissimilar metals
- Carbon steel frame for durable support
- TPE natural liner, 45 shore A
- Complies with MSS SP-58 load rating
- Conforms with Federal Specification WW-H-171 Type 10
- Conforms with MSS SP-69 Type 10
- Swivel loop hanger design
- Patent pending
HoldRite 304 Specifications
| Brand | HoldRite |
| Series | 300-310 Swivel Loop Hangers |
| Product Type | Acoustic Swivel Loop Hanger |
| SKU | 304 |
| Iron Pipe Size (IPS) | 1-1/4 in. - 1-1/2 in. |
| Copper Tube Size (CTS) | 1-1/2 in. |
| Frame Material | Carbon Steel |
| Liner Material | TPE, natural (off-white), 45 shore A |
| Load Capacity | 300 lb |
| Operating Temperature Minimum | -50 DegreeF |
| Operating Temperature Maximum | 225 DegreeF |
| Compliance | Federal Specification WW-H-171 Type 10, MSS SP-58, MSS SP-69 Type 10 |
| Product Length | 2.40 in |
| Product Width | 0.70 in |
| Product Height | 3.80 in |
| Each Shipping Weight | 0.15 lb |
| Case Quantity | 100 |
Toolup Part # :
884920
