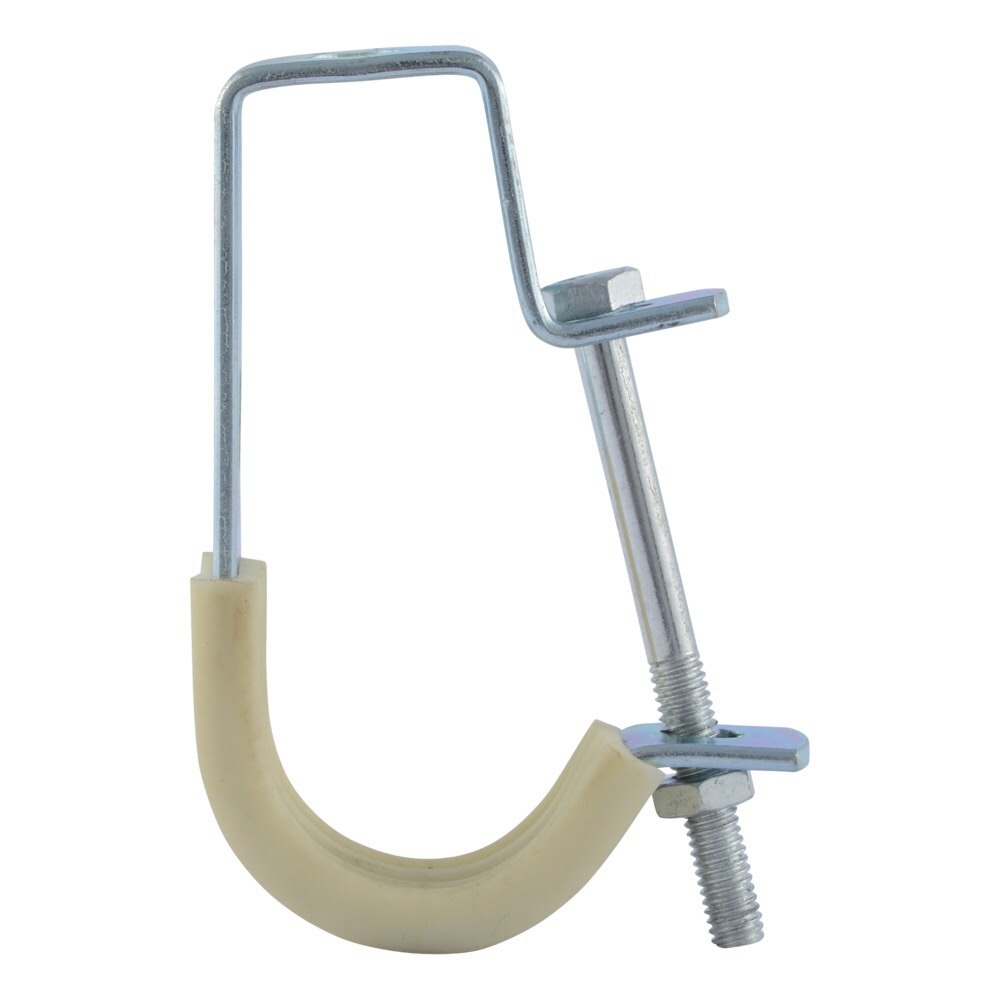

HoldRite 321 Description
This HoldRite acoustic J-hanger supports 1/2 in IPS and 3/4 in CTS pipe while helping reduce noise and vibration. Its carbon steel frame and TPE liner help prevent dissimilar metal contact, and the hanger conforms to MSS SP-58 and SP-69 Type 5 requirements for dependable pipe support. It is suitable for operating temperatures from -50 F to 225 F.
HoldRite 321 Includes
- (1) Acoustic J-Hanger for 1/2 in IPS and 3/4 in CTS Pipe
HoldRite 321 Features
- Supports 1/2 in IPS and 3/4 in CTS pipe and tubing
- Provides acoustic noise isolation to help reduce transmitted sound and vibration
- Helps protect against dissimilar metal contact
- Carbon steel frame with TPE liner
- Conforms to MSS SP-58 and SP-69 Type 5 standards
- Load rating complies with MSS SP-58
- Operating temperature range from -50 F to 225 F
- Patent pending
HoldRite 321 Specifications
| Pipe Size (IPS) | 1/2 in |
| Tube Size (CTS) | 3/4 in |
| Frame Material | Carbon Steel |
| Liner Material | TPE, natural off-white, 45 Shore A |
| Load Capacity | 400 lb |
| Standard Compliance | MSS SP-58 and SP-69 Type 5 |
| Operating Temperature Min | -50 F |
| Operating Temperature Max | 225 F |
| Product Length | 3.19 in |
| Product Width | 2.17 in |
| Product Height | 0.90 in |
| Product Weight | 0.19 lb |
| Pack Quantity | 1 |
Toolup Part # :
884774
