HoldRite 425-RR Description

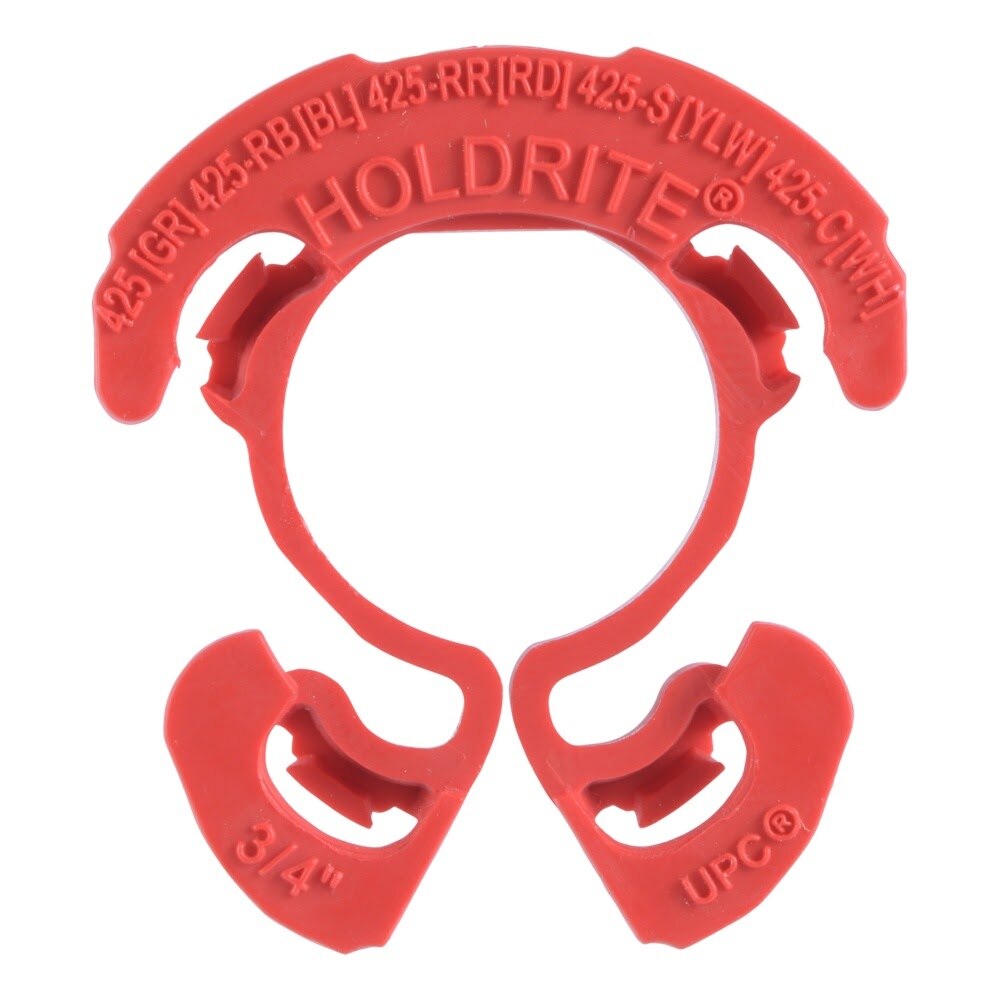

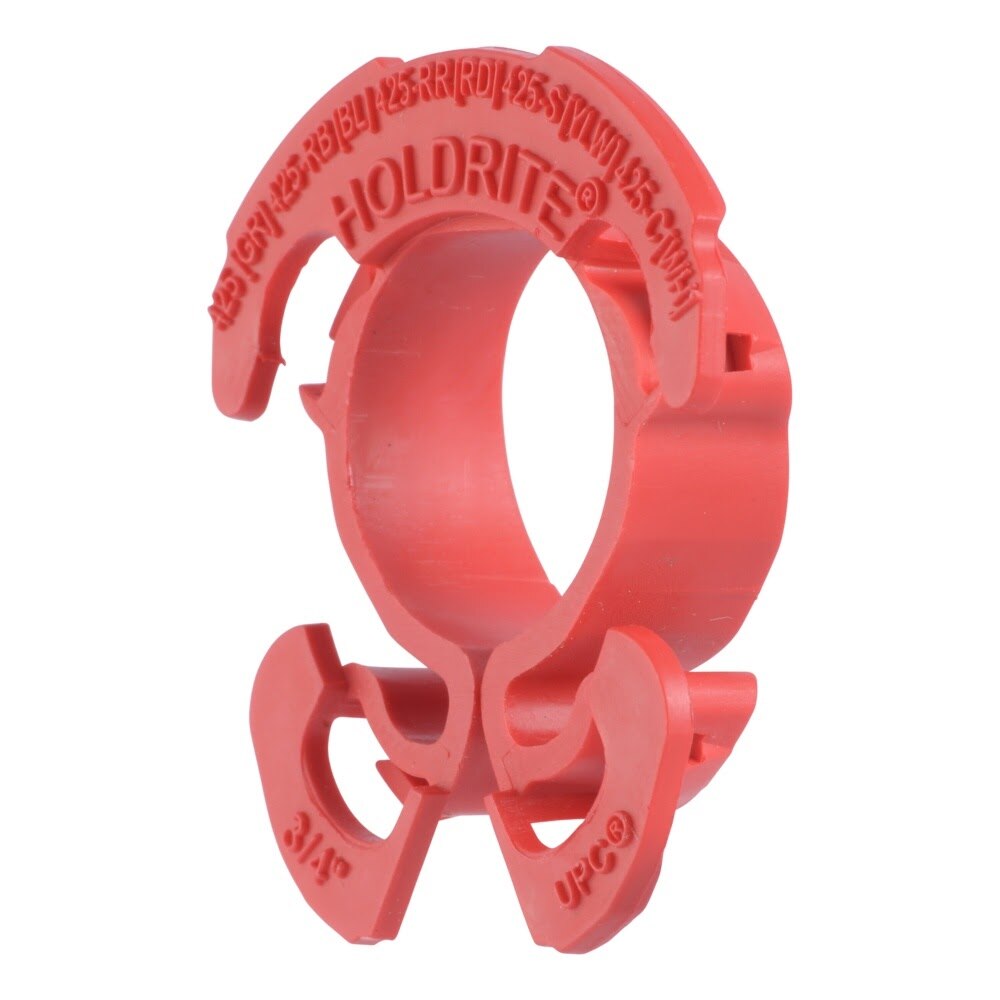

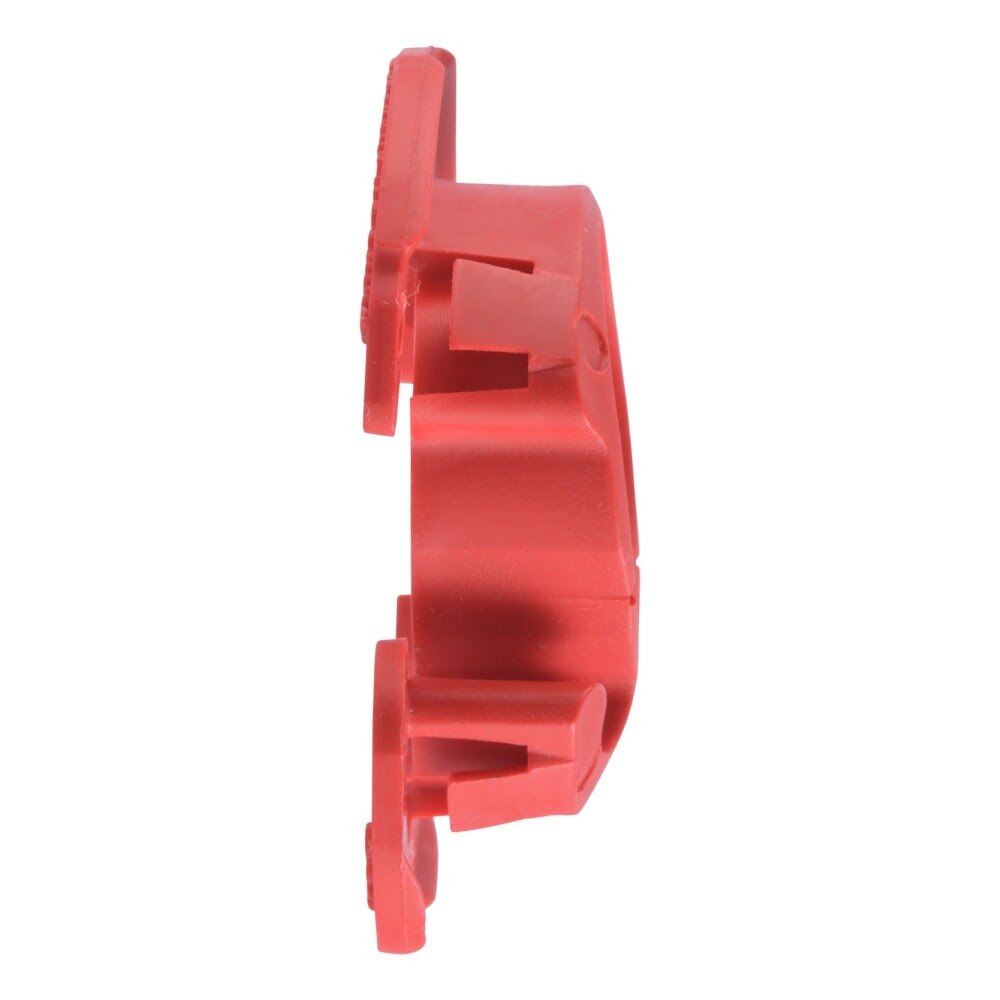

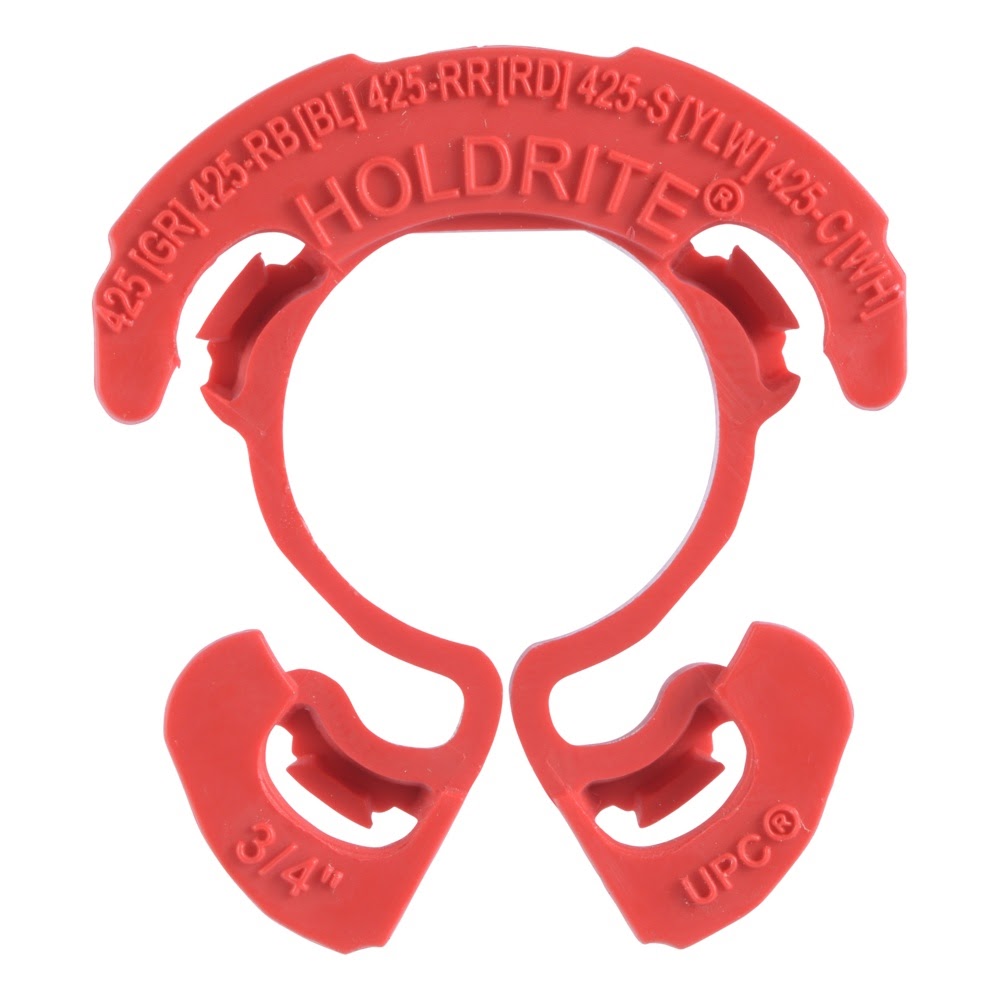

The HoldRite 425-RR is a 3/4 in. red flame-rated isolator insert designed for metal studs and compatible with 121 and 125 series brackets. Made of polypropylene, it helps isolate copper, PEX, or CPVC tubing and meets UL-94-V2 requirements for flame performance.
HoldRite 425-RR Includes
- (1) 3/4 in. Red flame-rated isolator insert
HoldRite 425-RR Features
- Designed for 3/4 in. tubing applications
- Compatible with metal studs and 121 and 125 series brackets
- Helps isolate copper, PEX, and CPVC tubing
- Fits 1-11/32 in. or 1-3/8 in. round cut-outs
- Suitable for 14 to 25 ga sheet metal
- Polypropylene construction
- Meets UL-94-V2 flame-rating requirements
- Operating temperature range from -10 °F to 180 °F
HoldRite 425-RR Specifications
| Brand | HoldRite |
| Part Number | 425-RR |
| Product Type | Isolator Insert |
| Size | 3/4 in. |
| Color | Red |
| Material | Polypropylene |
| Stud Type | Metal studs |
| Compatible Brackets | 121 and 125 Series |
| Compatible Tubing | Copper, PEX, CPVC |
| Cutout Size | 1-11/32 in. or 1-3/8 in. round cut-outs |
| Sheet Metal Gauge | 14 to 25 ga |
| Flame Rating | UL-94-V2 |
| Operating Temperature Range | -10 °F to 180 °F |
| Each Length | 1.29 in. |
| Each Width | 1.29 in. |
| Each Height | 1.29 in. |
| Each Shipping Weight | 0.01 lb |
| Case Quantity | 50 |
| Minimum Order Quantity | 50 |
