HoldRite 425-S Description

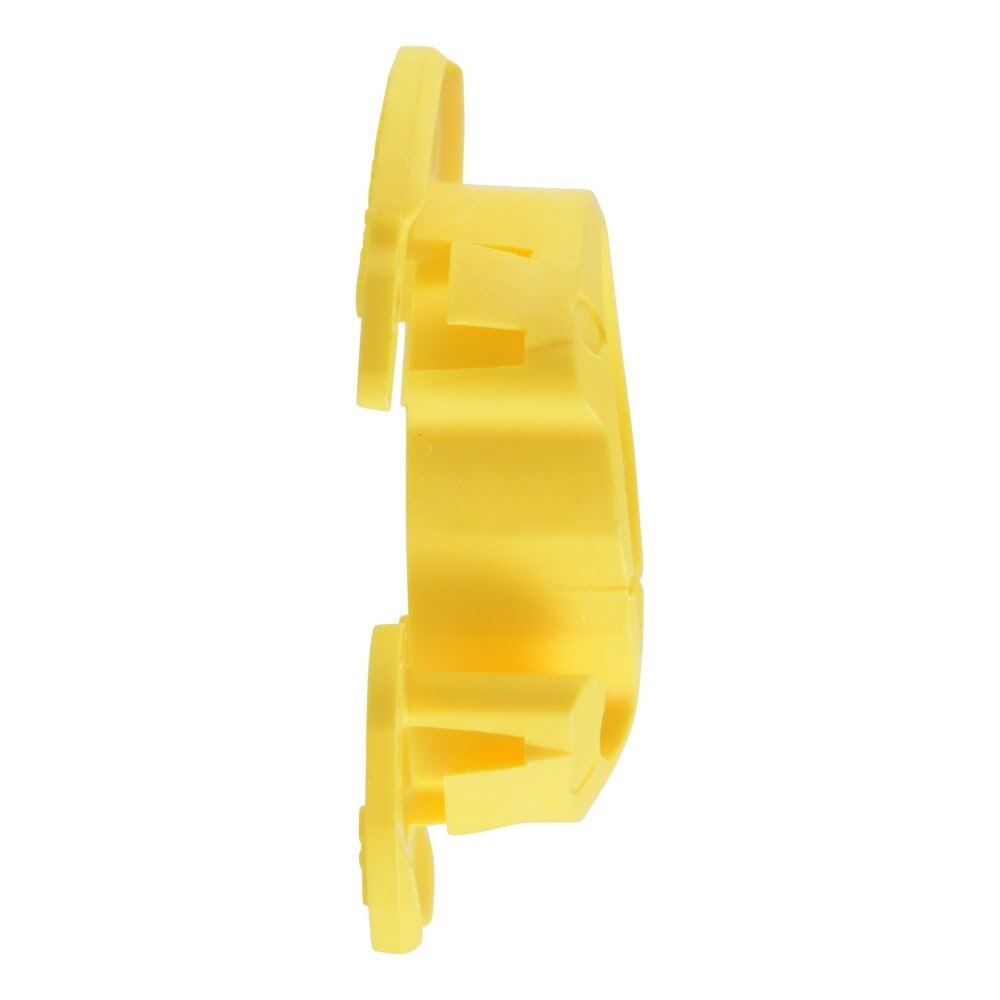

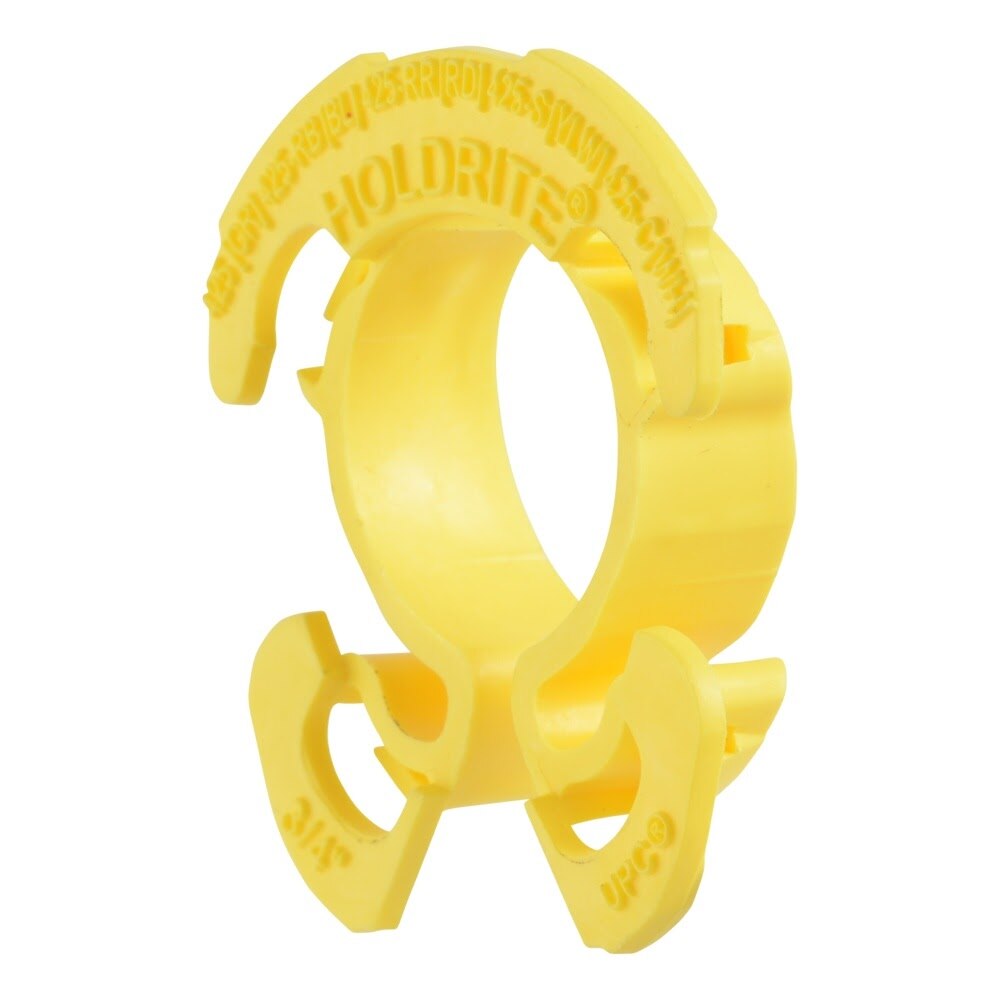

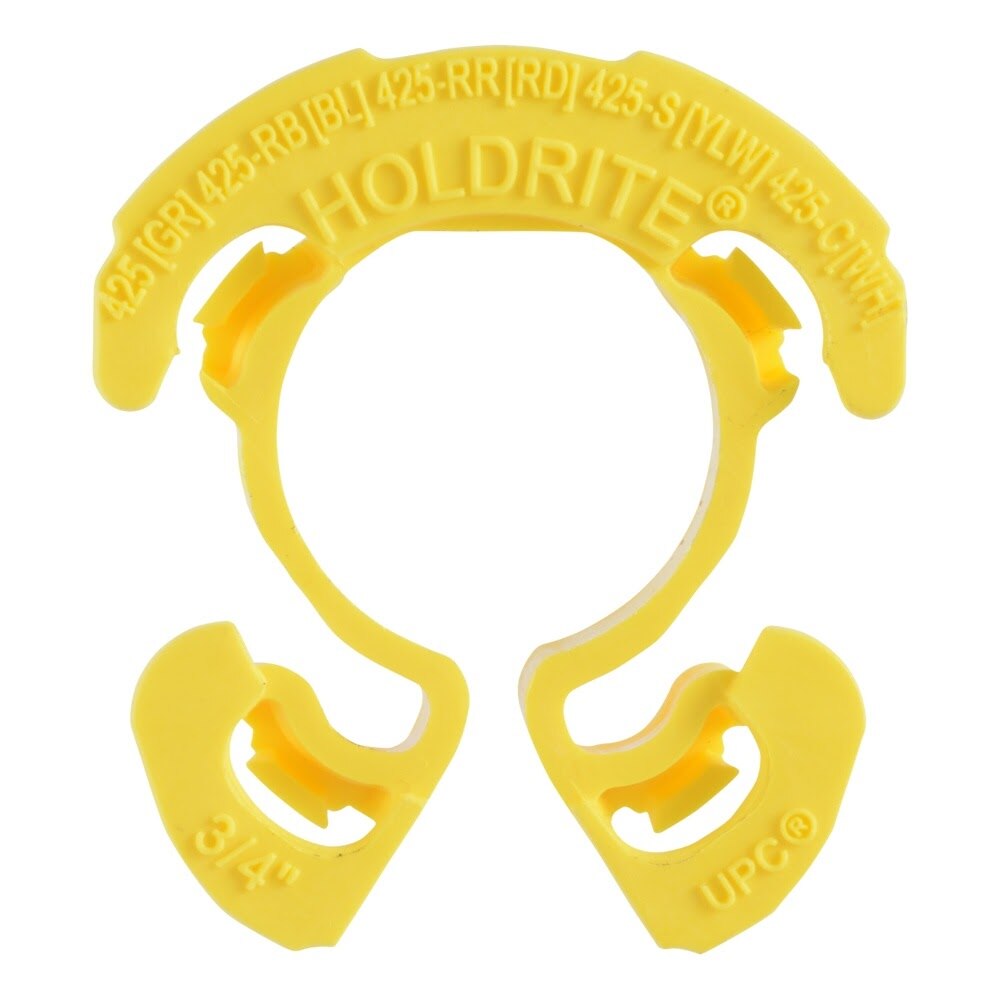

This 3/4 in. yellow Kynar plenum-rated tube isolator insert is designed for metal through-stud applications and helps position and isolate copper, CPVC, and PEX tubing from dissimilar metals. It integrates with HoldRite 121 and 125 series brackets, fits 1-3/8 in. or 1-11/32 in. holes, and meets ASTM E-84 25/50 and UL94V-0 requirements.
HoldRite 425-S Includes
- (1) 3/4 in. Plenum Rated Tube Isolator Insert
HoldRite 425-S Features
- Designed for 3/4 in. CTS tubing
- Ideal for metal through-stud applications
- Helps position tubing and isolate dissimilar metals
- Compatible with copper, CPVC, and PEX tubing
- Integrates with HoldRite 121 and 125 series brackets
- Fits 1-3/8 in. or 1-11/32 in. holes
- Kynar Flex construction
- UL94V-0 rated material
- Meets ASTM E-84 25/50 requirements
- Yellow color for easy identification
- Temperature range from -20 F to 200 F
HoldRite 425-S Specifications
| Product Type | Tube Isolator Insert |
| Size | 3/4 in. CTS |
| Material | Kynar Flex |
| Color | Yellow |
| Application | Metal through-stud applications |
| Tubing Compatibility | Copper, CPVC and PEX |
| Compatible Brackets | HoldRite 121 and 125 Series |
| Hole Size Compatibility | 1-3/8 in. or 1-11/32 in. |
| Standards | ASTM E-84 25/50 |
| Flammability Rating | UL94V-0 |
| Temperature Range | -20 F to 200 F |
| Each Length | 1.482 in. |
| Each Width | 1.482 in. |
| Each Height | 1.482 in. |
| Each Shipping Weight | 0.013 lb |
| Case Quantity | 25 |
| Minimum Order Quantity | 25 |
Toolup Part # :
885488
