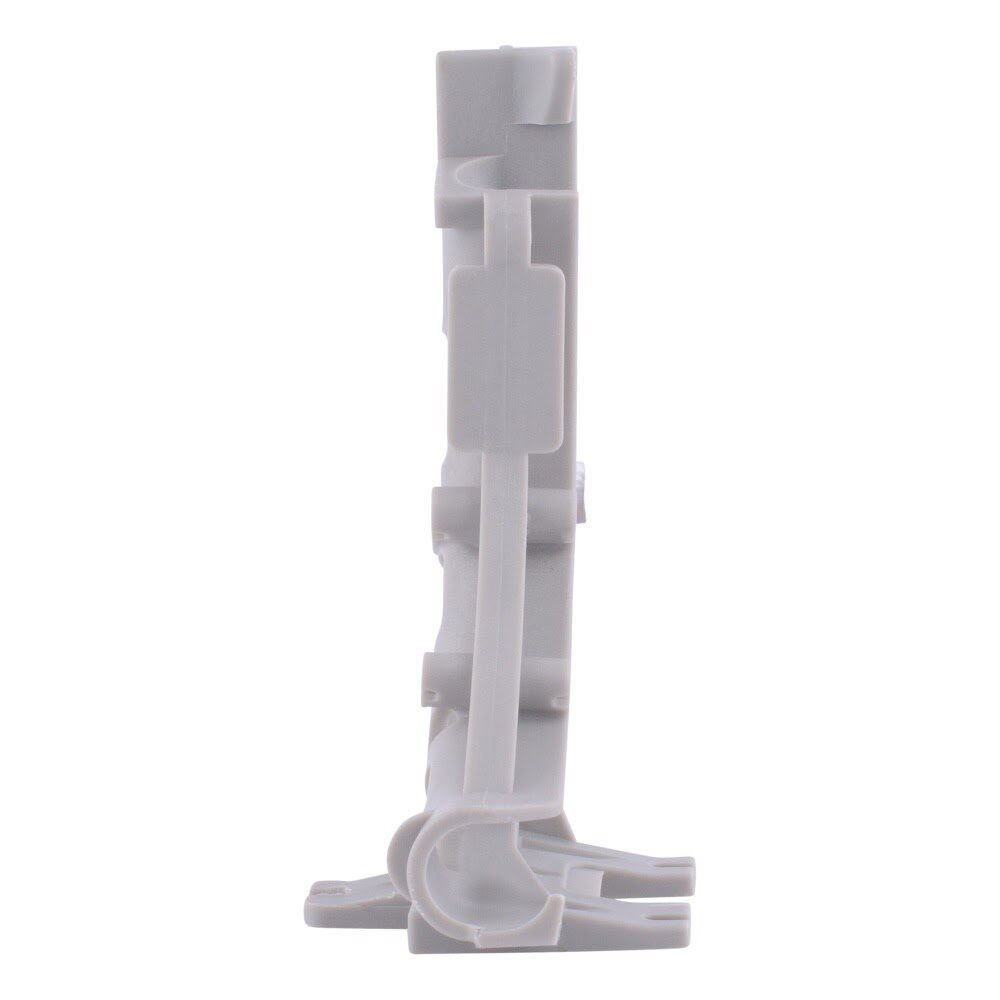

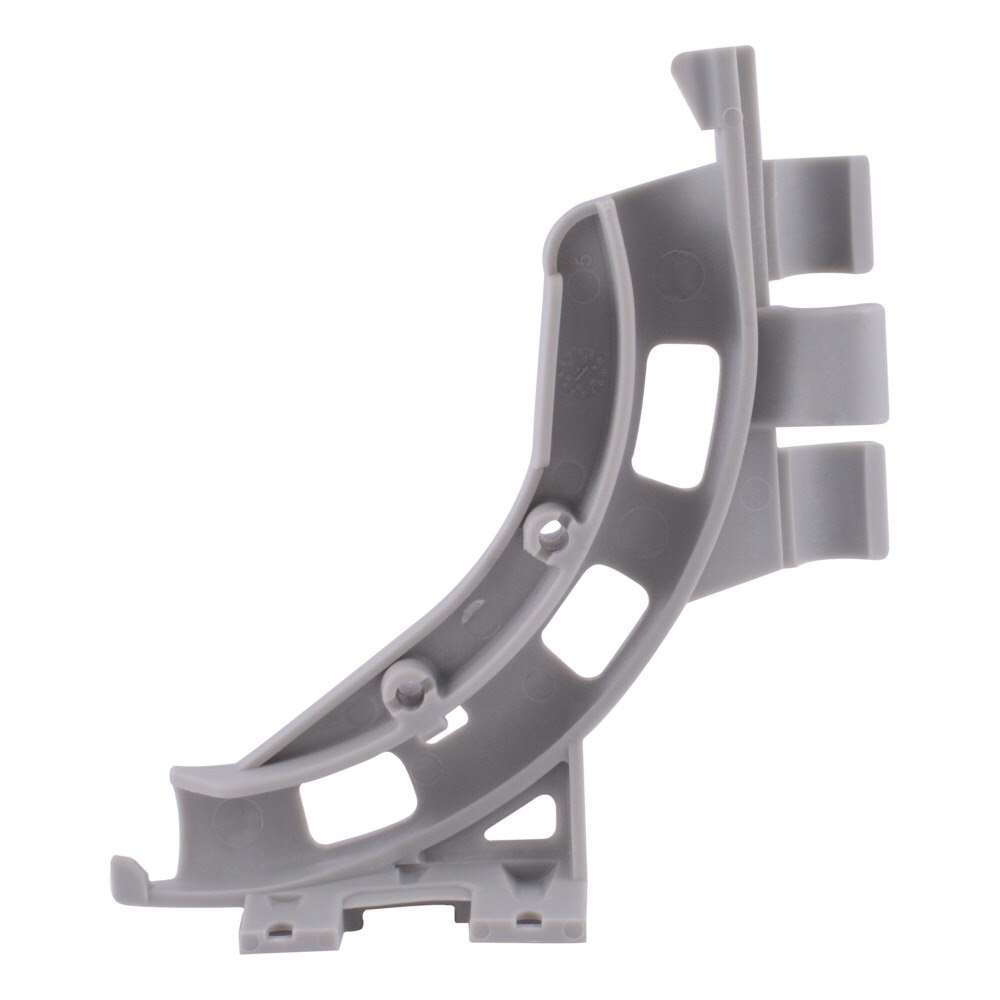

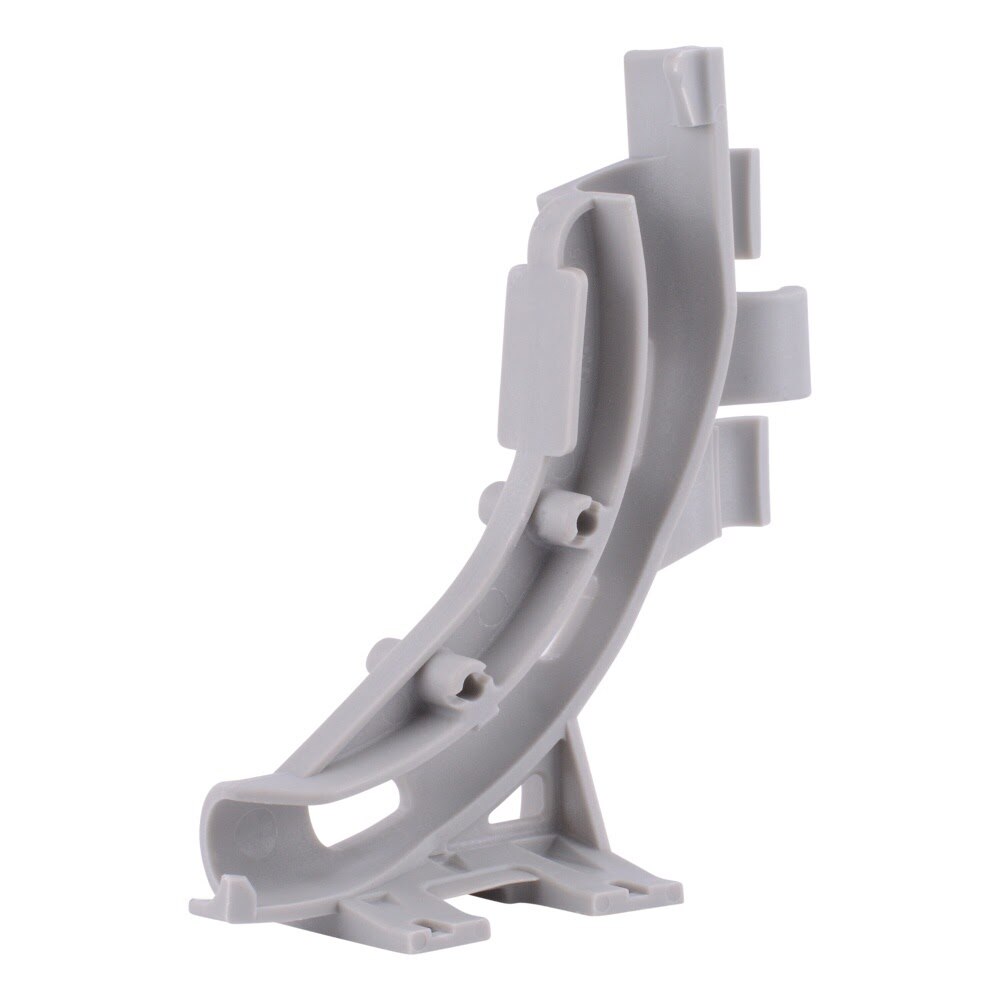

HoldRite 705 Description
The HoldRite PEXRite flat base turn-out PEX support is designed for use with 3/8 in. and 1/2 in. CTS PEX tubing. It mounts directly to a flat surface or wood blocking to position tubing at a 90 degree turn for lavatory, sink, and toilet stub-out applications, and its side-entry design helps simplify installation before a concrete slab pour.
HoldRite 705 Includes
- (1) PEXRite Flat Base Turn-Out PEX Support
HoldRite 705 Features
- Designed for 3/8 in. and 1/2 in. CTS PEX tubing
- Flat base mounts directly to wood blocking or other flat surfaces
- Positions tubing at a 90 degree turn-out for stub-out applications
- Side-entry design allows easier tubing installation
- Made from 30% glass-filled polypropylene
- Temperature range from -10 DegreeF to +190 DegreeF
- 25 lb load rating
HoldRite 705 Specifications
| Brand | HoldRite |
| Series | PEXRite |
| Product Type | Flat Base Turn-Out PEX Support |
| Model | 705 |
| Pipe Size | 3/8 in. to 1/2 in. CTS |
| Mounting Type | Direct mount to flat surface or wood blocking |
| Application | Lavatory/sink and toilet stub-out |
| Material | Polypropylene, 30% Glass Filled |
| Temperature Range | -10 DegreeF to +190 DegreeF |
| Load Rating | 25 lbs. |
| Dimensions | 5-1/3 in. x 4-1/8 in. x 2-1/2 in. |
| Shipping Weight | 0.11 lb |
