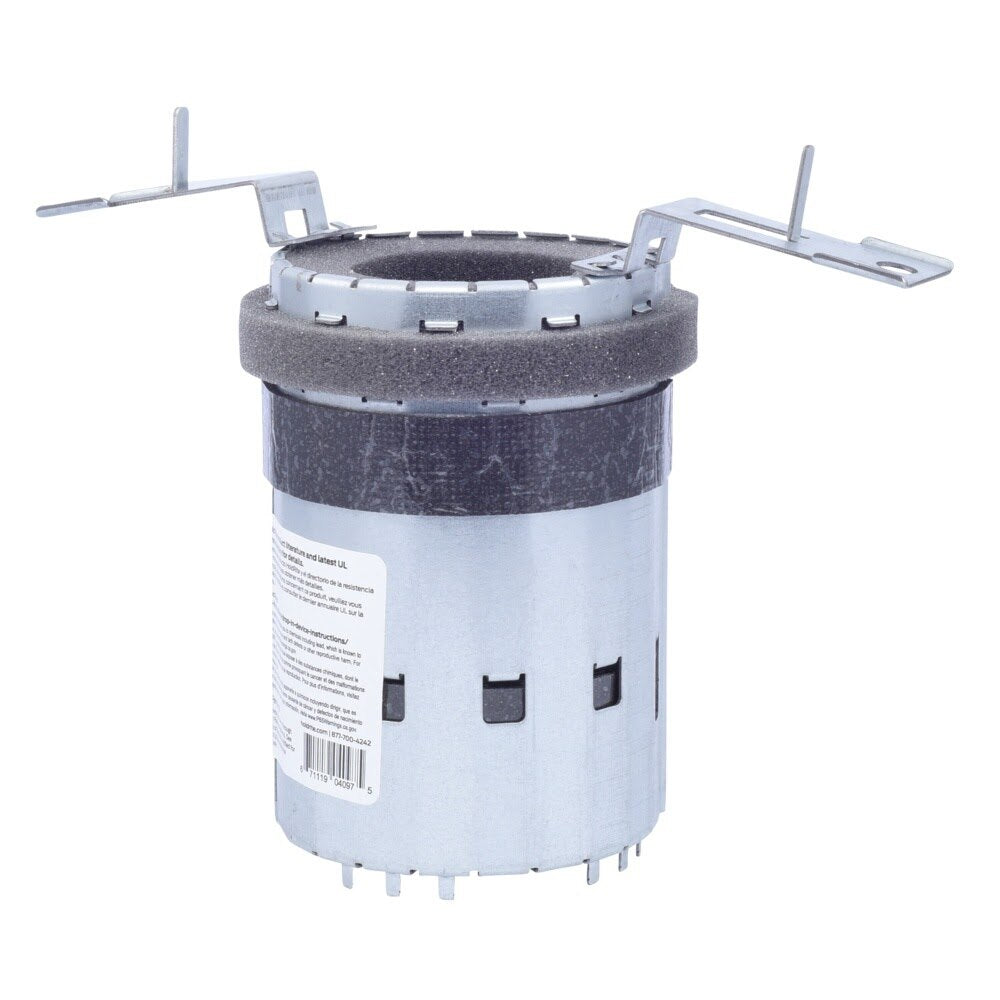

HoldRite DID-2000 Description
The HoldRite HydroFlame DID-2000 is a 2 in. drop-in firestop device designed for core-drilled holes in concrete floors. Its modular design allows installation from the top or bottom side of corrugated metal, flat form, and precast decks for use with non-metallic, metallic, or insulated metallic penetrants.
HoldRite DID-2000 Includes
- (1) 2 in. Drop-In Firestop Device
HoldRite DID-2000 Features
- Modular design allows installation from the top or bottom side of the deck
- Designed for core-drilled holes in concrete floors
- Compatible with corrugated metal, flat form, and precast decks
- Integrated attachment features support standard 1/4 in. expansion bolts or screw anchors
- Can be installed with or without a pre-existing penetrant
- Suitable for non-metallic, metallic, and insulated metallic penetrants
- Tested to ASTM E814, UL 1479, and CAN/ULC S115 standards
HoldRite DID-2000 Specifications
| Brand | HoldRite |
| Product Line | HydroFlame |
| Device Type | Drop-In Firestop Device |
| Nominal Size | 2 in. |
| Application | Core-drilled holes in concrete floors |
| Compatible Deck Types | Corrugated metal, flat form, and precast |
| Compatible Penetrants | Non-metallic, metallic, and insulated metallic |
| Installation | Top or bottom side of deck |
| Product Length (in) | 7.74 |
| Product Width (in) | 3.72 |
| Product Height (in) | 6.16 |
| Shipping Weight (lb) | 0.681 |
| Case Quantity | 10 |
| Minimum Order Quantity | 10 |
| Testing Standards | ASTM E814, UL 1479, CAN/ULC S115 |
Toolup Part # :
883612
