HoldRite DID-4000 Description

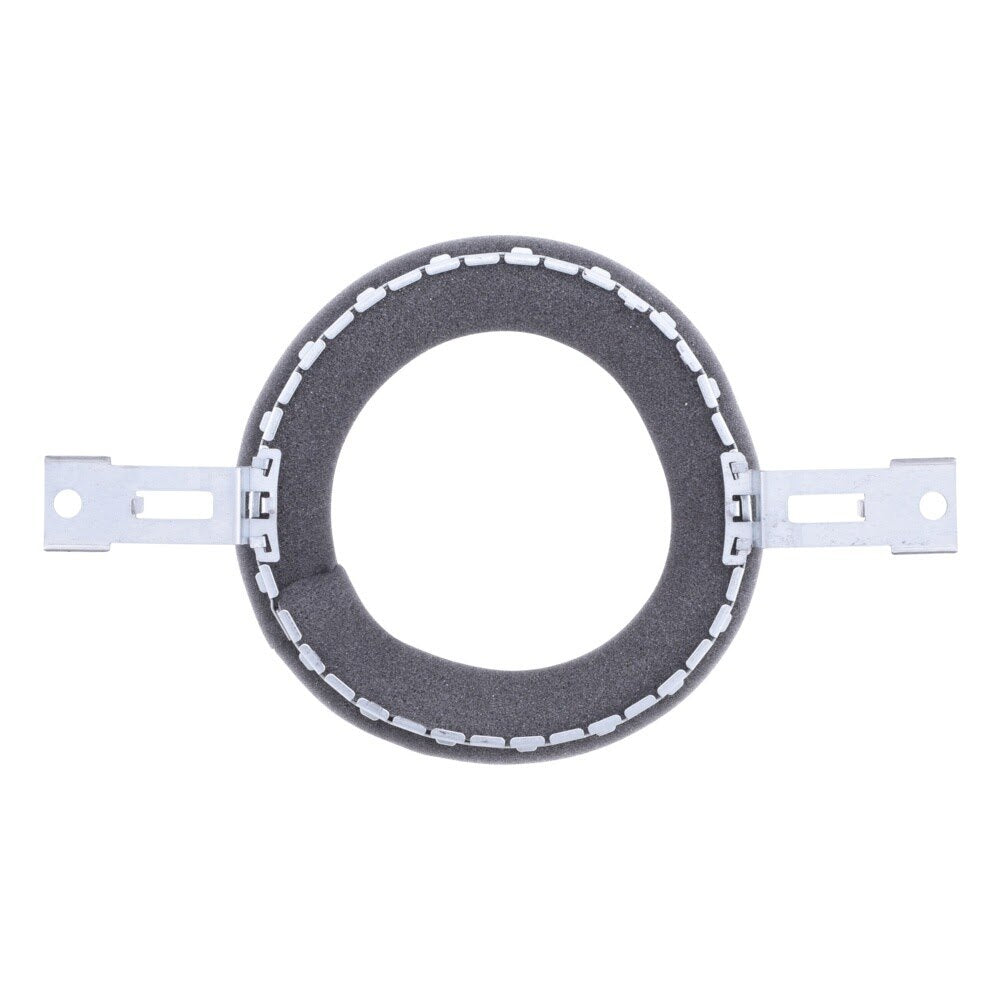

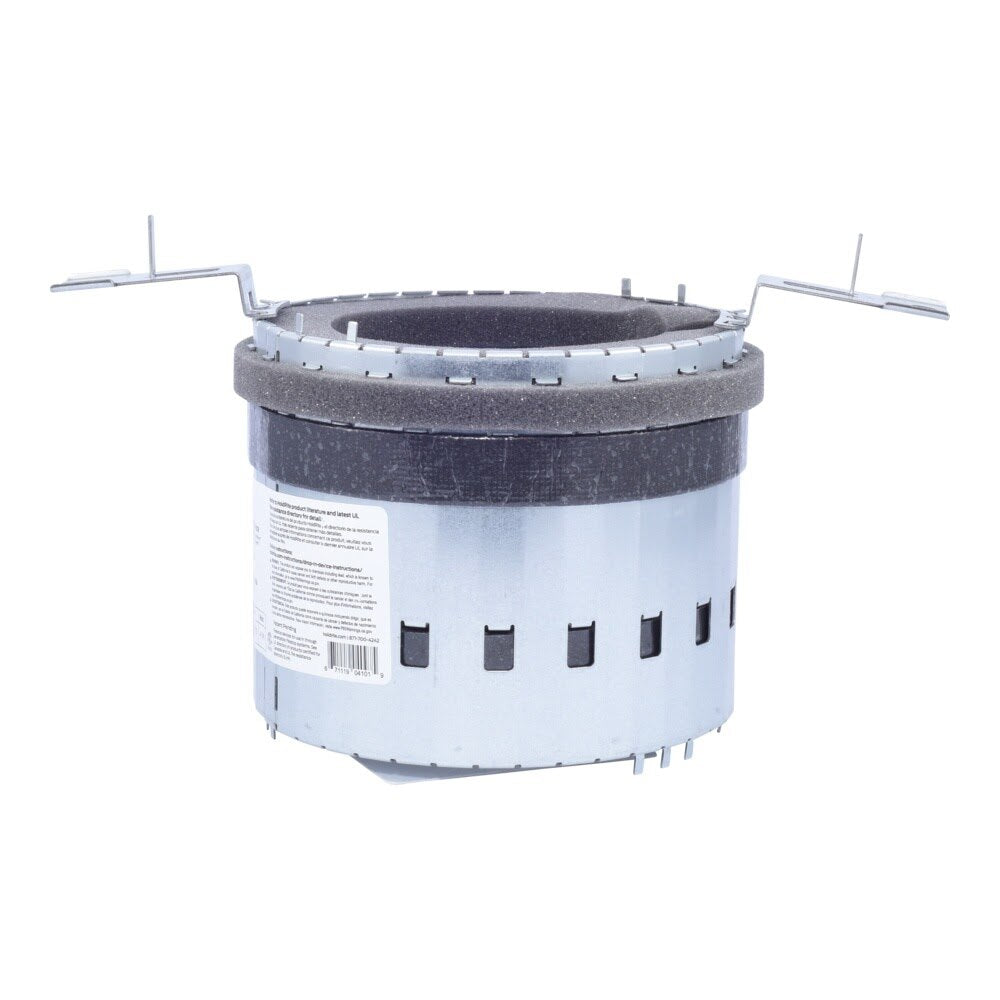

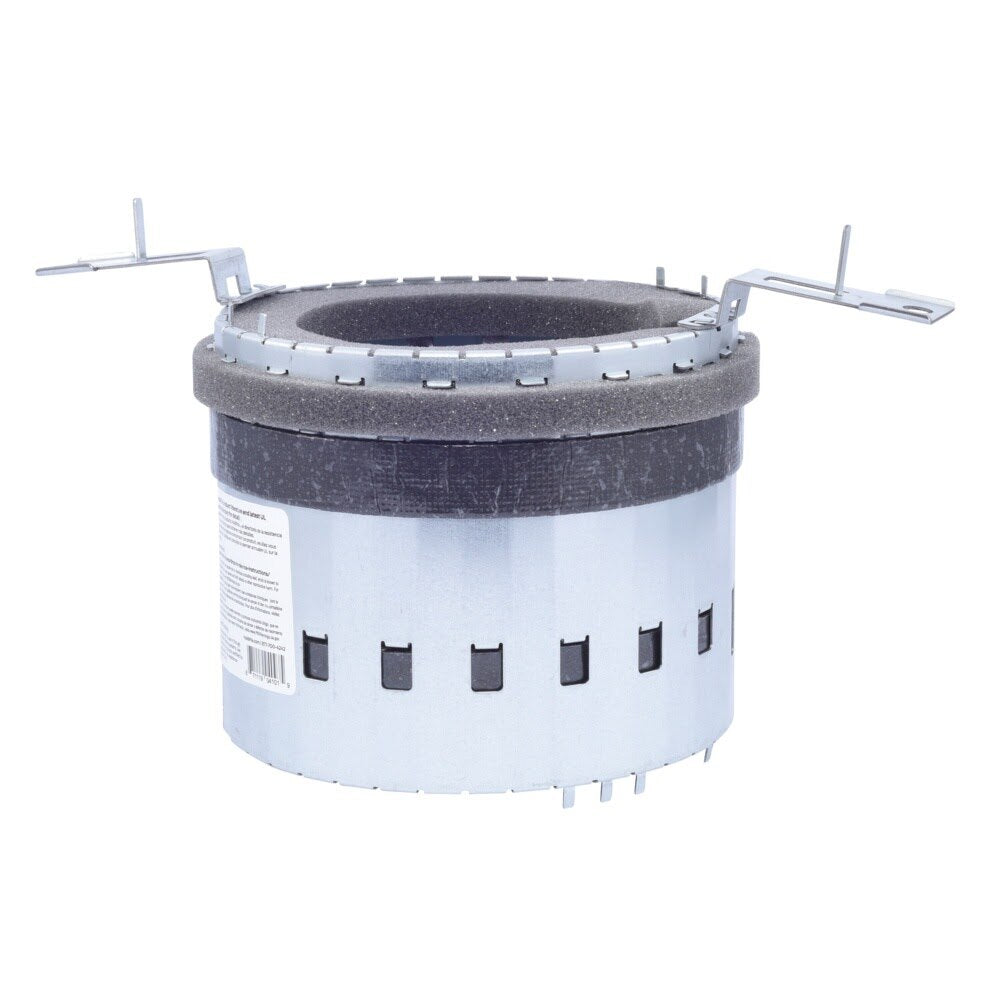

The HoldRite HydroFlame 4 in. Drop-In Device provides a firestop solution for core-drilled holes in concrete floors. It is designed for use with non-metallic, metallic, or insulated metallic penetrants and can be installed from the top or bottom side of the deck on corrugated metal, flat form, and precast deck applications.
HoldRite DID-4000 Includes
- (1) 4 in. HydroFlame Drop-In Device
HoldRite DID-4000 Features
- 4 in. drop-in firestop device for core-drilled holes in concrete floors
- Designed for use with non-metallic, metallic, and insulated metallic penetrants
- Can be installed from the top or bottom side of the deck
- Suitable for corrugated metal, flat form, and precast deck applications
- Tested to ASTM E814, UL 1479, and CAN/ULC S115 standards
- Part of the HoldRite HydroFlame firestop system
HoldRite DID-4000 Specifications
| Brand | HoldRite |
| Series | HydroFlame |
| Product Type | Drop-In Device |
| Nominal Size | 4 in. |
| Application | Firestop solution for core-drilled holes in concrete floors |
| Compatible Penetrants | Non-metallic, metallic, and insulated metallic penetrants |
| Compatible Deck Types | Corrugated metal, flat form, and precast decks |
| Installation | Top or bottom side of deck |
| Testing Standards | ASTM E814, UL 1479, CAN/ULC S115 |
| Product Length (in) | 10.2 |
| Product Width (in) | 6.19 |
| Product Height (in) | 6.22 |
| Product Weight (lb) | 1.249 |
Toolup Part # :
882903
