HoldRite HF-H10 Description

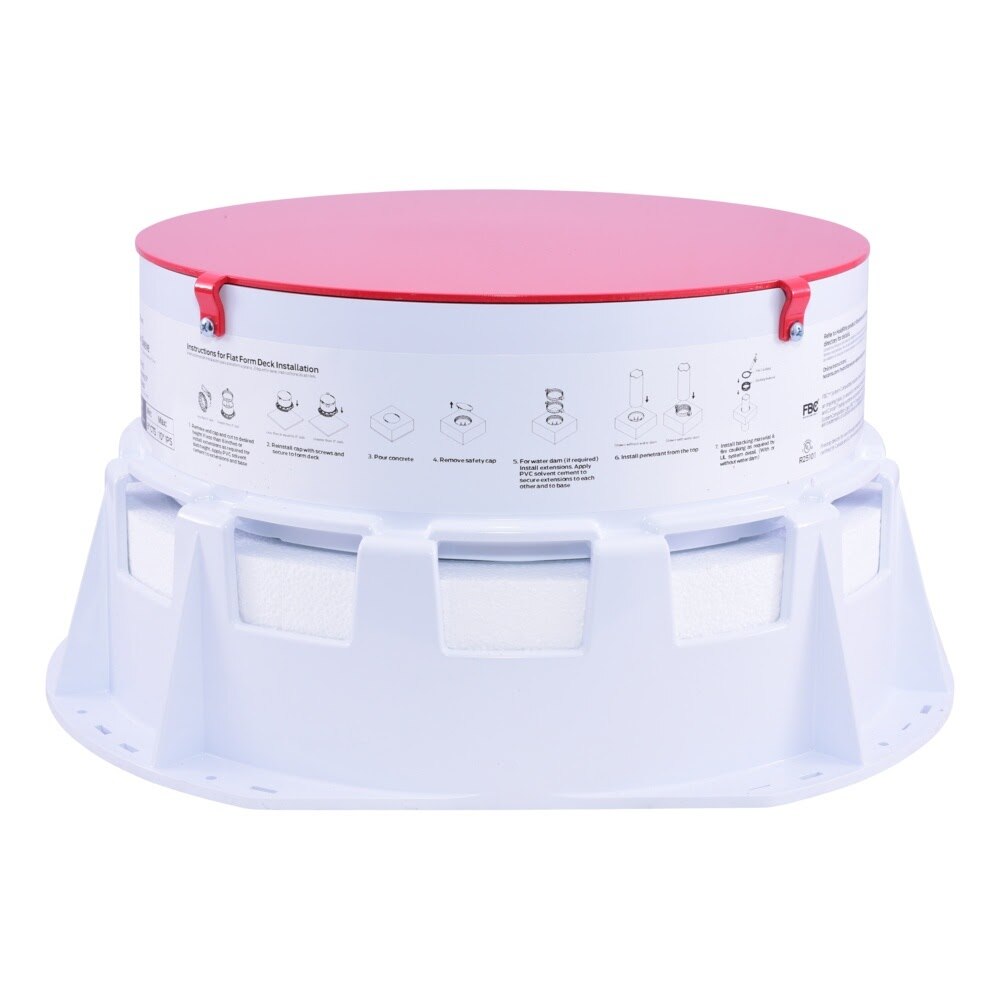

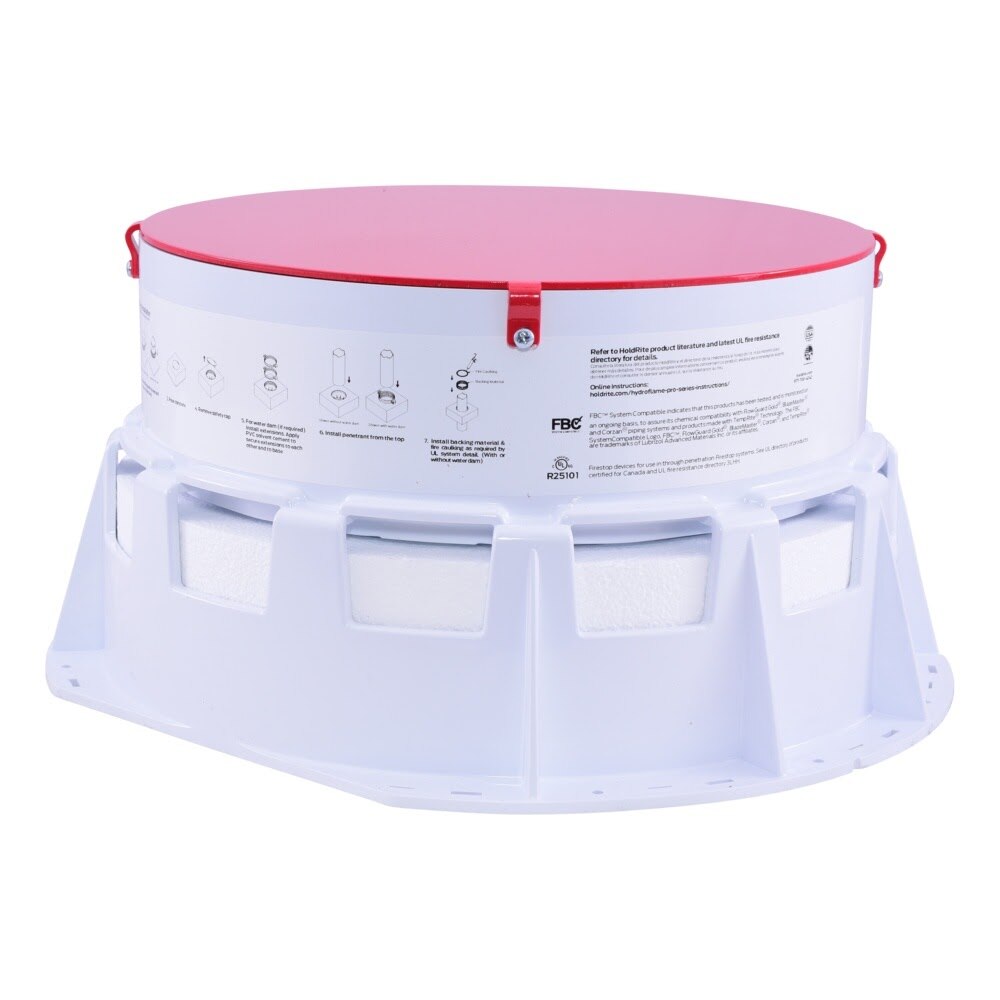

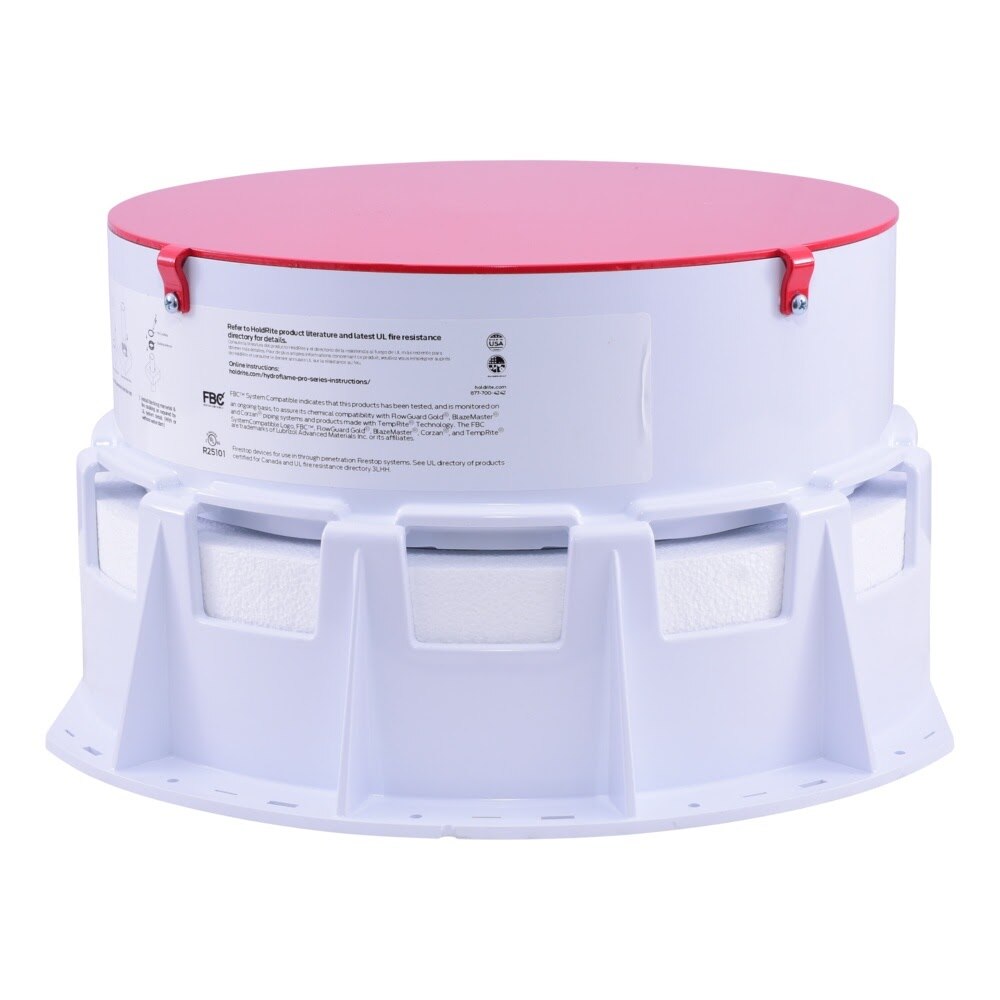

The HoldRite HydroFlame HF-H10 is a large diameter cast in place hollow firestop sleeve designed for 8 in. metallic and insulated metallic pipes. This 10 in. IPS OD sleeve comes standard at 8 in. tall, is intended for slabs 6 in. or thicker, and allows firestopping to be completed separately from sleeve installation.
HoldRite HF-H10 Includes
- (1) HydroFlame Hollow Firestop Sleeve
- (1) Hole Cover Plate/Safety Cap
HoldRite HF-H10 Features
- Designed for 8 in. metallic and insulated metallic pipes
- 10 in. IPS OD sleeve body
- Standard 8 in. tall design
- For use with slabs 6 in. or thicker
- Allows firestopping to be completed separately from sleeve installation
- Includes an OSHA-compliant hole cover plate/safety cap
- 1 in. extensions available for thicker floor slabs
- Compatible with HF300 silicone series, HF100, and HF200 intumescent sealants
- L ratings available
HoldRite HF-H10 Specifications
| Brand | HoldRite |
| Series | HydroFlame |
| Product Type | Hollow firestop sleeve |
| Installation Type | Cast in place |
| Pipe Compatibility | Metallic and insulated metallic pipes |
| Compatible Pipe Size | 8 in. |
| IPS OD | 10 in. |
| Standard Height | 8 in. |
| For Slab Thickness | 6 in. or thicker |
| Product Length (in) | 15.63 |
| Product Width (in) | 12.38 |
| Product Height (in) | 8.5 |
| Shipping Weight (lb) | 7.689 |
| UPC | 671119004571 |
Toolup Part # :
882242
