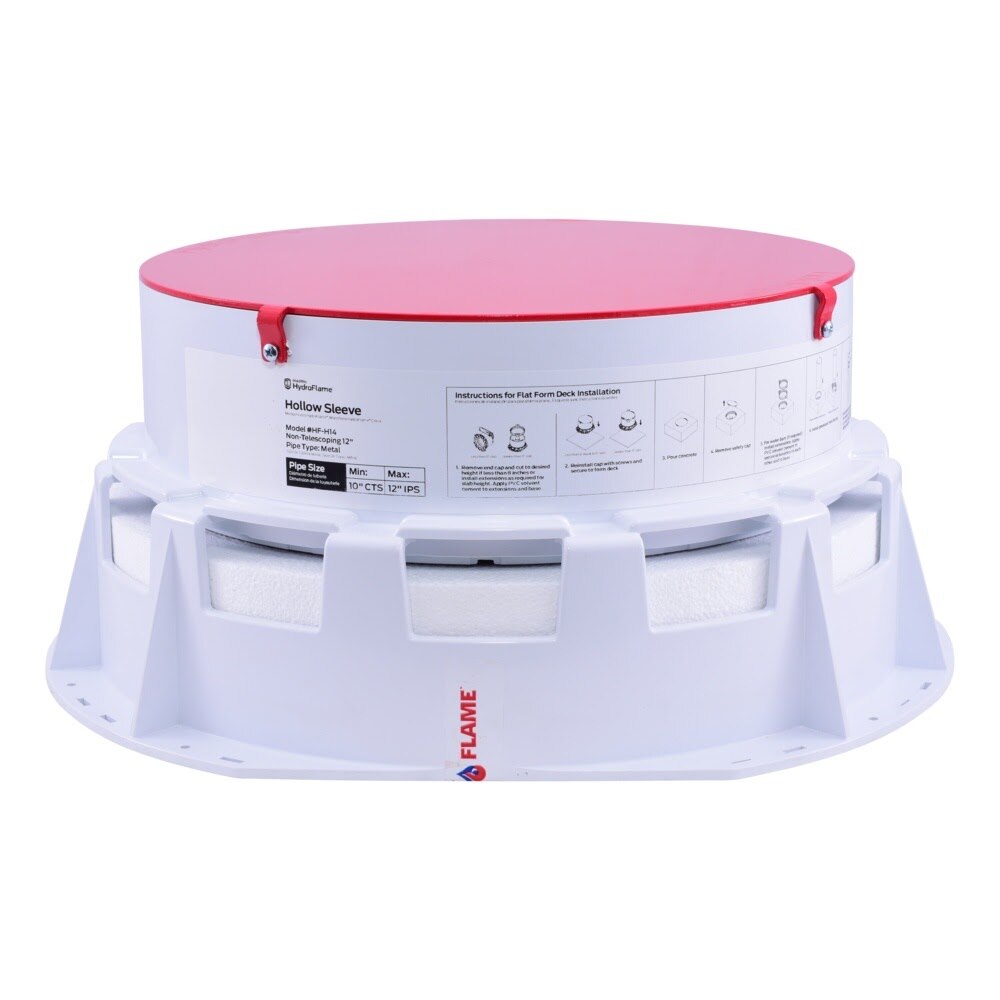

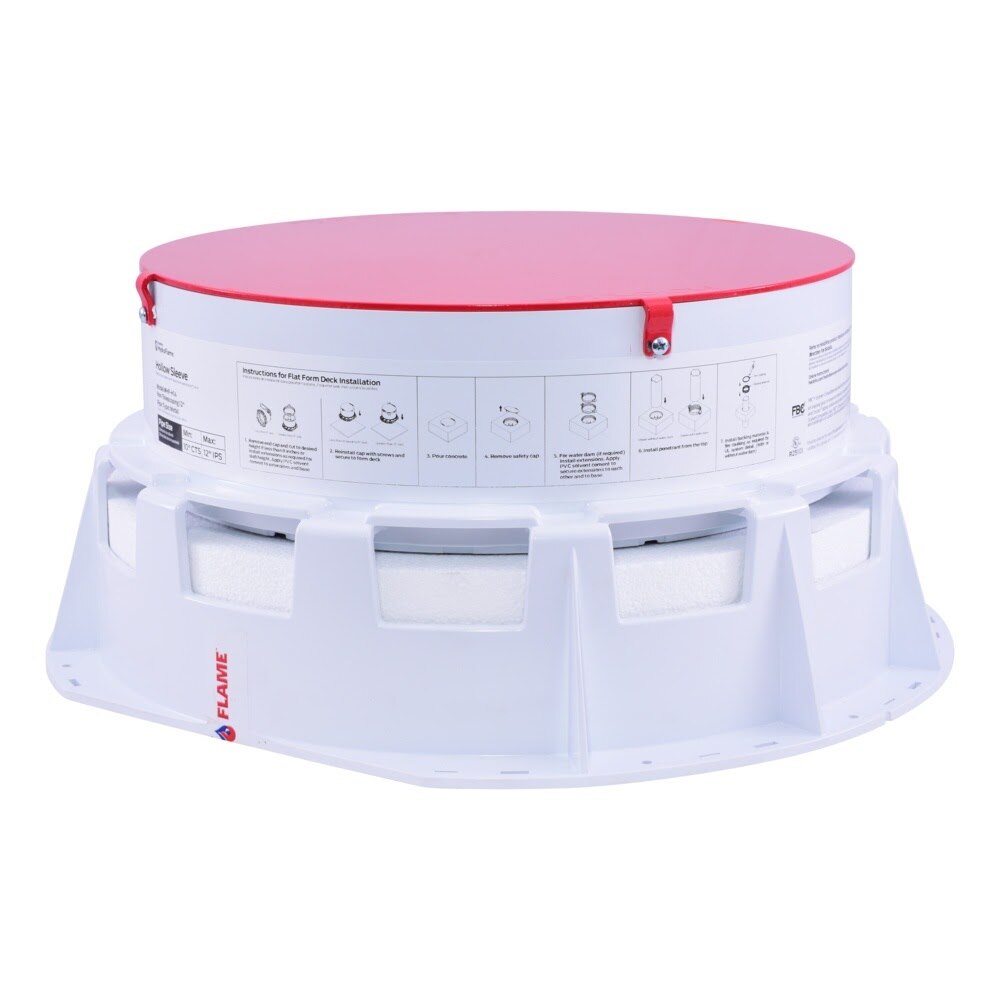

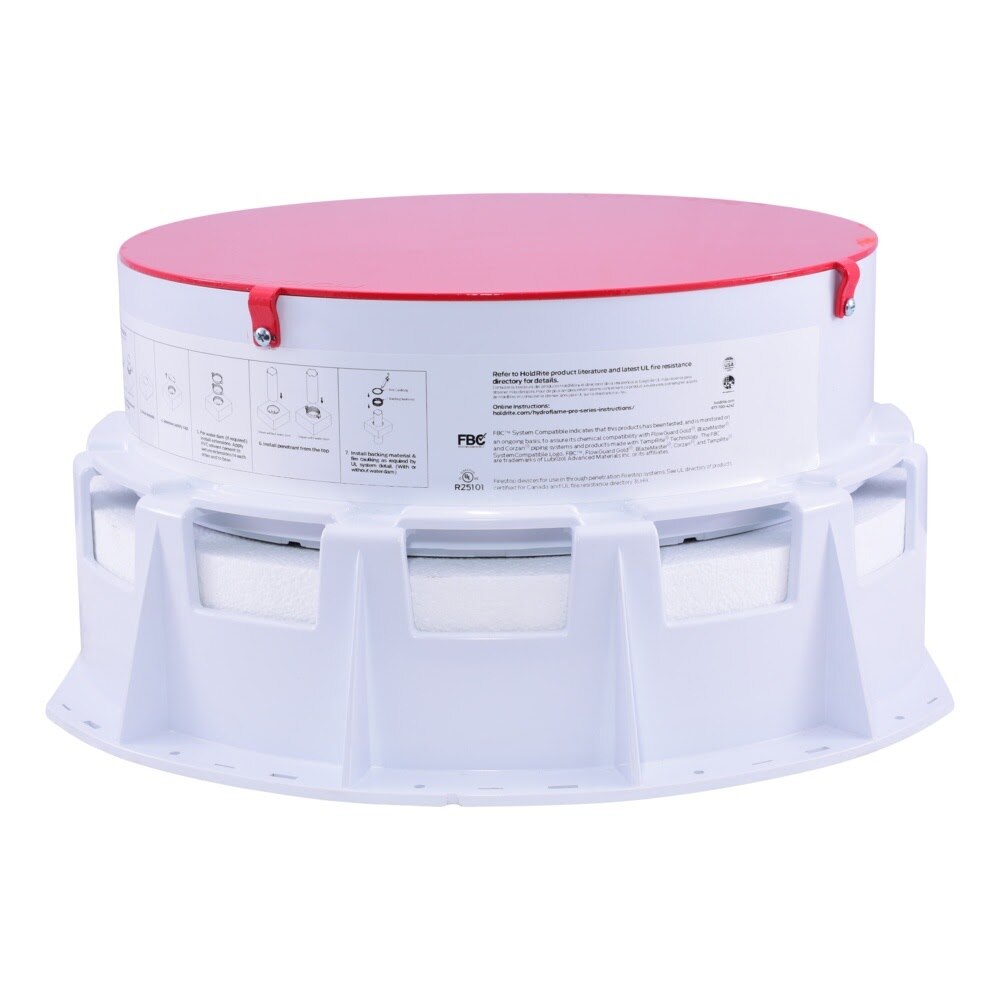

HoldRite HF-H14 Description
The HoldRite HydroFlame HF-H14 is a large diameter cast in place hollow firestop sleeve designed for 12 in. metallic and insulated metallic pipes. This 14 in. IPS OD sleeve comes standard at 8 in. tall for slabs 6 in. or thicker and helps simplify firestopping for concrete floor penetrations while including a hole cover plate and safety cap.
HoldRite HF-H14 Includes
- (1) HydroFlame HF-H14 Hollow Sleeve
- (1) Hole Cover Plate/Safety Cap
HoldRite HF-H14 Features
- Designed for 12 in. metallic and insulated metallic pipe penetrations
- Large diameter cast in place hollow sleeve design allows firestopping to be completed separately
- Standard 8 in. tall device
- For use with slabs 6 in. or thicker
- 1 in. extensions available for thicker floor slabs
- Compatible with HF300 silicone series, HF100, and HF200 intumescent sealants
- Includes hole cover plate and safety cap
- L ratings available
HoldRite HF-H14 Specifications
| Brand | HoldRite |
| Series | HydroFlame |
| Model | HF-H14 |
| Product Type | Hollow firestop sleeve |
| Installation Type | Cast in place |
| Compatible Pipe Material | Metallic and insulated metallic |
| Compatible Pipe Size | 12 in. |
| IPS OD | 14 in. |
| Standard Height | 8 in. |
| Minimum Slab Thickness | 6 in. |
| Extension Availability | 1 in. extensions available |
| Product Length (in) | 18.83 |
| Product Width (in) | 16.63 |
| Product Height (in) | 8.5 |
| Shipping Weight (lb) | 11.978 |
Toolup Part # :
882199
