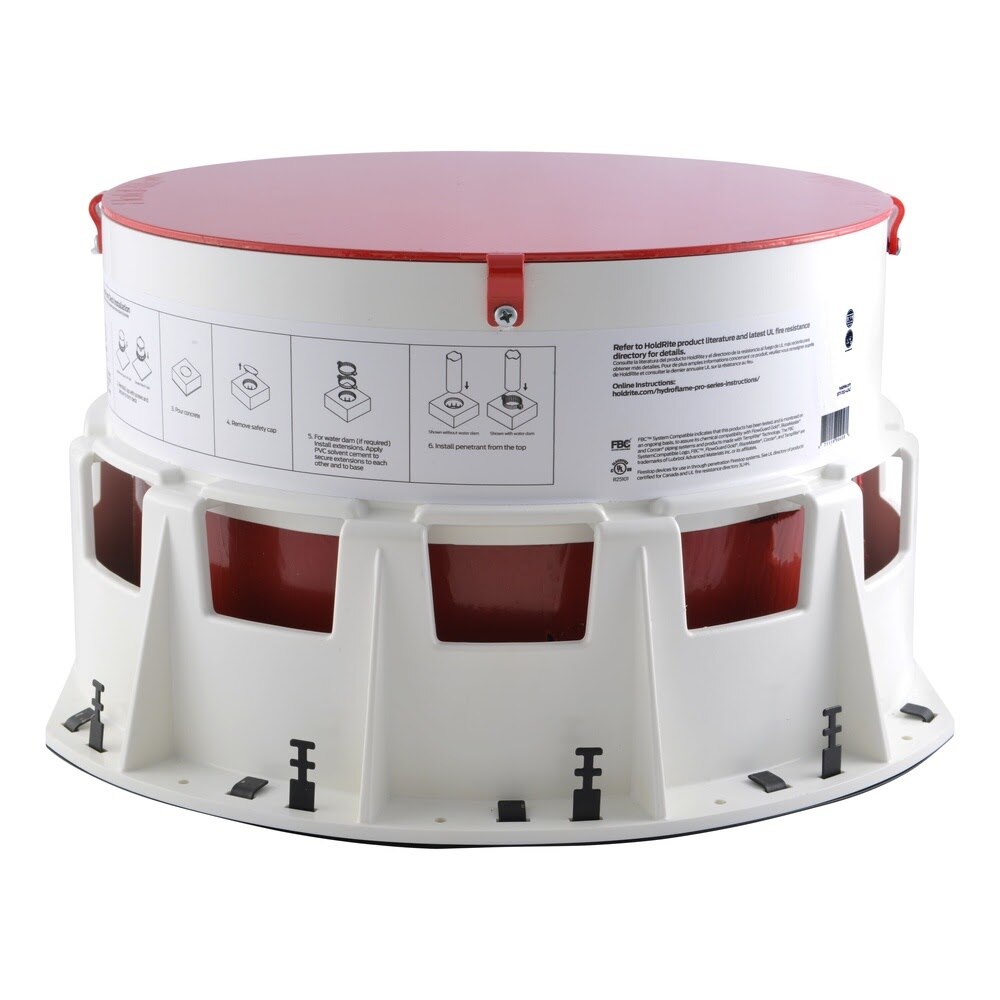

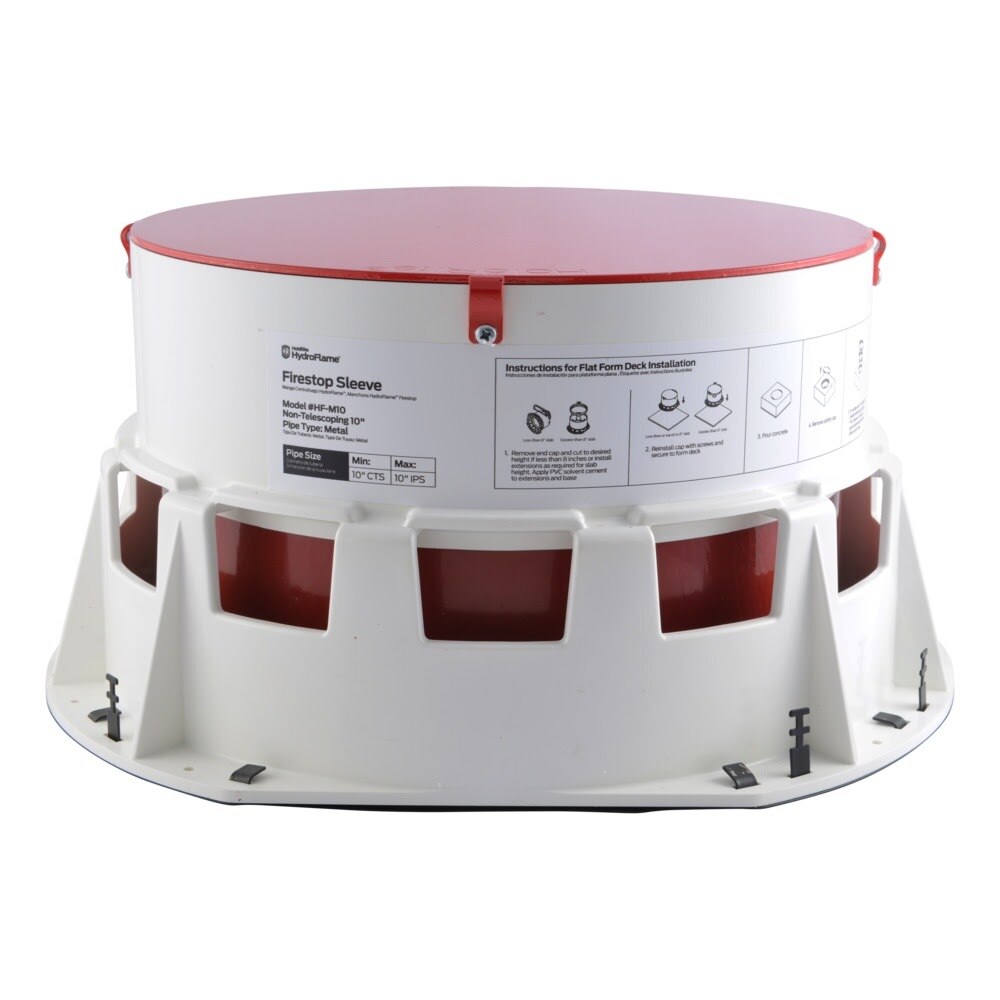

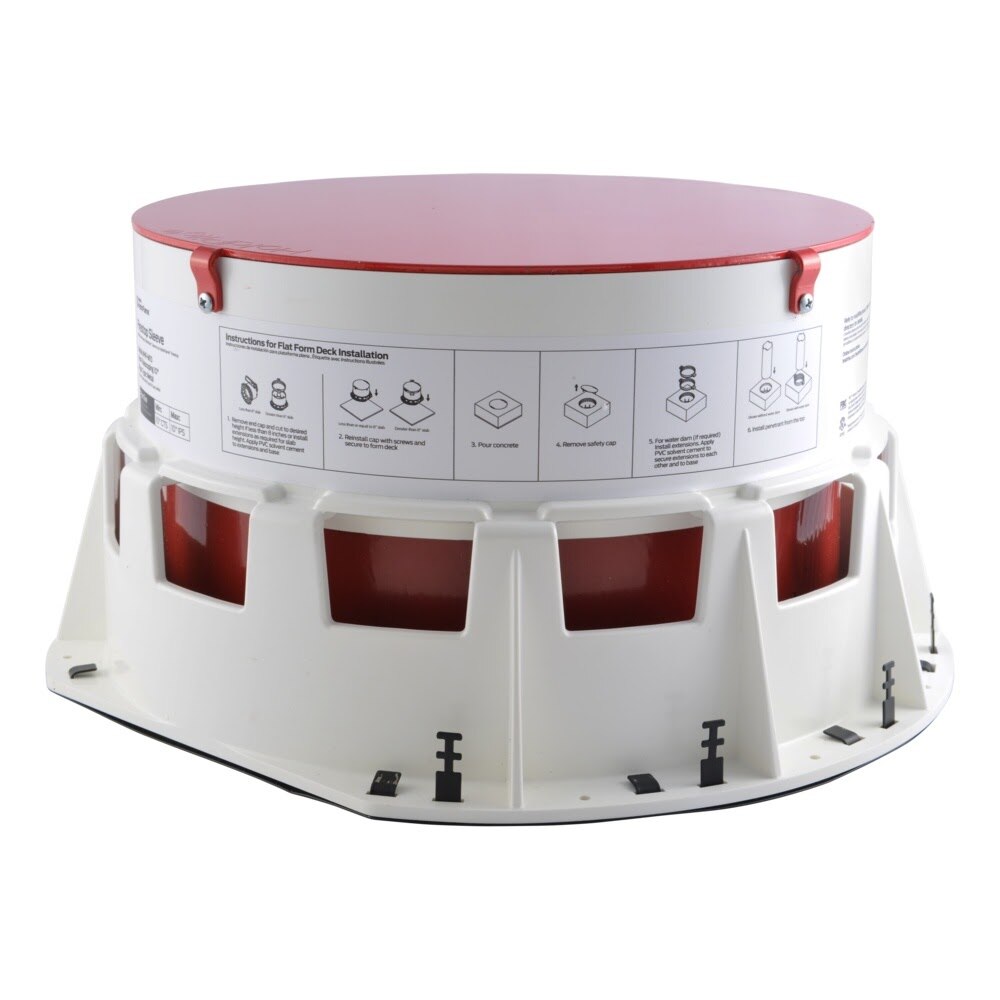

HoldRite HF-M10 Description
The HoldRite HydroFlame HF-M10 is a large diameter cast in place firestop sleeve designed for 10 in. metallic pipe penetrations in concrete slabs. It comes standard at 8 in. tall, is intended for slabs 6 in. or thicker, and includes an OSHA-compliant hole cover plate and safety cap for added jobsite protection.
HoldRite HF-M10 Includes
- (1) HydroFlame Large Diameter Firestop Sleeve
- (1) OSHA-compliant hole cover plate/safety cap
HoldRite HF-M10 Features
- Designed for 10 in. metallic pipe penetrations
- Standard 8 in. tall sleeve design
- For use with slabs 6 in. or thicker
- Provides up to a 3-hour fire rating for slabs thicker than 6 in.
- Includes OSHA-compliant hole cover plate and safety cap
- 1 in. extensions are available for thicker floor slabs
- W rating is achievable with HoldRite firestop sealants
- L ratings are available
HoldRite HF-M10 Specifications
| Brand | HoldRite |
| Series | HydroFlame |
| Model | HF-M10 |
| Product Type | Cast in Place Firestop Sleeve |
| Compatible Pipe Type | Metallic |
| Compatible Pipe Size | 10 in. |
| Standard Height | 8 in. |
| Minimum Slab Thickness | 6 in. or thicker |
| Fire Rating | Up to 3 hours for slabs thicker than 6 in. |
| Each Length (in) | 17.63 |
| Each Width (in) | 14.63 |
| Each Height (in) | 8.5 |
| Each Shipping Weight (lb) | 12.206 |
Toolup Part # :
882191
