HoldRite HFP-G1 Description

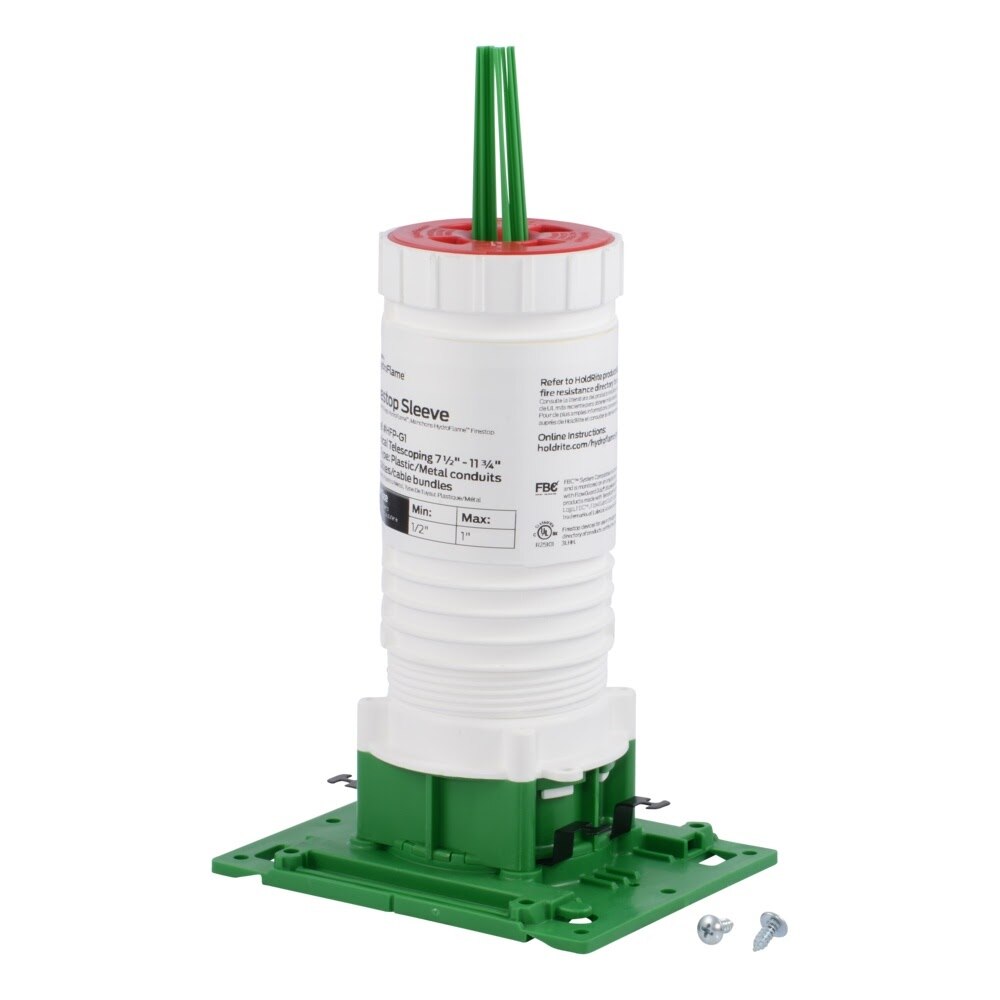

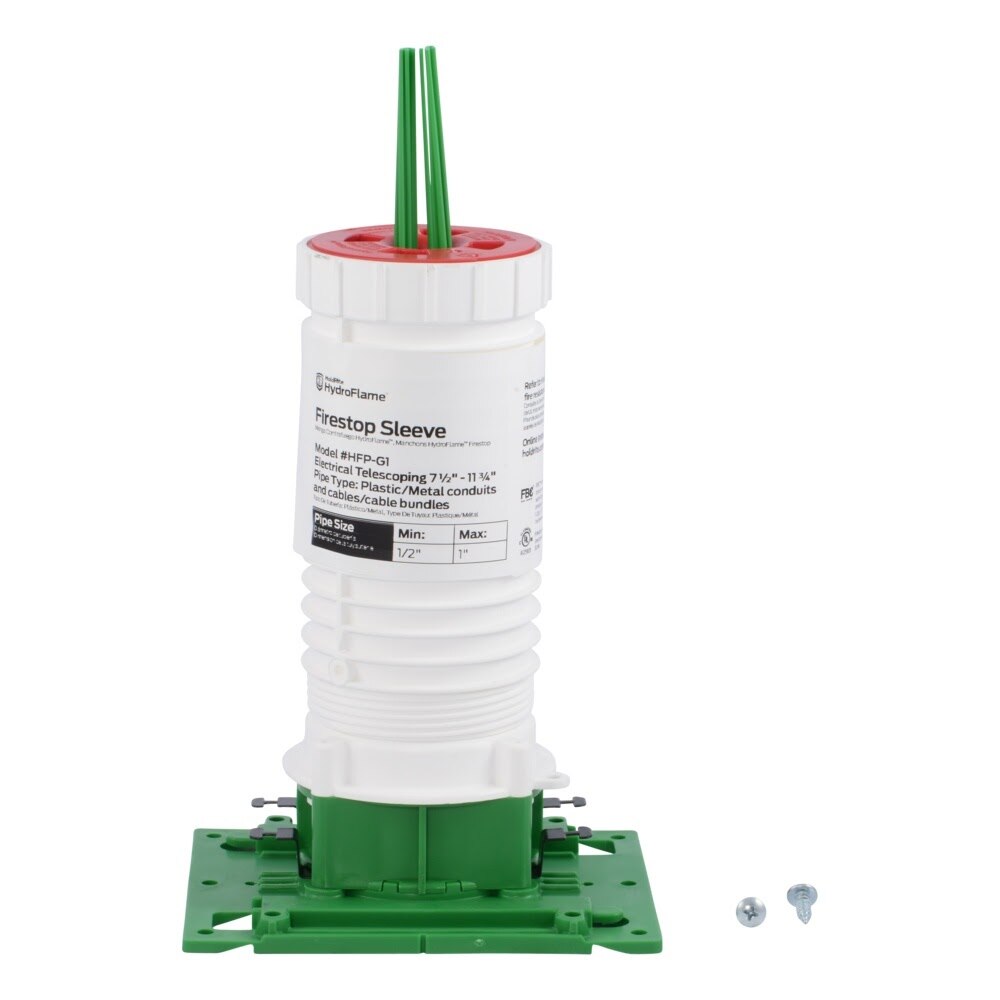

The HoldRite HydroFlame Pro Series electrical firestop telescoping deck sleeve is designed for through-slab installations with 1/2 in. to 1 in. plastic or metal conduits and cable bundles. Its telescoping design provides a 7-1/2 in. to 11-3/4 in. height range and features firestop and sealing components for reliable installation performance.

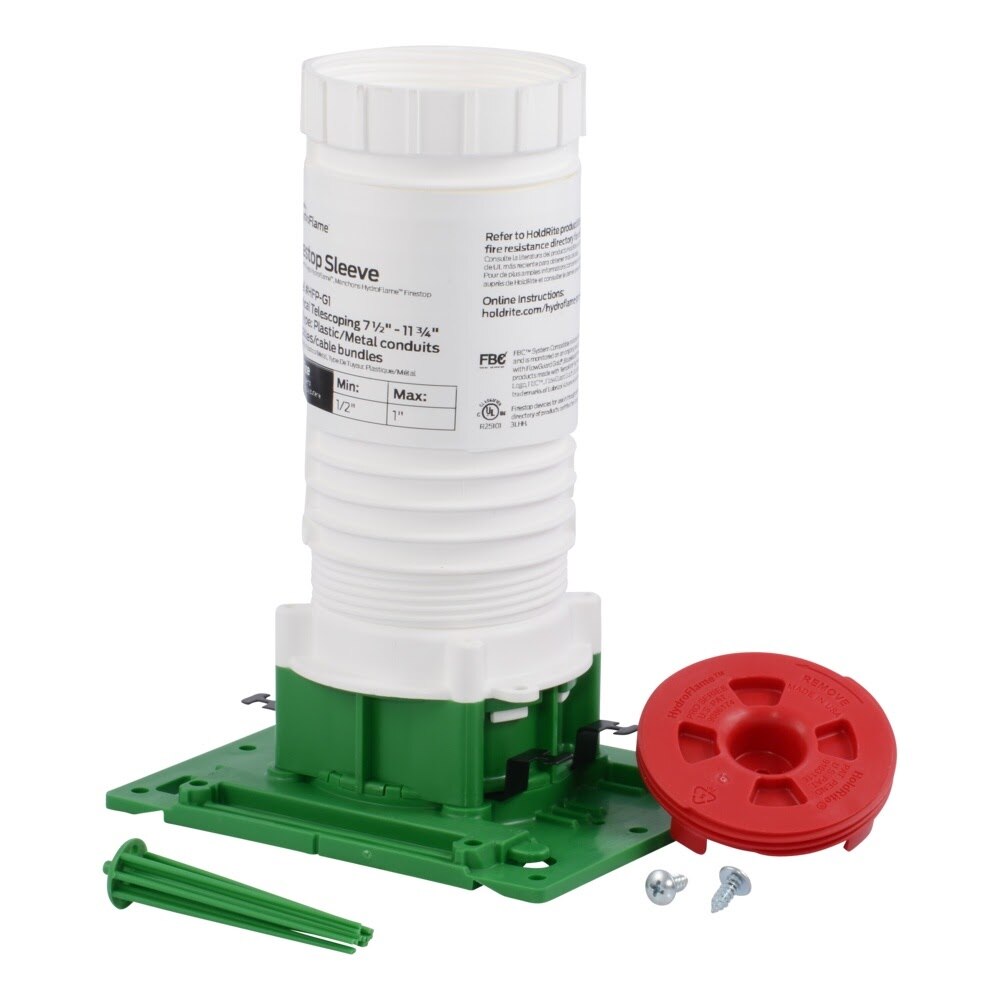

HoldRite HFP-G1 Includes
- (1) Electrical firestop telescoping deck sleeve
- (1) Safety cap
- (1) Set of green locator whiskers
- (2) Screws
HoldRite HFP-G1 Features
- Telescoping sleeve adjusts from 7-1/2 in. to 11-3/4 in. tall
- Designed for 1/2 in. to 1 in. plastic or metal conduits and cable bundles
- UL listed intumescent composite firestop material
- Polypropylene body and safety cap
- Thermoplastic rubber mid-body seal
- Mold and fungus resistant per ASTM G-21
- 24GA CRS fire ring
- Suitable for through-slab electrical sleeve applications
HoldRite HFP-G1 Specifications
| Brand | HoldRite |
| Model | HFP-G1 |
| Product Type | Electrical Firestop Telescoping Deck Sleeve |
| Series | HydroFlame Pro Series |
| Application | Through-slab electrical sleeves |
| Compatible Conduit Size | 1/2 in. to 1 in. |
| Height Range | 7-1/2 in. to 11-3/4 in. |
| Body and Safety Cap Material | Polypropylene |
| Mid-Body Seal Material | Thermoplastic Rubber (TPR) |
| Green Locator Whiskers Material | Polypropylene |
| Fire Ring Material | 24GA CRS |
| Firestop Material | UL Listed Intumescent Composite |
| Mold and Fungus Resistance | ASTM G-21 |
| Product Length (in) | 5.25 |
| Product Width (in) | 4.25 |
| Product Height (in) | 7.5 |
| Product Weight (lb) | 0.65 |
