HoldRite HFP-G4B Description

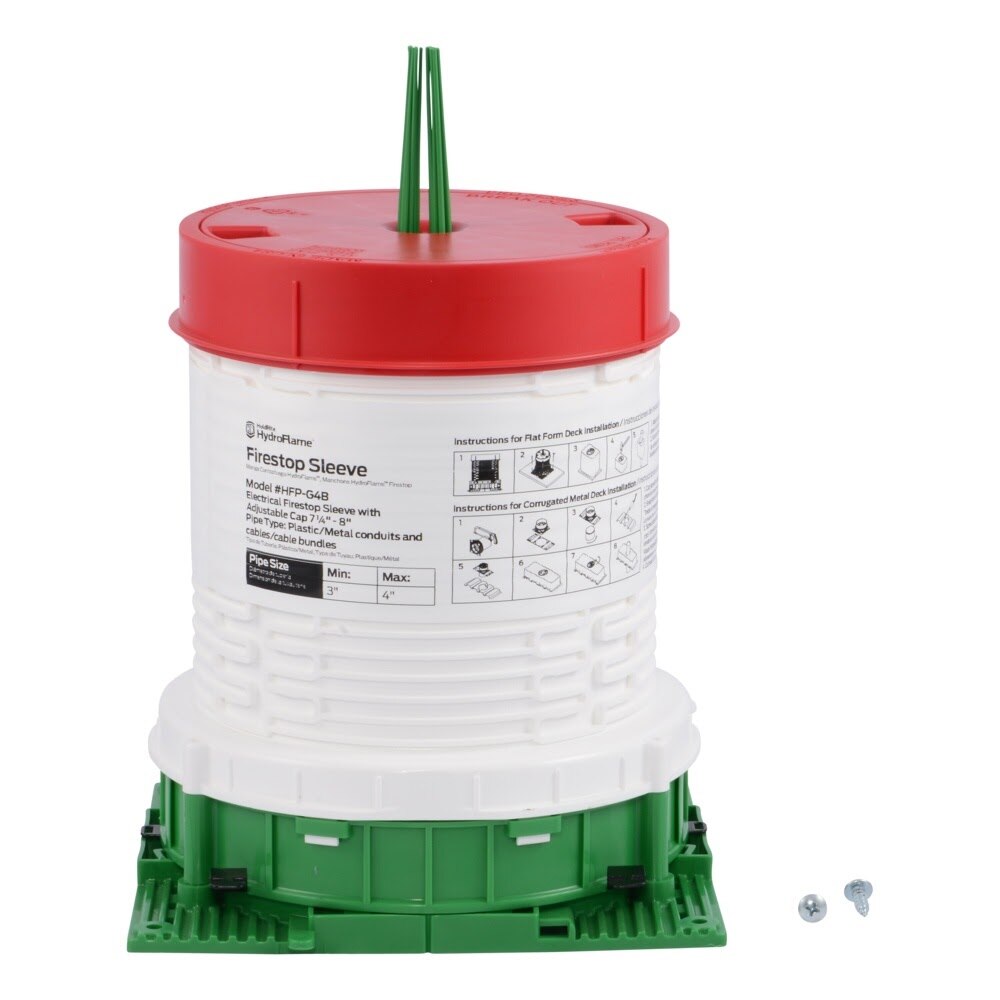

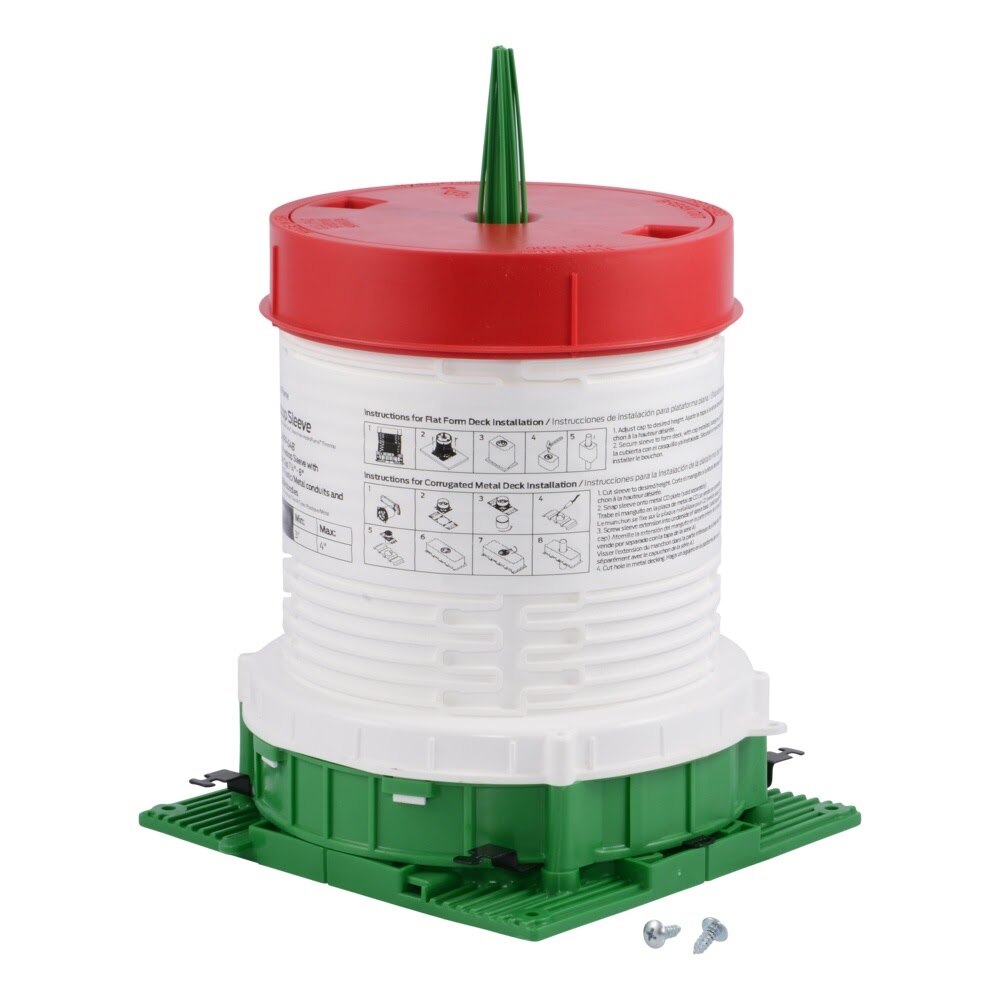

The HoldRite HydroFlame Pro Series electrical firestop deck sleeve is designed for through-slab electrical penetrations in new commercial concrete floor construction. This adjustable sleeve fits 3 in. to 4 in. plastic or metal conduit or cables and provides built-in fire, smoke, gas, and water protection with a safety cap and locator whisker for easy identification after the concrete pour.

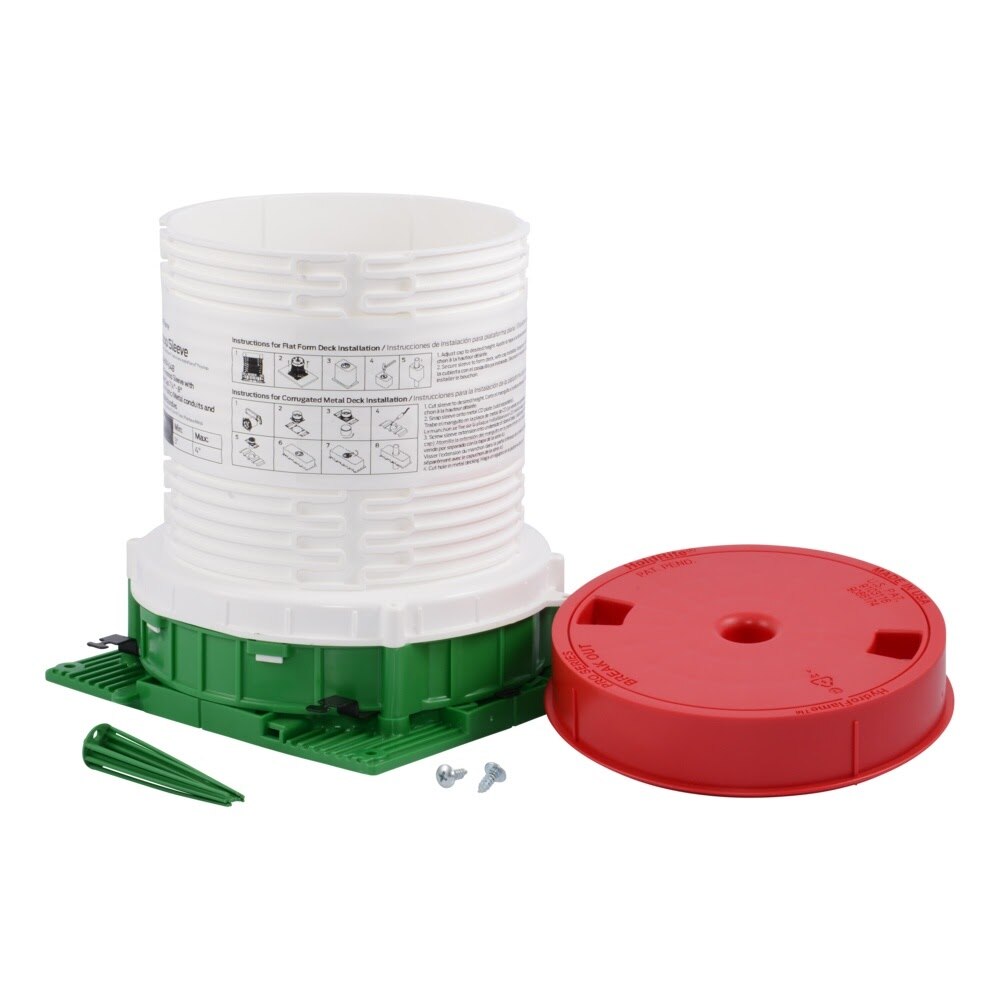

HoldRite HFP-G4B Includes
- (1) Electrical Firestop Deck Sleeve
- (1) Adjustable Cap
- (1) Locator Whisker
- (2) Screws
HoldRite HFP-G4B Features
- Fits 3 in. to 4 in. plastic or metal conduits, cables, or cable bundles
- Adjustable height from 7-1/4 in. to 8 in.
- Can be cut down as low as 3-1/2 in.
- Designed for new commercial concrete floor construction
- Built-in fire, smoke, gas, and water protection
- Safety cap meets OSHA hole cover requirements
- Green locator whisker helps identify electrical penetrations above the slab after the pour
- Green base helps identify penetrations from underneath the slab after the pour
- UL W-Rated seal provides water-tight performance for most penetrants
- Allows for contraction, expansion, movement, and off-center penetrants
- Interlocking base assists with layout alignment
- Tested to ASTM E814, UL 1479, and CAN/ULC S115 standards
HoldRite HFP-G4B Specifications
| Series | HydroFlame Pro Series |
| Product Type | Electrical Firestop Deck Sleeve |
| Model | HFP-G4B |
| Cap Type | Adjustable Cap |
| Compatible Conduit or Cable Size | 3 in. to 4 in. |
| Adjustable Height | 7-1/4 in. to 8 in. |
| Minimum Cut Height | 3-1/2 in. |
| Application | Through-slab electrical penetrations in new commercial concrete floor construction |
| Deck Compatibility | Flat deck concrete, post tension concrete slabs, and concrete over metal decking |
| Protection | Fire, smoke, gas, and water |
| Water Rating | UL W-Rated seal |
| Testing Standards | ASTM E814, UL 1479, CAN/ULC S115 |
| ULC Rating | 50 Pa |
| Acoustic Data | ASTM E90 |
| Mold and Mildew Resistance | ASTM G21 |
| Product Length | 6.95 in. |
| Product Width | 6.75 in. |
| Product Height | 7.25 in. |
| Product Weight | 1.53 lb |
| Case Quantity | 10 |
