HoldRite HFP-H2 Description

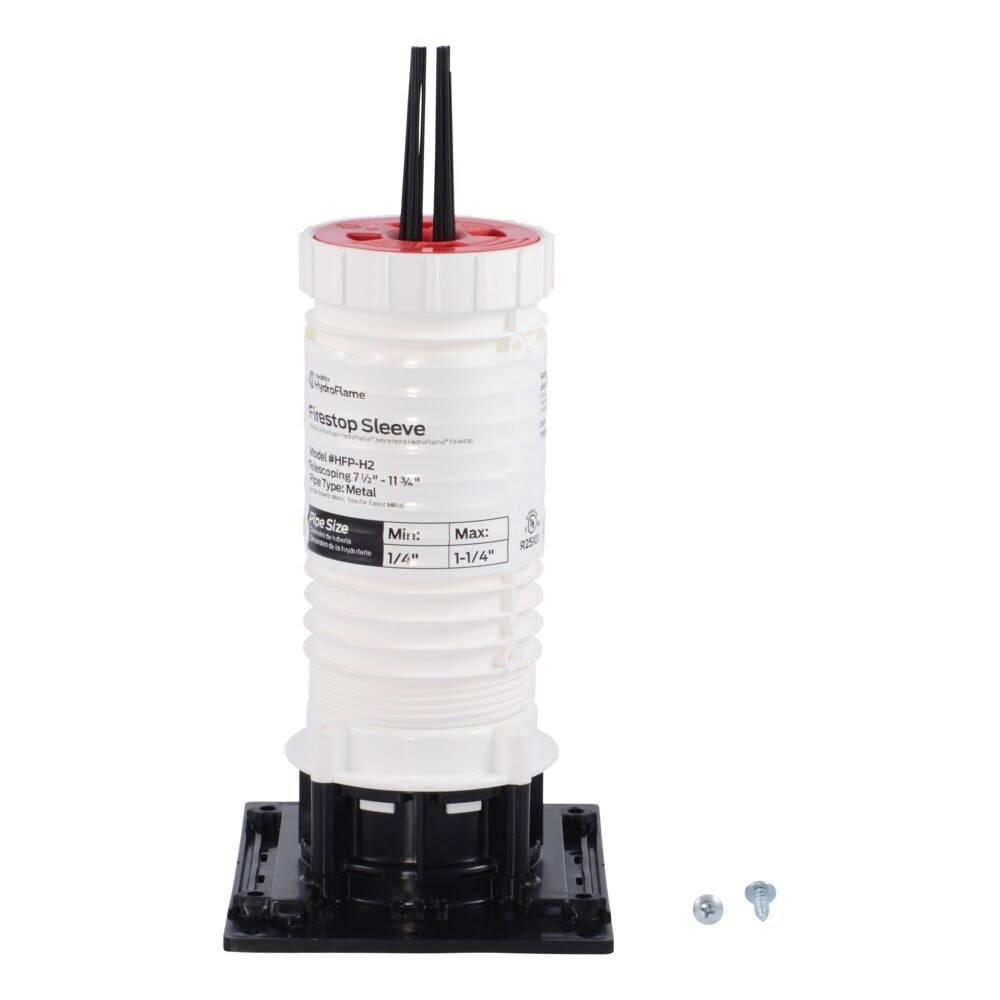

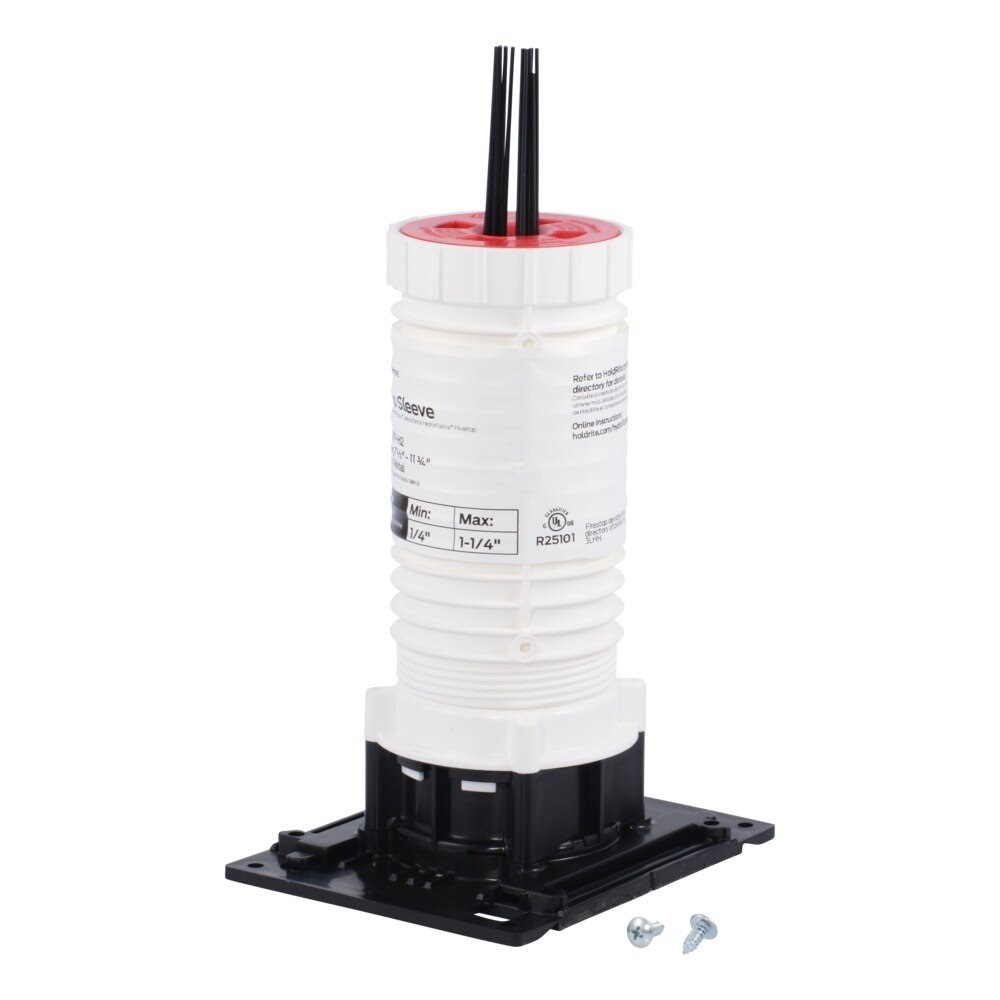

The HoldRite HydroFlame Pro Series HFP-H2 hollow telescoping deck sleeve provides a fast, simple solution for slab penetrations in flat form decks. It features a 1-7/8 in. inner diameter and an adjustable height range of 7-1/2 in. to 11-3/4 in. for flexible installation, with locator whiskers and a safety cap to help simplify placement and protection during installation.

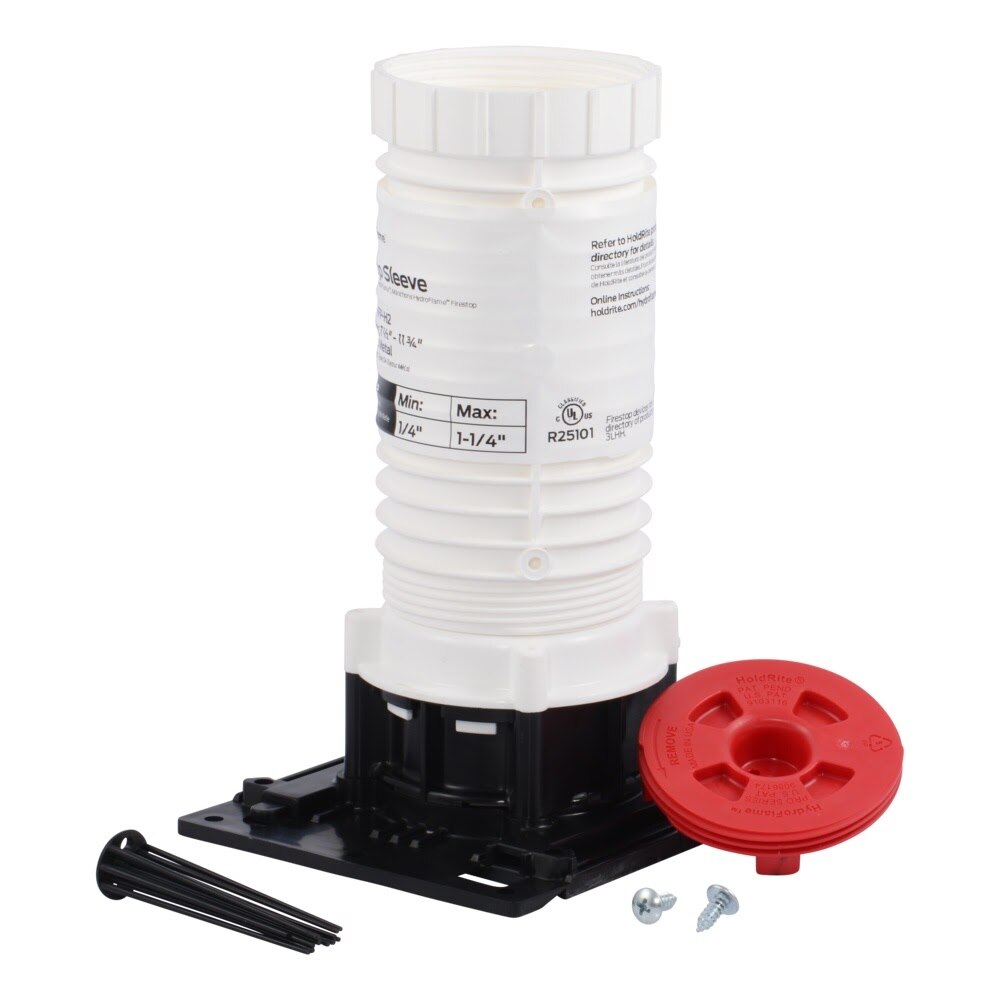

HoldRite HFP-H2 Includes
- (1) Hollow telescoping deck sleeve
- (1) Safety cap
- (1) Locator whisker set
- (2) Mounting screws
HoldRite HFP-H2 Features
- Telescoping design adjusts from 7-1/2 in. to 11-3/4 in. tall
- 1-7/8 in. inner diameter for 1/4 in. to 1-1/4 in. nominal penetrants
- Fast, simple concrete sleeve for flat form decks
- Includes locator whiskers to help locate buried sleeves
- Safety cap helps meet OSHA hole cover requirements
- No field assembly required
- Sleeve remains in slab after installation
- Marked dimensions on sleeve help simplify height adjustment when cutting
- Can be cut as short as 4-1/2 in.
- Accepts HydroFlame Pro Series corrugated metal deck plate
- UL listed when installed per applicable UL systems
HoldRite HFP-H2 Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Model | HFP-H2 |
| Product Type | Hollow Telescoping Deck Sleeve |
| Inner Diameter | 1-7/8 in. |
| Adjustable Height | 7-1/2 in. to 11-3/4 in. |
| Nominal Penetrant Size | 1/4 in. to 1-1/4 in. |
| Minimum Cut Height | 4-1/2 in. |
| Deck Type | Flat form decks |
| UL Listed | Yes |
| Each Length | 5.25 in. |
| Each Width | 4.25 in. |
| Each Height | 7.5 in. |
| Each Shipping Weight | 0.61 lb |
| Case Quantity | 10 |
