HoldRite HFP-H2B Description

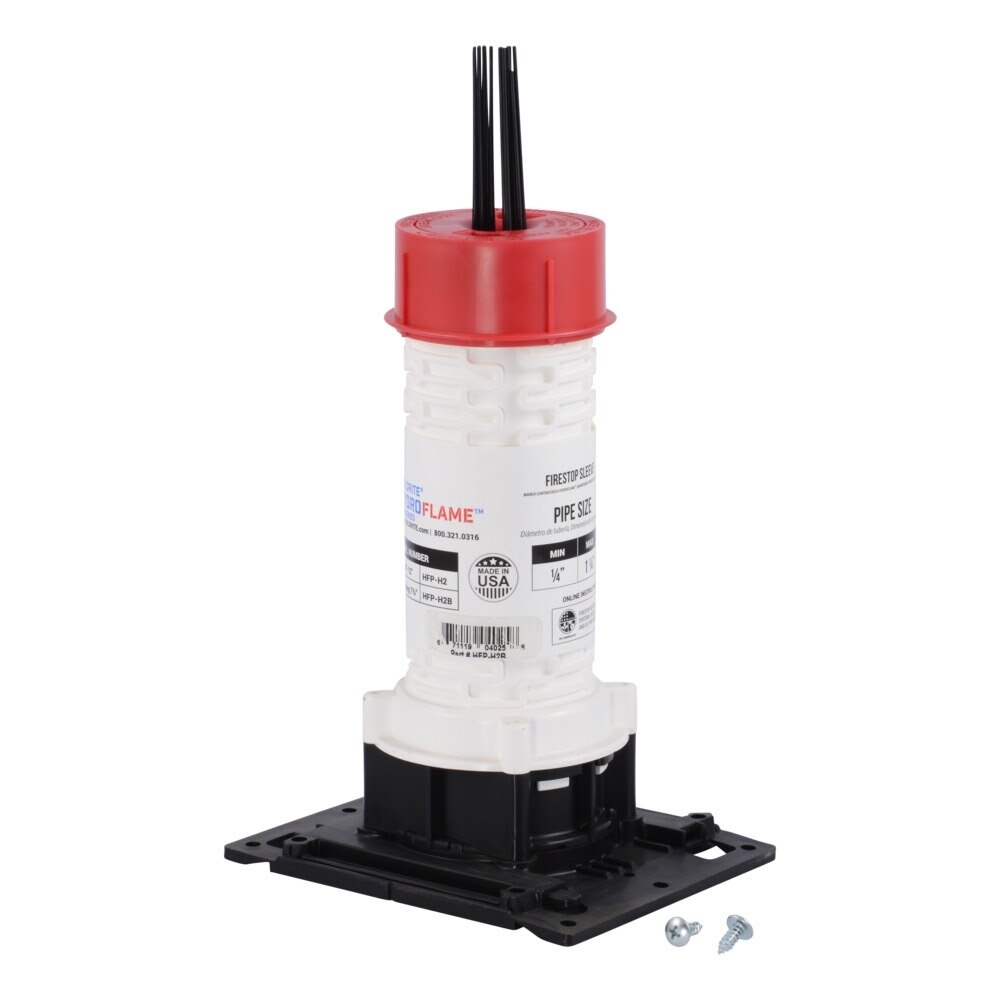

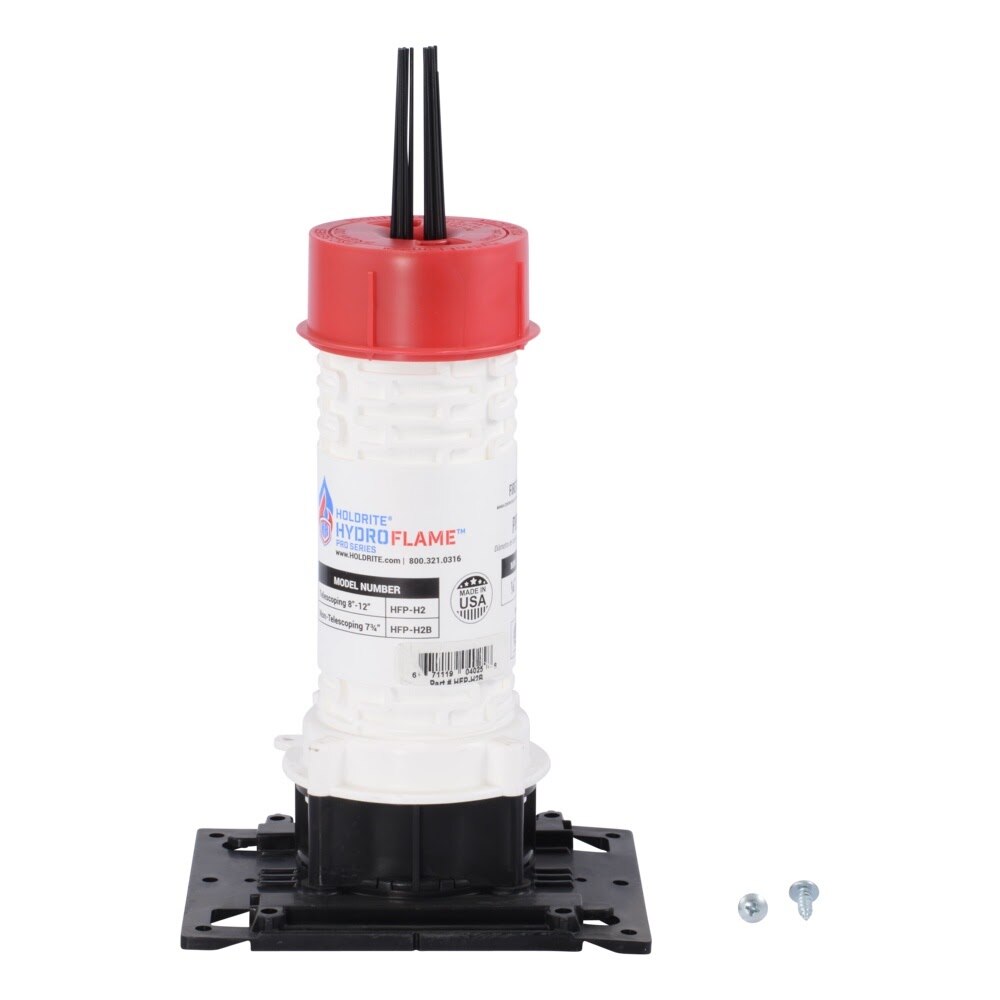

The HoldRite HydroFlame Pro Series hollow deck sleeve is designed for concrete slab penetrations and fits plastic and metal pipe applications. This sleeve features a 1-7/8 in. inside diameter, adjustable 7-1/4 in. to 8 in. height, removable safety cap, and locator whiskers for easier installation and identification.

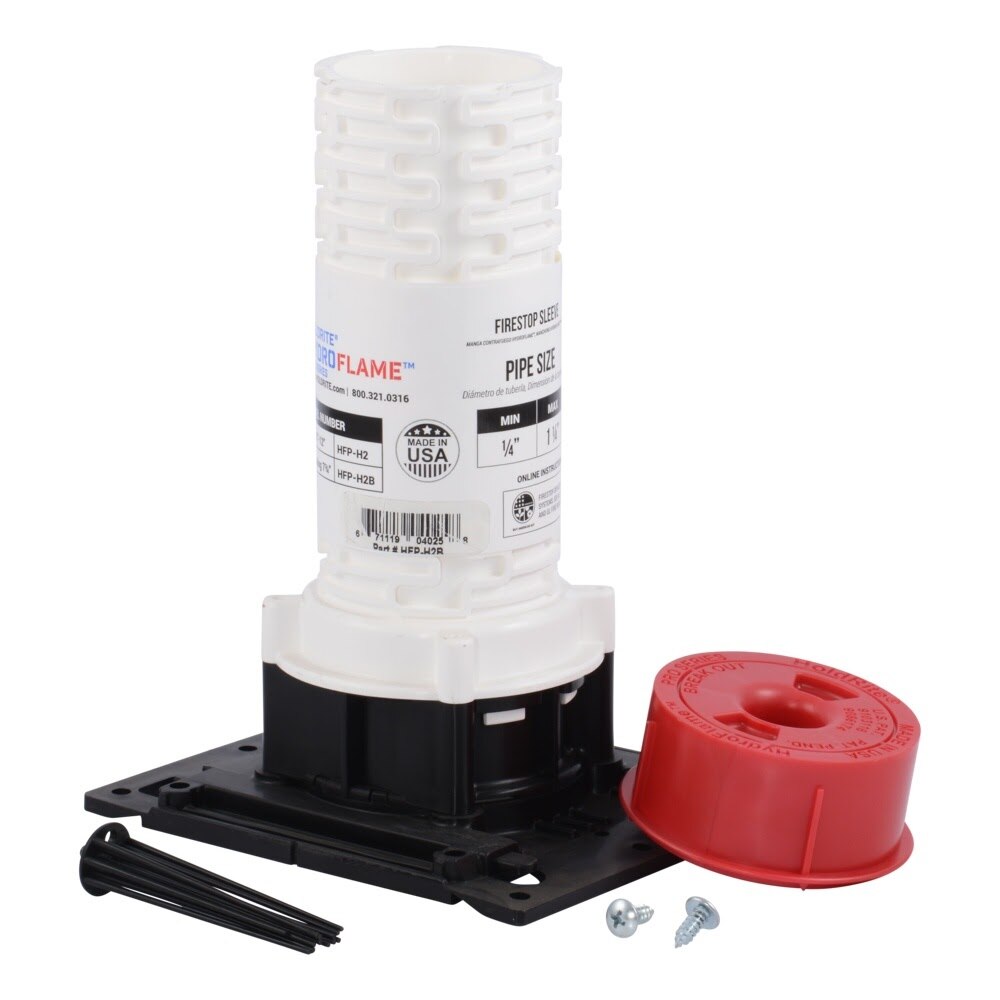

HoldRite HFP-H2B Includes
- (1) HydroFlame Pro Series Hollow Deck Sleeve
- (1) Adjustable Safety Cap
- (1) Set of Locator Whiskers
- (2) Mounting Screws
HoldRite HFP-H2B Features
- 1-7/8 in. inside diameter sleeve
- Adjustable 7-1/4 in. to 8 in. tall design
- For plastic and metal pipe penetrations
- Suitable for insulated and non-insulated pipes
- Fast, simple concrete sleeve for flat form decks
- Includes locator whiskers to help locate buried sleeves
- Dimensions on sleeve allow simple height adjustment when cutting
- Safety cap meets OSHA hole cover requirements
- No field assembly required
- Sleeve remains in slab after installation
- UL listed sleeve when installed per UL systems
- Can achieve 2 or 3-hour F-ratings when firestopping is provided by others
HoldRite HFP-H2B Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Model | HFP-H2B |
| Product Type | Hollow Deck Sleeve |
| Inside Diameter | 1-7/8 in. |
| Adjustable Height | 7-1/4 in. to 8 in. |
| Nominal Penetrant Size | 1/4 in. - 1-1/4 in. |
| Penetrating Pipe Type | Plastic and Metal |
| Application | Concrete slab penetrations |
| Each Length | 5.25 in. |
| Each Width | 4.25 in. |
| Each Height | 7.75 in. |
| Each Shipping Weight | 0.49 lb |
| Case Quantity | 10 |
| Country of Origin | USA |
Toolup Part # :
883956
