HoldRite HFP-H3 Description

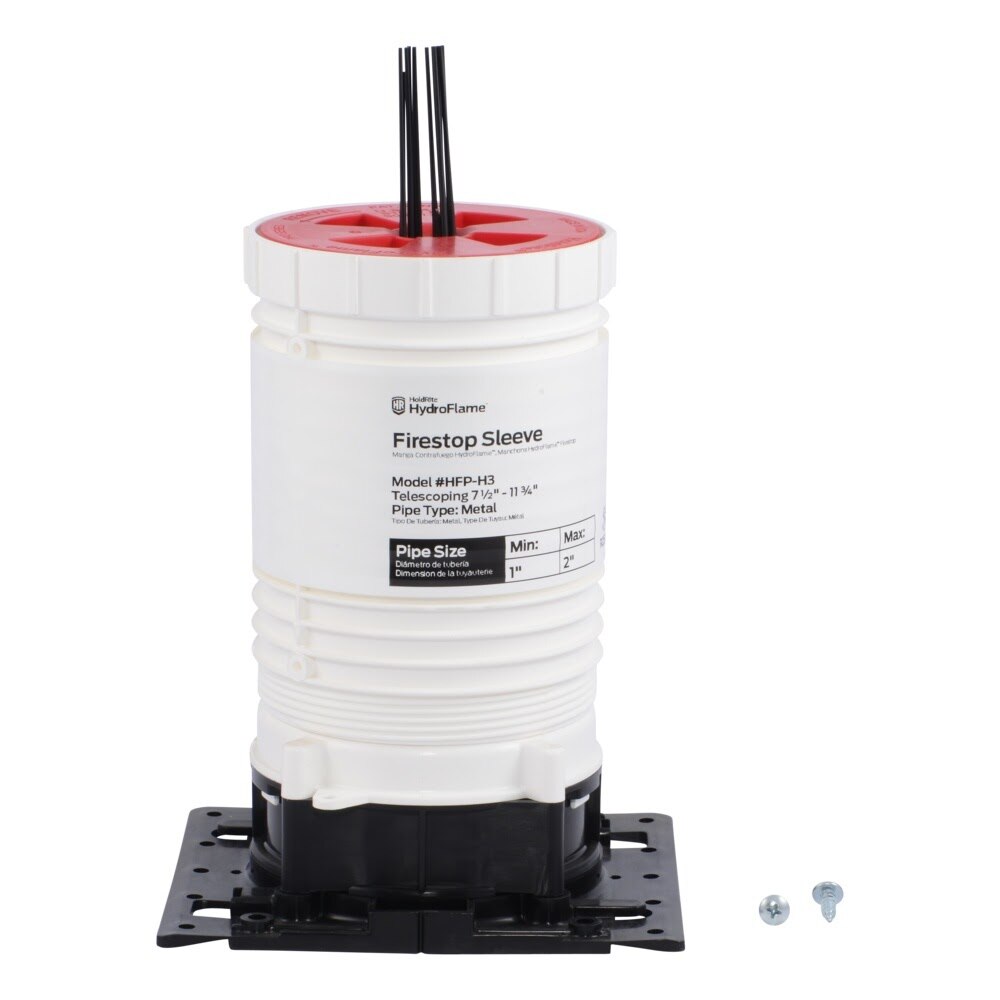

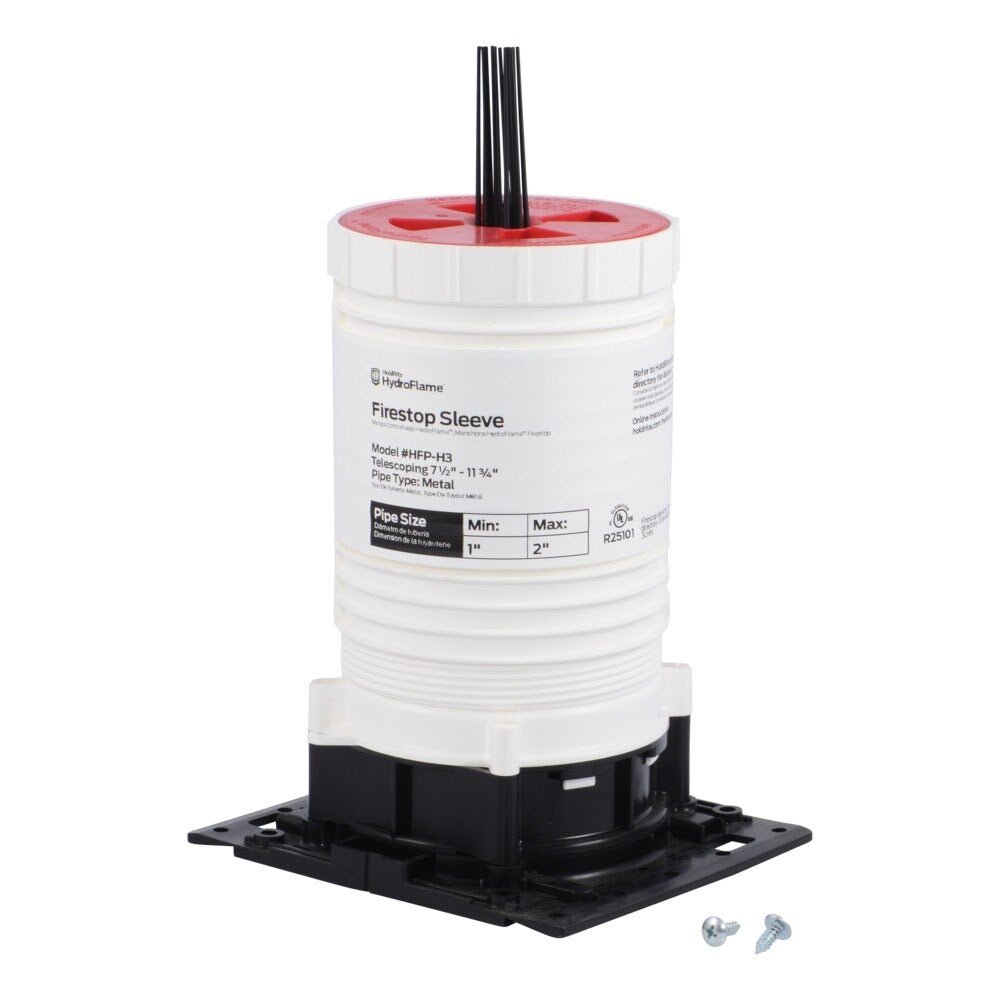

The HoldRite HydroFlame Pro Series HFP-H3 is a hollow telescoping deck sleeve with a 3 in. inside diameter and an adjustable height range of 7-1/2 in. to 11-3/4 in. Designed for flat form deck applications, it provides a simple sleeve solution for 1 in. to 2 in. metal pipe penetrations and includes locator whiskers and a safety cap for easier installation.

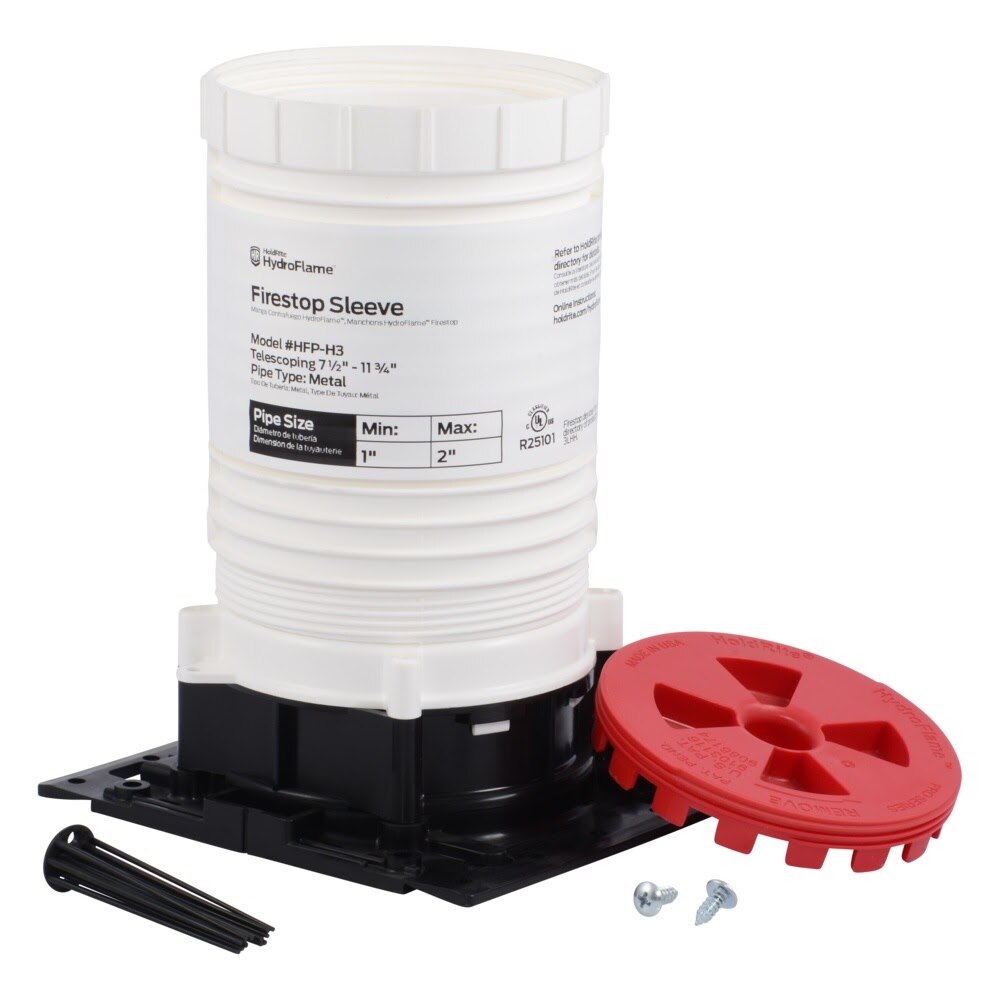

HoldRite HFP-H3 Includes
- (1) Hollow telescoping deck sleeve
- (1) Safety cap
- (1) Set of locator whiskers
- (2) Screws
HoldRite HFP-H3 Features
- 3 in. inside diameter sleeve
- Telescoping height adjusts from 7-1/2 in. to 11-3/4 in.
- Sized for 1 in. to 2 in. metal pipe penetrations
- UL listed when installed per applicable UL systems
- Can achieve 2- or 3-hour F-ratings when used with the appropriate firestop system
- Firestopping is provided by others and no intumescent material is included
- Designed for flat form deck applications
- Adjusts in 1/4 in. increments
- Can be cut as short as 4-1/2 in.
- Includes locator whiskers to help locate buried sleeves
- Safety cap meets OSHA hole cover requirements
- No field assembly required
- Sleeve remains in the slab after installation
HoldRite HFP-H3 Specifications
| Series | HydroFlame Pro Series |
| Product Type | Hollow telescoping deck sleeve |
| Inside Diameter | 3 in. |
| Adjustable Height | 7-1/2 in. to 11-3/4 in. |
| Pipe Size Range | 1 in. to 2 in. |
| Pipe Type | Metal |
| Application | Flat form deck |
| UL Listed | Yes |
| Cut To Length | 4-1/2 in. |
| Each Shipping Weight | 0.83 lb |
