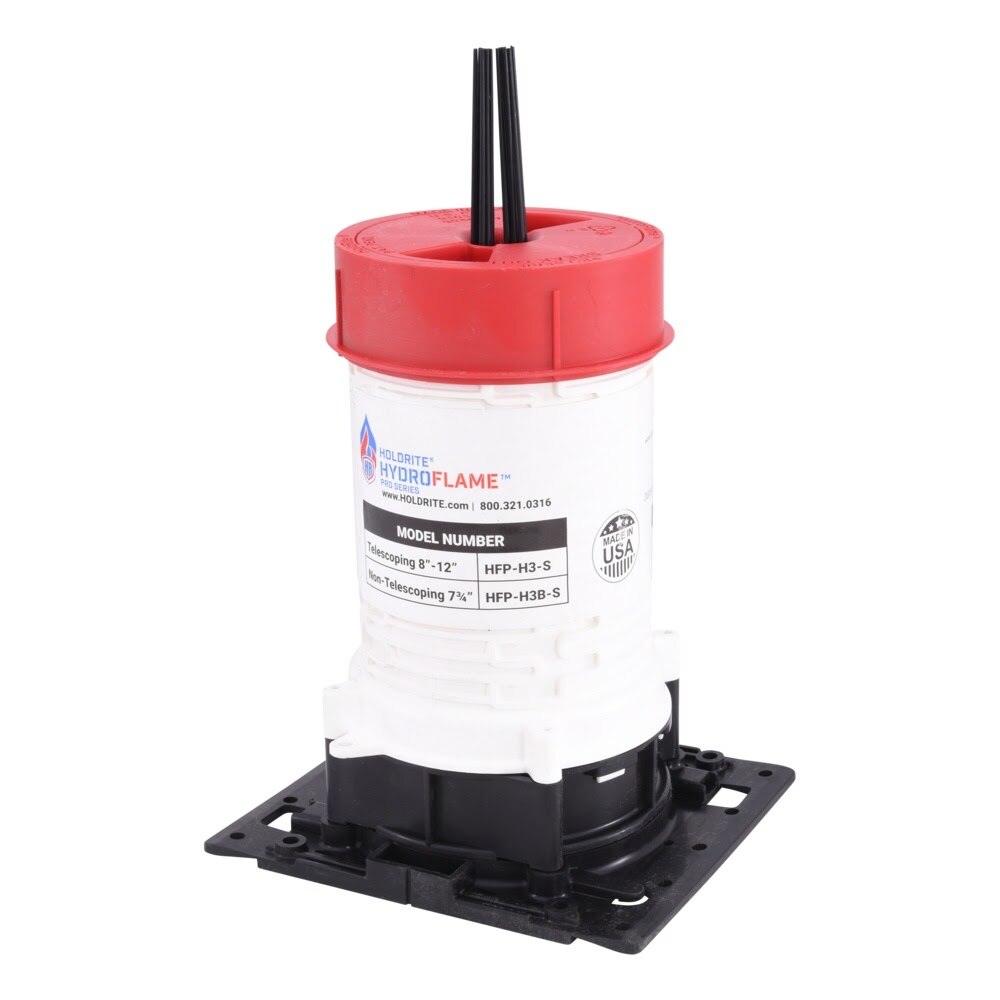

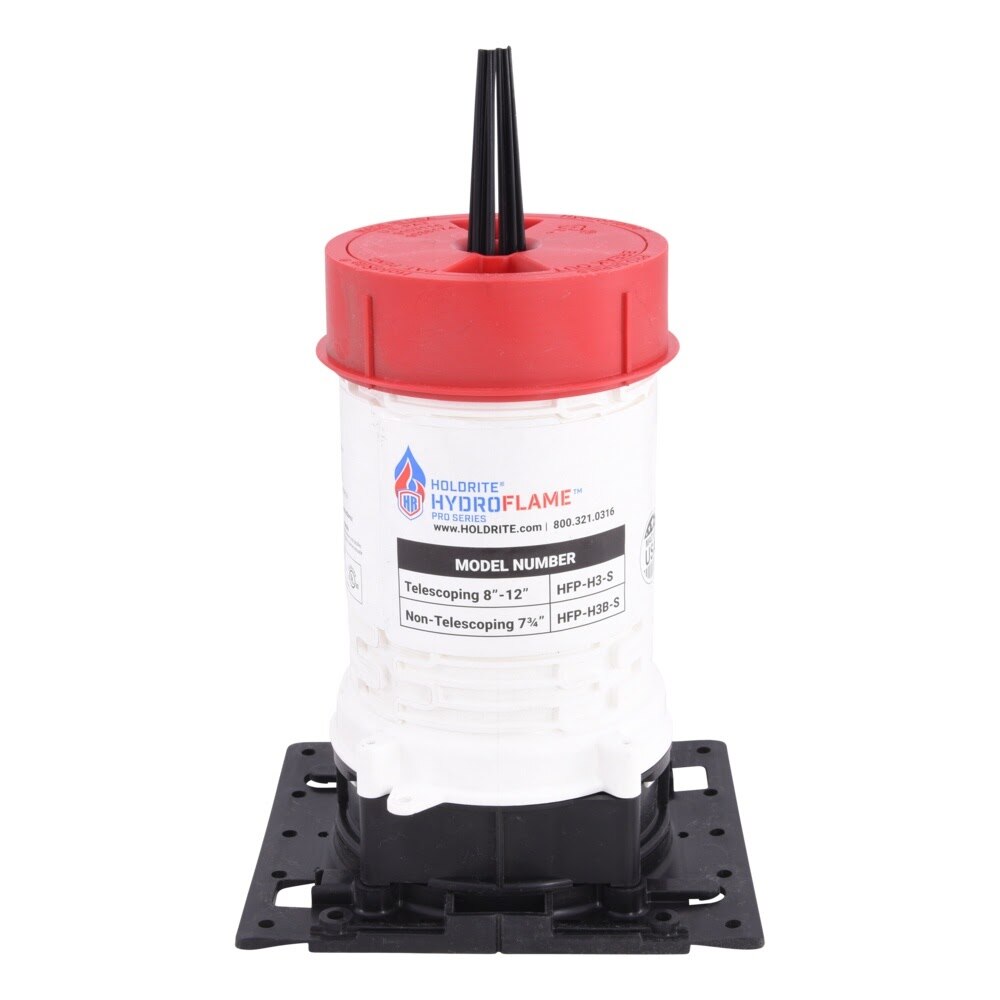

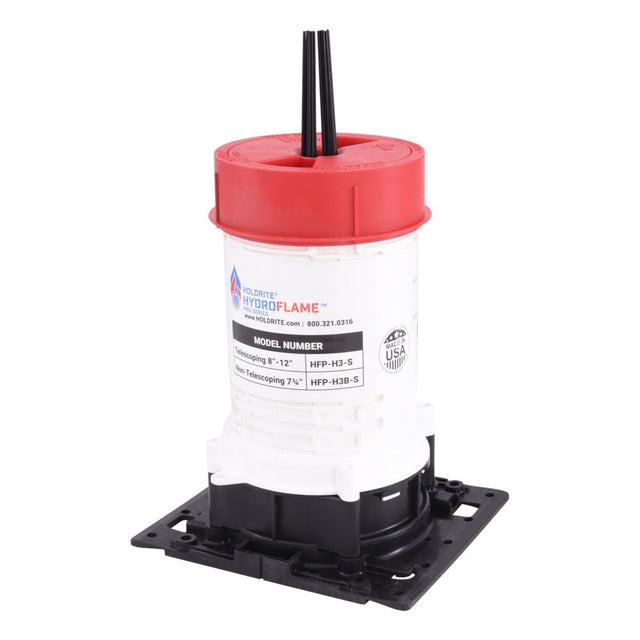

HoldRite HFP-H3B Description
The HoldRite HydroFlame Pro Series hollow deck sleeve provides a fast, simple sleeve solution for concrete and flat form deck applications. This 3 in. ID model adjusts from 7-1/4 in. to 8 in. tall with an adjustable safety cap, can be cut down to 3-1/2 in., and is designed for insulated and non-insulated pipe penetrations as well as drain and multi-pipe applications.

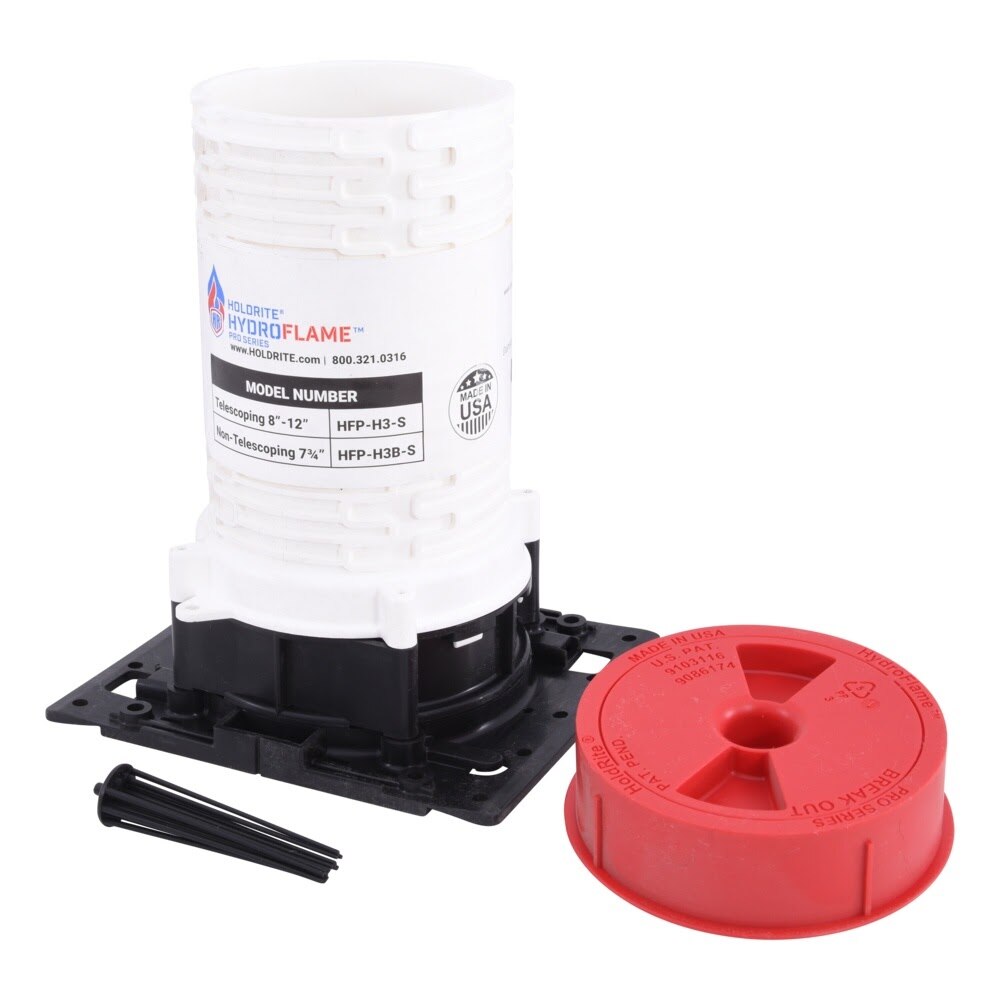

HoldRite HFP-H3B Includes
- (1) HydroFlame Pro Series Hollow Deck Sleeve
- (1) Adjustable Cap
- (1) Set of Locator Whiskers
HoldRite HFP-H3B Features
- 3 in. inside diameter sleeve for through-penetration applications
- Adjustable cap allows height adjustment from 7-1/4 in. to 8 in.
- Can be cut down to as short as 3-1/2 in.
- Suitable for insulated and non-insulated pipes
- Can be used for floor drains, shower drains, closet flanges, multi-pipe penetrations, and line sets
- Includes locator whiskers to help locate buried sleeves
- Safety cap meets OSHA hole cover requirements
- Accepts HoldRite HydroFlame Pro Series corrugated metal deck plate for corrugated deck forms
- Tested to ASTM E814, UL 1479, and CAN/ULC S115 standards
- ASTM E90 acoustic isolation data available
- ASTM G21 mold and mildew tested
- FBC compatible for CPVC
HoldRite HFP-H3B Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Product Type | Hollow Deck Sleeve |
| Part Number | HFP-H3B |
| Inside Diameter | 3 in. |
| Adjustable Height | 7-1/4 in. to 8 in. |
| Minimum Cut Height | 3-1/2 in. |
| Product Length | 5 in. |
| Product Width | 5.75 in. |
| Product Height | 8 in. |
| Product Weight | 0.557 lb |
| Cap Type | Adjustable safety cap |
| Applications | Insulated and non-insulated pipes, floor drains, shower drains, closet flanges, multi-pipe penetrations, and line sets |
| Standards | ASTM E814, UL 1479, CAN/ULC S115 |
| Country of Origin | USA |
