HoldRite HFP-H4B Description

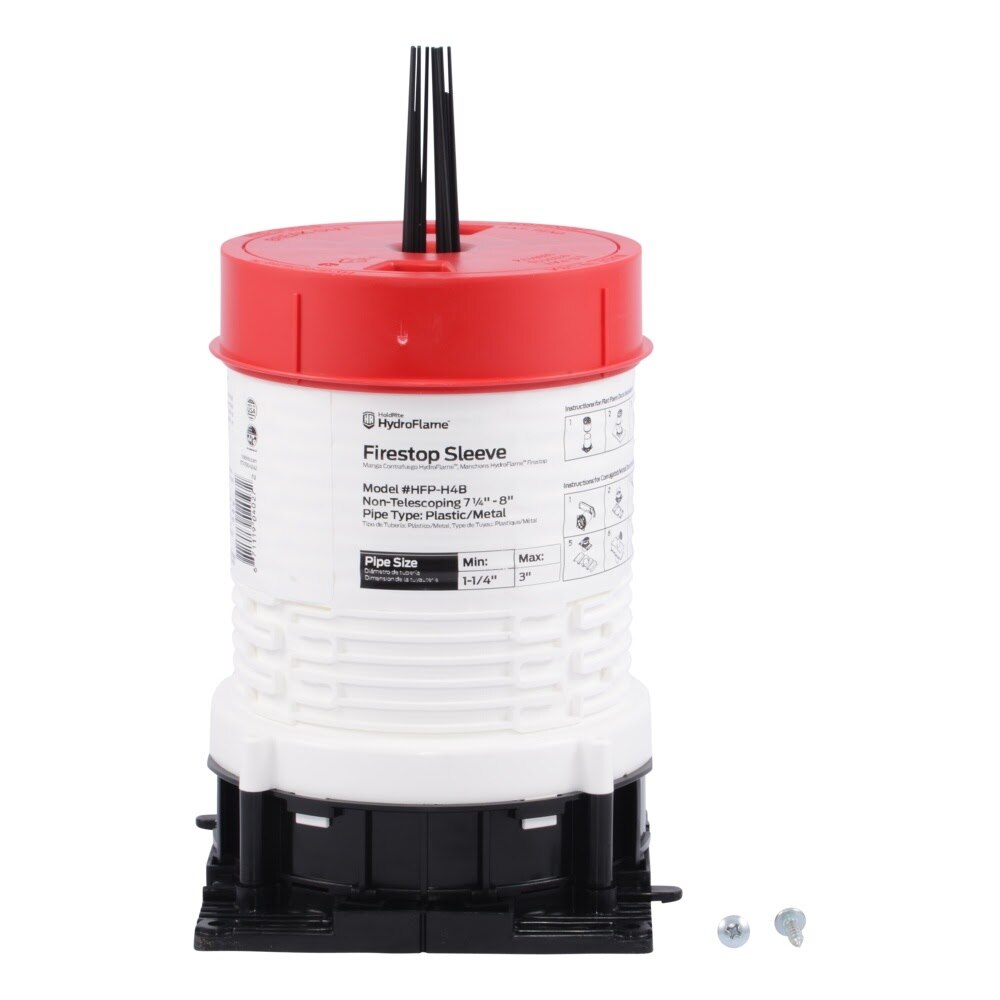

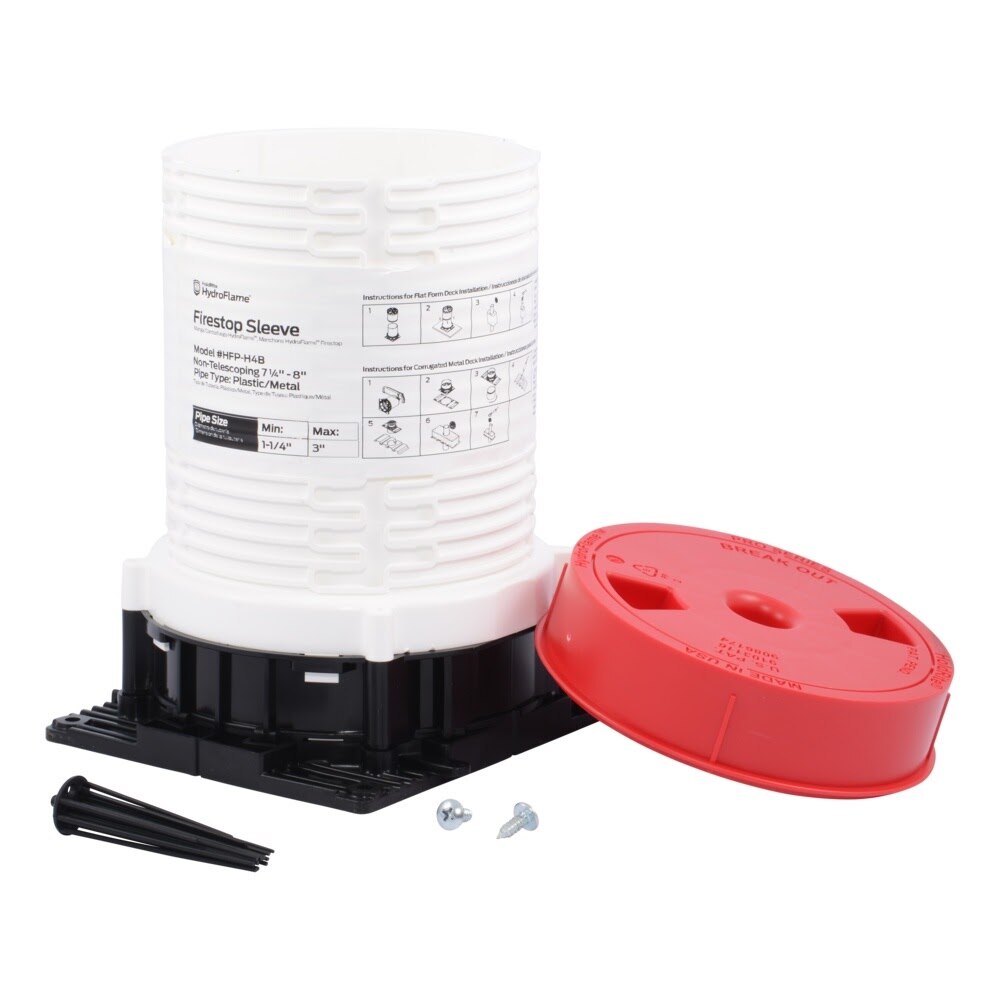

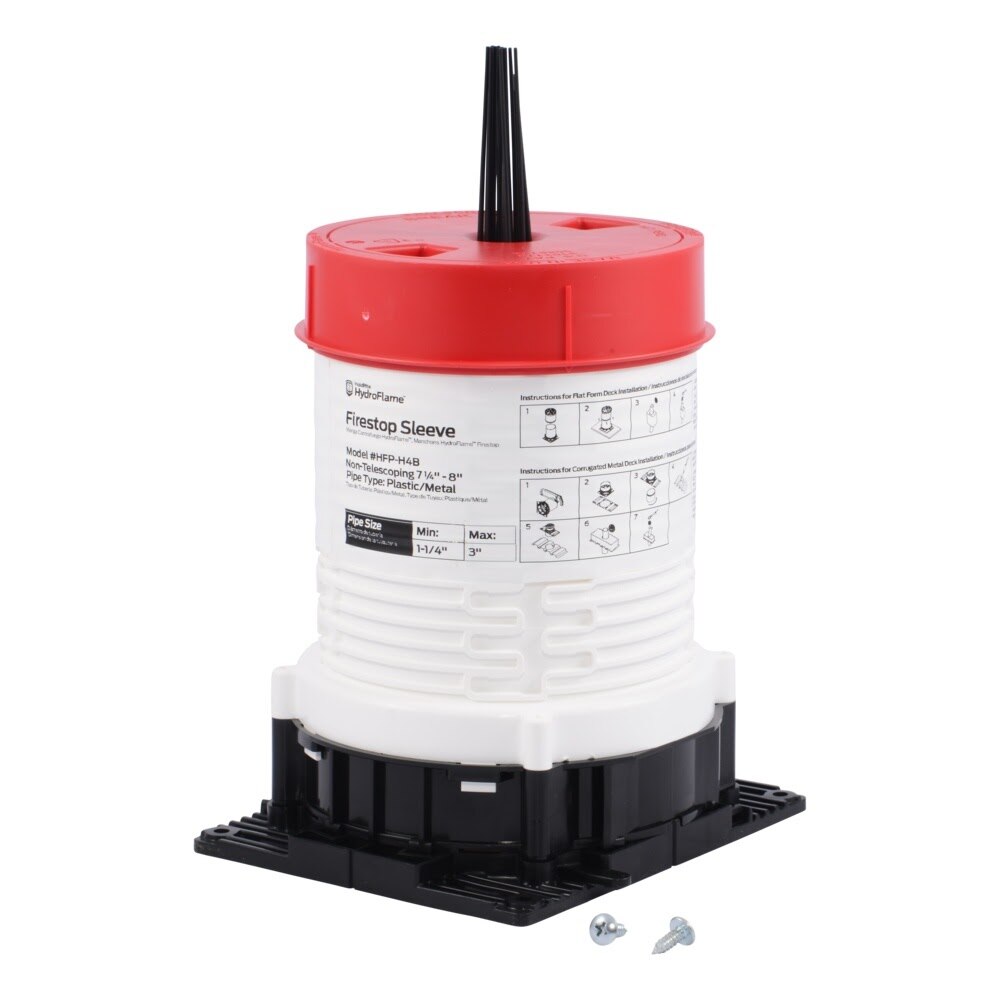

The HoldRite HydroFlame Pro Series hollow deck sleeve is a non-telescoping through-penetration firestop sleeve for flat form decks. This 4 in. ID polypropylene sleeve adjusts from 7-1/4 in. to 8 in. tall, can be cut as short as 4-1/2 in., and includes an adjustable cap and locator whiskers. Designed for plastic and metal pipe penetrations, it remains in the slab and works with additional HoldRite firestop products sold separately.
HoldRite HFP-H4B Includes
- (1) HydroFlame Pro Series hollow deck sleeve
- (1) Adjustable cap
- (1) Set of locator whiskers
HoldRite HFP-H4B Features
- UL Listed sleeve when installed per UL systems
- Firestopping is provided by additional HoldRite firestop products sold separately
- Adjustable height from 7-1/4 in. to 8 in.
- Non-telescoping design can be cut as short as 4-1/2 in.
- For plastic and metal pipe penetrations
- Fits nominal penetrant sizes from 1-1/4 in. to 3 in.
- Suitable for insulated and non-insulated pipes
- Fast, simple concrete sleeve for flat form decks
- Locator whiskers help locate buried sleeves
- Height markings allow simple field adjustment when cutting
- Safety cap meets OSHA hole cover requirements
- No field assembly required
- Sleeve remains in the slab unlike typical hollow sleeves
- Accepts HydroFlame Pro Series corrugated metal deck plate for corrugated deck forms
- Extensions and accessories are available
HoldRite HFP-H4B Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Product Type | Hollow Deck Sleeve |
| Model | HFP-H4B |
| Nominal Inside Diameter | 4 in. |
| Adjustable Height | 7-1/4 in. to 8 in. |
| Minimum Cut Height | 4-1/2 in. |
| Pipe Type | Plastic/Metal |
| Penetrant Size Range | 1-1/4 in. to 3 in. |
| Material | Polypropylene |
| Design | Non-telescoping |
| UL Listed | Yes, when installed per UL systems |
| Intumescent Material Included | No |
| Product Length (in) | 5.869 |
| Product Width (in) | 5.525 |
| Product Height (in) | 8 |
| Product Weight (lbs) | 0.83 |
| Box Quantity | 10 |
| Minimum Order Quantity | 10 |
Toolup Part # :
883384
